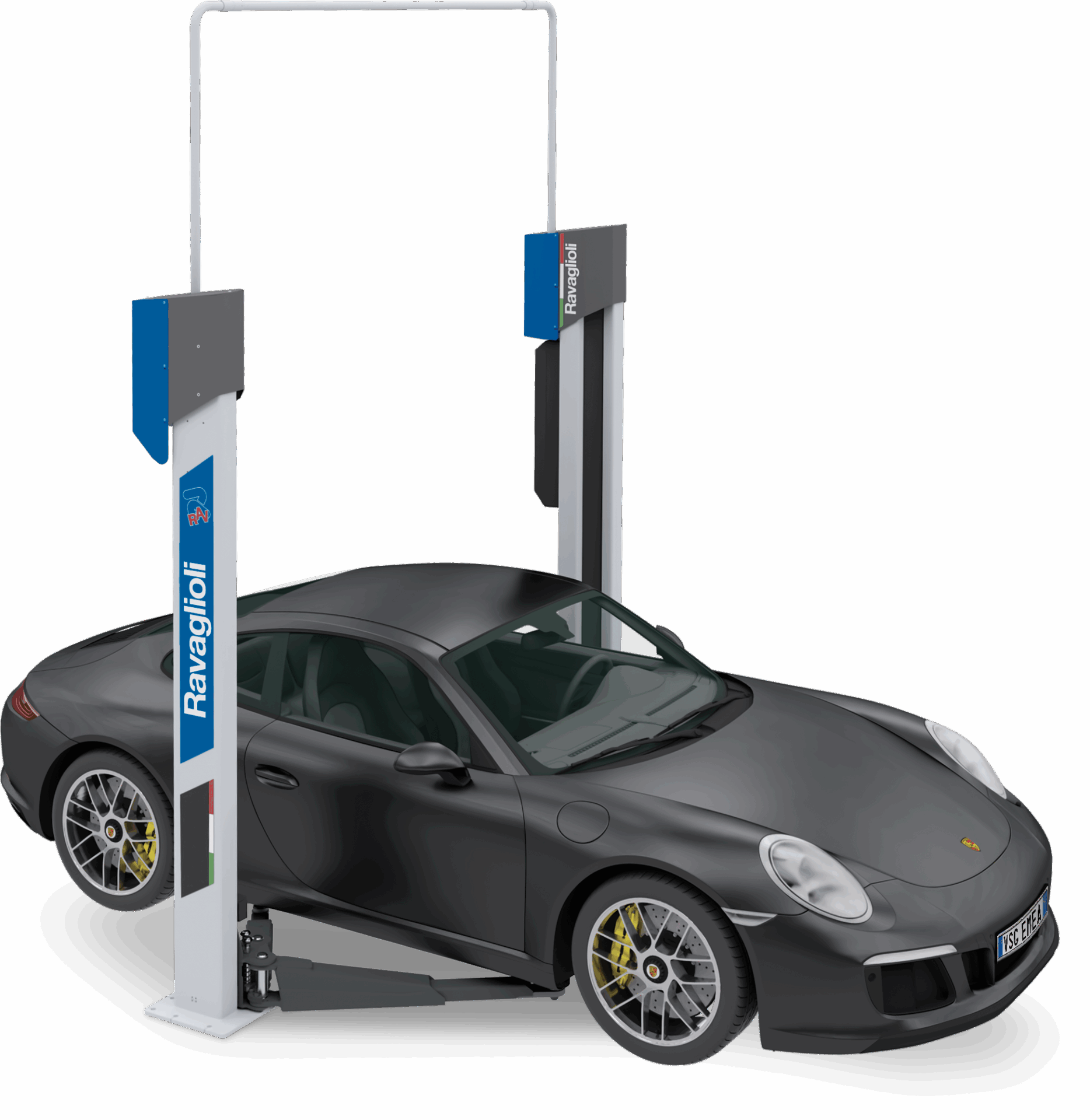

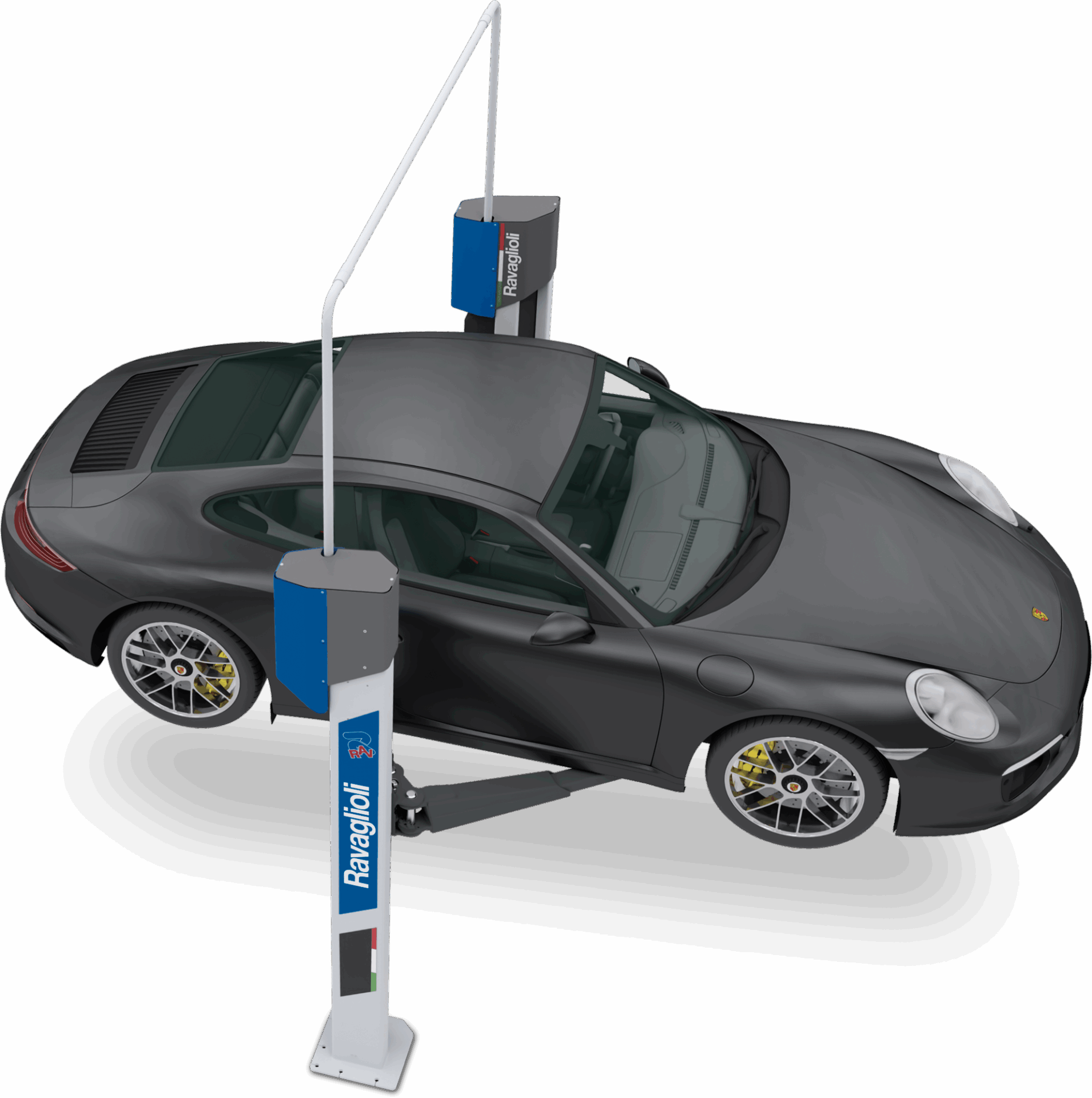

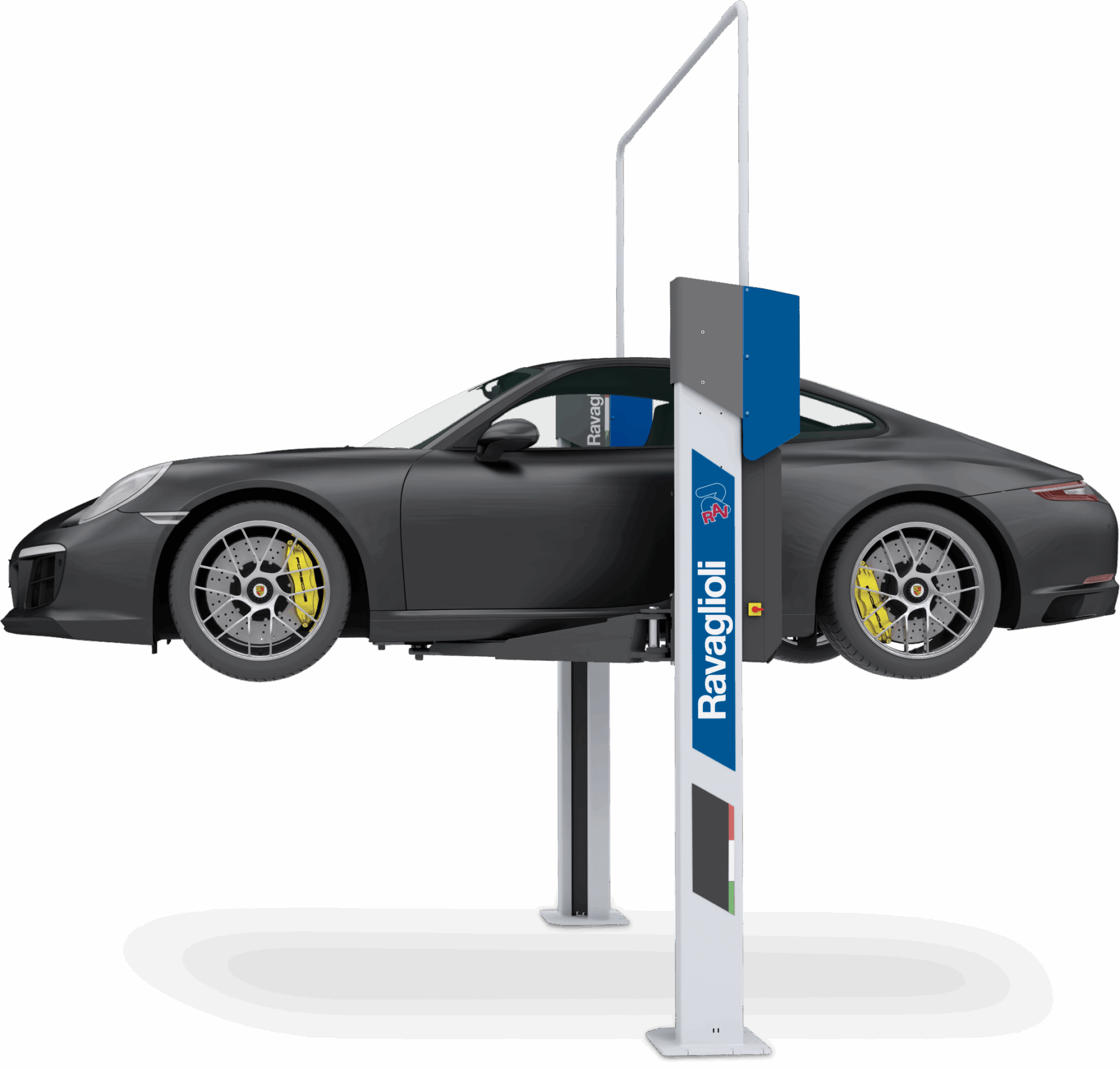

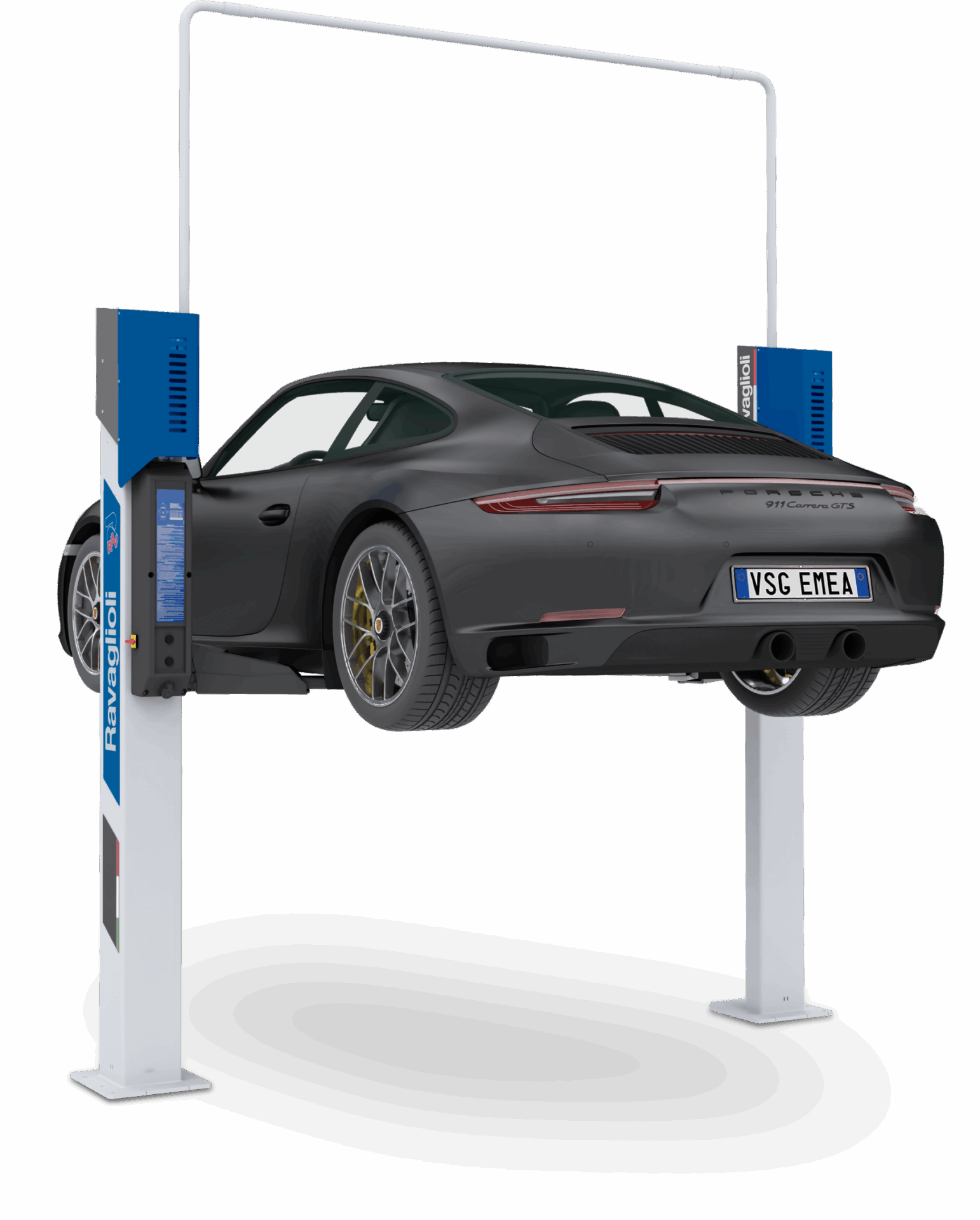

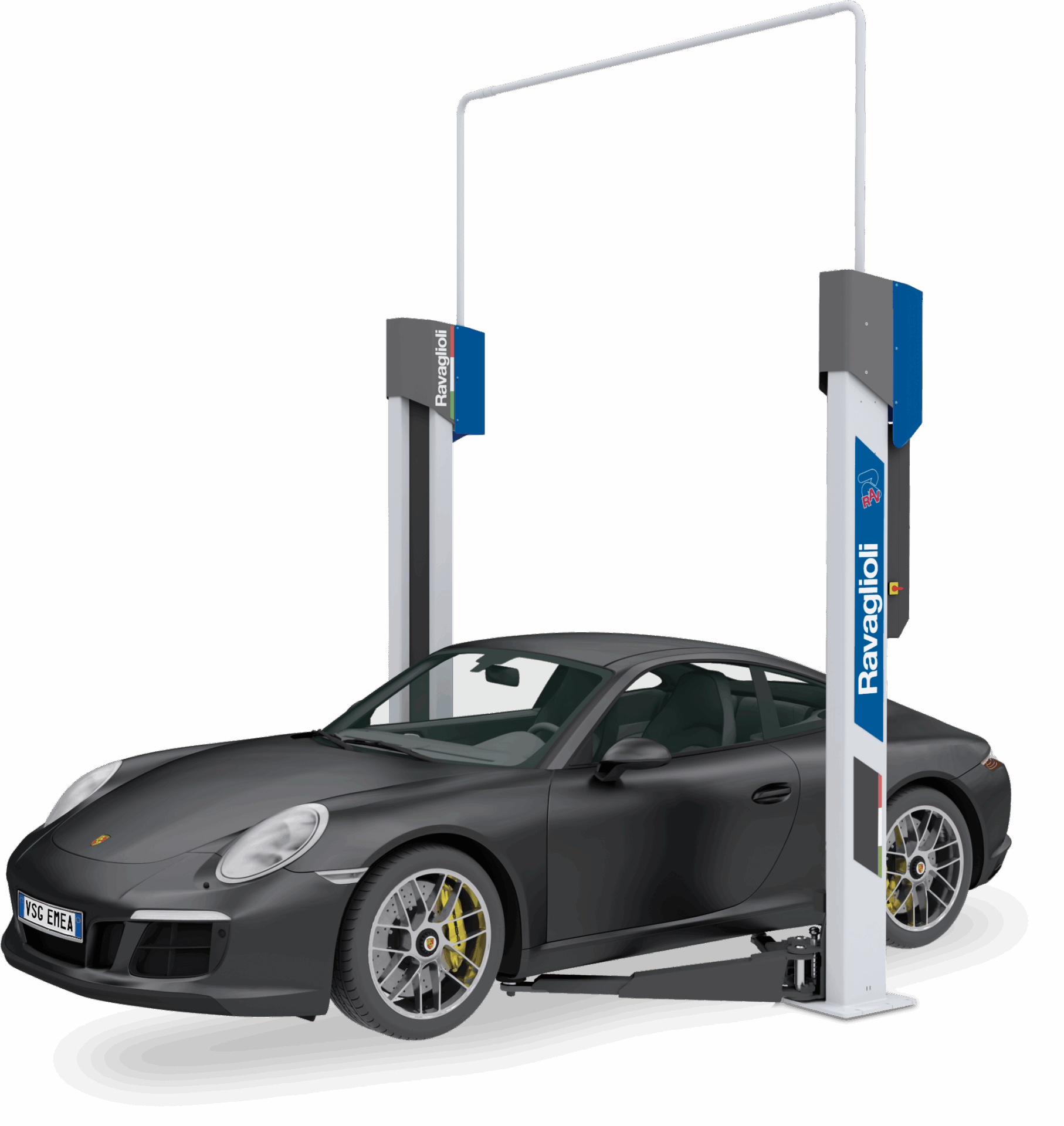

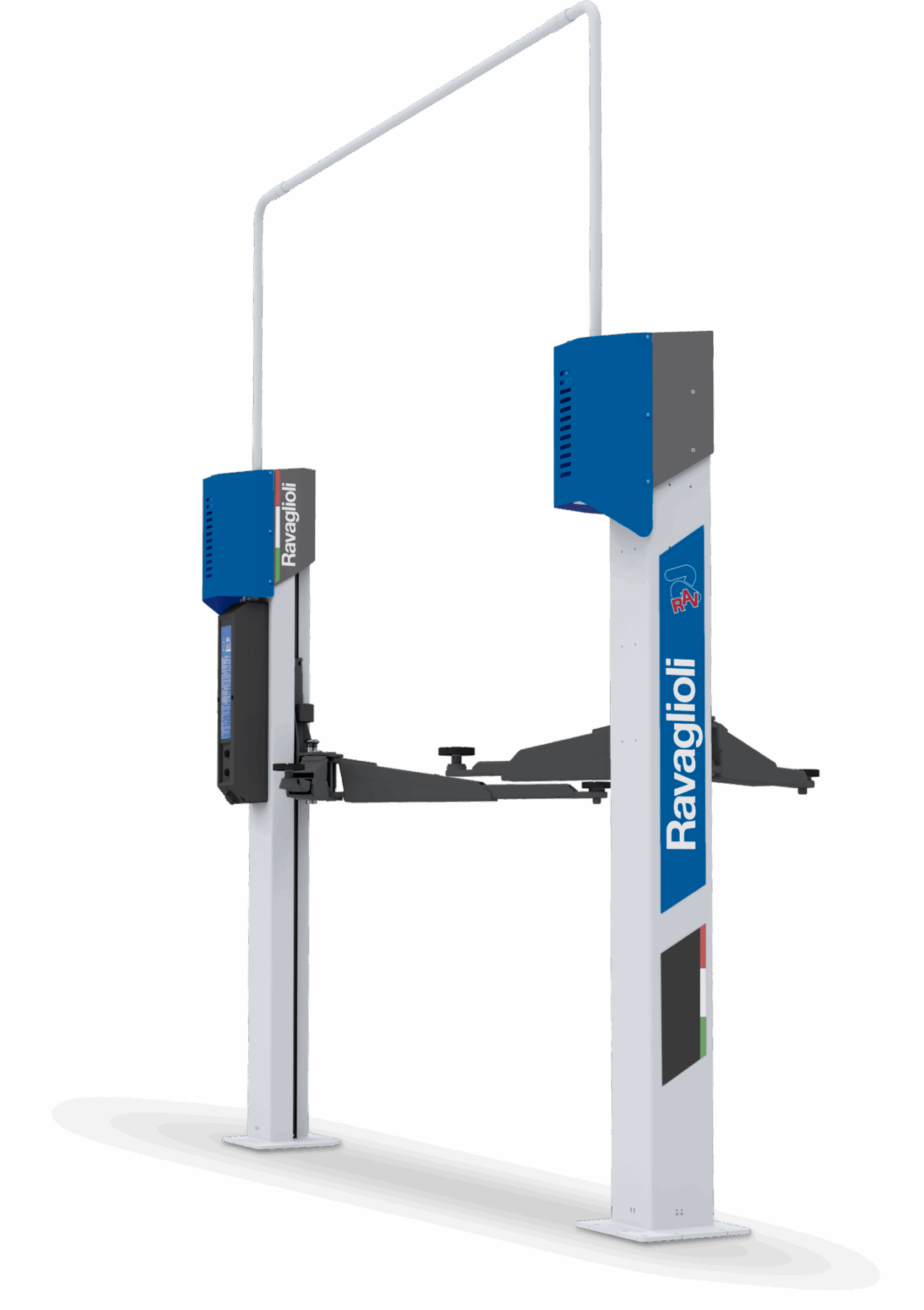

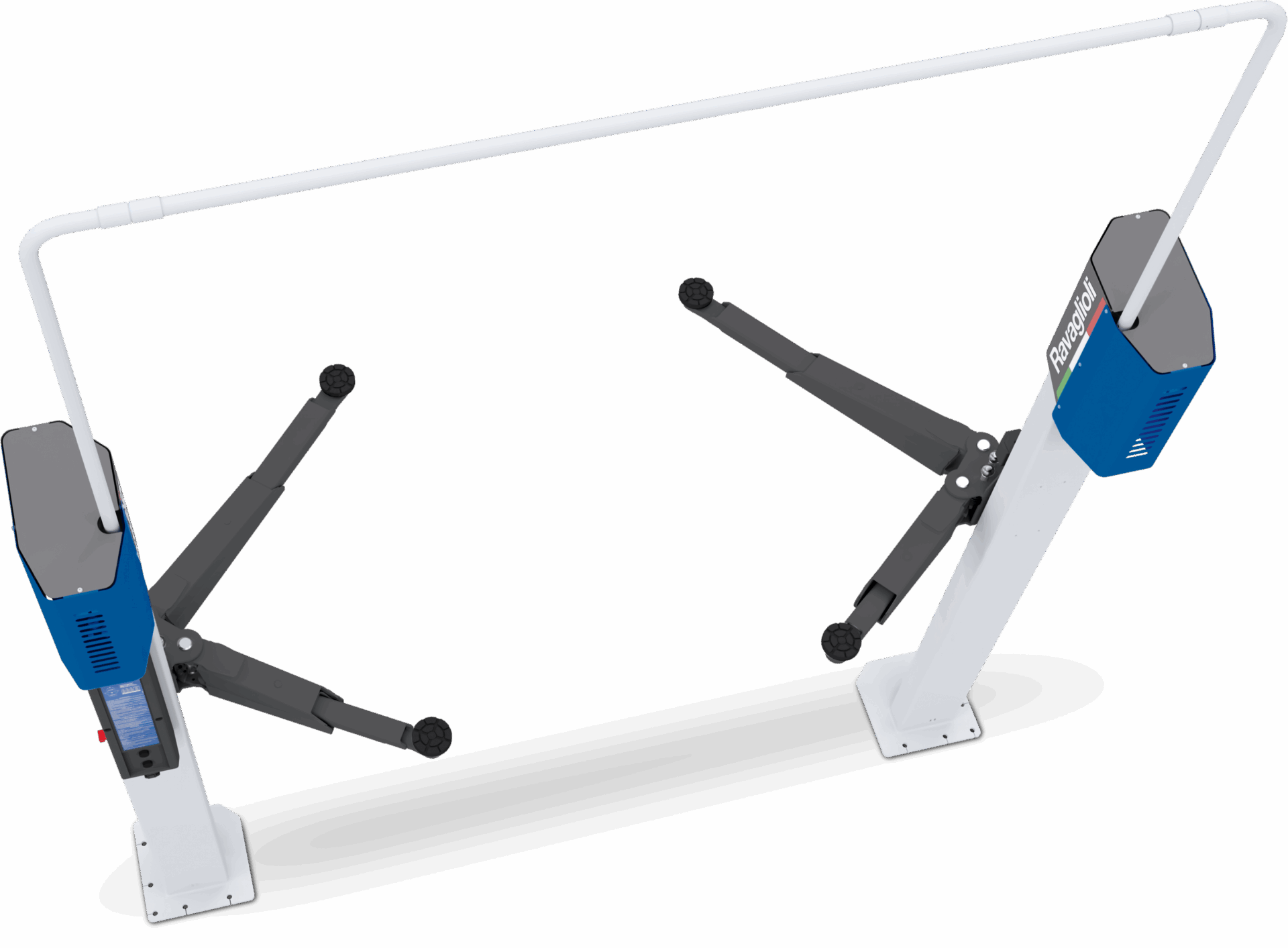

2-post lift KPX32ER

3.2 t, electromechanical, rotated columns at 45°, ultra-low symmetrical arms, TEq-Link, energy kit

MPN: RAV.KPX32.198815
GTIN (EAN): 5063084198815
Category:
Tags:

Share on:

Description

Legend Series – From History to the Future

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Quick and easy operations: Free of obstacles working space to guarantee safety and comfort. – Outrigger plates are available upon request, for floors not compliant with installation requirements.
  • Smart and flexible installation: Up to 20% improvement in installation time. The electronic synchronization avoids the installation and periodical adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width-adjustable positions.
  • Minimum routine maintenance: The operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements.

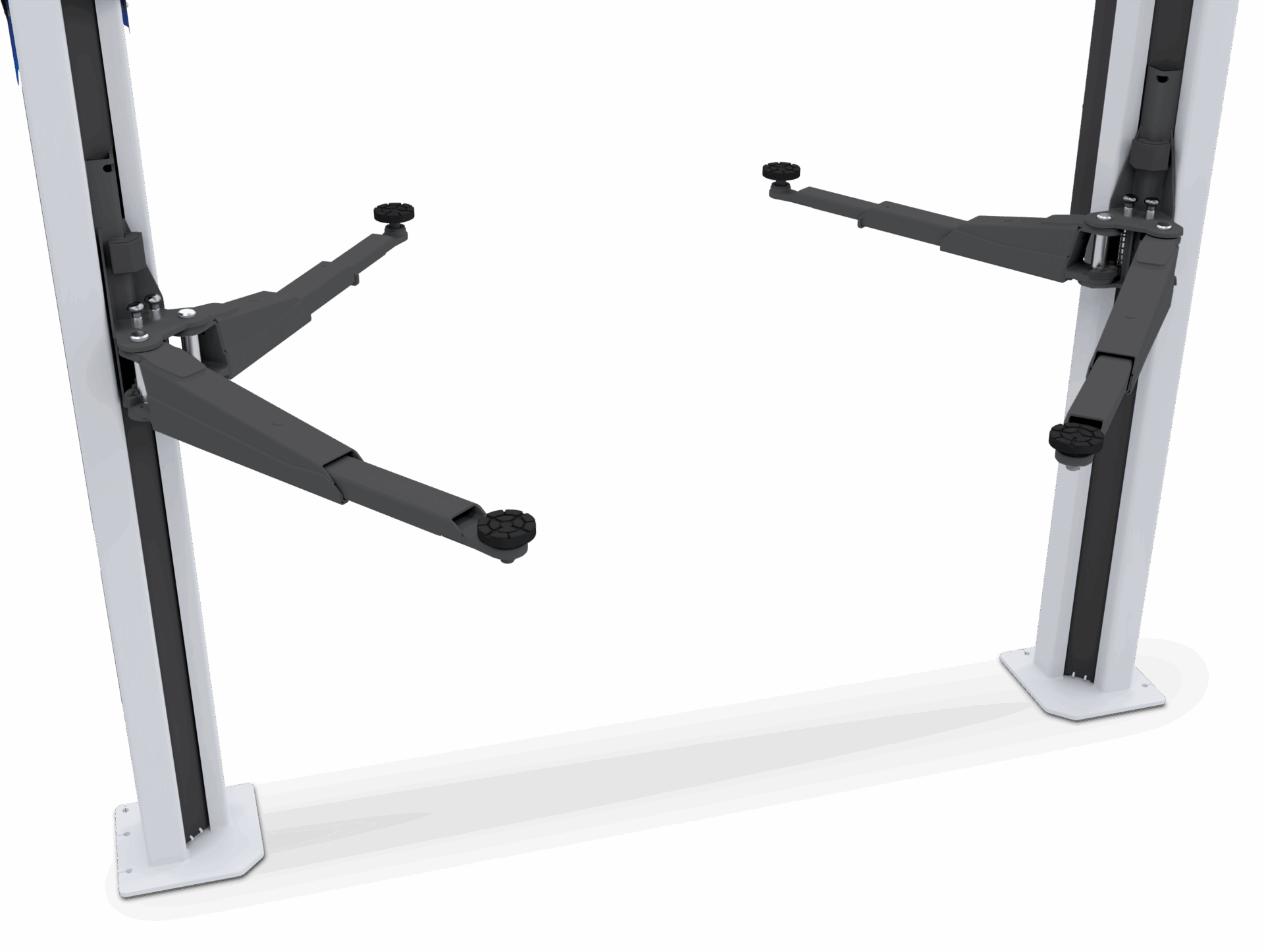

  • Super low arms parallel to the floor
  • Double extension pads with minimum height of just 80 mm
  • Automatic and permanent nut lubrication system to guarantee efficient lifting and descent
  • Special high efficiency motors
  • Column interior 2900 mm

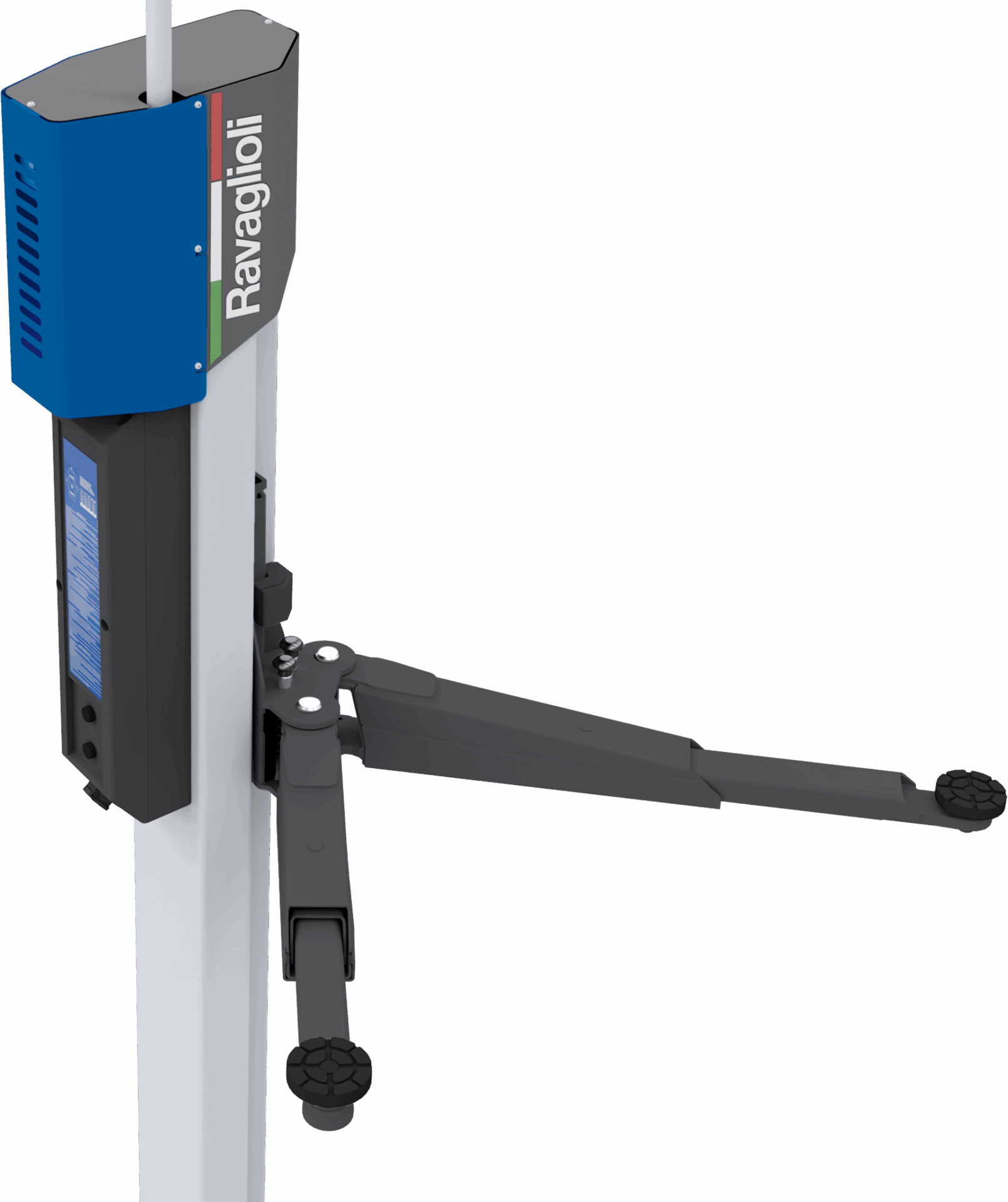

  • Automatic conical arm locking system
  • Long-lasting bronze main nut, for maximum safety
  • Asymmetric columns designed to optimize the drive through and footprint
  • Steel high resistance rolled screw to provide long life

Media

Similar Products

    Accessories

    Tech Data

    Features2-post lift KPX32ER2-post lift KPX32ER
    Number of columns2
    Rated load capacity3200kg
    Column layoutAsymmetrical
    Mode of driveelectromechanical
    Controlelectric
    Type of installationsurface mounted
    TeqLinkstandard
    Max. lifting height1990mm
    Lifting time42s
    Min. plate height80mm
    Max. plate heigh125mm
    Clear span between2600 – 2700mm
    Clear span between (out)3123 – 3223mm
    Drive-through width2372 – 2472mm
    Required ceiling height4150mm
    Surface coatingPowder coated
    Arm layoutsymmetrical
    Telescopic front arms3-fold
    Telescopic rear arms3-fold
    Min. front arm length585mm
    Max. front arm length1195mm
    Min. rear arm length585mm
    Max. rear arm length1195mm
    Driving power2 x 2,6kW
    Power supply400 V | 50 Hz
    Phases3
    Width3250 – 3350mm
    Height4052mm
    Max. height4052mm
