2-post lift KPX32

3.2 t, electromechanical, asymmetrical, rotated columns at 45°, 2-stage long arms, 3-stage short arms

MPN: RAV.KPX32.198570
GTIN (EAN): 5063084198570
Category:
Tags:

Share on:

Description

Legend Series – From History to the Future

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Minimum routine maintenance: The operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements.
  • Guaranteed safety and quality over the time: The lift is equipped with premium components that guarantee durability and maximum safety for the operator.
  • Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width-adjustable positions.
  • Quick and easy operations: The working bay is free of obstacles and the operations can be performed safely and comfortably.
  • A step into the future: Selected models with integrated TEq-Link module which enables to monitor work cycles, trigger alerts for scheduled maintenance and more.
  • The geometry of the arms was designed to lift anything from city to long wheelbase cars.
  • Rotated electromechanical lift featuring columns at 45°.
  • Push bottons control (up/down) at an ergonomic height.
  • Easy door opening: The vehicle can be placed backward without any worries about damaging.
  • Thanks to the asymmetric design of the columns, the loading areas of the arms overlap, granting great flexibility and time saving when picking up the vehicle.
  • More space for movement around the vehicle: The lift is designed to maximise its layout while ensuring minimum space requirements.
  • Quick car positioning: The operator has at his disposal a wide loading area, without the necessity of pushing and pulling the vehicle to find the right lifting position.
  • Electronic synchronization
  • Quick nut replacing: New motor plate that allows to remove the screw from the front side of the column with the column standing.
  • Internal carriages running on lubricated sliding guides, protected from the external environment, that ensures a longer life to the sliding elements
  • Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
  • Short 3-stage arms and long 2-stage arms with quick fit telescopic rubber pad
  • Truly asymmetric columns designed to optimize the drive through and footprint
  • Premium quality of components
    • Aluminium pulley with cooling function
    • Long-lasting bearings
    • 50% longer, bronze load nut
    • Motors with reinforced and cooling casing
    • Solid automatic arm locking

Media

Similar Products

Accessories

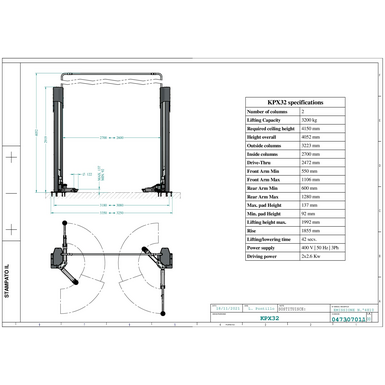

Tech Data

Features2-post lift KPX322-post lift KPX322-post lift KPX32P2-post lift KPX32P2-post lift KPX32P2-post lift KPX32P
Number of columns222
Mode of driveelectromechanicalelectromechanicalelectromechanical
Controlelectricelectricelectric
Type of installationsurface mountedsurface mountedsurface mounted
Rated load capacity3200kg3200kg3200kg
Max. lifting height2000mm2000mm2000mm
Lifting time42s42s42s
Min. plate height96mm96mm96mm
Max. plate heigh130mm130mm130mm
Clear span between2600 – 2700mm2600 – 2700mm2600 – 2700mm
Clear span between (out)3123 – 3223mm3123 – 3223mm3123 – 3223mm
Column height2920mm2920mm2920mm
Drive-through width2372 – 2472mm2372 – 2472mm2372 – 2472mm
Required ceiling height4150mm4150mm4150mm
Surface coatingPowder coatedPowder coatedPowder coated
Arm layoutasymmetricalasymmetricalasymmetrical
Telescopic front arms3-fold3-fold3-fold
Telescopic rear arms2-fold2-fold2-fold
Min. front arm length555mm555mm555mm
Max. front arm length1100mm1100mm1100mm
Min. rear arm length805mm805mm805mm
Max. rear arm length1200mm1200mm1200mm
Driving power2 x 2,6kW2 x 2,6kW2 x 2,6kW
Power supply400 V | 50 Hz400 V | 50 Hz230 V | 50 Hz
Phases333
Width3250 – 3350mm3250 – 3350mm3250 – 3350mm
Height4052mm4052mm4052mm
Weight605kg605kg606kg
