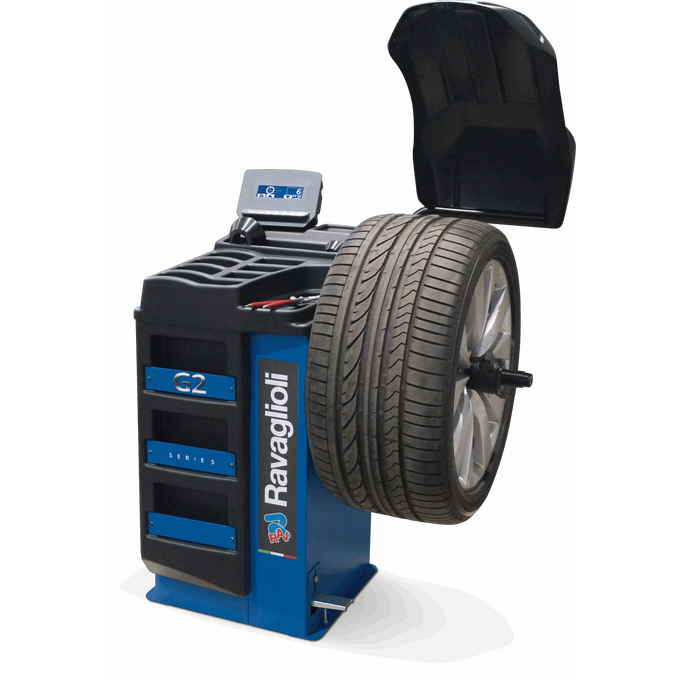

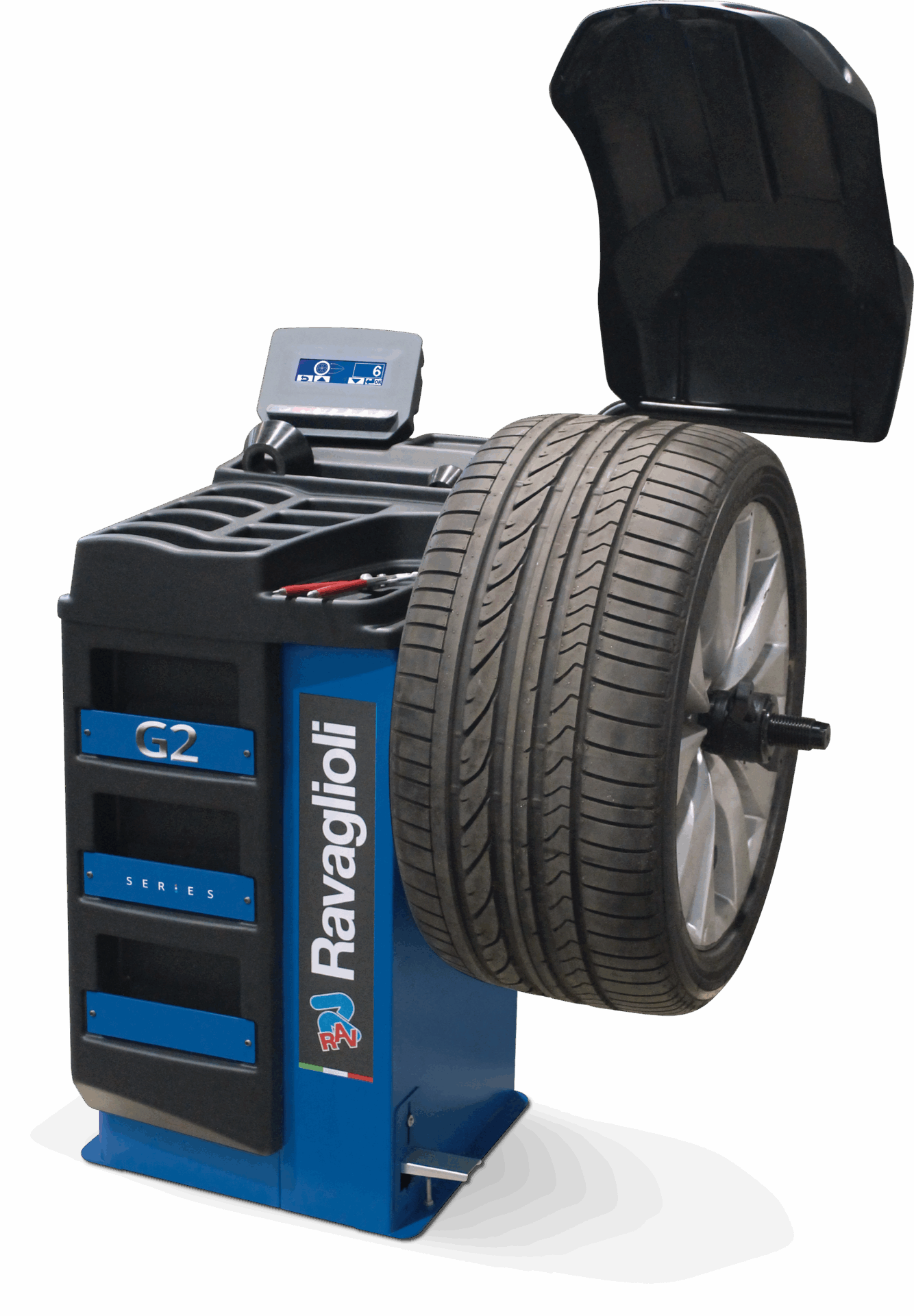

Electronic wheel balancer with microprocessor G2.121RFM

Electronic wheel balancer with microprocessor G2.121RFM

Interactive LCD Display, internal measuring arm for automatic measuring, passenger car, rim diameter 10 – 26″, RAL 5005

MPN: RAV.G2121.201492
GTIN (EAN): 5063084201492
Category:
Tags: ,
Request Information

Share on:

Description

  • Automatic spin when cover is lowered
  • The arm stores the positions for balancing correction: automatic programs for ALU S wheels
  • Guided rim/tyre optimisation process
  • Pedal brake to keep the wheel stopped during weight positioning
  • Calliper for automatic distance and diameter measurement
  • Automatic ALU S programme
  • Backlit graphic LCD display (132 x 40 mm) – Multifunction and interactive keys to guide the operator
  • Automatic spin when cover is lowered
  • Stop on top in external unbalanced position
  • Includes wheel cover

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesElectronic wheel balancer with microprocessor G2.121RFMElectronic wheel balancer with microprocessor G2.121RFMElectronic wheel balancer with microprocessor G2.124NRElectronic wheel balancer with microprocessor G2.124NRElectronic wheel balancer with microprocessor G2.140RElectronic wheel balancer with microprocessor G2.140RElectronic wheel balancer with microprocessor G2.116RElectronic wheel balancer with microprocessor G2.116RElectronic wheel balancer with microprocessor G2.120RElectronic wheel balancer with microprocessor G2.120R
Wheel data recordingsemi-automaticsemi-automaticsemi-automaticsemi-automaticsemi-automatic
Tread depth measurementnot possiblenot possiblenot possiblenot possiblenot possible
TeqLinknot possiblenot possiblenot possiblenot possiblenot possible
asanetworknot possiblenot possiblenot possiblenot possiblenot possible
Measuring speed< 100rpm< 100rpm< 100rpm< 100rpm< 100rpm
Measuring time6s6s6s6s6s
Balancing accuracy +/-1g1g1g1g1g
DisplayLCD, backlitLCDLCDLCD, backlitLCD, backlit
Min. rim width1,5″1,5″1,5″1,5″1,5″
Max. rim width22″22″22″22″22″
Rim diameter min.10″10″10″10″10″
Rim diameter max.26″26″26″26″26″
Max. wheel diameter850mm1020mm1020mm1020mm850mm
Wheel weight max.65kg70kg65kg65kg65kg
Power supply230 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz230 V | 50 – 60 Hz230 V | 50 – 60 Hz230 V | 50 – 60 Hz
Phases11111
Width1047mm1212mm1047mm980mm1047mm
Depth881mm1110mm878mm575mm646mm
Height1540mm1700mm1540mm983mm1108mm
Weight110kg125kg120kg45kg120kg
