Similar Products
-
Tyre service equipment

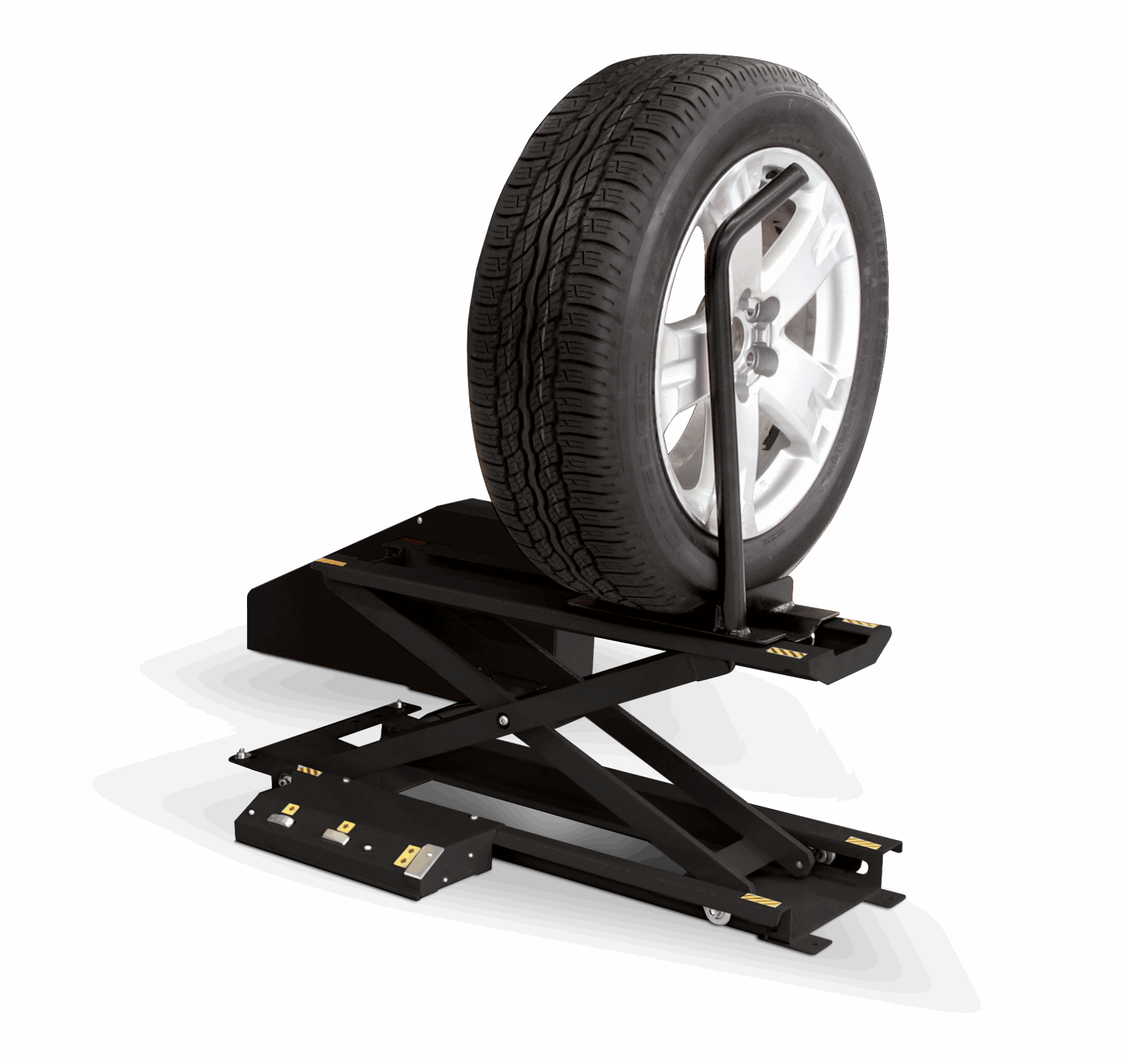

Wheel lift with automatic compensation of wheel weight
MPN: GAR32480 kg, passenger car
-
Tyre service equipment
Mobile wheel carriage GR80WS
MPN: GR80WSBattery powered, capacity 80 kg
-
Tyre service equipment
Wheel trolley GR20 | Easy Lift
MPN: GR20With automatic adjustment of the height in relation to the load | load capacity 180 kg
Tech Data
| Features |  Wheel lift Standard | Wheel lift with automatic compensation of wheel weight | Mobile wheel carriage GR80WS | Wheel trolley GR20 | Easy Lift |
|---|---|---|---|---|
| Mode of drive | Pneumatic | Pneumatic | Electric | — |
| Capacity | 80kg | 80kg | 80kg | 180kg |
| Stroke | 466mm | 466mm | 1440mm | 340mm |
| Min. tire size | 135/80R13 | 135/80R13 | 135/80R13 | 135/80R13 |
| Max. tire size | 305/30R26 | 305/30R26 | 325/35R22 | 305/30R26 |
| Surface coating | Powder coated | Powder coated | Powder coated | — |
| Length | 870mm | 870mm | 688mm | — |
| Width | 1489mm | 1489mm | 726mm | — |
| Height | 1108mm | 1108mm | 1865mm | 240 – 580mm |
| Set-up length | 1489mm | 1489mm | 688mm | — |
| Set-up width | 1108mm | 1108mm | 726mm | — |
| Country of Origin, customs | IT | IT | CN | IT |
