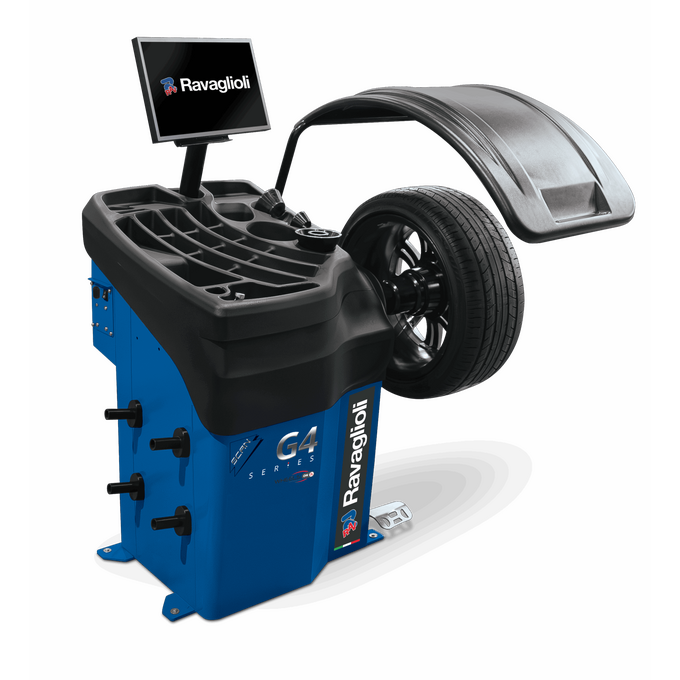

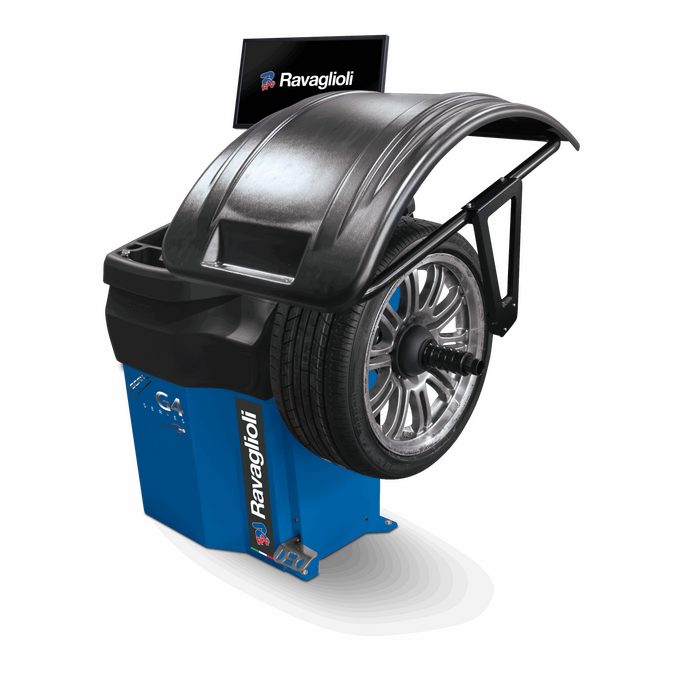

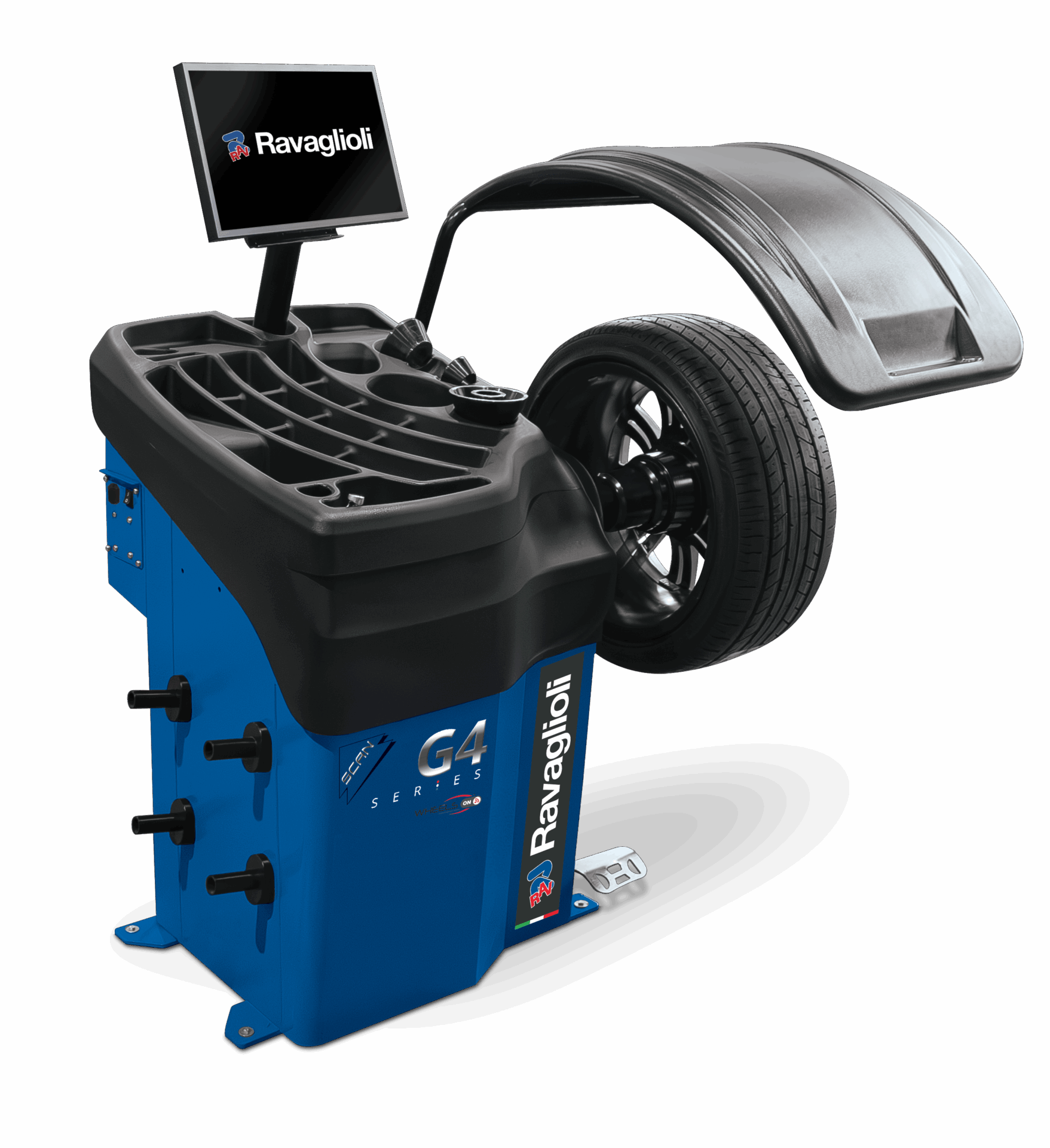

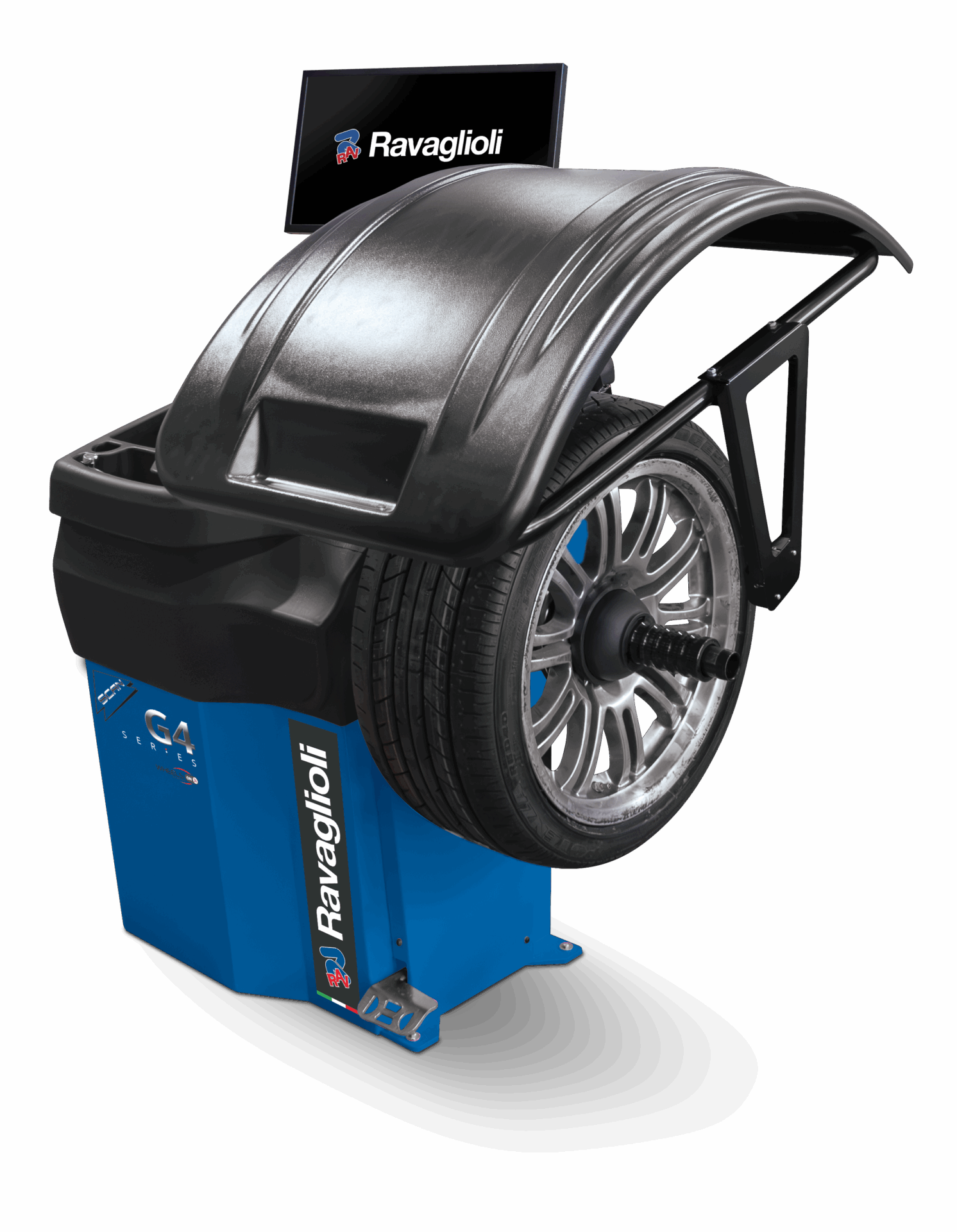

Electronic digital wheel balancer GP4.150SCANPLUS

3D, 22″ touchscreen, “SCAN” automatic rim profile detection system, sonar for tread eccentricity detection, incl. cones for cars, passenger car, rim diameter 10 – 30″, max. wheel capacity 44″, TEq-Link

MPN: RAV.GSCAN.201607
GTIN (EAN): 5063084201607
Category:
Tags:

Share on:

Description

Passenger car wheel balancer equipped with laser scanner to automatically detect the rim profile and the wheel dimensions.

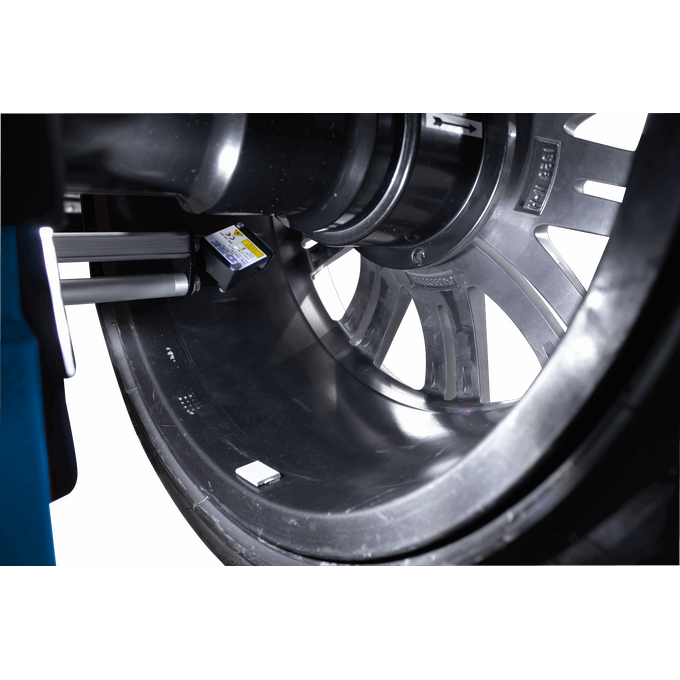

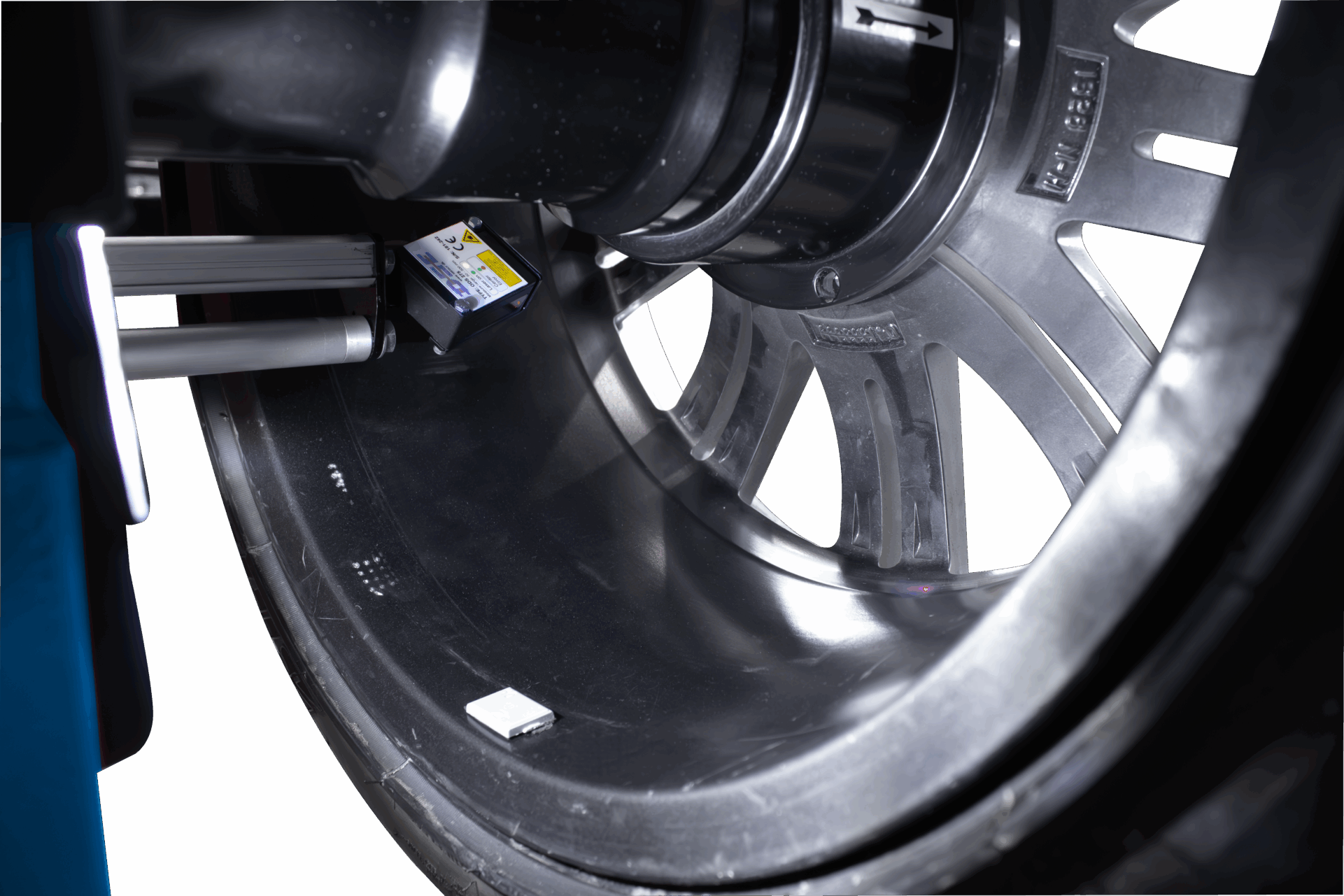

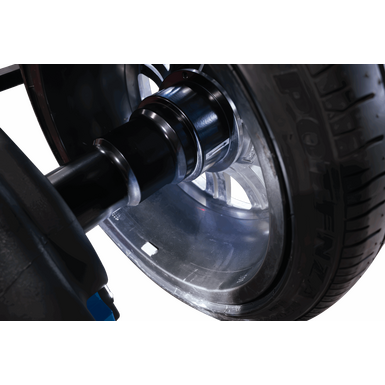

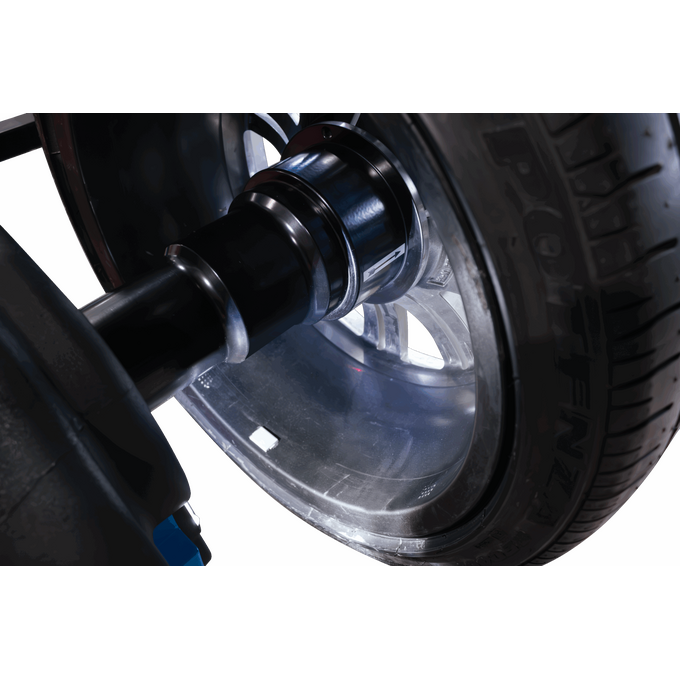

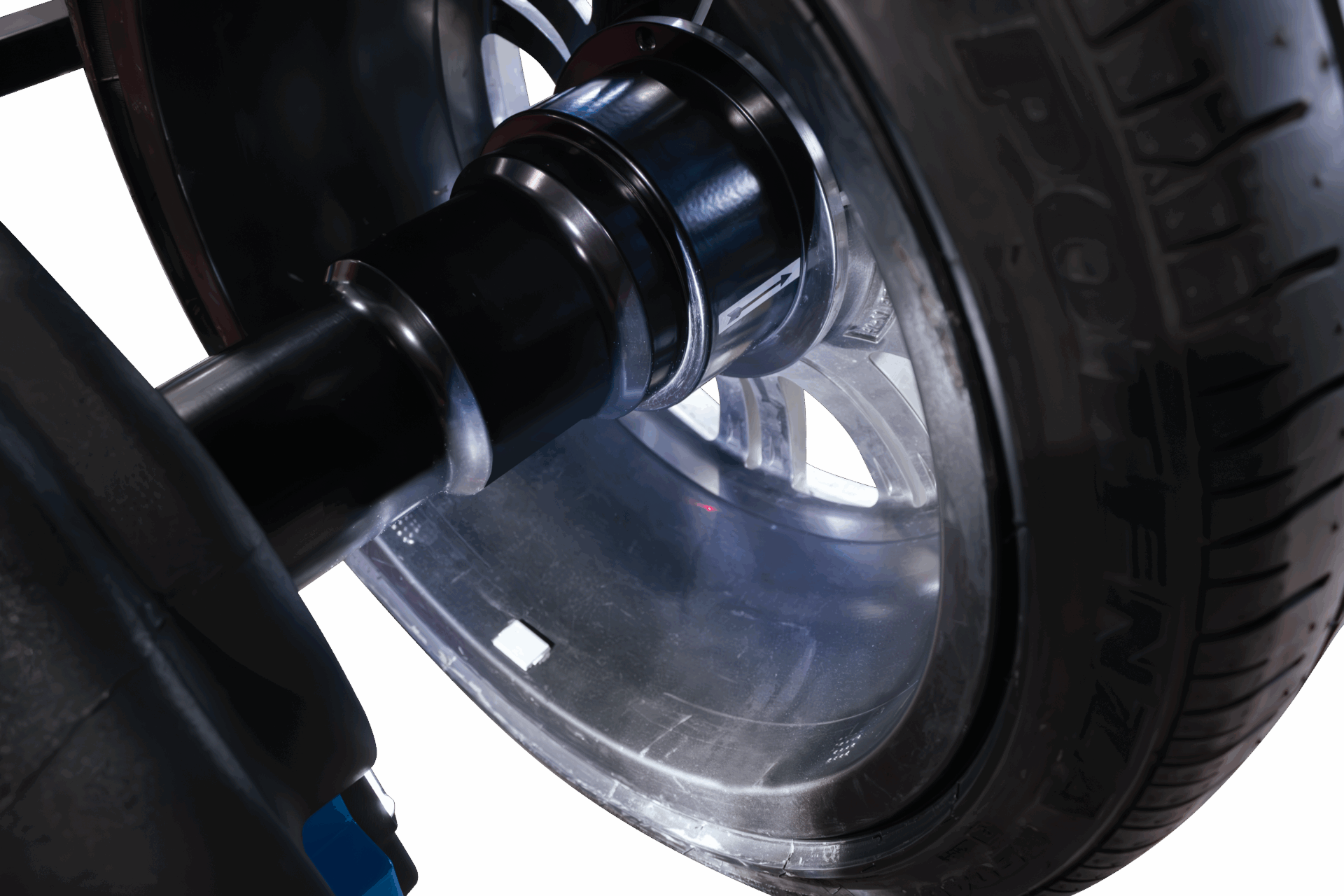

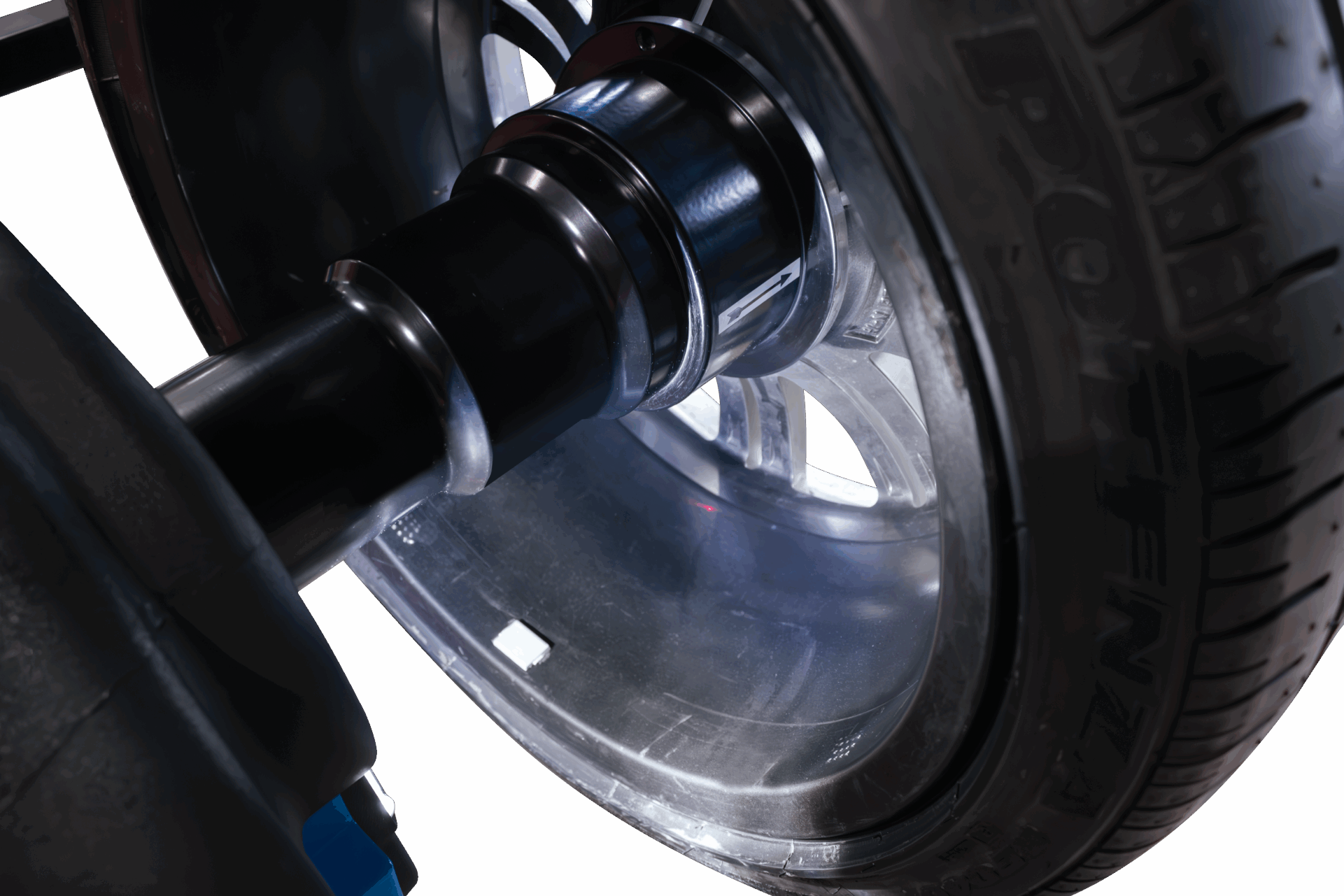

  • Impeccable precision: automatic wheel data acquisition and laser pointer
  • Practical design: equipped with 22″ touchscreen monitor
  • Intuitive technology: graphics and colours are studied to make using the wheel balancer easier
  • Guided wheel balancing management: the key functions vary depending on use and are identified on the display by instantly understood graphic icons.
  • The SCAN system guarantees maximum operation speed and precision.
  • Wheel balancing programs: Dynamic, Static, ALU and ALU-S, separation of weights and hidden weights behind the spokes and optimisation program.
  • Eco-Weight wheel balancing program: Modern system for resetting the unbalance to reduce weight consumption.
  • Graphic display of the run-out of the wheel and rim on the same screen.
  • Automatic Balancing mode: in AUTO mode, the machine autonomously sets the work, from choosing the program to use and counting the spokes to indicating the position of the hidden weights.
  • The machine automatically stops in the external unbalance position.
  • Automatic repositioning on the inside.
  • Automatic guard lowering start-up.
  • 22″ touchscreen monitor.

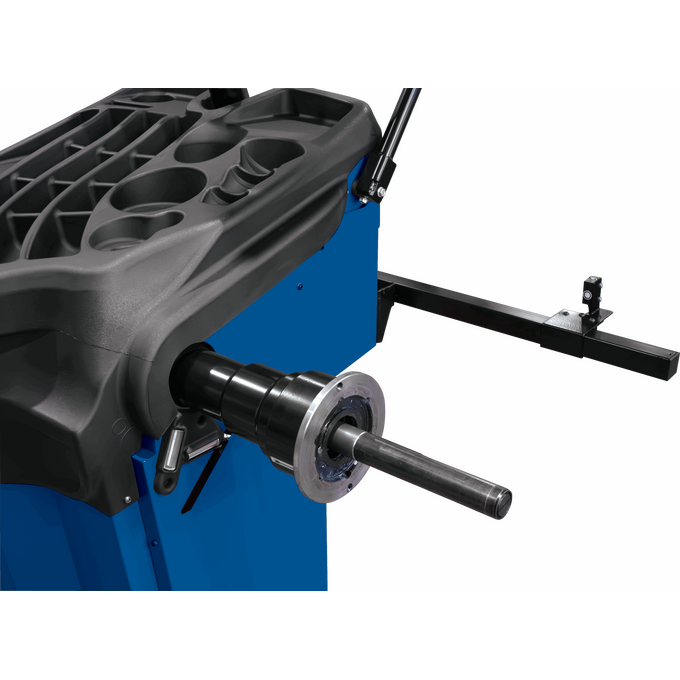

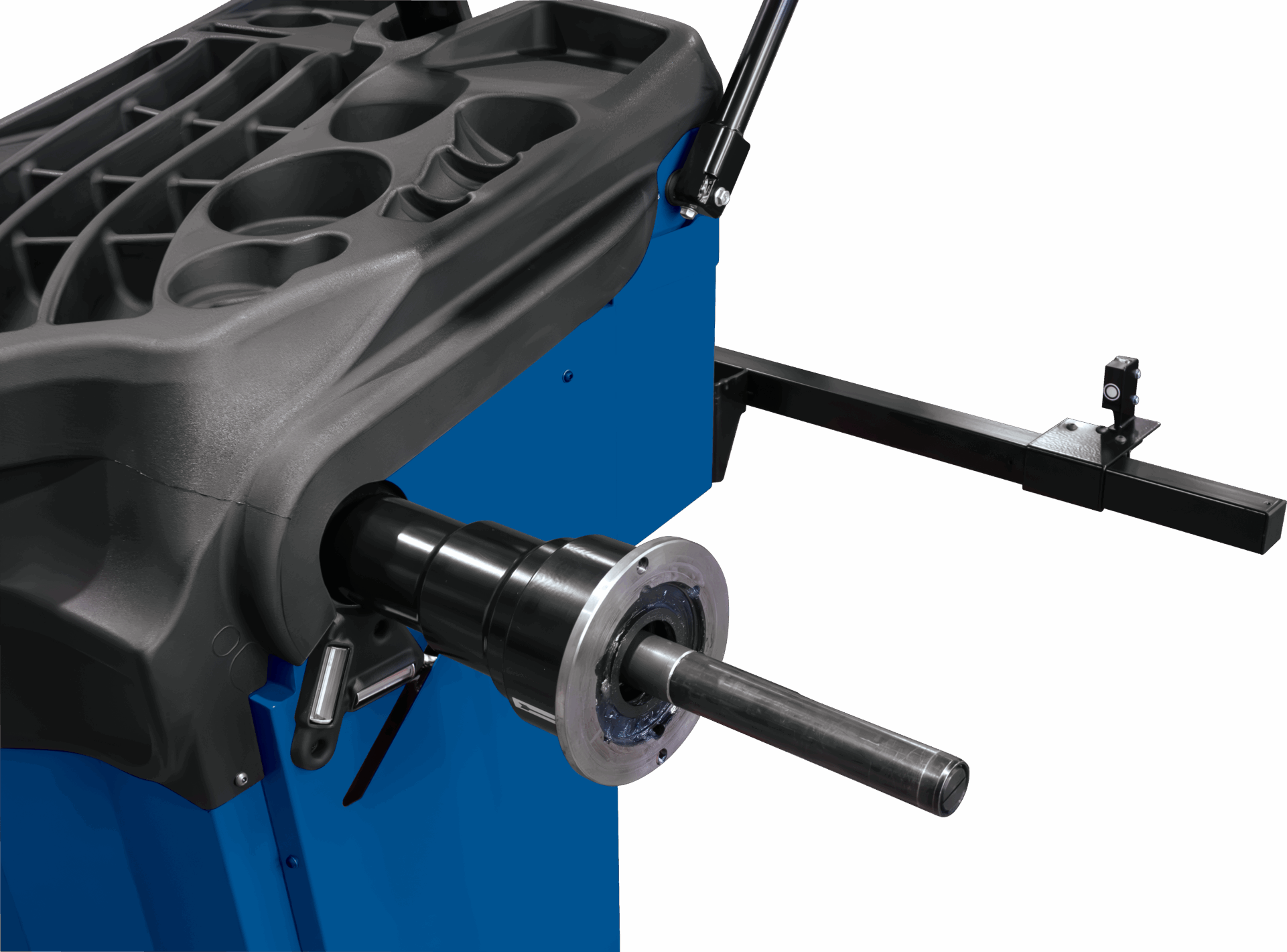

  • Sonar for automatic measurement of the wheel width.
  • Pneumatic clamping device.
  • LED rim lighting.

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesElectronic digital wheel balancer GP4.150SCANPLUSElectronic digital wheel balancer GP4.150SCANPLUSElectronic digital wheel balancer GP4.150WSPLUSElectronic digital wheel balancer GP4.150WSPLUS
Measuring system3D2D
Wheel data recordingfully automaticsemi-automatic
Tread depth measurementnot possiblenot possible
TeqLinkstandardstandard
asanetworknot possiblenot possible
Measuring speed< 100rpm< 100rpm
Measuring time6s6s
Balancing accuracy +/-1g1g
Display and control unitTouch displayTouch display
DisplayTFTTFT
Min. rim width1,5″1,5″
Max. rim width22″22″
Rim diameter min.10″10″
Rim diameter max.30″30″
Diameter of centre bore diameter min.70mm70mm
Max. wheel diameter1100mm1100mm
Wheel weight max.80kg80kg
Power supply230 V | 50 – 60 Hz230 V | 50 – 60 Hz
Phases11
Width970mm970mm
Depth1320mm1320mm
Height1870mm1870mm
Weight150kg150kg
