Description

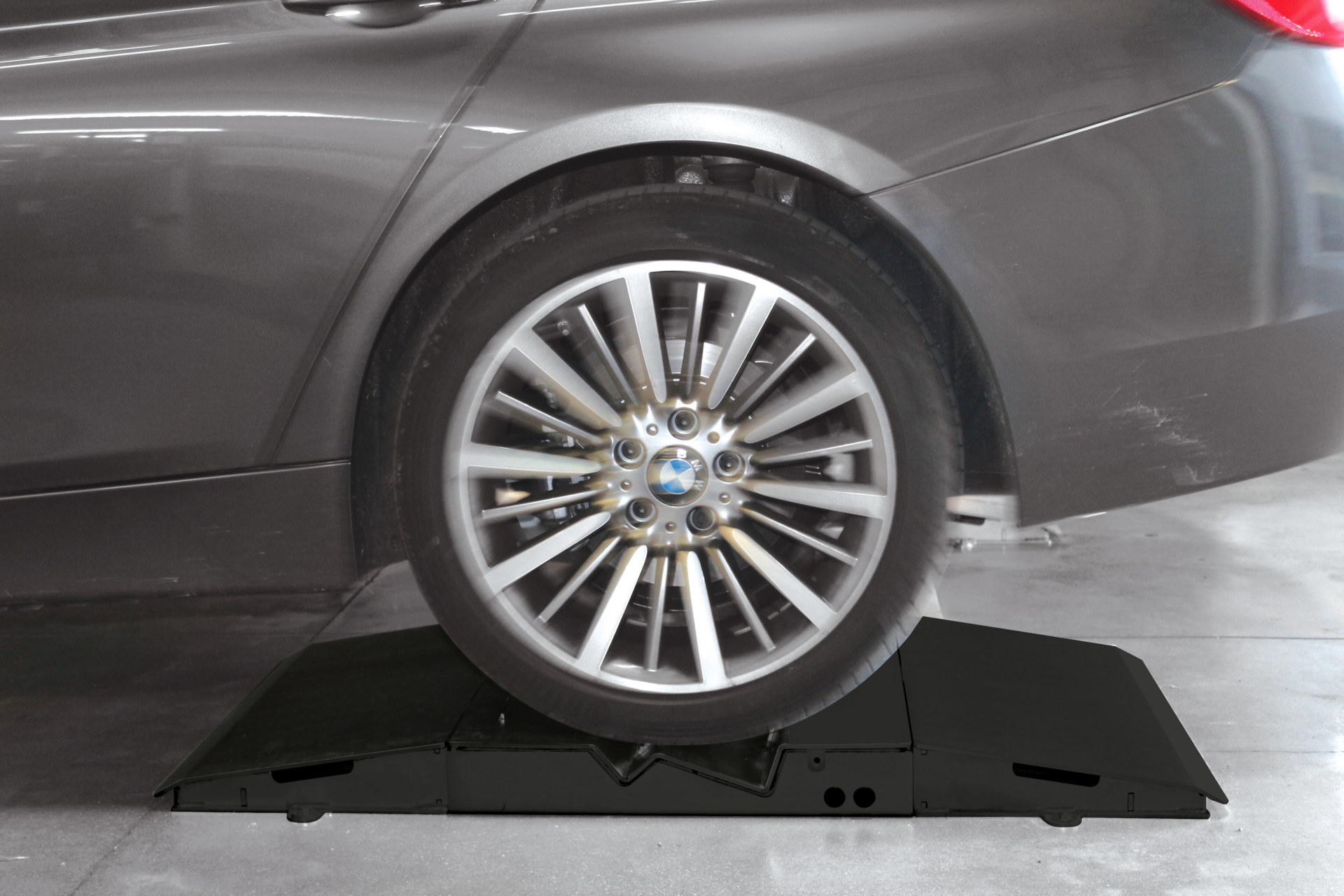

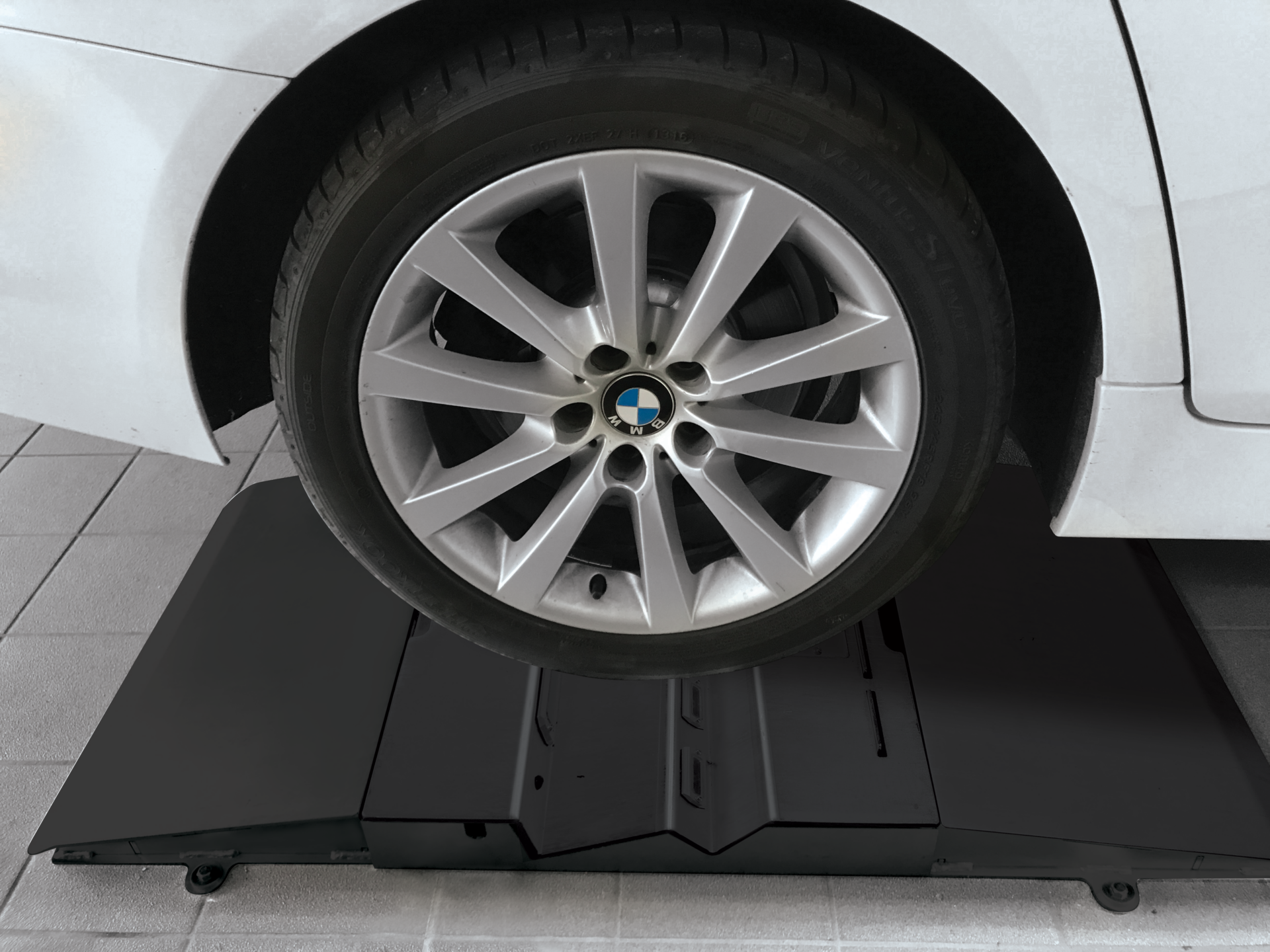

- Tread depth is measured as the vehicle passes over the Profiler at a max. speed of 8 km/h (5 mph).
- Measuring system: Stereo cameras plus laser blade.
- Measurement results are available within seconds.
- Designed with no moving parts to withstanding workshop environment.
- For axle loads up to 4 tons.

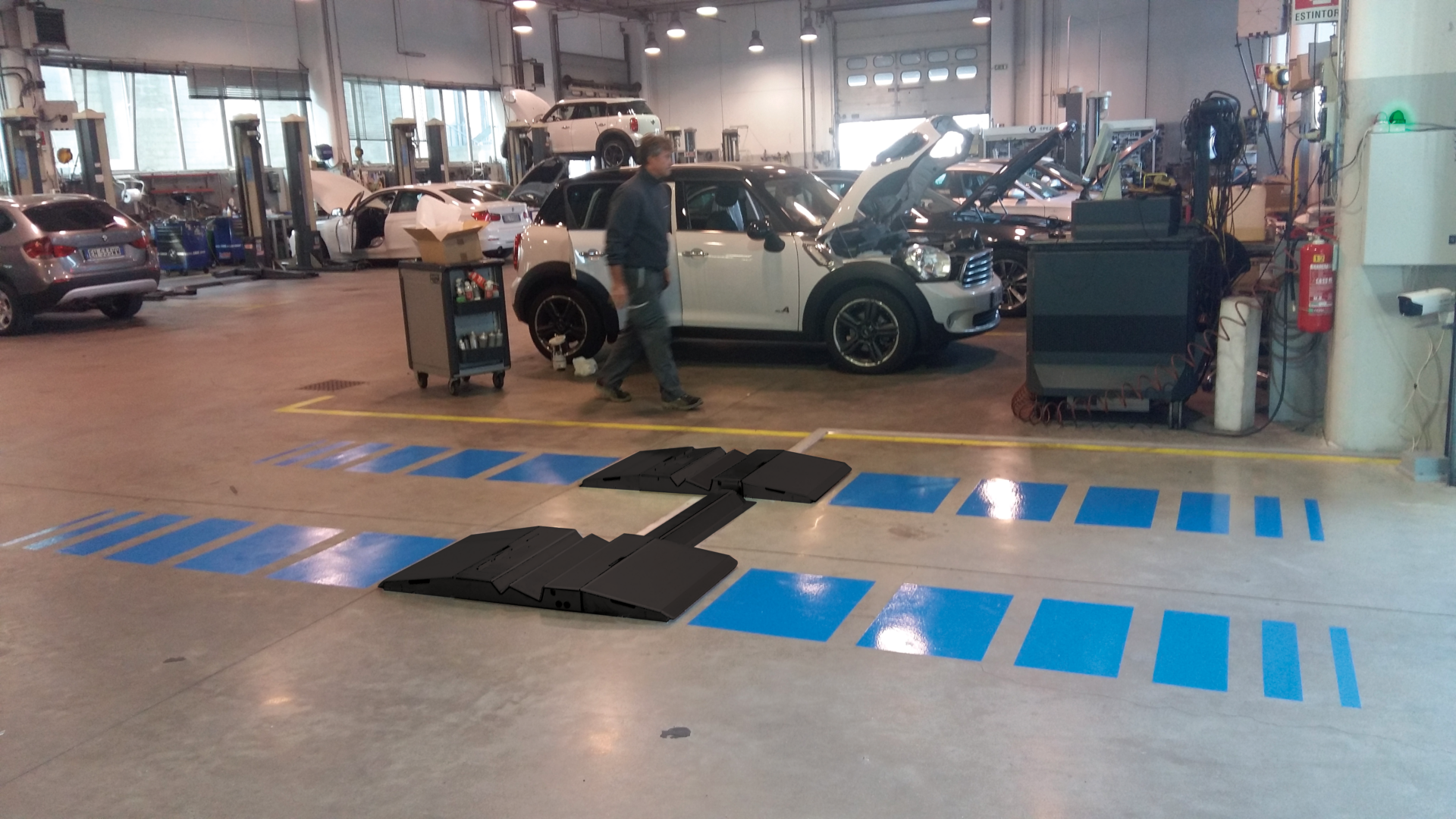

- Profiler is an important equipment for the reception bay, to improve the process and save time – Tyre tread on all wheels is measured very fast: before the driver exits the vehicle, all results are available.
- No need for internet connection.
- Suitable for installation indoor or outdoor (roof covered).
- RAVWS101 – Stand alone: Workshop PC on trolley with direct access to customer data and measurement values
- The software runs on any Windows based system
- TEST RESULT – Two visualisations are available: average center and side tread depth or indication of maximum / minimum values.
- ZOOM FUNCTION – It allows to select each tyre for a more detailed analysis.
- AUTOMATIC TEST MEMORY – The Profiler can be set with automatic plate registration function: the system stores the diagnostic data automatically without the presence of a technician.
- VEHICLE DIAGNOSIS – Uneven tyre tread wear indicates the need for wheel alignment adjustment and suspension analysis.
- WEB PAGE VISUALIZATION – Test results can be checked in the program and also on a web page from any mobile device or PC in the workshop.
