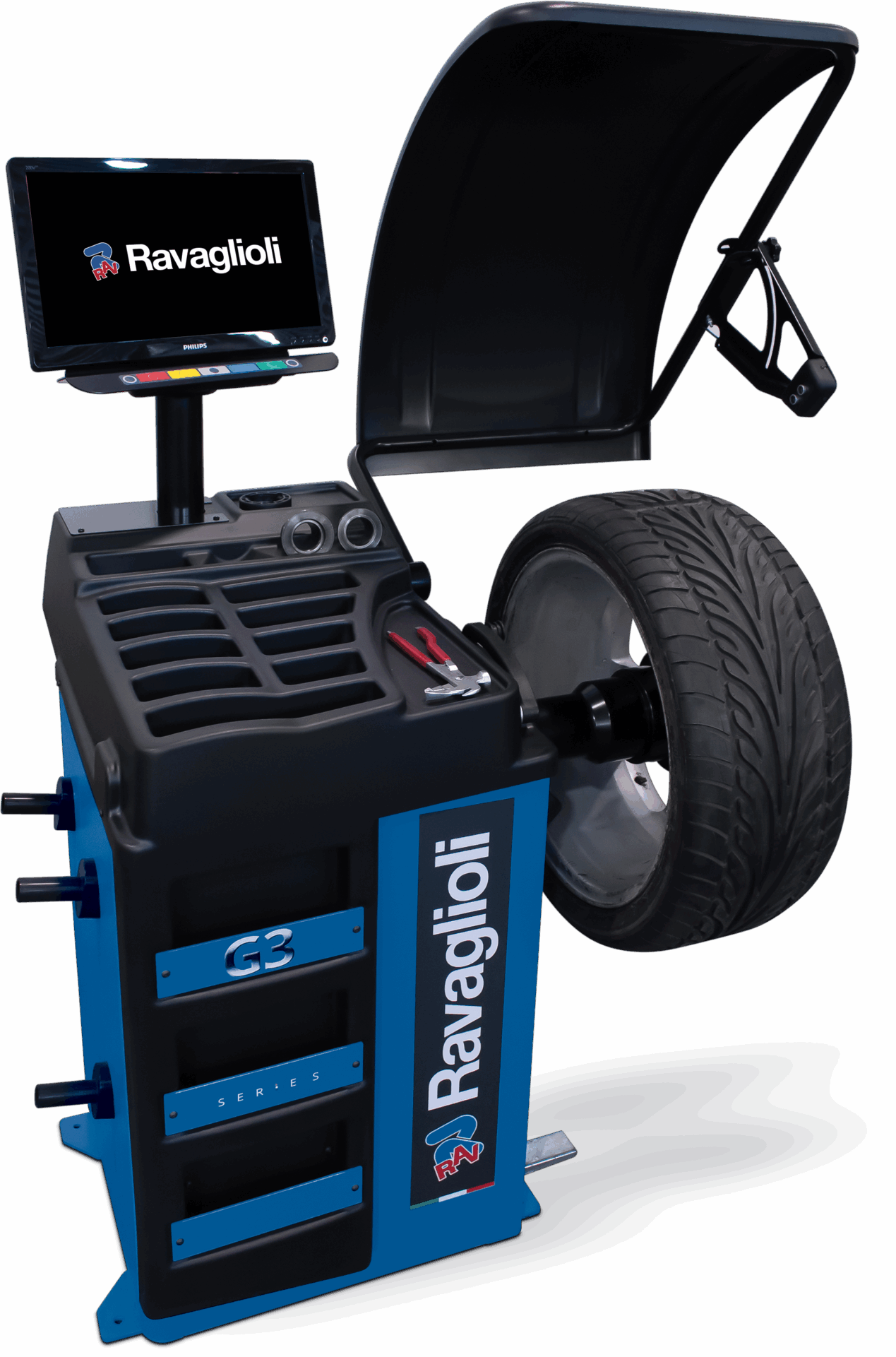

Electronic wheel balancer with microprocessor G3.150WSPLUS

3D, 22″ LCD monitor, passenger car, rim diameter 10 – 26″, max. wheel capacity 43″ | Blue (RAL 5005)

MPN: RAV.G3150.201331
GTIN (EAN): 5063084201331
Category:
Tags: ,

Share on:

Description

Electronic wheel balancers with microprocessor with wheel stops automatically in both outside and inside unbalance position. Quick selection with internal data gauge. Automatic storage of distance and diameter.

  • Impeccable precision: automatic wheel data acquisition and laser blade
  • Practical design: everything has a place, everything is in the right spot
  • Intuitive technology: graphics and colours are studied to facilitate the use of the wheel balancer
  • Run-out measurement: rim Run-out measurement with internal data gauge
  • Program selection: quick selection with internal data gauge
  • Double LED light and laser blade (with a laser line at 6 o’clock for adhesive weights) to properly and easily fit weight in the right position
  • Eco-Weight: modern balancing system to minimize wheel weights consumption
  • Position locking: wheel stops automatically in both outside and inside unbalance position
  • Optimization of the space to make everything handy and easy
  • Whether they are standard or optional, every accessory has its own place
  • Compatible with system TEq-Link
    • Internet connection
    • Sending results to the customers
    • Remote assistance
  • External data gauge
  • 22” monitor with foil keyboard
  • Automatic width acquisition by lowering the wheel guard
  • Professional Quick Nut
  • Large housing for clip-on and tape weights
  • Front pocket to store working tools
  • Graphics with self-explaining icons to make easier the use of the wheel balancer

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesElectronic wheel balancer with microprocessor G3.150WSPLUSElectronic wheel balancer with microprocessor G3.150WSPLUSElectronic wheel balancer with microprocessor GP3.150WSPLUSElectronic wheel balancer with microprocessor GP3.150WSPLUSElectronic wheel balancer with microprocessor GP3.150WSElectronic wheel balancer with microprocessor GP3.150WSElectronic wheel balancer with microprocessor G3.150WSElectronic wheel balancer with microprocessor G3.150WSElectronic wheel balancer with microprocessor GP3.150SElectronic wheel balancer with microprocessor GP3.150SElectronic wheel balancer with microprocessor G3.150SElectronic wheel balancer with microprocessor G3.150SElectronic wheel balancer with microprocessor G3.150Electronic wheel balancer with microprocessor G3.150Electronic wheel balancer with microprocessor G2.140RElectronic wheel balancer with microprocessor G2.140R
Wheel data recordingsemi-automaticsemi-automaticsemi-automaticsemi-automaticsemi-automaticsemi-automaticsemi-automaticsemi-automatic
Colour5005RAL5005RAL5005RAL5005RAL5005RAL5005RAL
Tread depth measurementnot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
asanetworknot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Measuring speed< 100rpm< 100rpm< 100rpm< 100rpm< 100rpm< 100rpm< 100rpm
Measuring time6s6s6s6s6s6s6s
Balancing accuracy +/-1g1g1g1g1g1g1g
DisplayLCDLCDLCDLCDLCDLCDLCDLCD
Min. rim width1,5″1,5″1,5″1,5″1,5″1,5″1,5″1,5″
Max. rim width22″22″22″22″22″22″22″22″
Rim diameter min.10″10″10″10″10″10″10″
Rim diameter max.26″26″26″26″26″26″26″
Max. wheel diameter1090mm1090mm1090mm1090mm1090mm1090mm1090mm1020mm
Wheel weight max.70kg70kg70kg70kg70kg70kg65kg
Power supply220 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz230 V | 50 – 60 Hz
Phases1111111
Weight140kg145kg145kg140kg150kg140kg120kg
Width1256mm1256mm1256mm1256mm1256mm1256mm1211mm1047mm
Depth898mm898mm898mm898mm953mm953mm898mm878mm
Height1695mm1695mm1695mm1695mm1695mm1695mm1695mm1540mm
