Interactive LCD display, passenger car, rim diameter 10 – 26″ | Blue (RAL 5005)
LCD monitor, 2D measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
Interactive LCD display, measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
Interactive LCD display, measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
2D, 7″ touchscreen, pneumatic locking, passenger car, rim diameter 10 – 26″ | Blue (RAL 5005)
80 kg, passenger car
Calibration kit for wheel balancers: cars and light commercial vehicles
Double centering, quickfit nut
Double centering, handwheel quickfit nut
Double centering
Double centering, handwheel nut
Universal flange for blind wheels | including center to center calliper
Set of stands
Set of columns flange for 5-hole BMW wheels | including center ring Ø 66,5 mm | for all models
Flange with 5 pins for Maserati wheels
Stand flange for wheels
For GAR131H, including Spacer
Complete with shaft, 2 cones, 6 spacers, centering nut and2 bushes | GAR181N or GAR354 required
Complete with shaft, 2 cones, 6 spacers, centering nut and 2 bushes | GAR181N or GAR354 required
Complete with extended shaft (318 mm), 2 spacers and centering nut | GAR181N or GAR354 required
Complete with shaft, 2 spacers and centering nut | GAR181N or GAR354 required
GAR354 or GAR181N required | 1 set / 18 pieces
GAR354 or GAR181N required
Centering bush for BMW | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR1
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bushes | option for universal flange GAR181N or GAR191N
Inclusive spacer
For wheel balancers | 1 set / 5 pieces
Option for universal flange GAR181N or GAR191N | 1 set / 6 pieces
80 kg, passenger car
Laser blade with 6 o’clock positioning lit-up
For Renault | Ø 60 / 66 mm | 1 set / 2 pieces
For Renault Trafic Master, incl. Spacer | Ø 71 / 88.9 / 129.9 mm | 1 set / 3 pieces
For motorcycles | with shaft, Ø 14 mm, and accessories | GAR181A1 required
For motorcycles | without shaft and accessories | GAR181A1 required
Double centering, quickfit nut, for car wheels (excluding pneumatic locking versions)
Universal flange with stands
Inclusive protection cup | Ø 44 – 112 mm | 1 set / 3 pieces

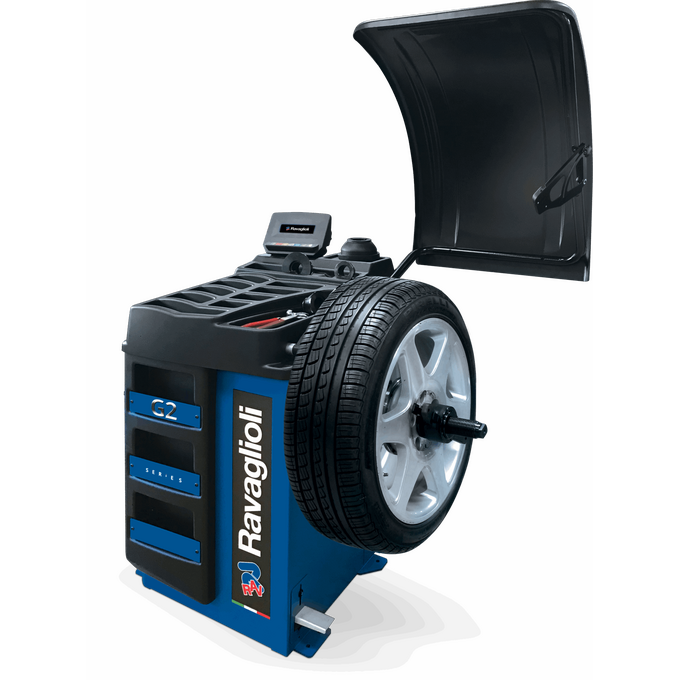

| Features |  Electronic wheel balancer with microprocessor G2.124NWSPLUS | Electronic wheel balancer with microprocessor G2.124NR | Electronic wheel balancer with microprocessor G2.140R | Electronic wheel balancer with microprocessor G2.121RFM | Electronic wheel balancer with microprocessor G2.120R | Electronic wheel balancer with microprocessor GP3.128NR |
|---|---|---|---|---|---|---|
| Wheel data recording | semi-automatic | semi-automatic | semi-automatic | semi-automatic | semi-automatic | semi-automatic |
| Colour | 5005RAL | 5005RAL | 5005RAL | — | 5005RAL | 5005RAL |
| Tread depth measurement | not possible | not possible | not possible | not possible | not possible | not possible |
| TeqLink | not possible | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible | not possible |
| Measuring speed | < 100rpm | < 100rpm | < 100rpm | — | < 100rpm | < 100rpm |
| Measuring time | 6s | 6s | 6s | — | 6s | 6s |
| Balancing accuracy +/- | 1g | 1g | 1g | — | 1g | 1g |
| Display | LCD | LCD | LCD | LCD, backlit | LCD, backlit | TFT |
| Min. rim width | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ |
| Max. rim width | 22″ | 22″ | 22″ | 22″ | 22″ | 22″ |
| Rim diameter min. | 10″ | 10″ | 10″ | — | 10″ | 10″ |
| Rim diameter max. | 26″ | 26″ | 26″ | — | 26″ | 26″ |
| Max. wheel diameter | 1020mm | 1020mm | 1020mm | 850mm | 850mm | 1090mm |
| Wheel weight max. | 70kg | 70kg | 65kg | — | 65kg | 70kg |
| Power supply | 220 – 240 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | — | 230 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz |
| Phases | 1 | 1 | 1 | — | 1 | 1 |
| Weight | 127kg | 125kg | 120kg | — | 120kg | 130kg |
| Width | 1258mm | 1212mm | 1047mm | 1047mm | 1047mm | 1211mm |
| Depth | 1110mm | 1110mm | 878mm | 881mm | 646mm | 898mm |
| Height | 1700mm | 1700mm | 1540mm | 1540mm | 1108mm | 1695mm |
