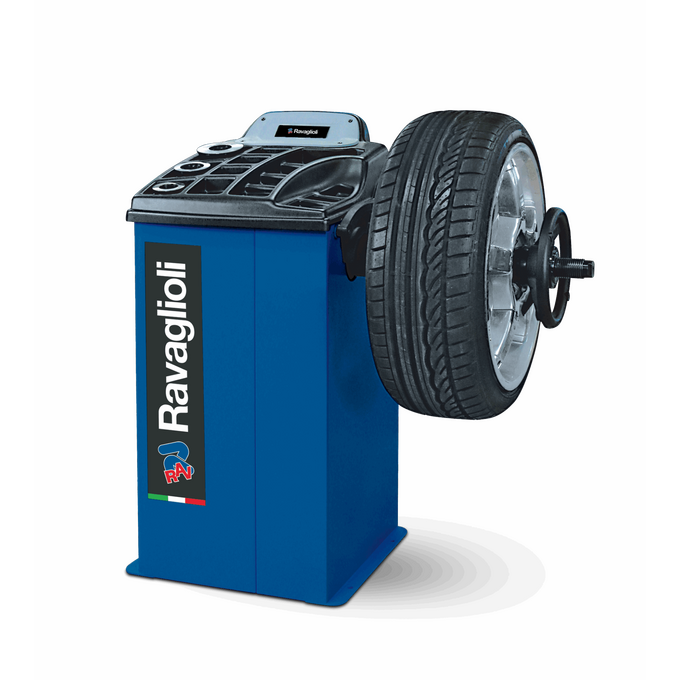

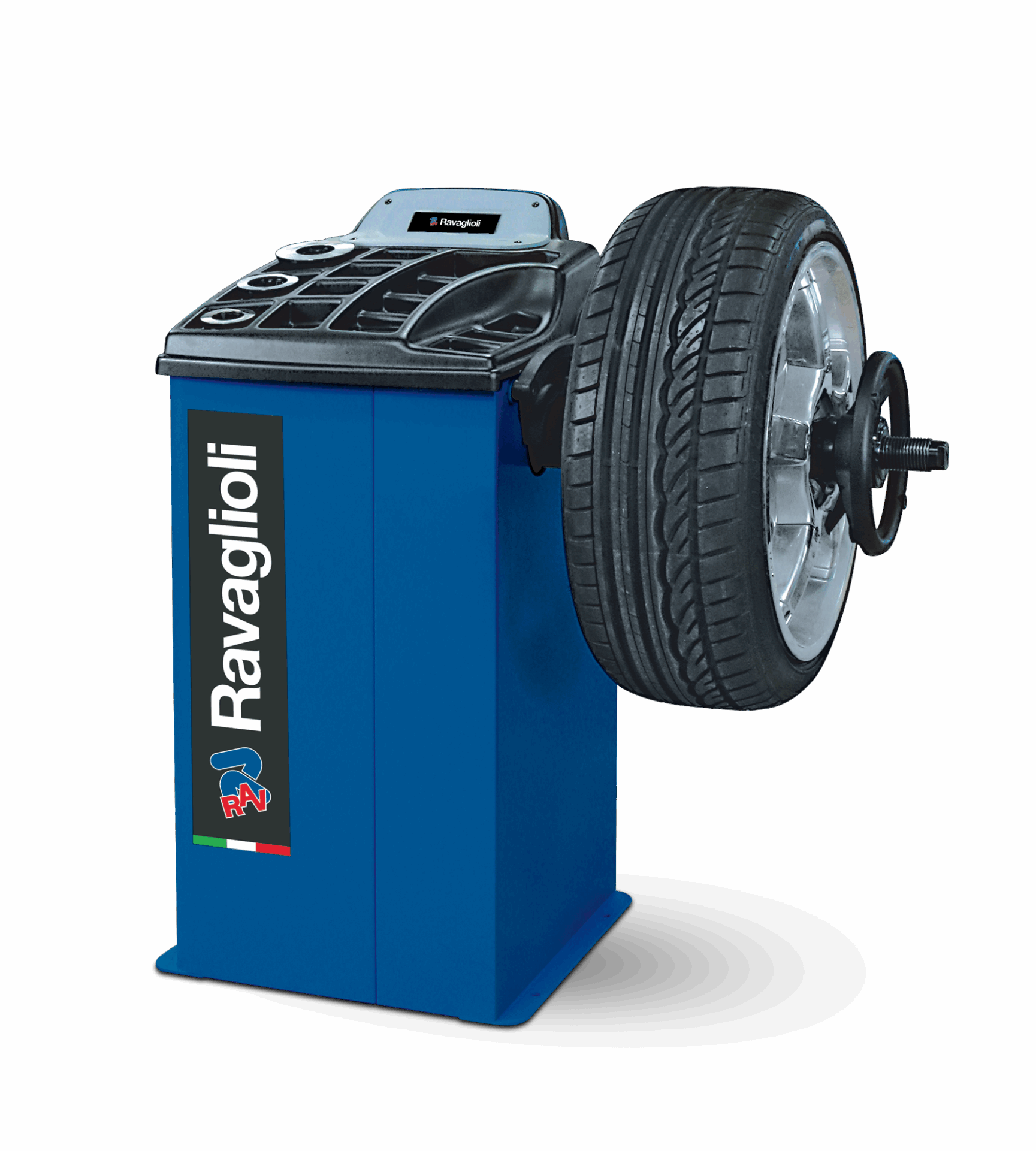

A low rotation speed balancer. Entry level model of the motorised range, the machine offers great value for money and occupies a very limited space, it also gives professional performances.
LCD monitor, 2D measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
Interactive LCD display, measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
Interactive LCD display, measuring arm for automatic wheel width and rim diameter measuring, passenger car, rim diameter 10 – 26″…
80 kg, passenger car
Calibration kit for wheel balancers: cars and light commercial vehicles
Double centering, quickfit nut
Double centering
Double centering, handwheel nut
Double centering, quickfit nut, for car wheels (excluding pneumatic locking versions)
Inclusive spacer
For wheel balancers | 1 set / 5 pieces
Universal flange for blind wheels | including center to center calliper
Universal flange with stands
Set of stands
Stand flange for wheels
Flange with 5 pins for Maserati wheels
For GAR131H, including Spacer
Set of columns flange for 5-hole BMW wheels | including center ring Ø 66,5 mm | for all models
Complete with shaft, 2 cones, 6 spacers, centering nut and2 bushes | GAR181N or GAR354 required
Complete with shaft, 2 cones, 6 spacers, centering nut and 2 bushes | GAR181N or GAR354 required
Complete with extended shaft (318 mm), 2 spacers and centering nut | GAR181N or GAR354 required
Complete with shaft, 2 spacers and centering nut | GAR181N or GAR354 required
GAR354 or GAR181N required | 1 set / 18 pieces
GAR354 or GAR181N required
Centering bush for BMW | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR1
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bushes | option for universal flange GAR181N or GAR191N
Option for universal flange GAR181N or GAR191N | 1 set / 6 pieces
80 kg, passenger car
For Renault | Ø 60 / 66 mm | 1 set / 2 pieces
For Renault Trafic Master, incl. Spacer | Ø 71 / 88.9 / 129.9 mm | 1 set / 3 pieces
For motorcycles | with shaft, Ø 14 mm, and accessories | GAR181A1 required
For motorcycles | without shaft and accessories | GAR181A1 required
Double centering, handwheel quickfit nut
Inclusive protection cup | Ø 44 – 112 mm | 1 set / 3 pieces
| Features |  Electronic wheel balancer with microprocessor G2.116R | Electronic wheel balancer with microprocessor G2.140R | Electronic wheel balancer with microprocessor G2.120R | Electronic wheel balancer with microprocessor G2.121RFM |
|---|---|---|---|---|
| Wheel data recording | semi-automatic | semi-automatic | semi-automatic | semi-automatic |
| Colour | 5005RAL | 5005RAL | 5005RAL | — |
| Tread depth measurement | not possible | not possible | not possible | not possible |
| TeqLink | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible |
| Measuring speed | < 100rpm | < 100rpm | < 100rpm | — |
| Measuring time | 6s | 6s | 6s | — |
| Balancing accuracy +/- | 1g | 1g | 1g | — |
| Display | LCD, backlit | LCD | LCD, backlit | LCD, backlit |
| Min. rim width | 1,5″ | 1,5″ | 1,5″ | 1,5″ |
| Max. rim width | 22″ | 22″ | 22″ | 22″ |
| Rim diameter min. | 10″ | 10″ | 10″ | — |
| Rim diameter max. | 26″ | 26″ | 26″ | — |
| Max. wheel diameter | 1020mm | 1020mm | 850mm | 850mm |
| Wheel weight max. | 65kg | 65kg | 65kg | — |
| Power supply | 230 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | — |
| Phases | 1 | 1 | 1 | — |
| Weight | 45kg | 120kg | 120kg | — |
| Width | 980mm | 1047mm | 1047mm | 1047mm |
| Depth | 575mm | 878mm | 646mm | 881mm |
| Height | 983mm | 1540mm | 1108mm | 1540mm |
