CCD wheel aligner RAVTD2.0WIFI | Standard

Tablet-controlled CCD wheel aligner | incl. 4-point wheel clamps and data transmission via Wi-Fi

MPN: RAV.TD2WF.701084
GTIN (EAN): 5063084701084
Category:
Tags:

Share on:

Description

A New Wheel Alignment Concept

The wheel aligner system RAVTD2.0WIFI is a new conception of CCD technology. Totally PC-free, data are transmitted between the sensors and a compatible latest generation Bluetooth tablet. The measuring heads and their support are designed to adapt to all types of workshop.

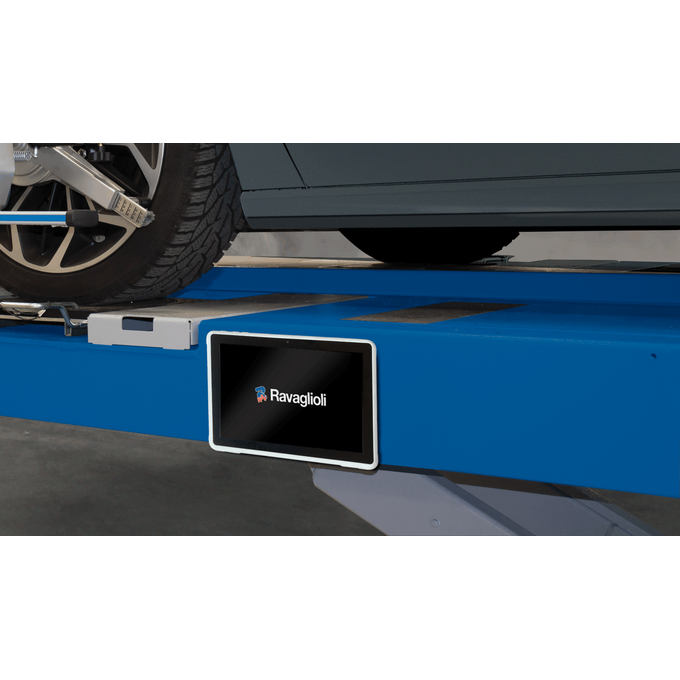

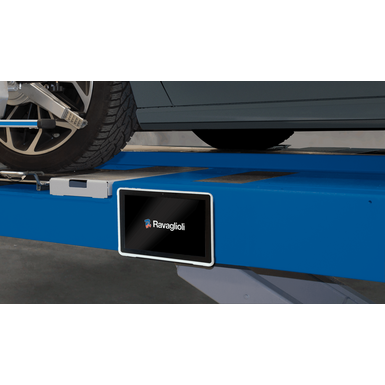

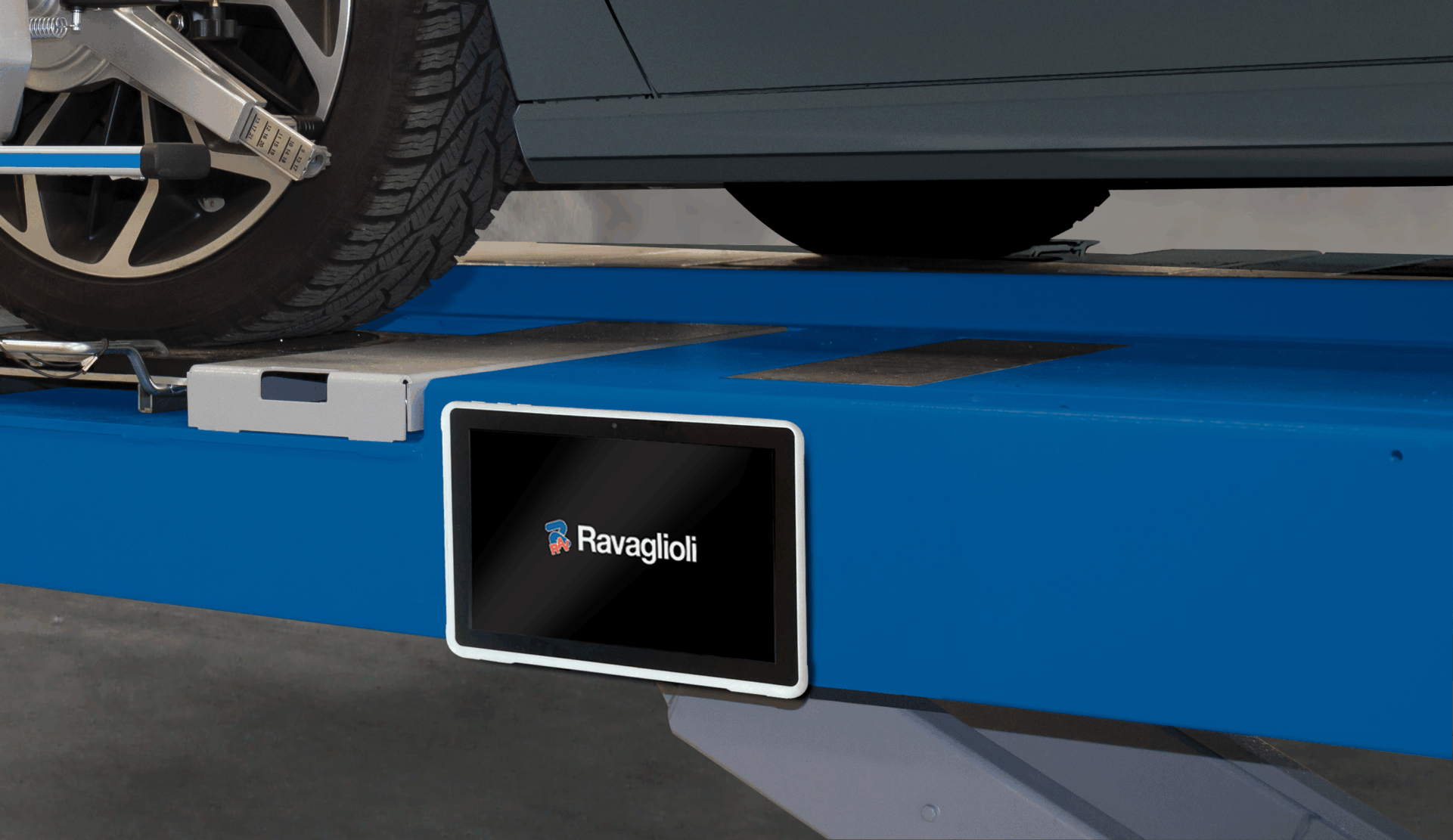

  • Complete control of operations: the operator can monitor the wheel alignment operations with a tablet easy to position on the lift
  • Space-saving design: alignment operations are performed in total freedom without space occupied by a console, a data transfer tower or a PC
  • Bluetooth connection: the sensors and tablet fully communicate via compatible Bluetooth connection

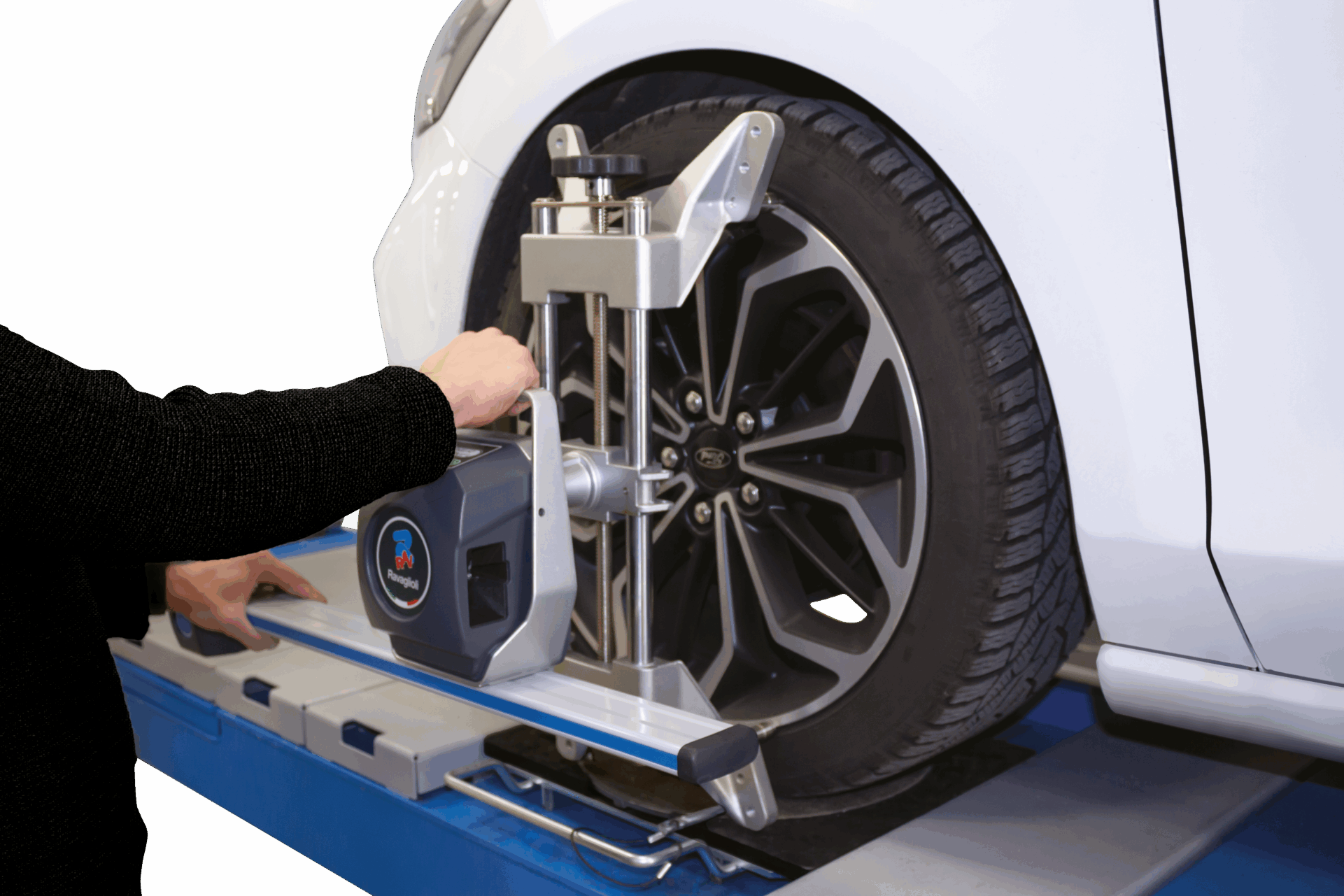

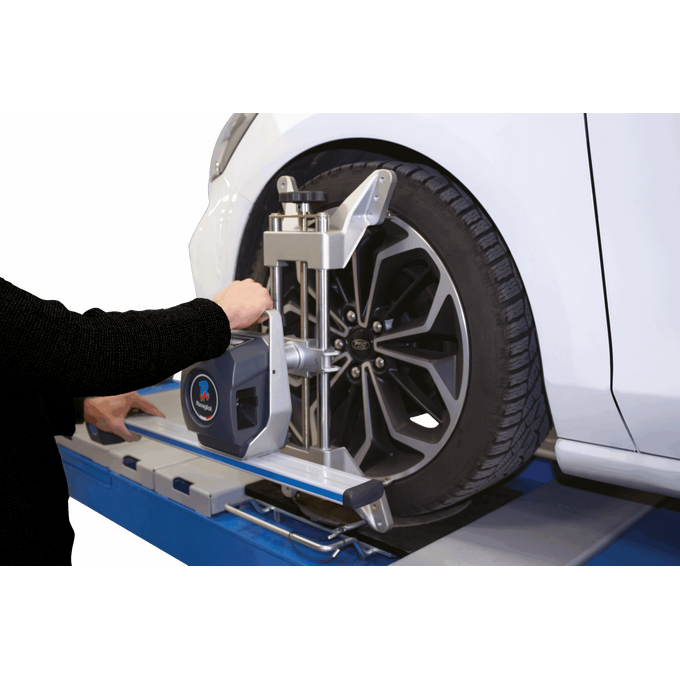

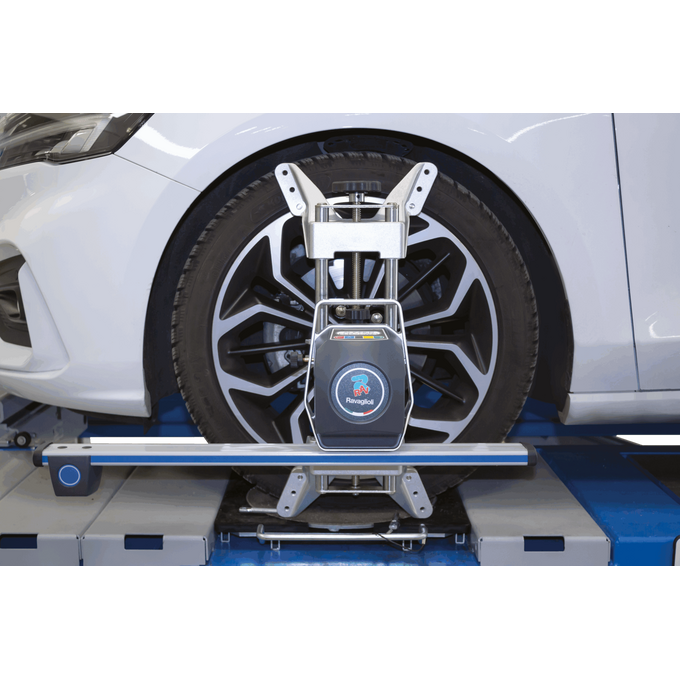

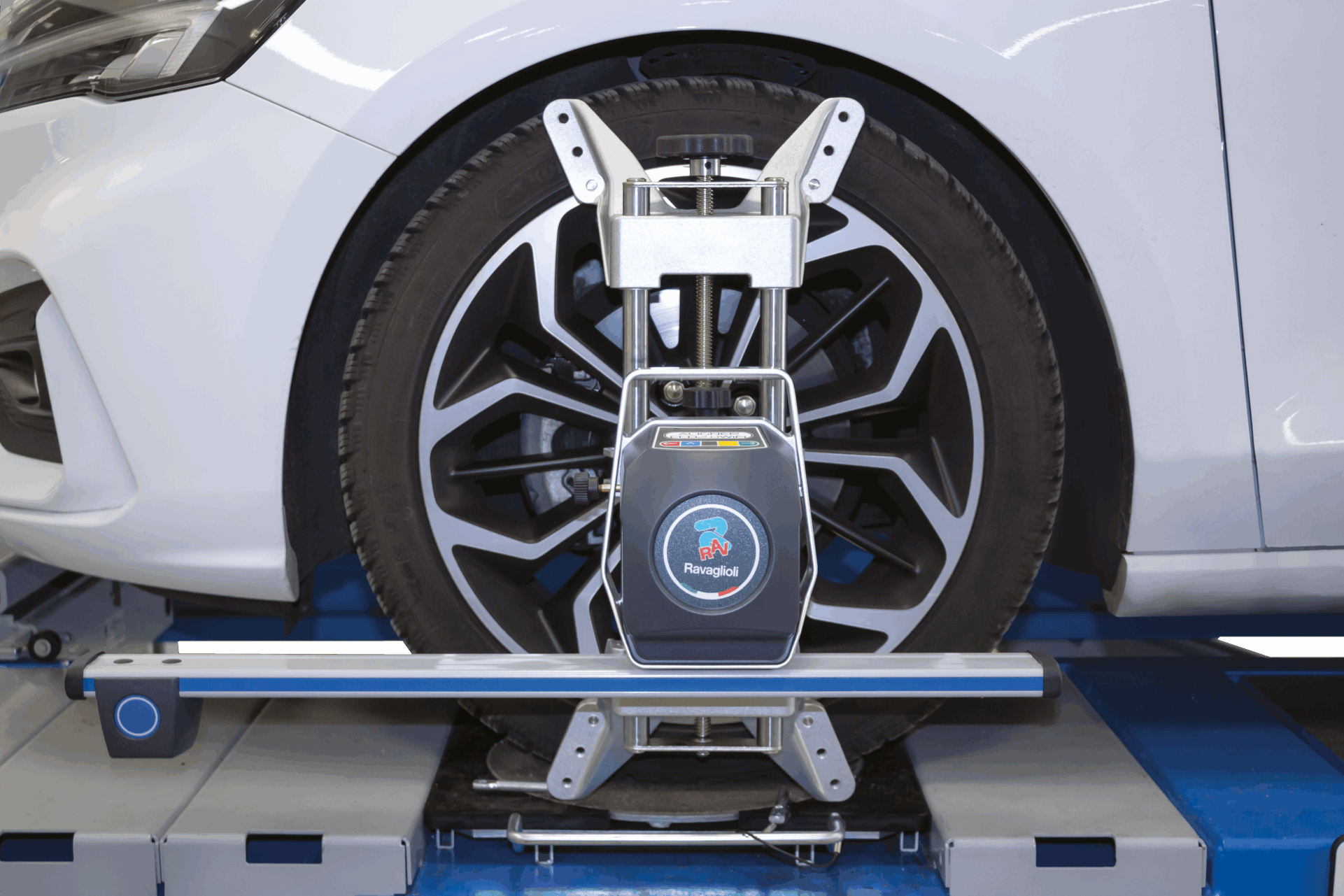

  • Compact and lightweight measuring heads
  • Short installation time
  • Hi-tech design
  • Compact and lightweight measuring heads
  • Tablet extremely lightweight but boasting an attractive design long lifetime
    • Dust- and water-resistant (IP52)
    • Fall-resistant up to 76 cm
    • 64 GB of memory
    • Display 800 x 1280
    • Complete with adhesive magnets
    • Rounded edges to ensure greater sturdiness
    • 2 MP front camera + 5 MP rear camera
    • Weighs less than 700 g
  • Software totally rewritten for Android with updated graphics, animations and adjustment aids so work is rapid and effective
  • 10″ multi-touch 800 x 1280 tablet complete with adhesive magnets
  • 8 CCD sensors with bearings, encoder rapid charging sockets

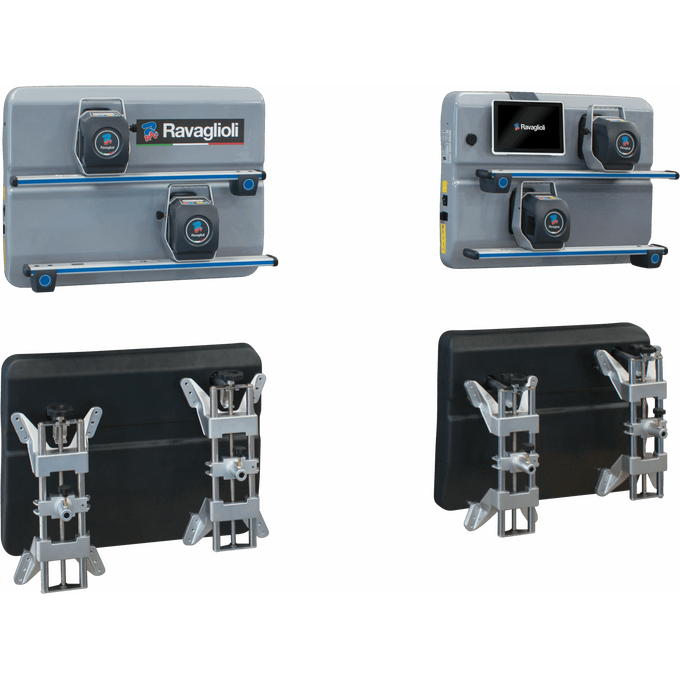

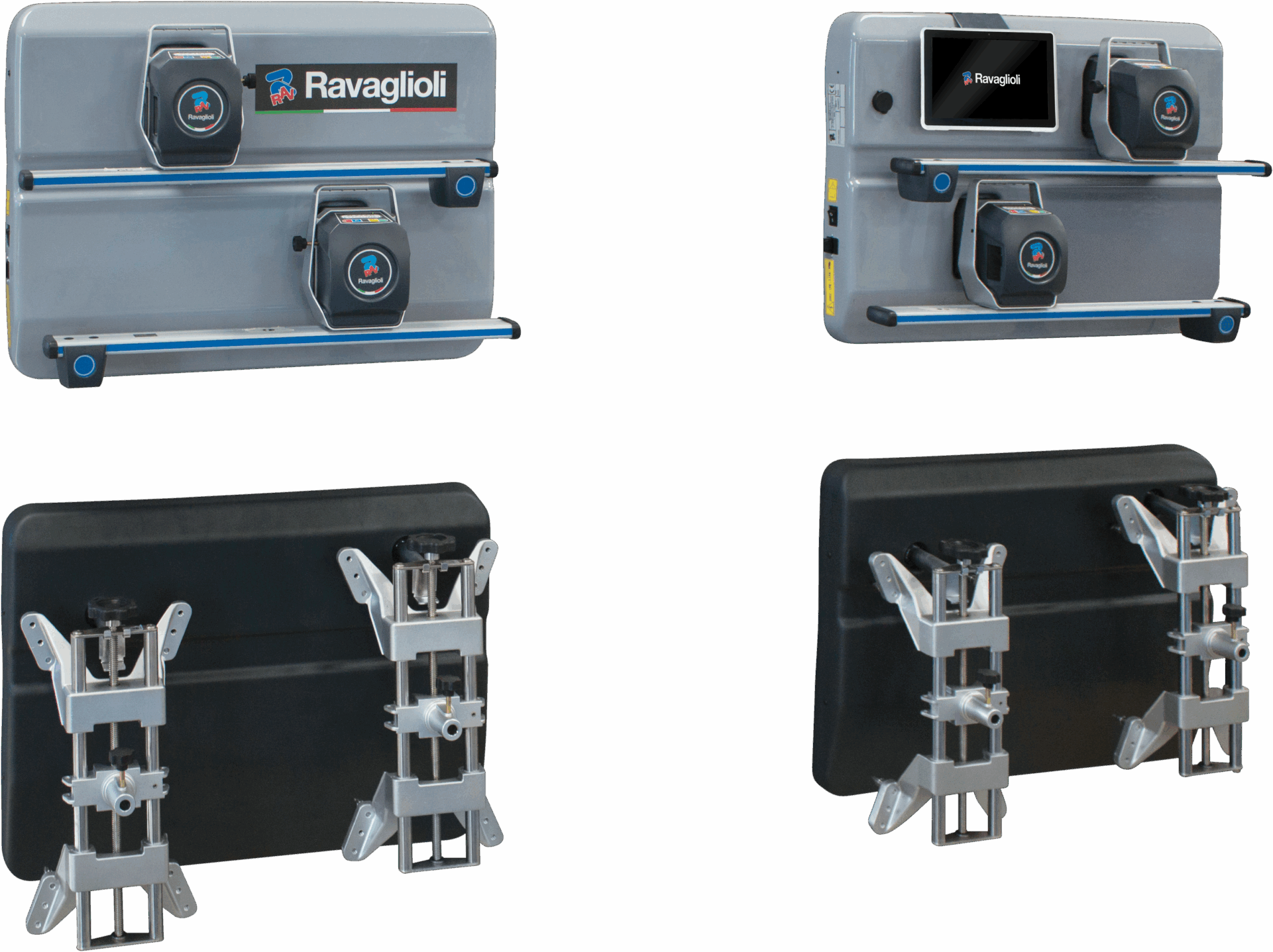

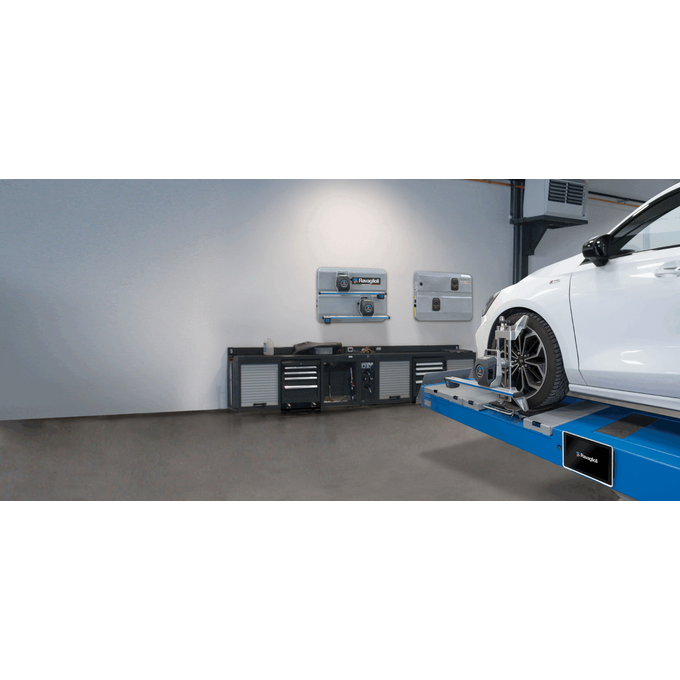

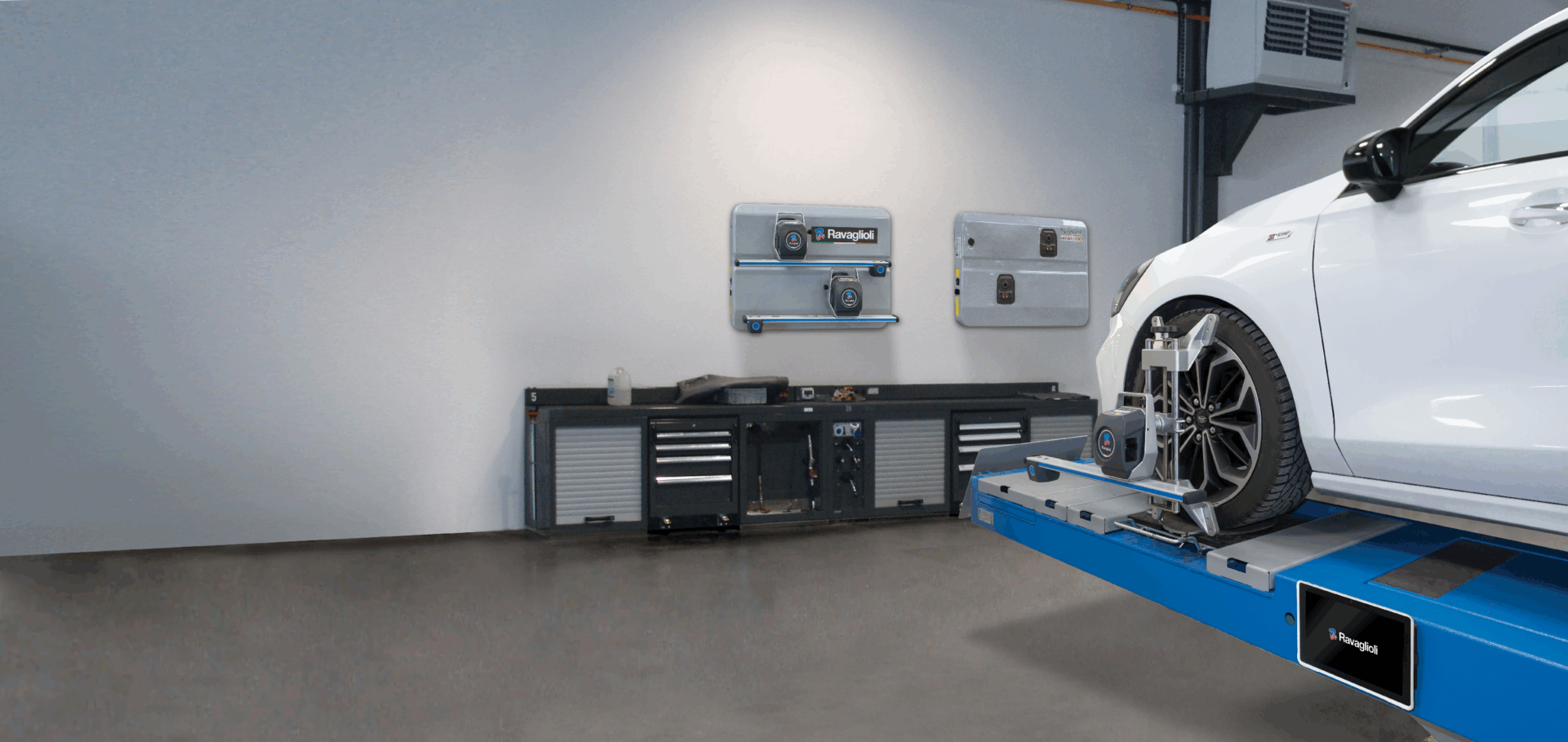

  • 2 wall-mounted panels with recharging for the measuring heads, and USB charging port for the tablet
  • 2 pairs of STDA33EU 4-point clamps
  • The acoustic aid makes adjustment easier when the screen is hidden
  • All-included: The system is fully pre-assembled so it can be put into service quickly
  • Pair of S110A7/P turntables (included)
  • 1 STDA161 steering wheel lock (included)
  • 1 brake pedal arrestor (included)
  • Possibility to send test reports directly to the customer by e-mail
  • Possibility to add a photo with vehicle details to the print report

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesCCD wheel aligner RAVTD2.0WIFI | StandardCCD wheel aligner RAVTD2.0WIFI | StandardCCD wheel aligner RAVTD2.0WIFI | PremiumCCD wheel aligner RAVTD2.0WIFI | Premium
Measuring systemCCDCCD
Количество датчиков8
TeqLinkoptionaloptional
asanetworkoptionaloptional
ASA livestreamoptionaloptional
Компенсация инерцииопциона́льный
Индивидуальное схождение передней/задней оси+/- 20°
Общее схождение+/- 20°
Угол расхождения колеи+/- 20°
Развал передней/задней оси+/- 10°
Наклон+/- 18°
SAI+/- 18°+/- 18°
Смещение оси+/- 5°
Смещение передней оси+/- 5°
Линия геометрического центра+/- 5°
Угол тягового усилия+/- 5°
Размер колеса, мин.8″
Размер колеса, макс24″
Колесная база, макс.4500мм
Display designdigitaldigital
DisplayTFTTFT
Размер дисплея10″
Совместимость с сетьюДa
Тип передачи данныхбеспроводный
Грузоподъемность на поворотный круг2 x 1000кг
Электрическое соединение230 В | 50 – 60 Гц
Width800mm800mm
Depth250mm250mm
Height600mm600mm
Вес2 x 15кг
