2-post lift KPH45SP

Description

HORIZON SERIES

Perfect synchronisation of the carriages thanks to the absence of rope.
Limit switch as standard.

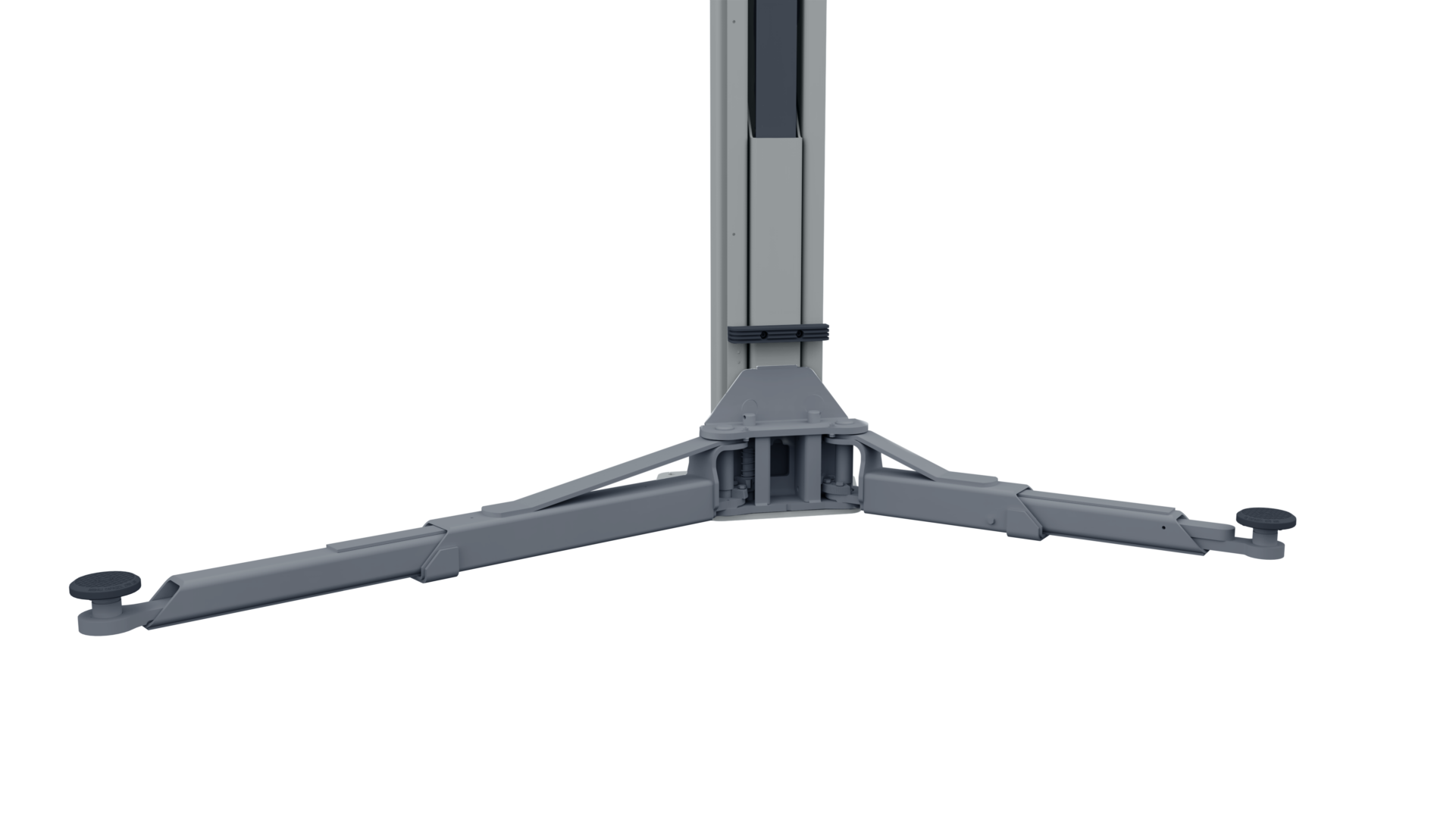

Wide pad adjustment.
Possibility of a narrower installation width for workshops with limited working space.

Wide regulation. Two different installation heights 4170 – 3940 mm.
Using a special accessory, the installation height can be increased to 4780 – 4550 mm.

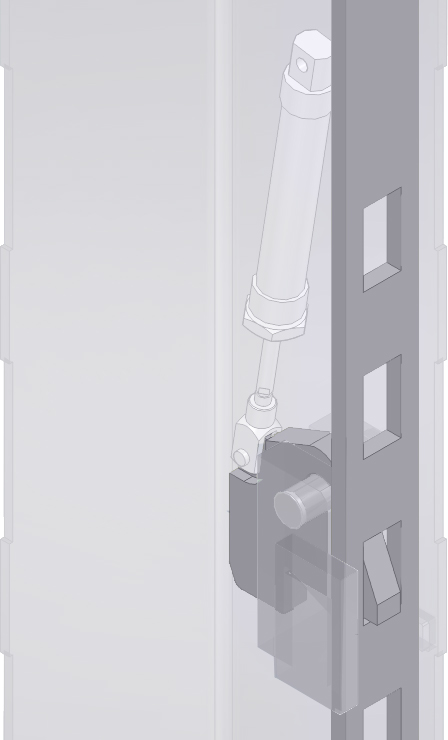

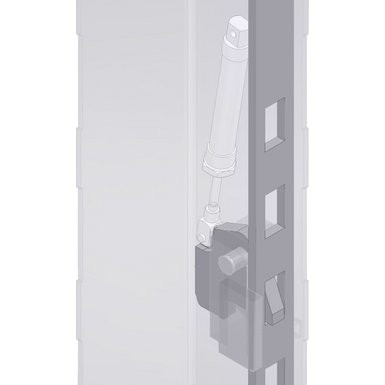

Mechanical safety always on.
The presence of the mechanical harpoon guarantees extreme safety when parking. Arm safety locking with automatic engagement and automatic release when the arm reaches the floor.

Media

Accessories

Accessories 2-post lifts

Tool trays
MPN: VSG.2CALL.902641

Magnetic | 1 set / 2 pieces
Accessories 2-post lifts

Pads frame adapters kit
MPN: VSG.2CALL.901163

Pads frame adapters kit Ø 120 mm (1 set, 2 pcs), for turntable
Accessories 2-post lifts

Vehicles lift platforms
MPN: VSG.2CALL.902818

Ramp height 60 mm, for extremely low vehicles | 1 set / 2 pieces
Accessories 2-post lifts

Stands for alignment
MPN: VSG.2CALL.902085

1 set / 4 pieces
Accessories 2-post lifts

Height variant H=4780 mm
MPN: KPH45-EH2-KITWG

Tech Data

Features	2-post lift KPH45SP	2-post lift KPH35 Standard	2-post lift KPH35RM Medium sports car	2-post lift KPH35EVP Premium Electric Vehicles	2-post lift KPH45S	2-post lift KPH45SLIKM	2-post lift KPH40SAVM
Number of columns	2	2	2	2	2	2	2
Capacity	4500kg	3500kg	3500kg	3500kg	4500kg	4500kg	4000kg
Mode of drive	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic
Control	push buttons	push buttons	push buttons	push buttons	push buttons	push buttons	push buttons
Energy kit	Not possible	Not possible	Standard	Standard	Not possible	Not possible	Not possible
Type of installation	Surface mounted	Surface mounted	Surface mounted	Surface mounted	Surface mounted	Surface mounted	Surface mounted
TeqLink	Standard	—	—	—	Standard	Standard	—
Colour	5005	—	—	—	7040	7040	7040
Stroke	1850mm	—	—	—	—	1850mm	—
Max. lifting height	2005mm	2011mm	2009mm	2011mm	2005mm	2025mm	1977mm
Lifting time	37s	32s	32s	32s	37s	37s	37s
Lowering time	34s	30s	30s	30s	—	34s	34s
Min. plate height	95mm	102mm	80mm	96mm	95mm	115mm	97mm
Max. plate heigh	155mm	161mm	125mm	156mm	155mm	175mm	127mm
Clear span between	2900mm	2700 (2540 – 2740)mm	2700 (2540 – 2740)mm	2700 (2540 – 2740)mm	mm	2900mm	3244 (3144 – 3344)mm
Clear span between (out)	3244mm	3162 (3002 – 3202)mm	3162 (3002 – 3202)mm	3162 (3002 – 3202)mm	mm	3244mm	3628 (3528 – 3728)mm
Drive-through width	2594mm	2456mm	2456mm	2456mm	2594mm	2594mm	2594mm
Required ceiling height	4250mm	4250mm	4250mm	4250mm	4250mm	4250mm	4250mm
Surface coating	Powder coated	Powder coated	Powder coated	Powder coated	Powder coated	Powder coated	Powder coated
Arm layout	Asymmetrical	Asymmetrical	Asymmetrical	Asymmetrical	Asymmetrical	Asymmetrical	Asymmetrical
Telescopic front arms	3-fold	3-fold	3-fold	3-fold	3-fold	3-fold	3-fold
Telescopic rear arms	2-fold	2-fold	3-fold	4-fold	2-fold	2-fold	2-fold
Min. front arm length	550mm	550mm	585mm	668mm	550mm	700mm	470mm
Max. front arm length	1106mm	1105mm	1195mm	1143mm	1106mm	1500mm	1039mm
Min. rear arm length	876mm	876mm	585mm	686mm	876mm	700mm	725mm
Max. rear arm length	1472mm	1473mm	1195mm	1474mm	1472mm	1500mm	1480mm
Driving power	3,5kW	2,6kW	2,6kW	2,6kW	3,5kW	3,5kW	2,6kW
Electrical connection	400 V \| 50 Hz	400 V \| 50 Hz	400 V \| 50 Hz	400 V \| 50 Hz	400 V \| 50 Hz	400 V \| 50 Hz	400 V \| 50 Hz
Phases	3	3	3	3	3	3	3
Width	mm	mm	mm	mm	mm	mm	—
Height	3940 – 4170mm	3940 – 4055mm	3940 – 4055mm	3940 – 4055mm	3940 – 4170mm	3940 – 4170mm	3940 – 4055mm
Country of Origin, customs	CN	—	—	—	CN	CN	CN
