Description

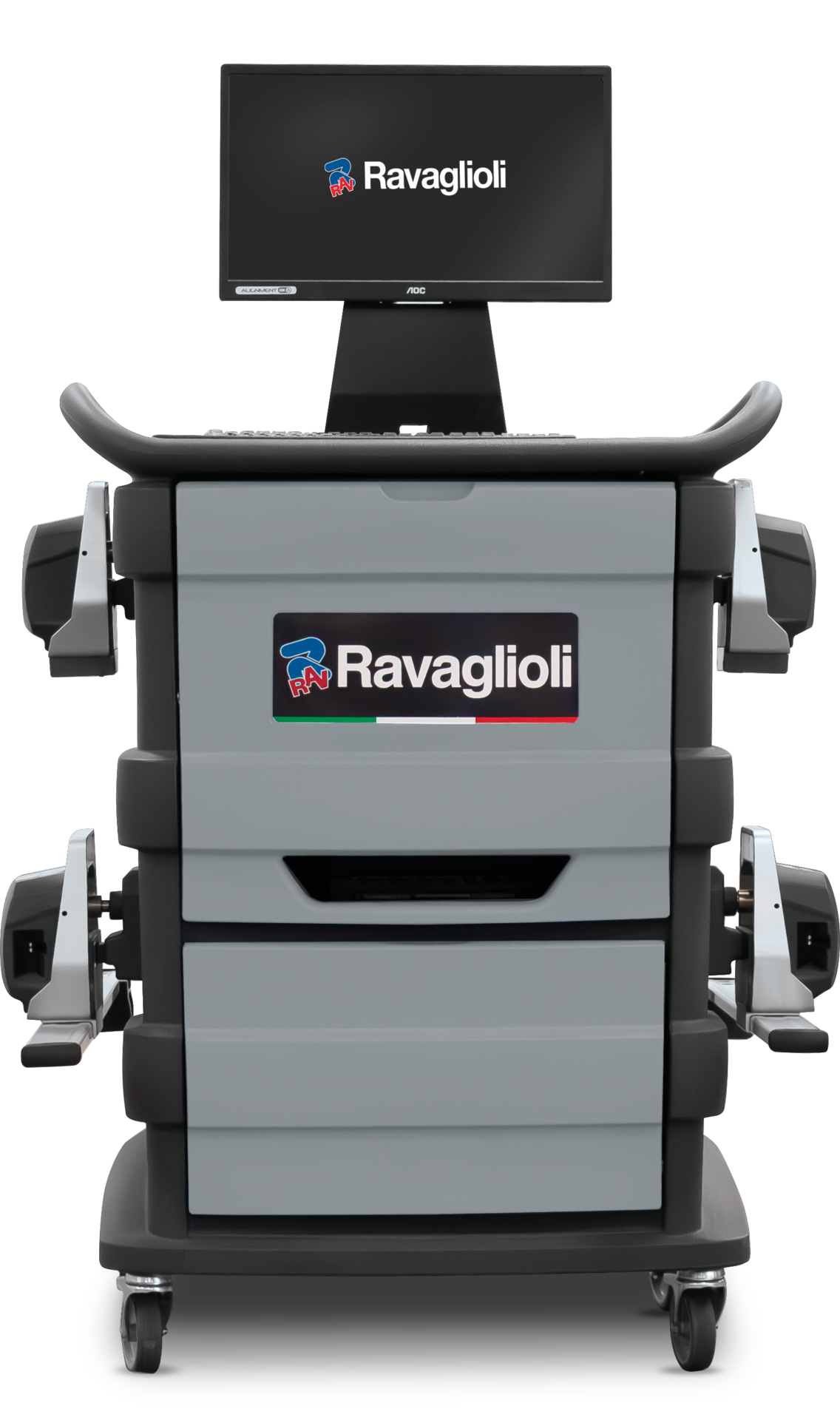

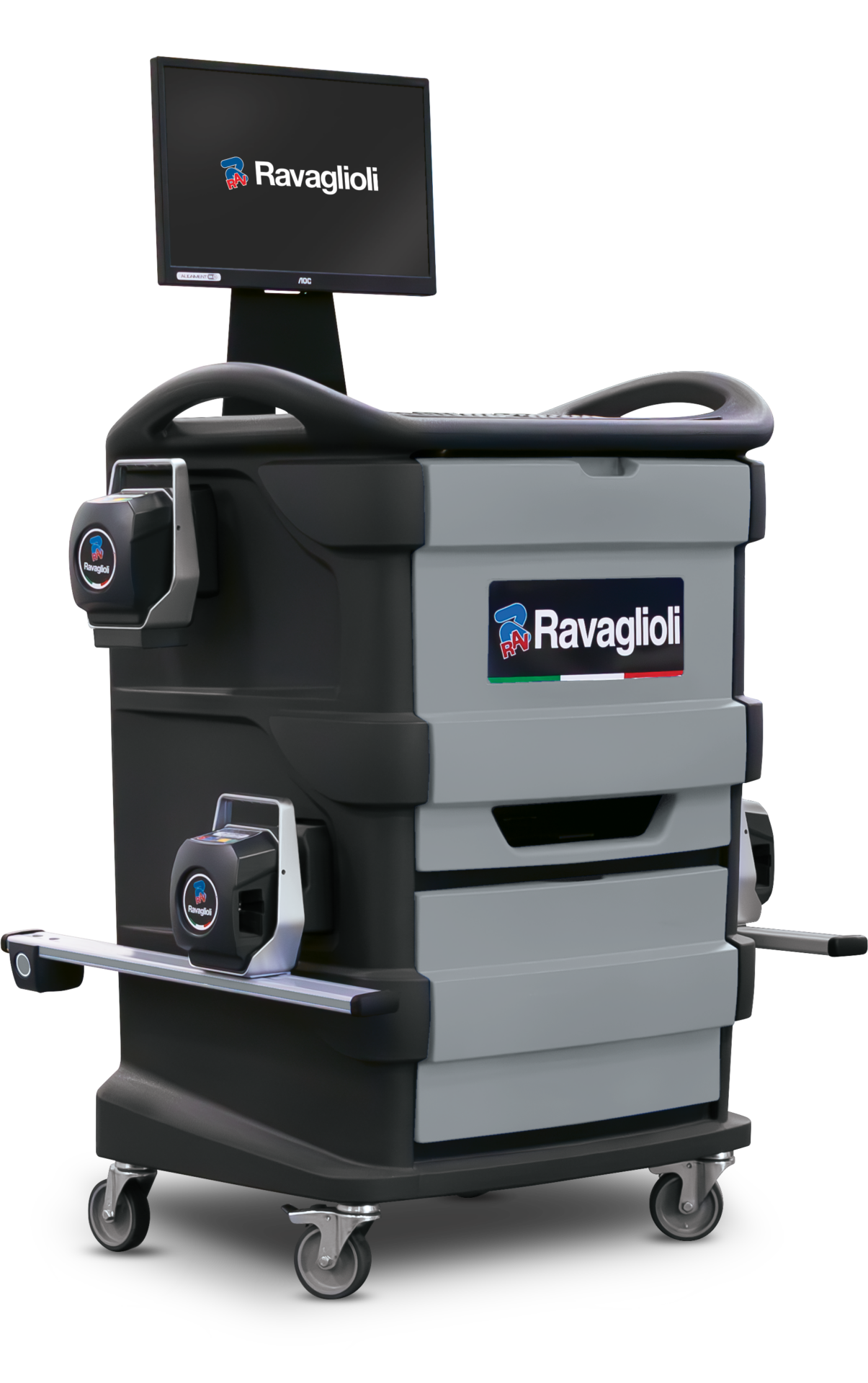

Wheel aligners equipped with CCD sensors, with data transmission via Bluetooth and powered by fast-charge batteries. The trailer-mounted cabinet provides full mobility between work stations as it is cable-free.
- Eco Cabinet: cabinet made with low environmental impact material
- Compact design: extra-light CCD measuring heads weighing just 2.6 kg, -30% compared to the previous model
- Smart technology: software with updated graphics, intuitive user interface, animations and adjustment aids so work is rapid and effective
- Measuring heads with keyboard for remote control.
- The trailer-mounted console contains the PC, printer and monitor.
- Power supplied by rechargeable long-life batteries.
- Infrared transmission between measuring heads, effective even in critical lighting conditions.
- Convenient compartment for clamps and accessories.
- LED synoptic repeaters positioned on each measuring head.
- Model equipped with 3-point clamps (STDA35E) allow the run out compensation procedure to be skipped to speed up the operator’s activity and maximise workshop efficiency.
- Electronic steering procedure via the CCD sensors to get the incidence value and tilt of the upright with extreme precision.
- The Spoiler Program for low profile sports cars steps in automatically and makes measurement possible without the use of accessories.
- Based on the height of the frame, the database automatically changes the wheel alignment specifications.
- With the use of animated 3D graphics, the Movie program helps the user display the sequence of operations to perform to properly adjust the vehicle.
- Program for managing and displaying data in Microsoft Windows environment.
- Databank with over 90000 vehicle technical data sheets.
- Possibility for the user to manually enter new cars.
- Customer databank for recording 20000 operations with search by name or vehicle plate number.
- The Run out program is available to push the vehicle 30° (rapid compensation and in little off-centre space) without the need to lift the vehicle.
- Compatible with:
- the TEq-Link Connected Workshop system: software platform for connecting shop equipment and for monitoring its use, managing preventive maintenance, sending reports by email and much more.
- ADAS (Advanced Driver Assistance Systems) sensor calibration systems.
- Shoot & Go: token for consulting the car database online. (Available in the following countries: Denmark, the Netherlands, Germany (KBA), Sweden, Italy, Spain, Portugal, Ireland, New Zealand, Australia, Norway and Finland. (Models may vary in the different countries.))
