Description

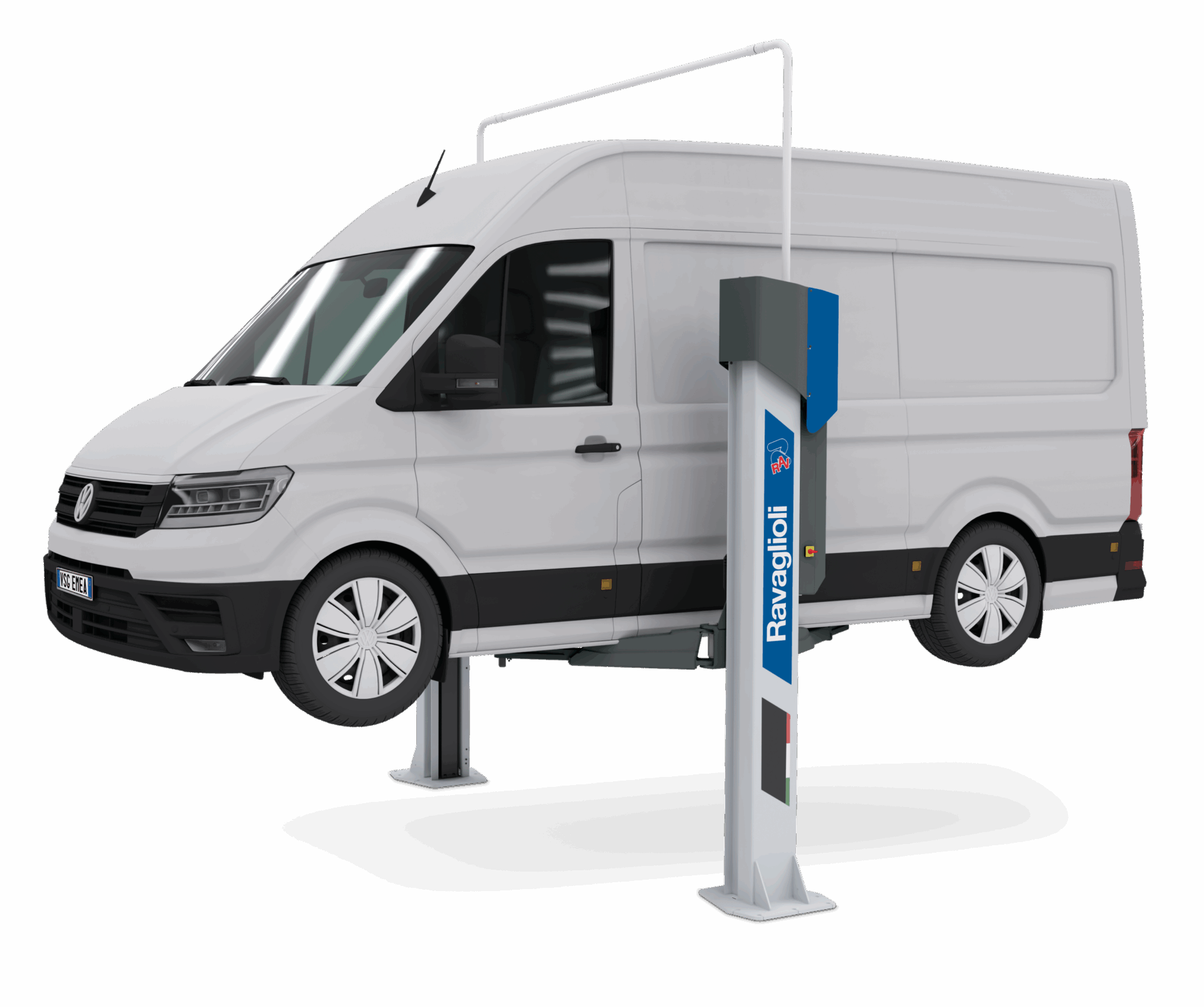

Legend Series – From History to the Future
- Up-to-date design: modern outline that brings modernity and usability to the workshop
- Innovative DNA: long-standing high-quality components and tested for 20000 cycles
- Future-proof: lifts designed for the TEq-Link workshop connectivity system
Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.
- Controlled up/down by pushing button positioned at an ergonomic height.
- Minimum height of the pads suitable for asymmetric loading, of armoured cars as well.
- Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width adjustable positions.
- More space for movement around the vehicle – The lift is designed to maximise its layout while ensuring minimum space requirements.
- TEq-Link connected workshop – All models of this series are equipped with up/down buttons and TEq-Link connectivity.
- The geometry of the arms was designed to lift long-wheelbase cars, commercial vehicles and vans
- Asymmetrical arm configuration (two long and two short arms)
- Automatic arm locking system
- High efficiency motors
- Automatic and permanent nut lubrication system to guarantee efficient movement during lifting and descent
- Steel high resistance rolled screw to provide long life
- Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
- Possibility to install without gantry since cables can be placed inground
- Premium quality of components:
- Aluminium pulley with cooling function
- Long-lasting bearings
- 50% longer, bronze load nut
- Motors with reinforced and cooling casing
- Solid automatic arm locking
