Описание

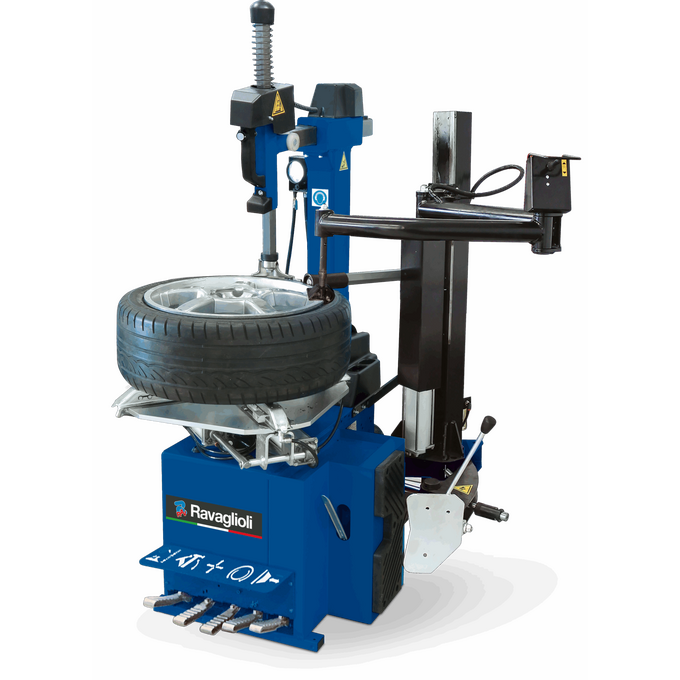

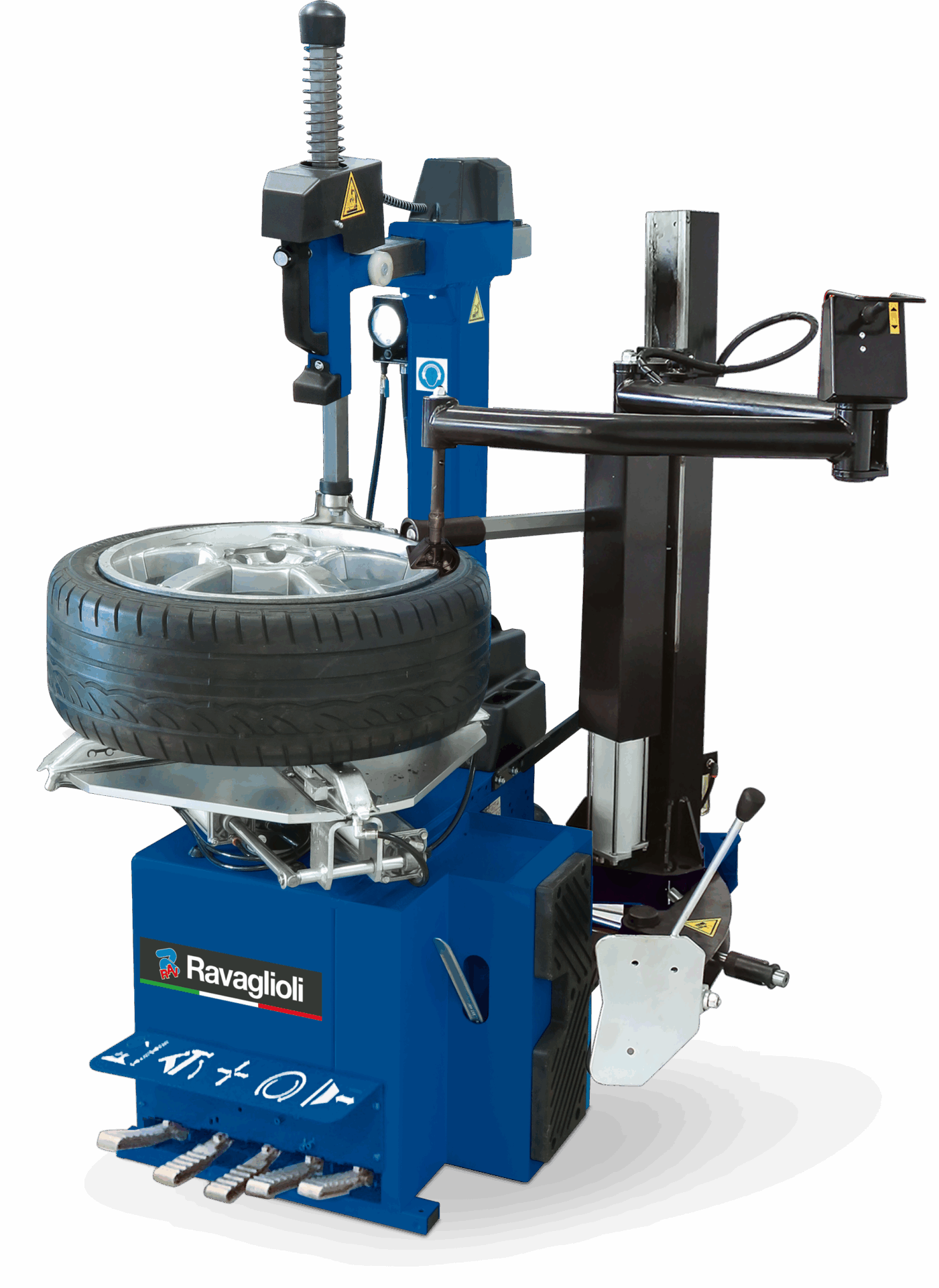

G7645 Series
- The frame is large and reinforced, to grant the utmost rigidity to the structure and chucking table.
- The gear box is installed between two steel plates, to avoid flexion during operation.
- The extra height of the vertical post and tool shaft allow operation on tyres to a max. of 17″ (431 mm) width.
- Self-centring chuck
- Two-way rotation
- High torque
- High clamping force (two pistons)
- Controls
- Sturdy and ergonomic handle
- Tool locking with automatic setting of appropriate distance from the rim
- Roller
- To facilitate arm movement during tool positioning
- Pedal assembly
- Pedals in press-cast aluminium
- The pedal assembly can be removed as an integral unit allowing easy servicing
- Tool
- Tool with integrated protection for alloy rims
- Adjustable angle and rotation
- Bead breaker
- The bead breaker opening can be adjusted into 2 positions to work with extreme rapidity
- Jointed and shaped blade to facilitate bead breaking
- Galvanised cylinder with double operation
