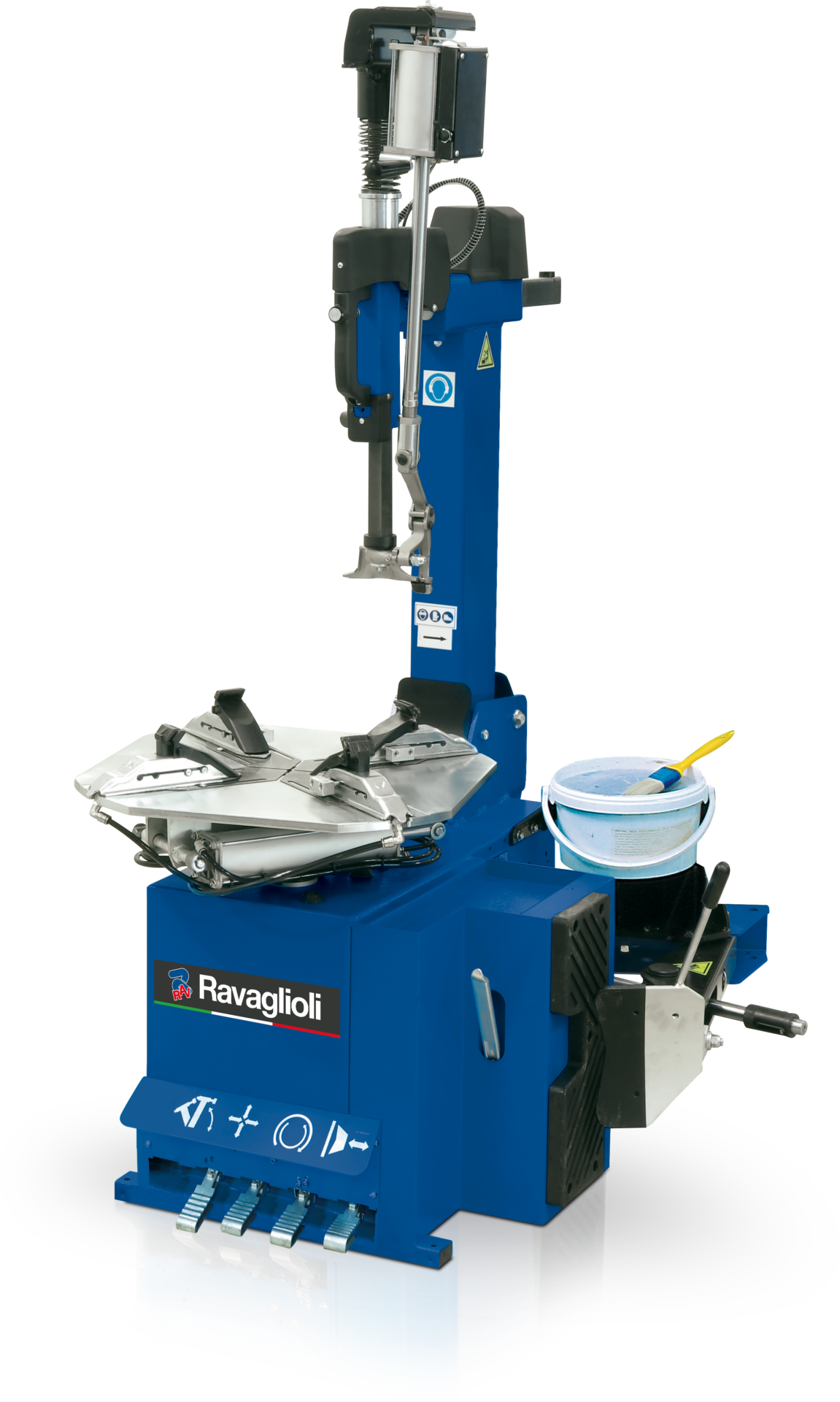

Tyre changer G8645ID.26PLUS

Tyre changer G8645ID.26PLUS

Leverless, max. speed 16 rpm, passenger car, rim diameter 10 – 28,5″, max. rim width 431 mm | Blue (RAL 5005)

MPN: RAV.G8645.201249
GTIN (EAN): 5063084201249
Category:
Tags: , ,
Request Information

Share on:

Description

Model with tubeless tyre inflation system. The device is activated by a single pedal command with two positions.

  • Patented lever-freetool: Fits between the tyre and rim and takes hold of the bead, gradually lifting it without the aid of bead-lifter levers.
  • The exclusive SLIVO working movement allows to catch the lower bead with no use of the PLUS device.
  • The frame is large and reinforced, to grant the utmost rigidity to the structure and chucking table. The gear box is installed between two steel plates, to avoid flexion during operation.
  • Bead breaker
    • The bead breaker opening can be adjusted to work with extreme rapidity
    • Galvanised cylinder with double operation
  • Self-centering chuck
    • Two-way rotation
    • High torque
    • High clamping force (two pistons)

Media

Similar Products

Accessories

Delivery

Tech Data

FeaturesTyre changer G8645ID.26PLUSTyre changer G8645ID.26PLUSTyre changer G8945ITD.26STyre changer G8945ITD.26STyre changer G7645D.26PLUSTyre changer G7645D.26PLUS
Mounting head designwithout tire leverwithout tire leverautomatic
Mounting arm designmoveablemoveablemoveable
Mounting column designtiltablerigidtiltable
Colour5005RAL—5005RAL
TeqLinknot possiblenot possiblenot possible
asanetworknot possiblenot possiblenot possible
Clamping device designClamping platecentralClamping plate
Min. clamping capacity10″10″10″
Max. clamping capacity24″26″28,5″
Min. inner clamping range12″—12″
Max. inner clamping range28,5″—28,5″
Min. outer clamping range10″—10″
Max. outer clamping range24″—26″
Max. rim width17″15″17″
Rim diameter min.10″10″10″
Rim diameter max.28,5″26″28,5″
Tire type passenger carRun-FlatRun-FlatRun-Flat
Wheel width max.431mm381mm431mm
Max. wheel diameter1143mm1143mm1143mm
Wheel weight max.80kg80kg80kg
Min. working range of the mounting head8″—8″
Max. working range of the mounting head32″—32″
Automatic bead-breaking movementNoYesNo
Bead breaker force11,9kN—11,9kN
Number of mounting speeds111
Rotation speed16rpm15rpm16rpm
Max. torque1200Nm1200Nm1200Nm
Power inverter motor1,5kW0,75kW1,5kW
Driving power0,75kW1,5kW0,75kW
Power supply200 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz
Phases131
Fuse protection16A slow-blow—16A slow-blow
Air flow8bar8bar8bar
Max. air supply10bar10bar10bar
Width1663mm1420mm1595mm
Weight360kg370kg310kg
Depth1999mm1737mm1992mm
Height2063mm2269mm2134mm
