Description
A New Wheel Alignment Concept
The wheel aligner system RAVTD2.0WIFI is a new conception of CCD technology. Totally PC-free, data are transmitted between the sensors and a compatible latest generation Bluetooth tablet. The measuring heads and their support are designed to adapt to all types of workshop.
- Complete control of operations: the operator can monitor the wheel alignment operations with a tablet easy to position on the lift
- Space-saving design: alignment operations are performed in total freedom without space occupied by a console, a data transfer tower or a PC
- Bluetooth connection: the sensors and tablet fully communicate via compatible Bluetooth connection
- Compact and lightweight measuring heads
- Short installation time
- Hi-tech design
- Compact and lightweight measuring heads
- Tablet extremely lightweight but boasting an attractive design long lifetime
- Dust- and water-resistant (IP52)
- Fall-resistant up to 76 cm
- 64 GB of memory
- Display 800 x 1280
- Complete with adhesive magnets
- Rounded edges to ensure greater sturdiness
- 2 MP front camera + 5 MP rear camera
- Weighs less than 700 g
- Software totally rewritten for Android with updated graphics, animations and adjustment aids so work is rapid and effective
- 10″ multi-touch 800 x 1280 tablet complete with adhesive magnets

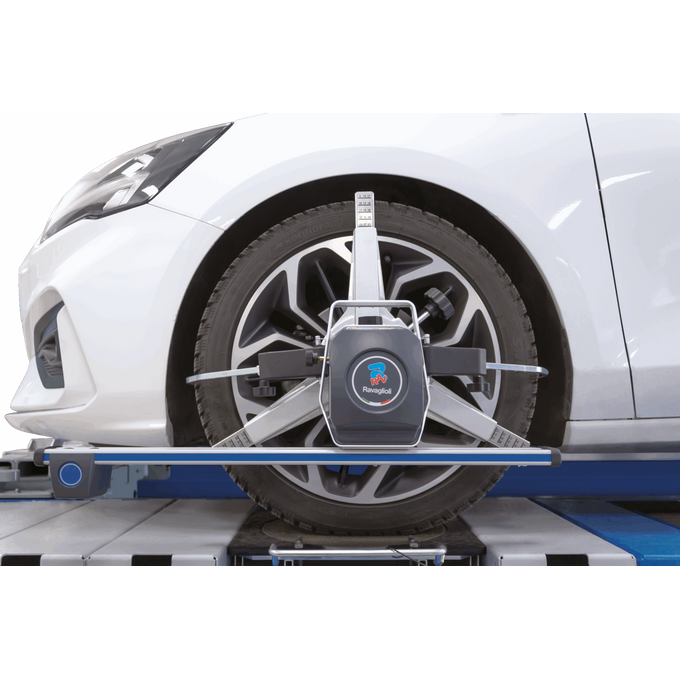

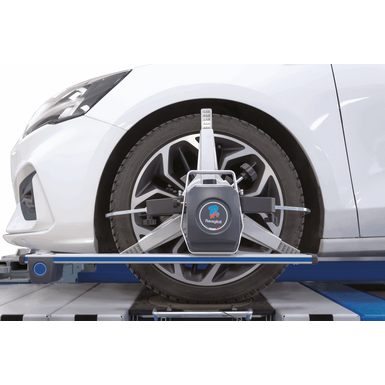

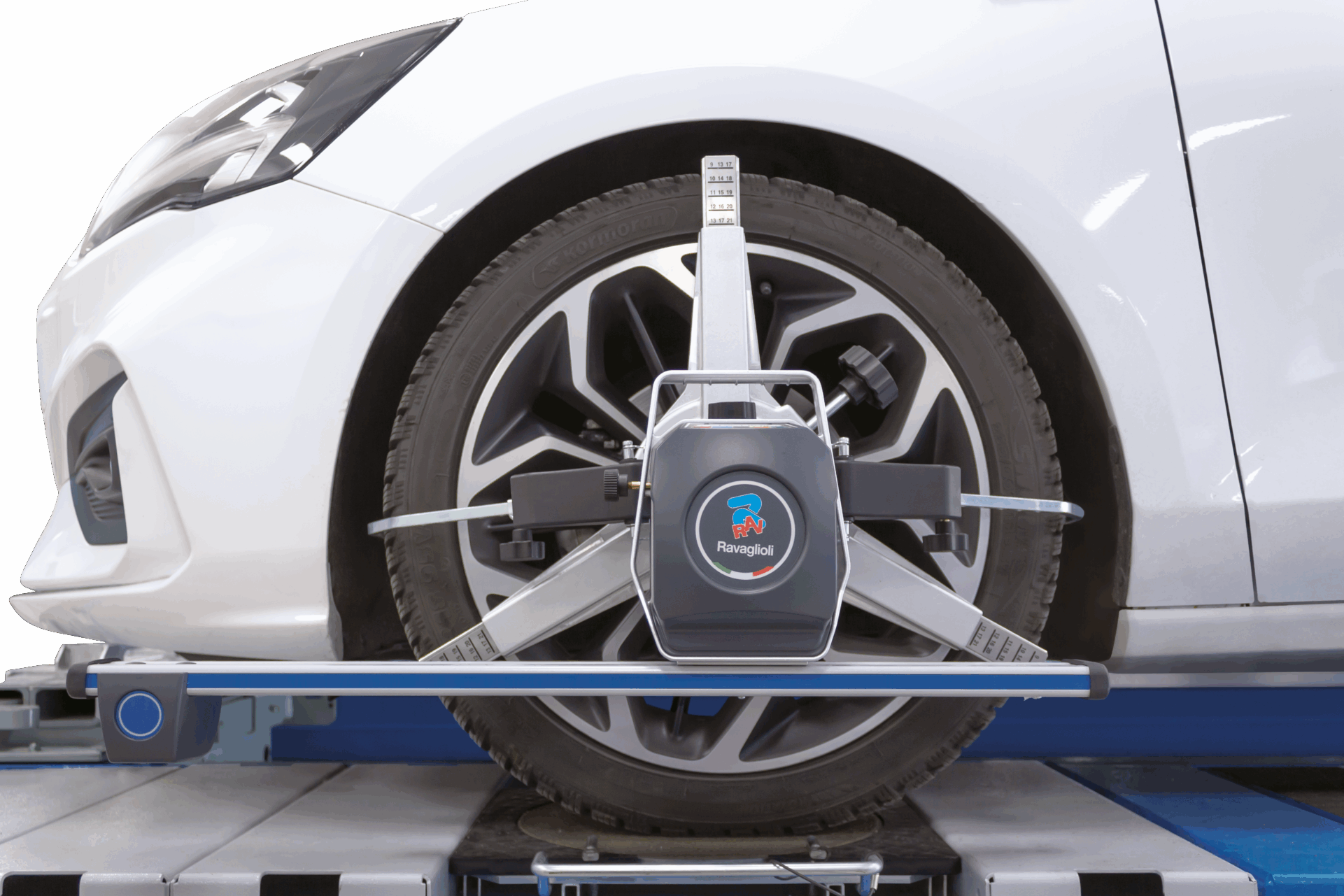

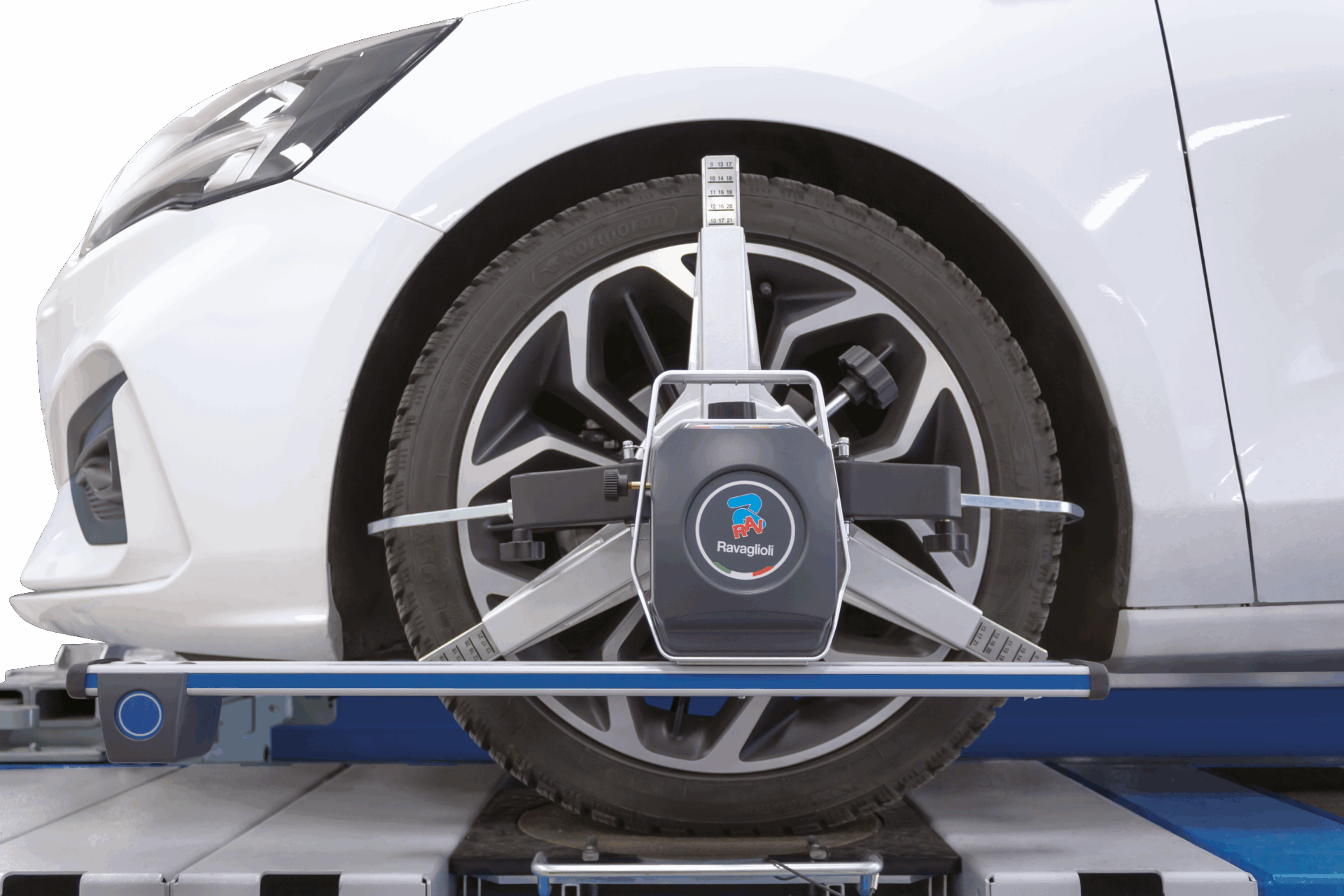

- 8 CCD sensors with bearings, encoder rapid charging sockets

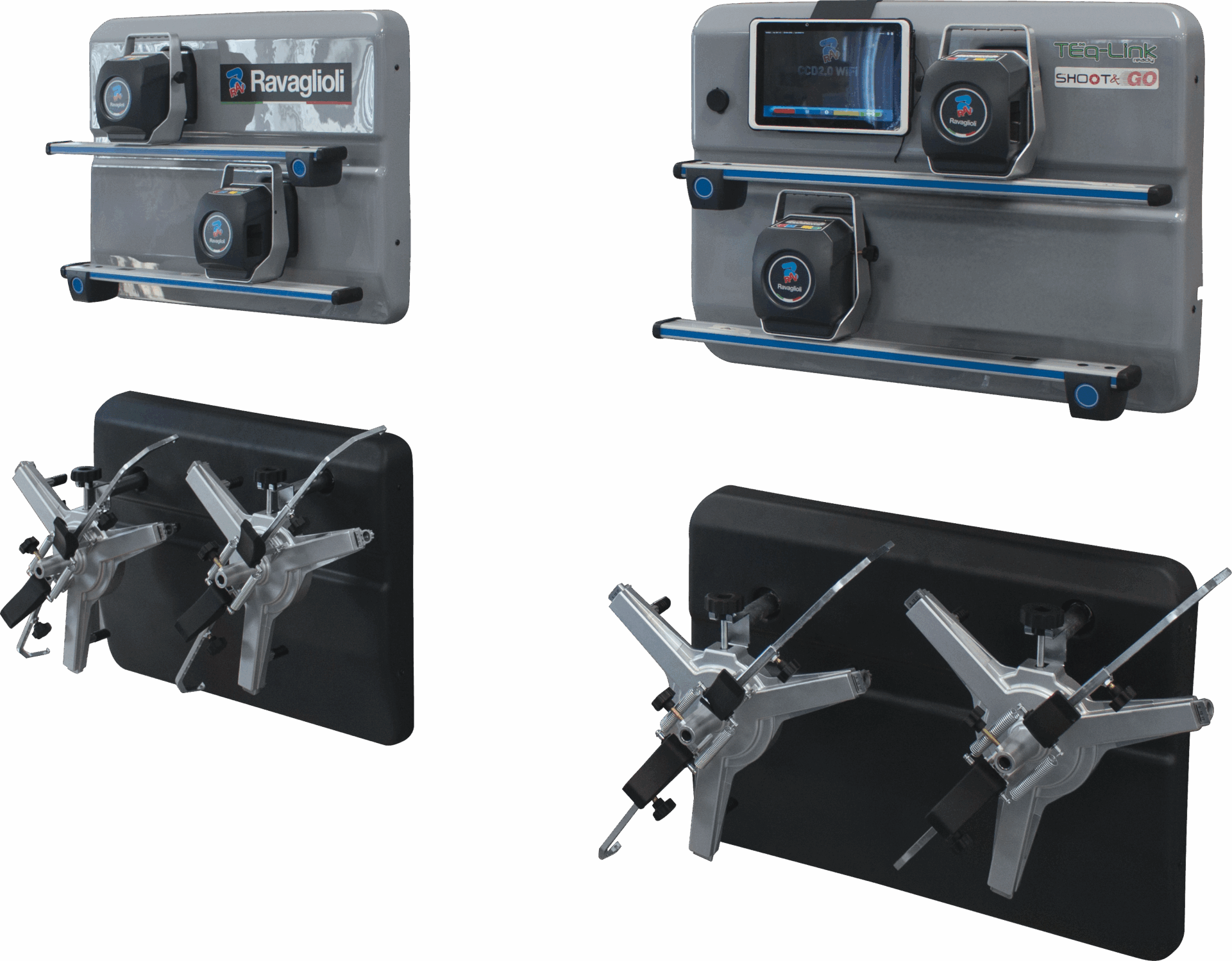

- 2 wall-mounted panels with recharging for the measuring heads, and USB charging port for the tablet

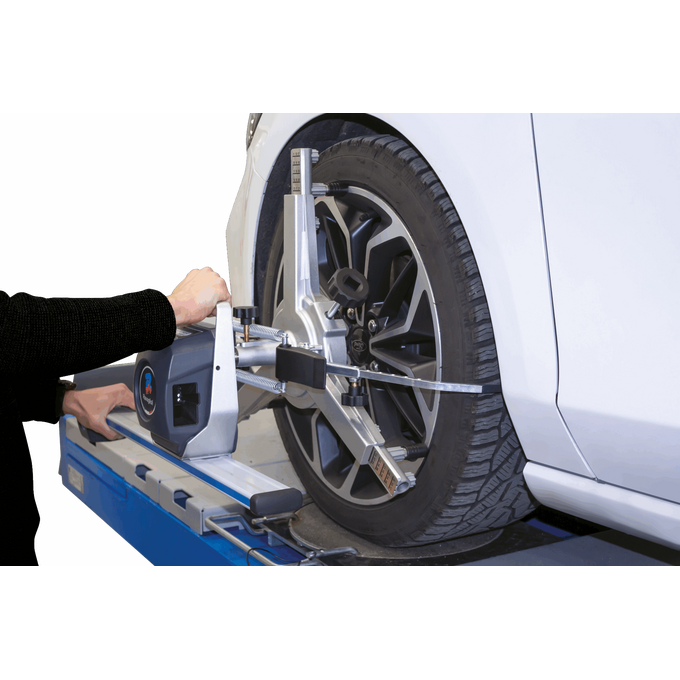

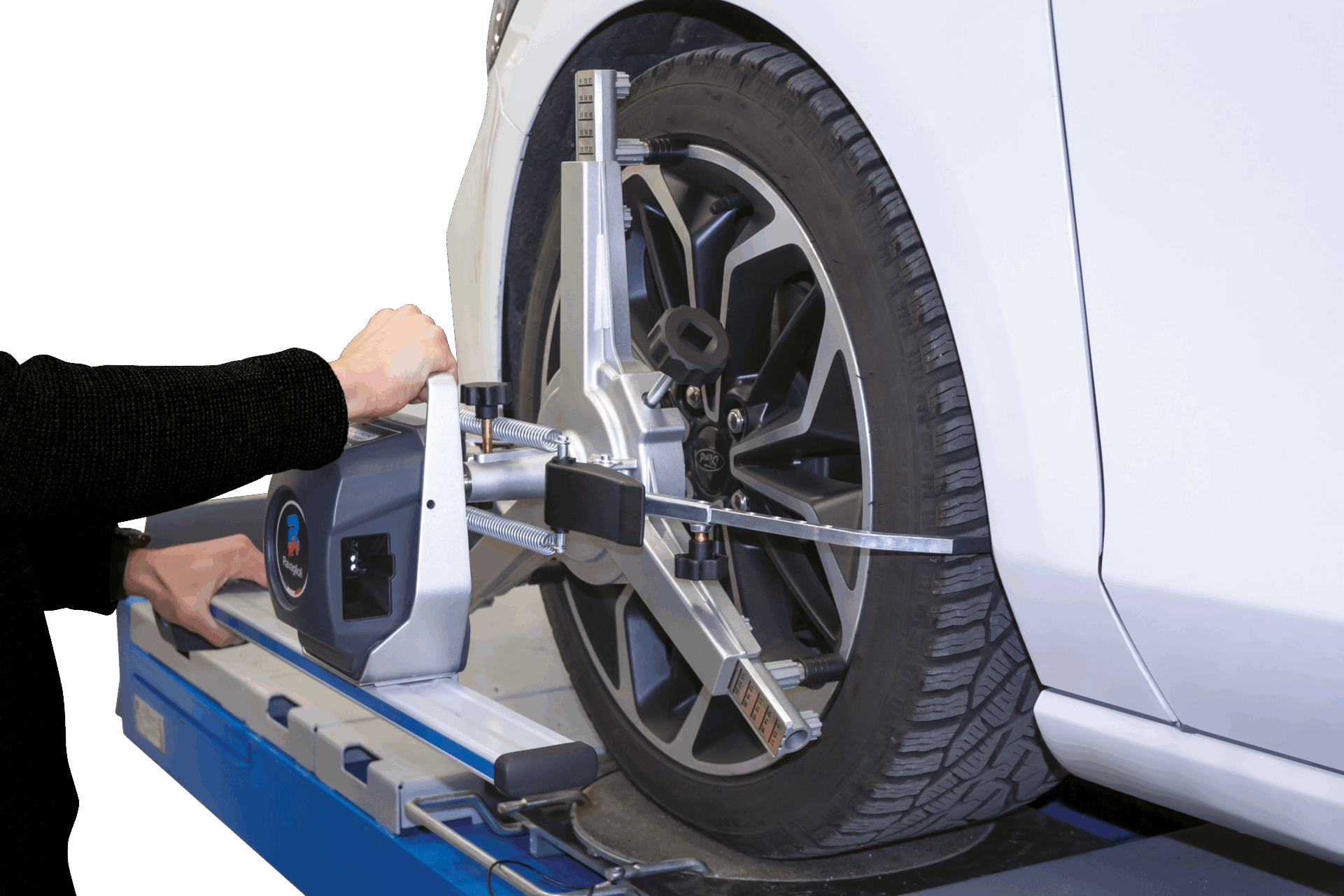

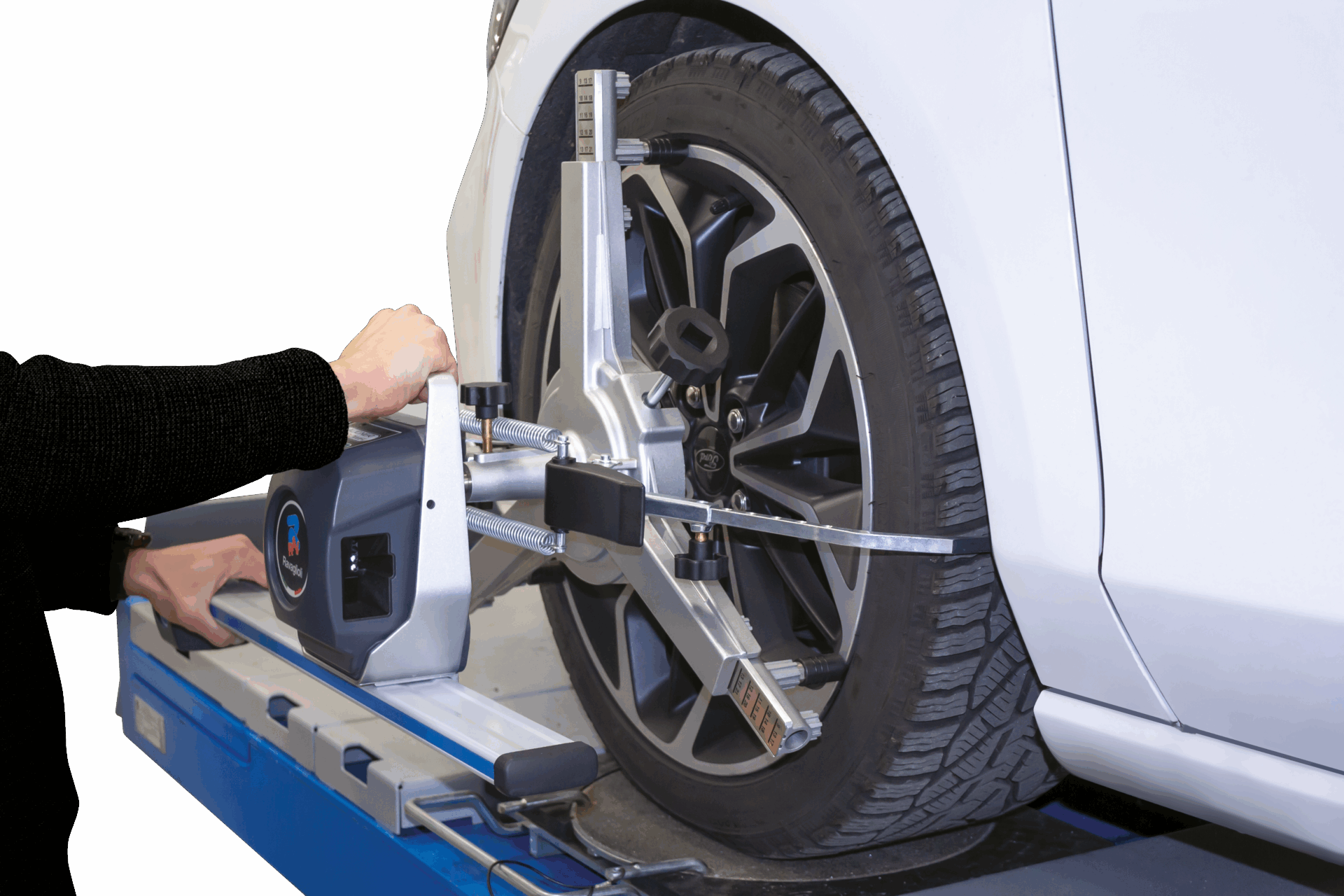

- 2 pairs of 3-point clamps
- The acoustic aid makes adjustment easier when the screen is hidden
- All-included: The system is fully pre-assembled so it can be put into service quickly
- Pair of S110A7/P turntables (included)
- 1 STDA161 steering wheel lock (included)
- 1 brake pedal arrestor (included)
- Possibility to send test reports directly to the customer by e-mail
- Possibility to add a photo with vehicle details to the print report
