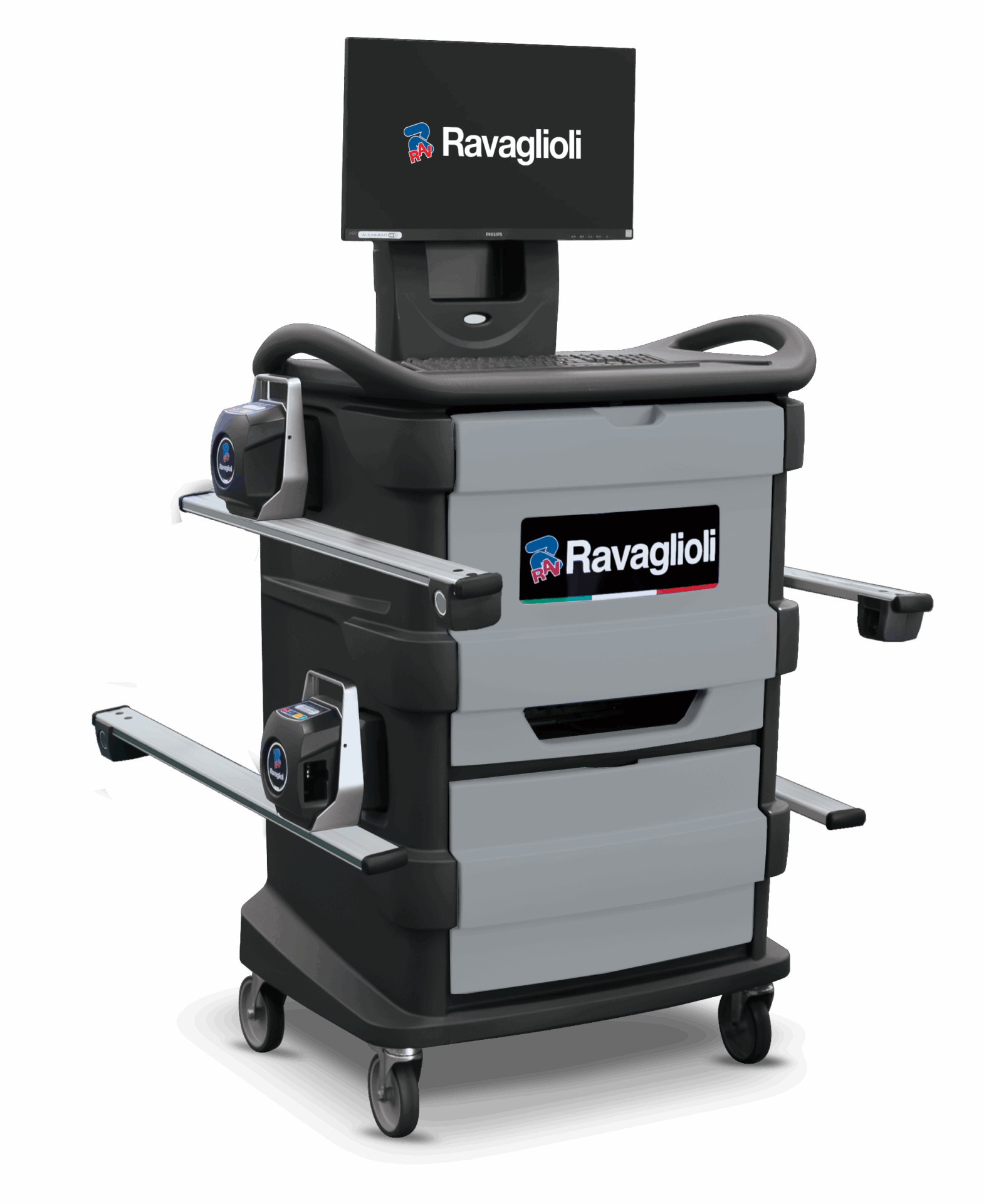

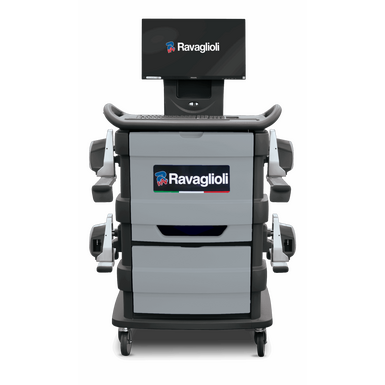

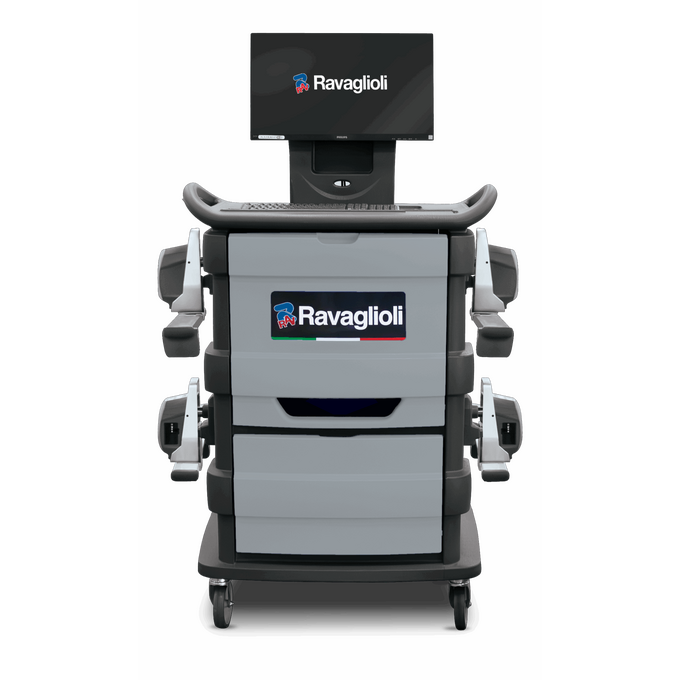

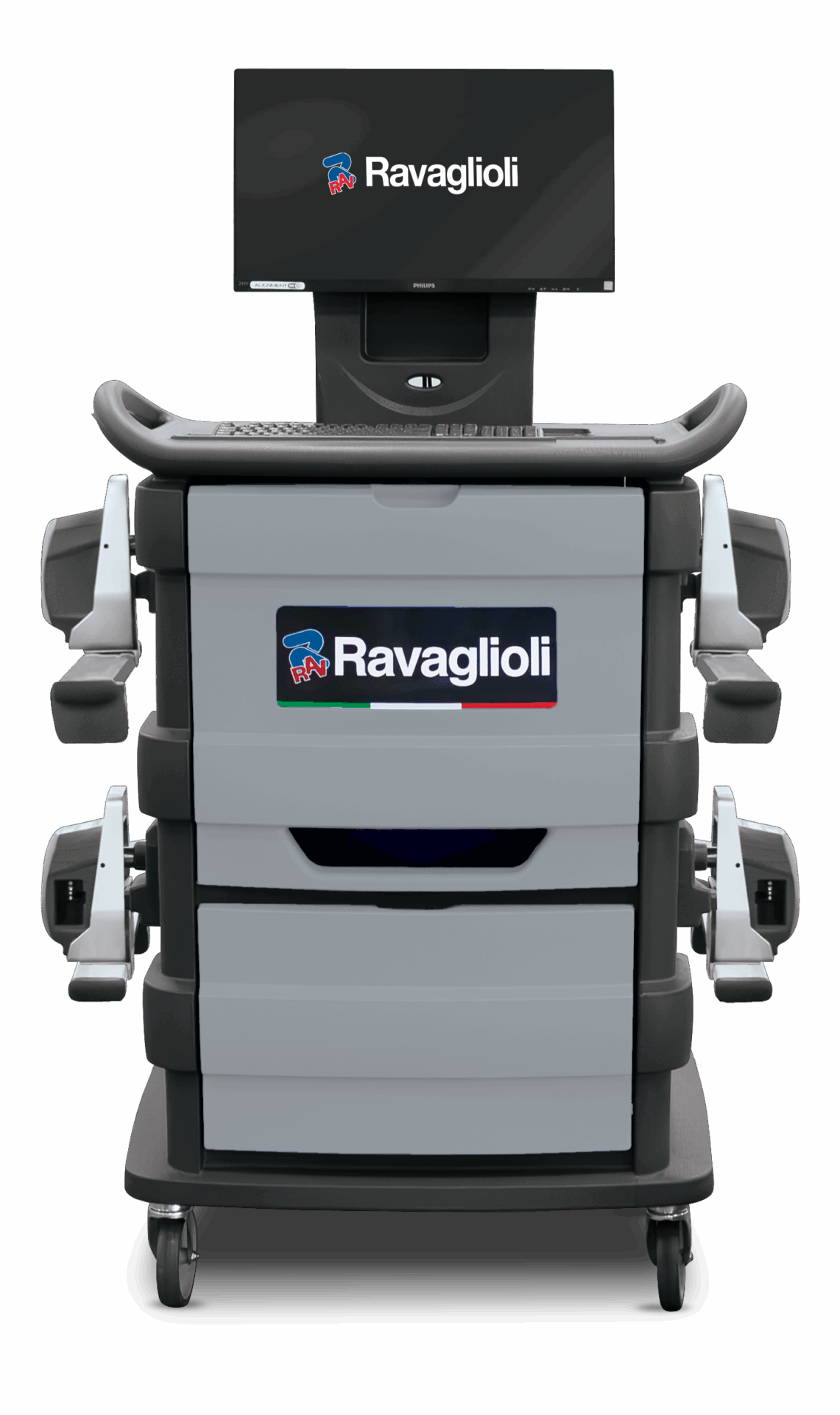

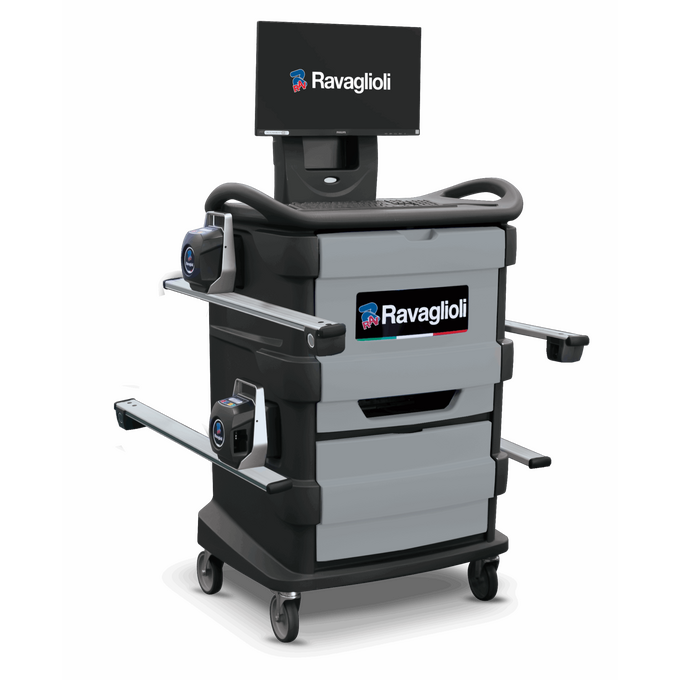

CCD wheel aligner RAVTD 8080P TWS

8 CCD truck wheel aligner, with standard sensors | incl. 3-point wheel clamps, closed cabinet, turntables and 24″ LCD display | Grey (RAL 7040) | 1 x 230 V / 50 – 60 Hz

MPN: RAV.TD808.700551
GTIN (EAN): 5063084700551
Category:
Tags: , , ,

Share on:

Description

Wheel aligners equipped with CCD sensors, with data transmission via Bluetooth and powered by fast-charge batteries. The trailer-mounted cabinet provides full mobility between work stations as it is cable-free.

  • Eco Cabinet: cabinet made with low environmental impact material
  • Portability without compromise: the new light and compact CCD measuring heads offer maximum convenience
  • Smart technology: software with updated graphics, intuitive user interface, animations and adjustment aids so work is rapid and effective
  • The measuring heads complete with keyboard offer simple and intuitive remote control, without the need to access a PC or other device.
  • Fast-charge docks for measuring heads are positioned on the sides of the cabinet, making them accessible and easy to use.
  • The trailer-mounted console contains the PC, printer and monitor.
  • Infrared transmission between measuring heads, effective even in critical lighting conditions.
  • Convenient compartment for clamps and accessories.
  • The STDA92 3-point clamps allow the off-centre compensation procedure to be eliminated.
  • The 3 LEDS on the measuring heads clearly inform the operator when the angles fall within the required values. The new measuring heads guarantee up to 18 metres of angle reading.
  • Bluetooth transmission between CCD measuring heads and the console with PC.
  • Program for managing and displaying data in Microsoft Windows environment.
  • International data bank with vehicle technical data sheets and possibility to create a customer database for adjustment recording.
  • Vehicles with multiple axles can be measured simply and quickly. The guided procedure is easy to follow, even for less experienced operators.
  • The Movie program makes recording easier as its 3D animated graphics guide the operator during the procedure.
