2-post lift KPC32

3.2 t, electromechanical, space-saving base, symmetrical posts, asymmetrical support arms, 2-stage long arms, 3-stage short arms

MPN: RAV.KPC32.198709
GTIN (EAN): 5063084198709
Category:
Tags:

Share on:

Description

Legend Series – From History to the Future

  • Modern design: clean and linear column profile with internal carriage
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Space optimisation: ultimate ergonomics thanks to the electronic foot guard

Emerging from the best-selling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

  • Base with smaller size that reduces the work area space.
  • A set with two plates allows lifts to be installed even on a quality of concrete lower than required.
  • Capacity: 3.2 t
  • Minimum routine maintenance: The operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements.
  • Guaranteed safety and quality over the time: The lift is equipped with premium components that guarantee durability and maximum safety for the operator.
  • Electronic synchronization.
  • Short 3-stage arms and long 2-stage arms with quick fit telescopic rubber pad.
  • Wide rubber protected areas.
  • Internal carriages running on lubricated sliding guides, protected from the external environment, that ensures a longer life to the sliding elements.
  • The new column geometry allows for quick replacement of the nut.

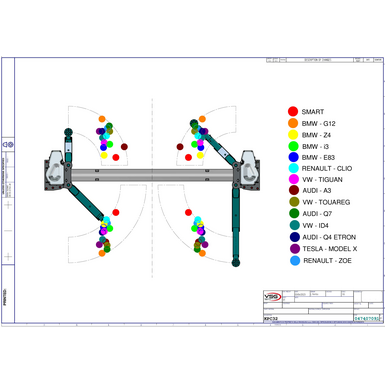

  • The geometry of the arms was designed to lift anything from city to long-wheelbase cars.
  • Overhead cable crossing.
  • Equipped with an acoustic anti toe trap system – Free from mechanical foot guards.
  • Premium quality of components:
    • Aluminum pulley with cooling function
    • Long lasting bearings
    • 50% longer, bronze load nut
    • Motors with reinforced and cooling casing
    • Solid automatic arm locking

Media

Similar Products

Accessories

Tech Data

Features2-post lift KPC322-post lift KPC322-post lift KPS322-post lift KPS32
Number of columns22
Mode of driveelectromechanicalelectromechanical
Controlelectricelectric
Type of installationsurface mountedsurface mounted
Rated load capacity3200kg3200kg
Max. lifting height1883mm1883mm
Lifting time42s42s
Min. plate height90mm110mm
Max. plate heigh120mm176mm
Clear span between2720mm2685mm
Clear span between (out)3158mm3158mm
Column height2756mm2833mm
Drive-through width2468mm2468mm
Required ceiling height4050mm4050mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms3-fold3-fold
Telescopic rear arms2-fold2-fold
Min. front arm length511mm541mm
Max. front arm length914mm950mm
Min. rear arm length805mm815mm
Max. rear arm length1203mm1215mm
Driving power2 x 2,6kW2 x 2,6kW
Power supply400 V | 50 Hz400 V | 50 Hz
Width3318mm3336mm
Height2756mm2833mm
Weight650kg850kg
