Guided balancing procedure – Interactive inputs with multifunction keys: the functions related to each key vary according to use and are identified on the display by graphic icons for immediate understanding.
Interactive LCD display, passenger car, rim diameter 10 – 26″ | Blue (RAL 5005)
22″ full HD LCD monitor, industrial PC, automatic cycle, incl. cones for trucks (Ø 202 – 221 mm, 281 mm),…
3D, 22″ LCD monitor, passenger car, rim diameter 10 – 26″, max. wheel capacity 43″ | Blue (RAL 5005)
3D, 22″ LCD monitor, passenger car, rim diameter 10 – 26″, max. wheel capacity 43″ | Blue (RAL 5005)
Stand flange for truck rims having 6 holes – 3 x 170, 186, 205, 222, 245 mm
Stand flange for truck rims having 8 holes – 4 x 275, 285 mm
Stand flange for truck rims having 10 holes – 5x 225, 286, 335 mm
Universal flange with stands
Stand flange for wheels
Stand flange for wheels
GAR181A1 required
Complete with shaft, 2 cones, 6 spacers, centering nut and2 bushes | GAR181N or GAR354 required
Centering bush for BMW | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR1
Centering bush | option for universal flange GAR181N or GAR191N
Centering bush | option for universal flange GAR181N or GAR191N
Centering bushes | option for universal flange GAR181N or GAR191N
Accessory for wheel balancers for commercial vehicles
Inclusive protection cup | Ø 44 – 112 mm | 1 set / 3 pieces
Option for universal flange GAR181N or GAR191N | 1 set / 6 pieces
Accessory for wheel balancers for commercial vehicles

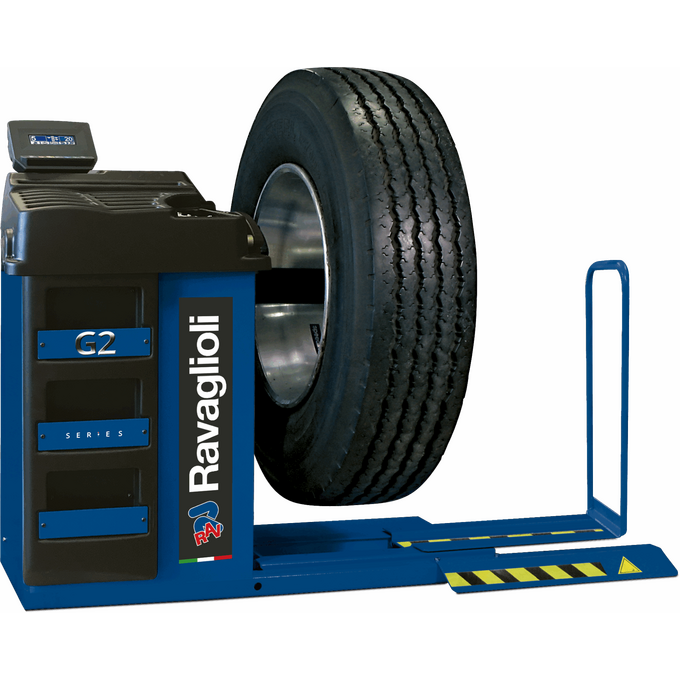

| Features |  Wheel balancer GTL2.120NRC | Electronic wheel balancer with microprocessor G2.124NR | Wheel balancer GTL4.140RC | Electronic wheel balancer with microprocessor G3.150S | Electronic wheel balancer with microprocessor G3.150 |
|---|---|---|---|---|---|
| Wheel data recording | manually | semi-automatic | semi-automatic | semi-automatic | semi-automatic |
| Tread depth measurement | not possible | not possible | not possible | not possible | not possible |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Measuring speed | < 100rpm | < 100rpm | < 100rpm | < 100rpm | < 100rpm |
| Measuring speed truck | 80rpm | — | 80rpm | — | — |
| Measuring time | 6s | 6s | 6s | 6s | 6s |
| Balancing accuracy +/- | 1g | 1g | 1g | 1g | 1g |
| Balancing accuracy truck +/- | 10g | — | 10g | — | — |
| Display | LCD, backlit | LCD | LCD | LCD | LCD |
| Min. rim width | 1,5″ | 1,5″ | 1,5″ | 1,5″ | 1,5″ |
| Max. rim width | 20″ | 22″ | 20″ | 22″ | 22″ |
| Rim diameter min. | 10″ | 10″ | 10″ | 10″ | 10″ |
| Rim diameter max. | 26 – 30″ | 26″ | 26 – 30″ | 26″ | 26″ |
| Max. wheel diameter | 1300mm | 1020mm | 1300mm | 1090mm | 1090mm |
| Wheel weight max. | 200kg | 70kg | 200kg | 70kg | 70kg |
| Power supply | 230 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 230 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz | 220 – 240 V | 50 – 60 Hz |
| Phases | 1 | 1 | 1 | 1 | 1 |
| Weight | 175kg | 125kg | 220kg | 145kg | 140kg |
| Width | 1920mm | 1212mm | 2070mm | 1256mm | 1211mm |
| Depth | 1100mm | 1110mm | 1130mm | 953mm | 898mm |
| Height | 1800mm | 1700mm | 1890mm | 1695mm | 1695mm |
