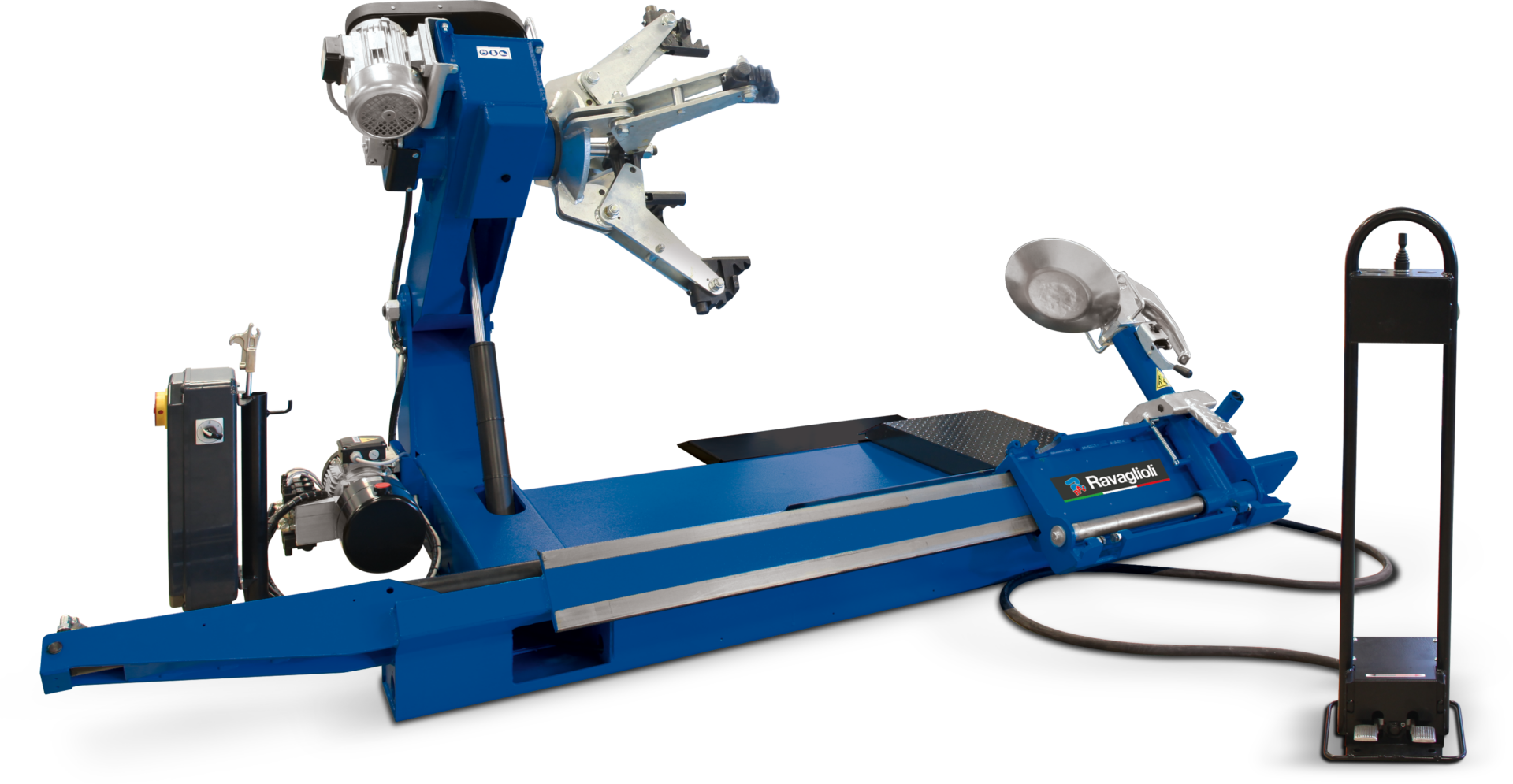

Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles.
Universal, leverless, hydraulic operating unit, max. speed 10 rpm, truck, clamping capacity 11 – 34″ (56″ with extension set), max.…
Universal, cable console unit, 2 speeds (max. 8 rpm), truck, clamping capacity 11 – 43″ (56″ with extension set), max.…
Universal, hydraulic operating unit, 2 speeds (max. 8 rpm), truck, clamping capacity 11 – 43″ (56″ with extension set), max.…
Universal, Quick-Fit system mounting tool, hydraulic operating unit, max. speed 8 rpm, truck, clamping capacity 11 – 27″, max. rim…
Protection for alloy rims
Short, patented
For wheel assembly machines
1 set / 4 pieces
Adapters to increase clamping capacity | 1 set / 4 pieces
With increased adherence
| Features |  Tyre changer G9156.13EI | Tyre changer G9156.11N | Electrohydraulic tyre changer G9256.15 | Electrohydraulic tyre changer G10156.15 | Tyre changer G96N |
|---|---|---|---|---|---|
| Mounting head design | without tire lever | without tire lever | automatic | automatic | automatic |
| Mounting arm design | moveable | moveable | swiveling | swiveling | swiveling |
| Mounting column design | rigid | rigid | rigid | rigid | rigid |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | central | central | central | central | central |
| Min. clamping capacity | 11″ | 11″ | 11″ | 11″ | 11″ |
| Max. clamping capacity | 43″ | 43″ | 43″ | 43″ | 27″ |
| Max. rim width | 51″ | 43″ | 59″ | 59″ | 36,4″ |
| Tire type truck | all types | all types | all types | all types | all types |
| Wheel width max. | 1300mm | 1100mm | 1500mm | 1500mm | 925mm |
| Max. wheel diameter | 2300mm | 2300mm | 2360mm | 2550mm | 1640mm |
| Wheel weight max. | 1700kg | 1700kg | 1400kg | 2300kg | 1500kg |
| Automatic bead-breaking movement | Yes | Yes | Yes | Yes | Yes |
| Bead breaker force | 26kN | 26kN | 32kN | 34kN | 18kN |
| Number of mounting speeds | 3 | 3 | 2 | 2 | 1 |
| Rotation speed | 1 / 5 / 10rpm | 1 / 5 / 10rpm | 4 / 8rpm | 4 / 8rpm | 8rpm |
| Max. torque | 4000Nm | 4000Nm | 5300Nm | 5300Nm | 3000Nm |
| Power inverter motor | 1,5kW | 1,5kW | — | — | — |
| Driving power | 1,1kW | 1,1kW | 1,3 / 1,85kW | 1,35 / 1,85kW | 2,2kW |
| Power supply | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 230/400 V | 50 Hz |
| Phases | 3 | 3 | 3 | 3 | 3 |
| Fuse protection | 9,8A slow-blow | 9,8A slow-blow | 12,5A slow-blow | 13A slow-blow | 16A slow-blow |
| Width | 1845mm | 2080mm | 2010mm | 2805mm | 1620mm |
| Depth | 2745mm | 2650mm | 2715mm | 2145mm | 1860mm |
| Height | 1035mm | 1350mm | 1330mm | 1595mm | 1360mm |
| Weight | 820kg | 740kg | 1150kg | 1020kg | 454kg |
