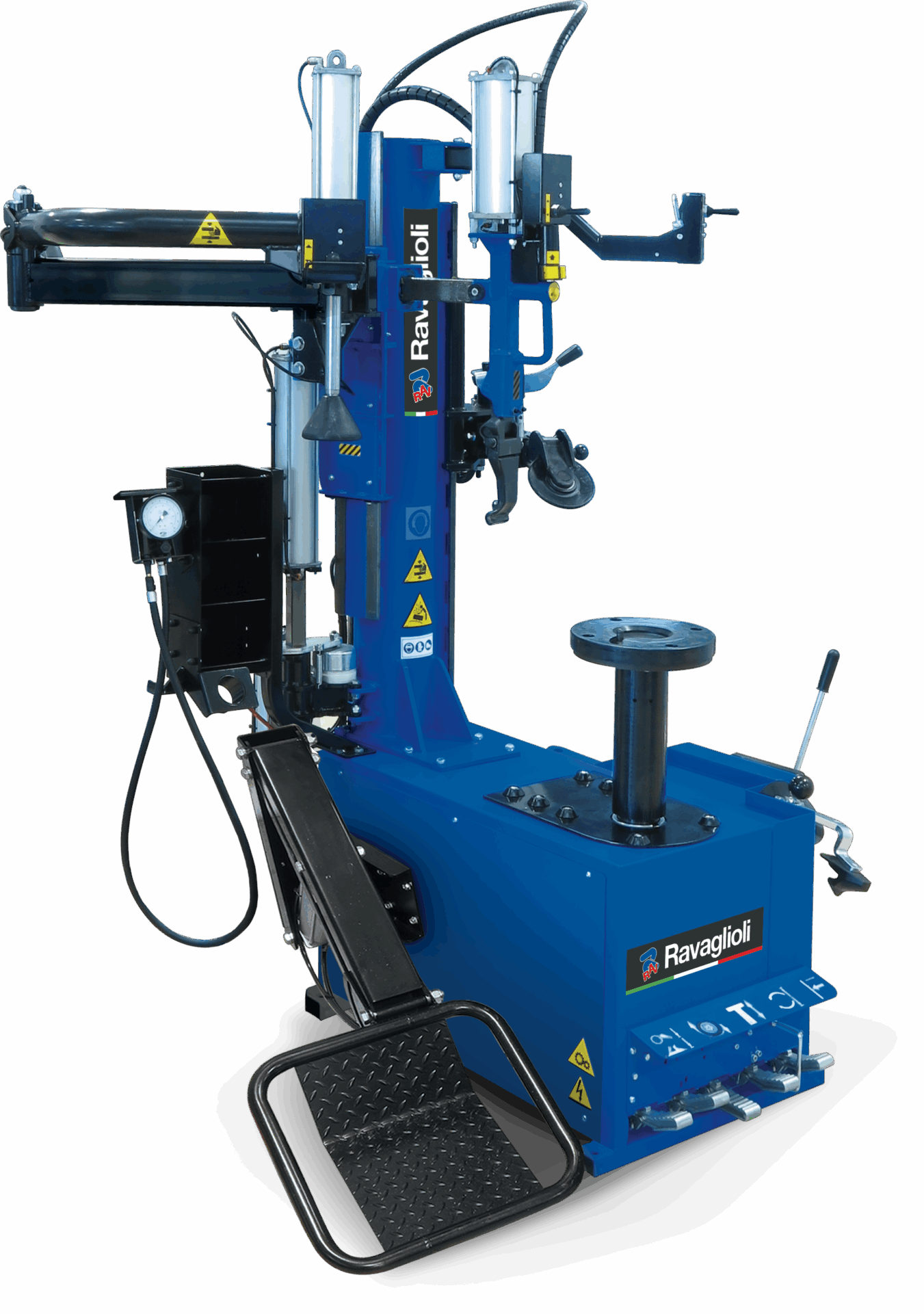

Tyre changer G8945ITD.26S

Tyre changer G8945ITD.26S

Leverless, incl. inflation device, max. speed 15 rpm, passenger car, clamping capacity 10 – 26″, max. rim width 15″ (max. wheel width 381 mm) | chuck with central clamping – suitable also for reverse wheels | for all tyre types with max. wheel diameter 45″ (1143 mm)

MPN: RAV.G8945.206077
GTIN (EAN): 5063084206077
Category:
Tags: , , ,
Request Information

Share on:

Description

Completely leverless tyre changer

  • Easy Demounting (upper bead): Patented tool in plastic anti-scratch material
  • Bead demount controls: down and up and the bead is demounted
  • Space Saver: Post with vertical “space saver” movement
  • Tool Memory – Rim edge “memory” controls: place it first time, then it will go back to same position just pushing a pedal
  • Lever for quick opening of bead breaker arm
  • Patented tool in plastic anti-scratch material
  • Lever for quick opening of bead breaker arm
  • Roller radial position setting
  • Quick locking unit (standard)
  • Two position locking plate for standard or reverse rims
  • Easy Bead Breaking: Roller rotation 180

Media

Similar Products

Accessories

Tech Data

FeaturesTyre changer G8945ITD.26STyre changer G8945ITD.26SAutomatic tyre changer G1250.30PLUSITAutomatic tyre changer G1250.30PLUSITTyre changer G1190.30ITTyre changer G1190.30ITTyre changer G8645ID.26PLUSTyre changer G8645ID.26PLUSTyre changer G8945D.26STyre changer G8945D.26SAutomatic tyre changer G1250.30PLUSAutomatic tyre changer G1250.30PLUS
Mounting head designwithout tire leverwithout tire leverwithout tire leverwithout tire leverwithout tire leverwithout tire lever
Mounting arm designmoveablemoveablemoveablemoveablemoveablemoveable
Mounting column designrigidrigidrigidtiltablerigidrigid
TeqLinknot possiblenot possiblenot possiblenot possiblenot possiblenot possible
asanetworknot possiblenot possiblenot possiblenot possiblenot possiblenot possible
Clamping device designcentralcentralcentralClamping platecentralcentral
Min. clamping capacity10″10″10″10″10″10″
Max. clamping capacity26″30″30″28,5″26″30″
Max. rim width15″15″15″17″15″15″
Tire type passenger carRun-FlatRun-FlatRun-FlatRun-FlatRun-FlatRun-Flat
Wheel width max.381mm——431mm381mm—
Max. wheel diameter1143mm1194mm1194mm1143mm1143mm1194mm
Wheel weight max.80kg——80kg80kg—
Automatic bead-breaking movementYes—NoNoYesYes
Number of mounting speeds1——11—
Rotation speed15rpm—0 – 15rpm16rpm15rpm0 – 15rpm
Max. torque1200Nm—1200Nm1200Nm1200Nm—
Power inverter motor0,75kW—1,5kW1,5kW0,75kW1,5kW
Driving power1,5kW—0,75kW0,75kW1,5kW—
Power supply220 – 240 V | 50 – 60 Hz—230 V | 50 – 60 Hz200 – 240 V | 50 – 60 Hz220 – 240 V | 50 – 60 Hz230 V | 50 – 60 Hz
Phases3—1131
Air flow8bar—8bar8bar8bar8bar
Max. air supply10bar—10bar10bar10bar10bar
Width1420mm1760mm1415mm1663mm1420mm1400mm
Depth1737mm2100mm1560mm1999mm1737mm2100mm
Height2269mm2090mm2090mm2063mm2269mm2090mm
Weight370kg—402kg360kg370kg460kg
