Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue…
Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue…
Automatic, 2 speeds (max. 13 rpm), passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue…
Automatic, max. speed 7.3 rpm, passenger car, rim diameter 10 – 24.5″, max. rim width 381 mm | Blue (RAL…
Mounting head and mounting lever, automatic, self-centering tulip chuck, max. speed 15 rpm, passenger car, rim diameter 12 – 24″,…
Mounting head and mounting lever, automatic, max. speed 16 rpm, passenger car, chucking table with double adjustable clamp position, rim…
Mounting head and mounting lever, automatic, 2 speeds (max. 13 rpm), passenger car, chucking table with double adjustable clamp position,…
Included in WDK kit
Accessory for tyre changers | No optional hexagonal arm!
To be used with G800A51
To be used with G800A49 | necessary G800A119 for PLUS83H (WDK configuration)
G800A70 reduces max working range by 2″
For all models with quick coupling | with wheel hub for quick coupling
For all models with quick coupling | equipped with quick coupling device
For models with quick coupling device | with wheel hub for swinging quick coupling
For all models with quick coupling
No quick change of tool head | for all models | complete with attachment to be connected directly to the…
Alloy wheels protections | 10 sets / 40 pieces
Tool protection package for alloy wheels | 1 set
Tool protection package for alloy wheels | 10 sets
Tool protection package for alloy wheels | for models with tool | 10 sets
ALU protection for side bead breaker | 5 pieces
Tool head press-in protections for alloy wheels | 10 sets
Fast-fit, extend the clamping range by +5″ from outside | 1 set / 4 pieces
For motorcycle clamping jaws | reducing clamping capacity to 8″ wheel diameter | 800A99, G800A107 necessary | 1 set /…
Passenger cars
Included in WDK kit | 1 set / 50 pieces
PLUS83 with WDK bead pressure device
Accessory for tyre changers
Alloy wheels protections | 1 set / 4 pieces
ALU protection for side bead breaker | 1 piece
Bead protection for “Run Flat” tyres | Included in WDK kit | 1 piece
Tool head press-in protections for alloy wheels | 1 set
Renewable | for tyre changers | 1 set / 8 pieces

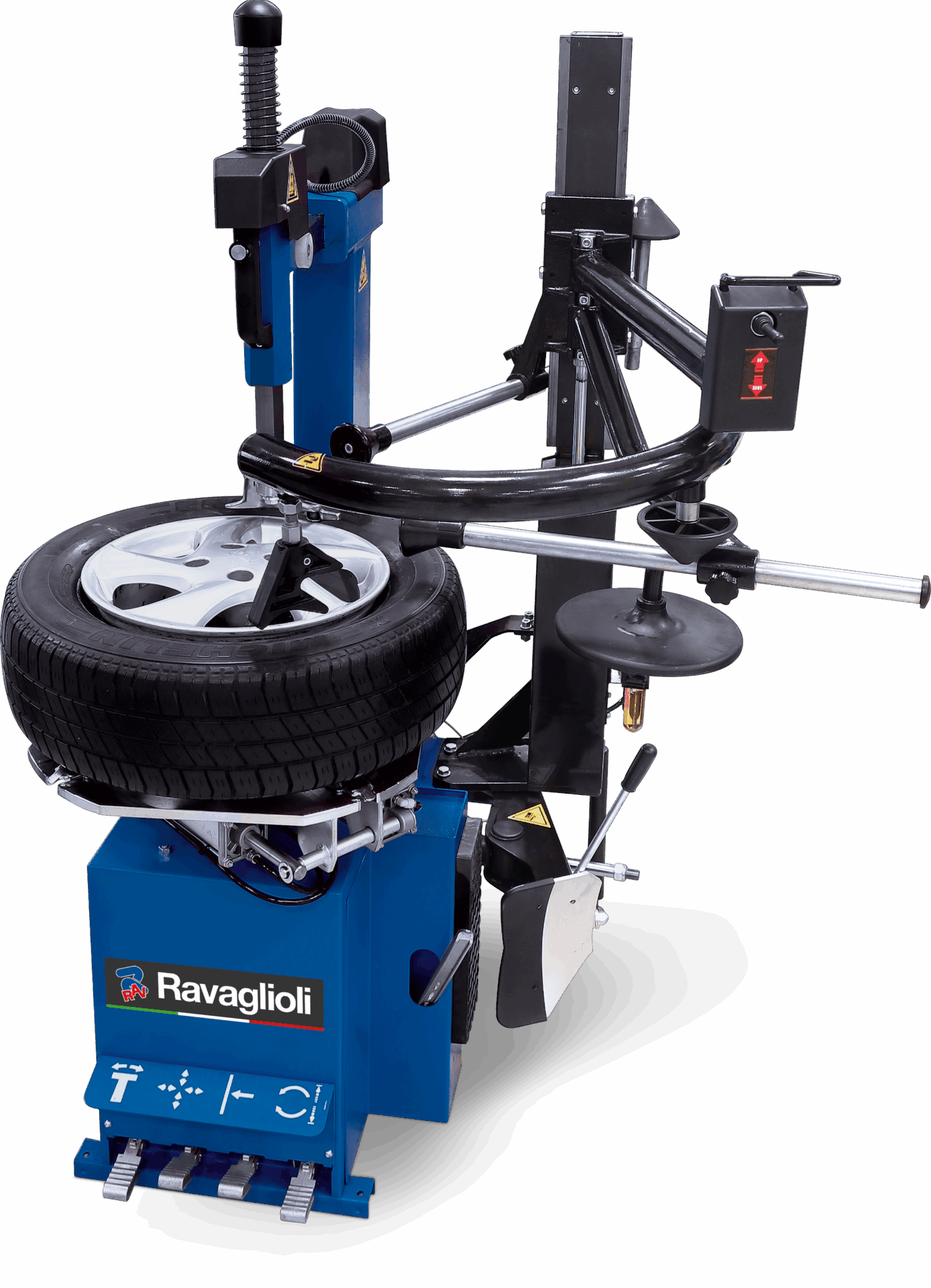

| Features |  Tyre changer G7441V.22PLUS | Tyre changer G7441V.22 | Tyre changer G7441IV.22 | Tyre changer G7441.22 | Tyre changer G7441.20 | Tyre changer G1001.24ELX | Tyre changer G7641D.24PLUS | Tyre changer G7641IV.22 |
|---|---|---|---|---|---|---|---|---|
| Mounting head design | Automatic | Automatic | Automatic | Automatic | Automatic | With tire lever | With tire lever | With tire lever |
| Mounting arm design | Moveable | Moveable | Moveable | Moveable | Moveable | Moveable | Moveable | Moveable |
| Mounting column design | Tiltable | Tiltable | Tiltable | Tiltable | Tiltable | Rigid | Tiltable | Tiltable |
| Colour | 5005RAL | 5005RAL | — | 5005RAL | — | — | 5005RAL | — |
| TeqLink | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible |
| Workshop-Net | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible | Not possible |
| Clamping device design | Clamping plate | Clamping plate | Clamping plate | Clamping plate | Clamping plate | central | Clamping plate | Clamping plate |
| Min. clamping capacity | 10″ | 10″ | 10″ | 10″ | 10″ | 10″ | 10″ | 10″ |
| Max. clamping capacity | 24,5″ | 24,5″ | 24,5″ | 24,5″ | 24,5″ | 24″ | 26,5″ | 24,5″ |
| Min. inner clamping range | 12″ | 12″ | — | 12″ | — | — | 12″ | — |
| Max. inner clamping range | 24,5″ | 24,5″ | — | 24,5″ | — | — | 26,5″ | — |
| Min. outer clamping range | 10″ | 10″ | — | 10″ | — | — | 10″ | — |
| Max. outer clamping range | 22″ | 22″ | — | 22″ | — | — | 24″ | — |
| Max. rim width | 14″ | 14″ | 14″ | 14″ | 14″ | 15″ | 15″ | 15″ |
| Min. rim diameter | 10″ | 10″ | — | 10″ | — | — | 10″ | — |
| Max. rim diameter | 24,5″ | 24,5″ | — | 24,5″ | — | — | 26,5″ | — |
| Tire type passenger car | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Ultra-High-Performance | Ultra-High-Performance |
| Max. wheel width | 381mm | 381mm | — | 381mm | — | — | 381mm | — |
| Max. wheel diameter | 1050mm | 1050mm | 1050mm | 1050mm | 1050mm | 1200mm | 1092mm | 1092mm |
| Max. wheel weight | 80kg | 80kg | — | 80kg | — | — | 80kg | — |
| Min. working range of the mounting head | 8″ | 8″ | — | 8″ | — | — | 8″ | — |
| Max. working range of the mounting head | 24″ | 24″ | — | 24″ | — | — | 24″ | — |
| Automatic bead-breaking movement | No | No | — | No | — | — | No | — |
| Bead breaker force | 10,7kN | 10,7kN | — | 10,7kN | — | — | 10,7kN | — |
| Number of mounting speeds | 2 | 2 | — | 2 | — | — | 1 | — |
| Rotation speed | 6,5 / 13rpm | 6,5 / 13rpm | — | 6,5 / 13rpm | — | — | 16rpm | — |
| Max. torque | 1200Nm | 1200Nm | — | 1200Nm | — | — | 1200Nm | — |
| Power inverter motor | 1,5kW | 1,5kW | — | 1,5kW | — | — | 1,5kW | — |
| Driving power | 0,8 / 1,1kW | 0,8 / 1,1kW | — | 0,8 / 1,1kW | — | — | 0,75kW | — |
| Electrical connection | 400 V | 50 Hz | 400 V | 50 Hz | — | 400 V | 50 Hz | — | — | 200 – 240 V | 50 – 60 Hz | — |
| Phases | 3 | 3 | — | 3 | — | — | 1 | — |
| Fuse protection | 16A slow-blow | 16A slow-blow | — | 16A slow-blow | — | — | 16A slow-blow | — |
| Air supply | 8bar | 8bar | — | 8bar | — | — | 8bar | — |
| Max. air supply | 10bar | 10bar | — | 10bar | — | — | 10bar | — |
| Width | 1596mm | 1304mm | — | 1304mm | — | — | 1533mm | — |
| Depth | 1823mm | 1449mm | — | 1449mm | — | — | 1520mm | — |
| Height | 1999mm | 1950mm | — | 1950mm | — | — | 2091mm | — |
| Weight | 244kg | 214kg | — | 214kg | — | — | 330kg | — |
| Country of Origin, customs | IT | IT | — | IT | — | — | IT | — |
