Similar Products
-
Tyre changers
Tyre changer G1001.24ELX
MPN: RAV.G1001.200815Mounting head and mounting lever, automatic, self-centering tulip chuck, max. speed 15 rpm, passenger car, rim diameter 12 – 24″,…
-
Tyre changers
Tyre changer G7645D.26PLUS
MPN: RAV.G7645.200990Automatic, max. speed 16 rpm, passenger car, rim diameter 10 – 28.5″, max. rim width 431 mm | Blue (RAL…
-
Tyre changers
Tyre changer G7645D.26
MPN: RAV.G7645.201232Automatic, max. speed 16 rpm, passenger car, rim diameter 12 – 26″, max. rim width 431 mm | Blue (RAL…
-
Tyre changers
Tyre changer G8945D.26S
MPN: RAV.G8945.206107Leverless, max. speed 15 rpm, passenger car, rim diameter 10 – 26″, max. rim width width 381 mm | chuck…
Accessories
-
Accessories tyre changers
Replacement mounting head for passenger cars | plastic
MPN: G1000A14 -
Accessories tyre changers
Brush Plastic
MPN: G800A38 -
Accessories tyre changers
WulstBoy with pulling device and bead chain up to 28″
MPN: G1000A67 -
Accessories tyre changers
WulstBoy with pulling device and bead chain up to 22″
MPN: G1000A56 -
Accessories tyre changers
Extension for bead depressor to 28″ | for G1000A32
MPN: G1000A36Included in WDK kit
-
Accessories tyre changers
Bead depressor roller
MPN: G1000A7 -
Accessories tyre changers
Bead lever protection for bead lever | 1 set / 50 pieces
MPN: G1000A13K -
Accessories tyre changers
Plastic protection for bead breaker blade
MPN: G800A11ALU protection for side bead breaker | 1 piece
-
Accessories tyre changers
Plastic protection for bead breaker blade
MPN: G800A11KALU protection for side bead breaker | 5 pieces
-
Accessories tyre changers
Plastic protection for rim flange
MPN: G800A32Bead protection for “Run Flat” tyres | Included in WDK kit | 1 piece
-
Accessories tyre changers
Plastic protection for pulling system pins
MPN: G1000A70KProtection for pulling device on clamping table | 1 set / 5 pieces
-
Accessories tyre changers
Rubber protection for support plate
MPN: G1000A81KRubber guards for reversed wheels | 1 set / 10 pieces
-
Accessories tyre changers
Plastic protection for centering cone
MPN: G1000A84KBlocking cone protection kit with quick nut, for G1000A138 – G1000A80 | 1 set / 5 pieces
-
Accessories tyre changers
Type clamping flange for reversed wheels | Universal
MPN: G1000A158Universal flange
-
Accessories tyre changers
Bead protection foils | WDK approved
MPN: G1000A100KIncluded in WDK kit | 1 set / 50 pieces
-
Accessories tyre changers
Flange for LT (Light Truck)
MPN: G1000A101 -
Accessories tyre changers
Helper arm pneumatic | mounted on the left
MPN: PLUS94Pneumatic rotating bead pushing arm
-
Accessories tyre changers
Cone with spacer | for 40 shaft | Ø 69 mm
MPN: G1000A126Requiring G1000A80 – G1000A138
-
Accessories tyre changers
Type clamping flange Universal | for rims without center hole and reverse rims | for G1000A138
MPN: G1000A137Universal flange for blind and reverse rims
-
Accessories tyre changers
Wheel lift with stop in position
MPN: G1000A129NP -
Accessories tyre changers
Flange for LT (Light Truck) | 14 mm Ø pulling pin
MPN: G1000A152AFor central locking tyre chargers
-
Accessories tyre changers
Type clamping flange Universal | for CLAD rims with center hole
MPN: G1000A161Universal flange to lock wheels through the fixing holes – Central hole needed to lock the wheel
Tech Data

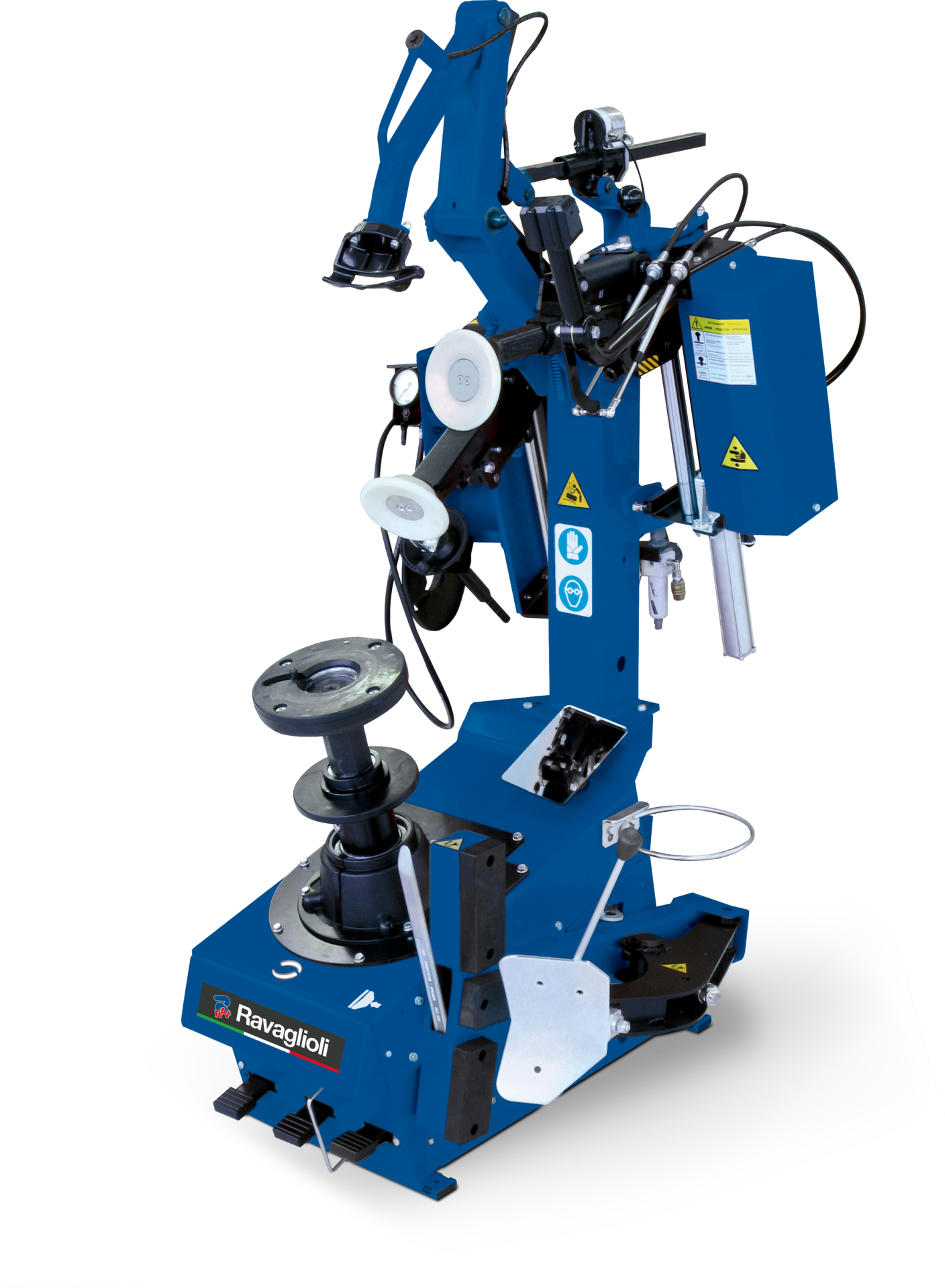

| Features |  Tyre changer G1065.N | Tyre changer G1001.24ELX | Tyre changer G7645D.26PLUS | Tyre changer G7645D.26 | Tyre changer G8945D.26S |
|---|---|---|---|---|---|
| Mounting head design | with tire lever | with tire lever | automatic | automatic | without tire lever |
| Mounting arm design | moveable | moveable | moveable | moveable | moveable |
| Mounting column design | rigid | rigid | tiltable | tiltable | rigid |
| Colour | 5005RAL | 5005RAL | 5005RAL | 5005RAL | — |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | central | central | Clamping plate | Clamping plate | central |
| Min. clamping capacity | 12″ | 10″ | 10″ | 12″ | 10″ |
| Max. clamping capacity | 24″ | 24″ | 26″ | 28,5″ | 26″ |
| Min. outer clamping range | 12″ | — | 10″ | 12″ | — |
| Max. outer clamping range | 24″ | — | 26″ | 28,5″ | — |
| Max. rim width | 15″ | 15″ | 17″ | 17″ | 15″ |
| Rim diameter min. | 12″ | 12″ | 10″ | 12″ | 10″ |
| Rim diameter max. | 24″ | 24″ | 28,5″ | 26″ | 26″ |
| Tire type passenger car | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Run-Flat |
| Wheel width max. | 381mm | 381mm | 431mm | 431mm | 381mm |
| Max. wheel diameter | 1143mm | 1200mm | 1143mm | 1143mm | 1143mm |
| Wheel weight max. | 80kg | — | 80kg | 80kg | 80kg |
| Automatic bead-breaking movement | No | No | No | No | Yes |
| Bead breaker force | 10,7kN | 30kN | 11,9kN | 11,9kN | — |
| Number of mounting speeds | 1 | 1 | 1 | 1 | 1 |
| Rotation speed | 15rpm | 15rpm | 16rpm | 16rpm | 15rpm |
| Max. torque | 1200Nm | — | 1200Nm | 1200Nm | 1200Nm |
| Power inverter motor | 1,5kW | 1,5kW | 1,5kW | 1,5kW | 0,75kW |
| Driving power | 0,75kW | 0,75kW | 0,75kW | 0,75kW | 1,5kW |
| Power supply | 220 – 240 V | 50 – 60 Hz | 200/265 V | 50 – 60 Hz | — | — | 220 – 240 V | 50 – 60 Hz |
| Phases | 1 | 1 | 1 | 1 | 3 |
| Fuse protection | 16A slow-blow | 16A slow-blow | 16A slow-blow | 16A slow-blow | — |
| Air flow | 8bar | — | 8bar | 8bar | 8bar |
| Max. air supply | 10bar | — | 10bar | 10bar | 10bar |
| Width | 1540mm | 1003mm | 1595mm | 1630mm | 1420mm |
| Weight | 307kg | 208kg | 310kg | 280kg | 370kg |
| Depth | 900mm | 1186mm | 1992mm | 1990mm | 1737mm |
| Height | 1980mm | 1606mm | 2134mm | 1973mm | 2269mm |
