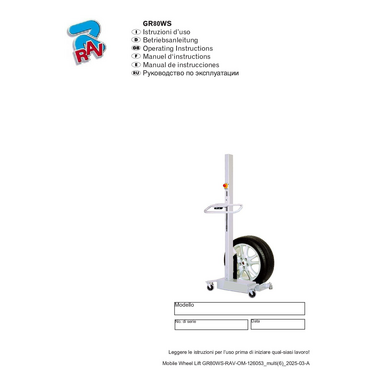

The GR80WS is a powerful working tool, which is suitable for mounting and transporting wheels.
80 kg, passenger car
With automatic adjustment of the height in relation to the load | load capacity 180 kg
80 kg, passenger car
| Features |  Mobile wheel carriage GR80WS | Wheel lift Standard | Wheel trolley GR20 | Easy Lift | Wheel lift with automatic compensation of wheel weight |
|---|---|---|---|---|
| Mode of drive | electric | pneumatic | — | pneumatic |
| Rated load capacity | 80kg | 80kg | 180kg | 80kg |
| Stroke | 1440mm | 466mm | 340mm | 466mm |
| Lifting time | 20s | — | — | — |
| Lifting time loaded | 15s | — | — | — |
| Lowering time | 15s | — | — | — |
| Min. tire size | 135/80R13 | 135/80R13 | 135/80R13 | 135/80R13 |
| Max. tire size | 325/35R22 | 305/30R26 | 305/30R26 | 305/30R26 |
| Surface coating | Powder coated | Powder coated | — | Powder coated |
| Length | 688mm | 870mm | — | 870mm |
| Width | 726mm | 1489mm | — | 1489mm |
| Height | 1865mm | 1108mm | 240 – 580mm | 1108mm |
| Weight | 60kg | 63kg | — | 63kg |
| Set-up length | 688mm | 1489mm | — | 1489mm |
| Set-up width | 726mm | 1108mm | — | 1108mm |
