Mobile column lift RAV232NL

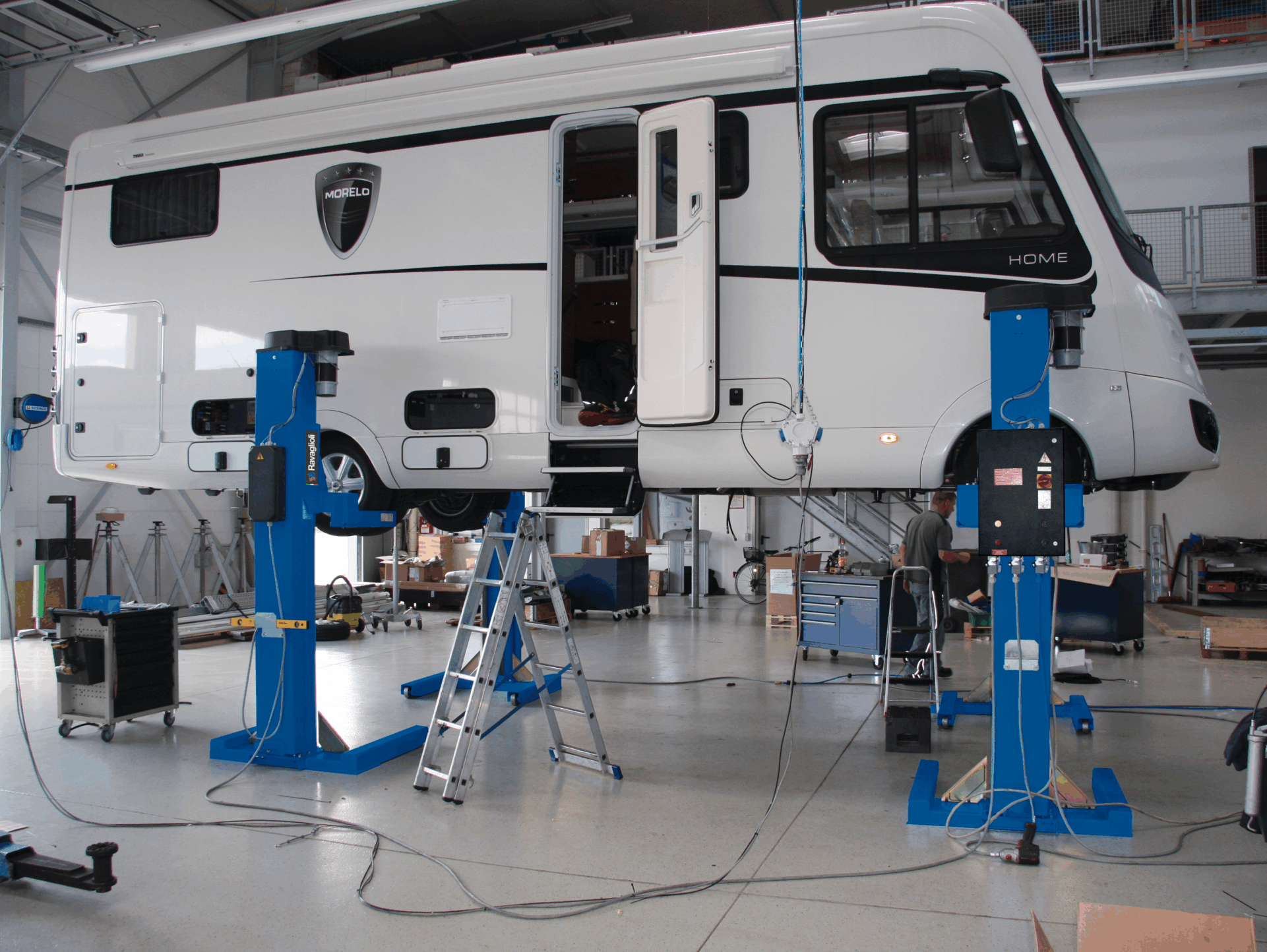

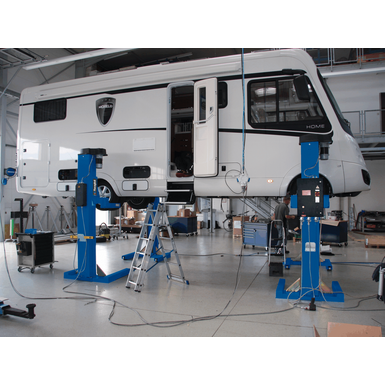

4 x 5.5 t, electromechanical, cable-bound, lift spindle, mobile, ideal for passenger car, transporter and mobile home

MPN: RAV232NL
GTIN (EAN): 4057612815634
Category:
Tags: , , , ,

Share on:

Description

Electromechanical mobile column lifts for trucks, buses. Depending on the version, use is possible in the ­workshop or outdoors.

  • Electronic synchronization control with automatic emergency stop device
  • Each mobile column is equipped with a safety device in case of lift nut wear
  • The large base frame at the lift column offers max. stability.
  • On all mobile column, the installation can be raised or lowered via push buttons.
  • Each mobile column is equipped with dead-man control and an emergency stop push-button.
  • Roll-handled spindle made of stainless steel in connection with a permanently lubricated bronze nut – guarantees a maximum of safety and a long life
  • Absolutely wear-proof Ertalon sliders in each lift truck guarantee max. stability with each positioning of the load
  • All motors have thermal protection – Manufactured according to EN1493: Automatic determination of the phases
  • There are no interfering lines in the work area under the vehicle
  • Adjustable wheel fork or easily attachable wheel support adapters available
  • Plug connection with electric cable from mobile column to mobile column permits short setup times
  • Self-braking gear motor connected directly to the lift spindle
  • The lift truck steel rollers are equipped with self-lubricating, maintenance-free bearings

Media

Similar Products

Accessories

Tech Data

FeaturesMobile column lift RAV232NLMobile column lift RAV232NLMobile column lift RAV212NMobile column lift RAV212NMobile column lift RAV222NLMobile column lift RAV222NL
Mode of driveelectromechanicalelectromechanicalelectromechanical
Communication of columnswiredwiredwired
Number of lifting units444
Rated load capacity22000kg12000kg16000kg
Lifting capacity per lifting unit5500kg3000kg4000kg
Stroke1800mm1800mm1800mm
Min. wheel diameter500mm500mm500mm
Max. wheel diameter1200mm1200mm1200mm
Surface coatingPowder coatedPowder coatedPowder coated
Электрическое соединение400 В | 50 Гц
Защитный предохранитель63А, медленное
