3D wheel aligner RAV3D2.0WALL.3L | Large version

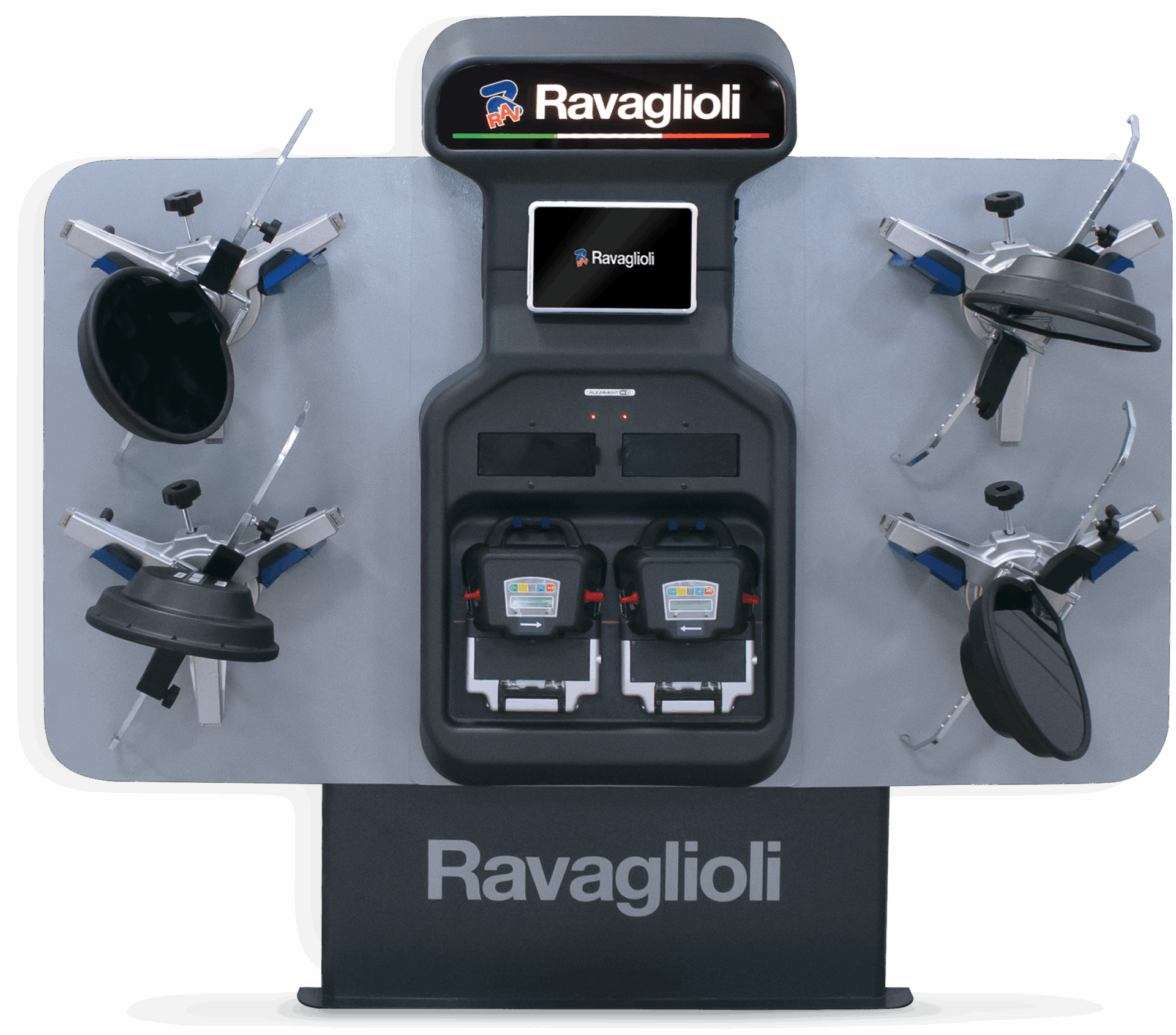

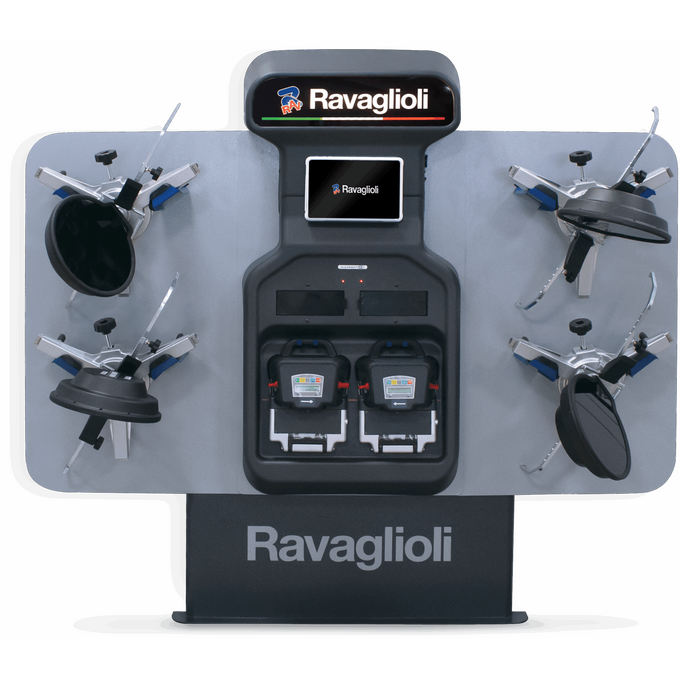

3D wheel aligner with wall-mounted panel | Bluetooth data transmission | incl. 3-point clamps with handy hooks, charging stations for 3D measuring heads and batteries fitted with magnets

MPN: RAV.3DWAL.701039
GTIN (EAN): 5063084701039
Category:
Tags:

Share on:

Description

AllOnWall Series – The High-tech Solution for Wheel Alignment

  • Space-saving design: wheel alignment operations are performed with maximum flexibility and without space occupied by a console, a data transfer tower or a PC
  • Fully wireless: the sensors and tablet communicate via Bluetooth connection
  • Accurate precision: upgraded 3D measuring heads with HQ resolution

The AllOnWall series allows you to have all that is necessary for performing wheel alignment operations to be placed on a convenient wall-mounted panel, in this way freeing up useful space in the workshop. All alignment activities can be controlled from a 10″ tablet that the operator can carry with him or place on the lifter during adjustment thanks to the built-in magnets. The aligner boasts a well-tested measuring head technology with HD cameras and Real 3D target that is fully wireless with Bluetooth transmission.

  • Quick and accurate measurement. The 3D measuring heads instantly read all vehicle angles with maximum precision.
    • LCD display for primary information
    • Five keys for software navigation, also remote controllable
    • 5MP resolution for measurement and compensation of the lifting platform level
    • Remote control function
    • LED repeaters to assist recording
    • Only one head installation position to measure different wheelbase vehicles
    • Weight 3 kg
  • Built-in head with rubber protection and handle with plastic protection.
  • Quick connection with pivoting coupling system to prevent damage in case of obstacles while descending.
  • Battery with quick release system.
  • The battery charge lasts 8 hours to permit extended full day activity.
  • The charging stations are fitted with magnets so that the batteries can be positioned precisely while always indicating proper charging operation also due to the LED indicator.
  • 10″ Tablet extremely light in weight although with a sturdy design and time-resistant.
    • Resistant to falls up to 76 cm
    • Dust- and water-resistant (IP52)
    • Complete with adhesive magnets
    • Rounded edges to ensure greater sturdiness
    • 64 GB memory
    • Display 800 x 1280
    • Camera front 2 MP + camera rear 5 MP
    • Weighs less than 700 g
  • Set of 4 self-centering 3-point clamps requiring no compensation. – Equipped with a rapid movement system and ABS claws; no metal on metal contact.

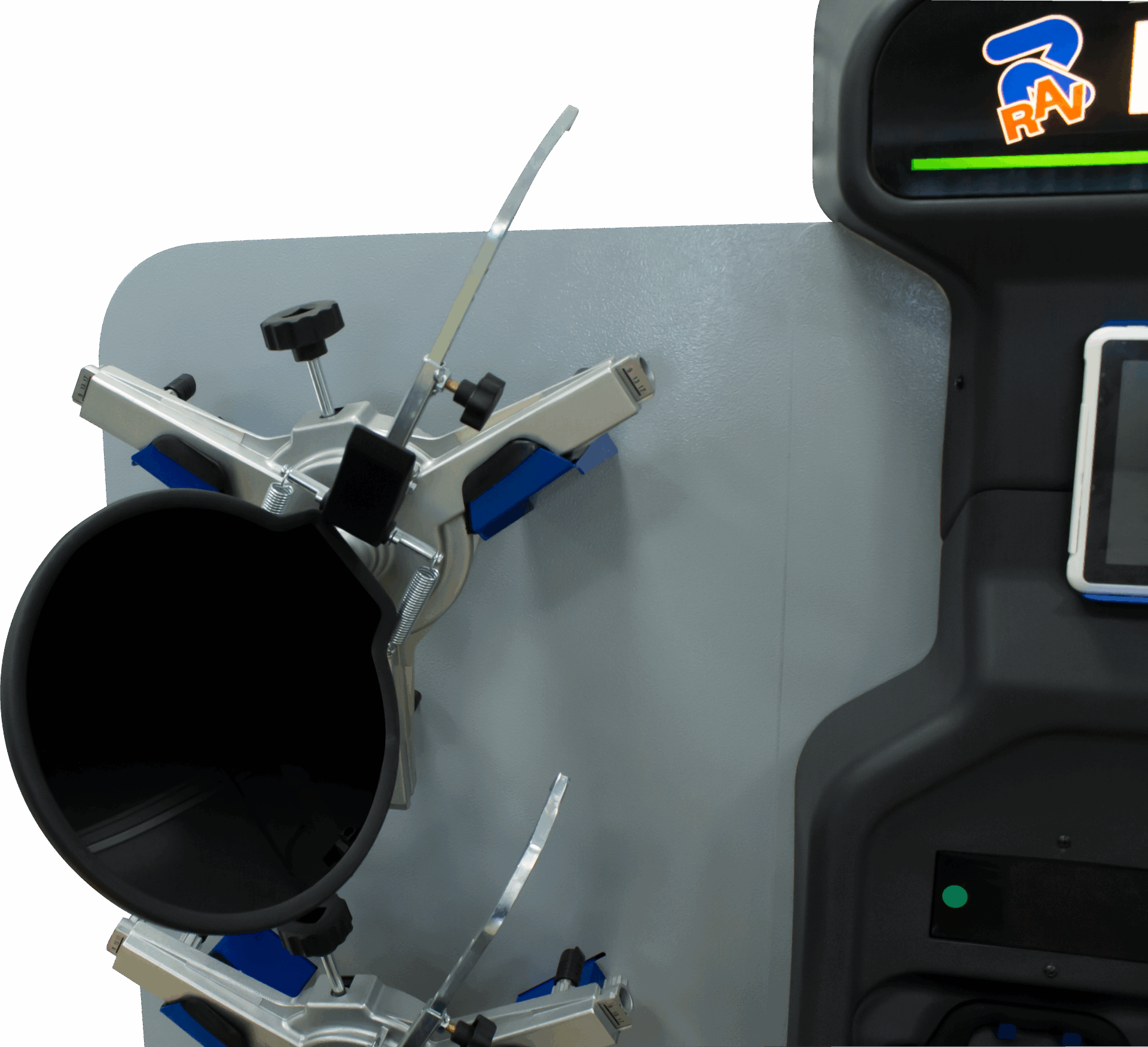

  • The 3D targets installed on the clamps are extremely lightweight, maintenance-free and have no electronic components.
  • Thanks to the Real 3D targets, combined with the supporting 3-point clamps, the run out compensation procedure can be skipped to speed up the operator’s activity and maximize workshop efficiency.
  • The iconic Ravaglioli logo comes to life thanks to a LED backlit panel.
  • Compatible with the TEq-Link system.
  • Internet connection to
    • Sending of results to customers.
    • Remote assistance.
  • More efficient workshop in terms of space and operations:
    • NO OBSTACLE: Maximization of the available workspace
    • RAPID WORK: Always perfect transmission signal
    • MINIMUM EFFORT: No run out compensation
    • NO LIMITS: One aligner for multiple working bays
  • Charging stations for two batteries fitted with magnets
  • Tablet with 10″ 800 x 1280 multi-touch display complete with adhesive magnets. Rechargeable on the panel
  • 3D measuring heads storage housing equipped with rubber impact-resistant matting

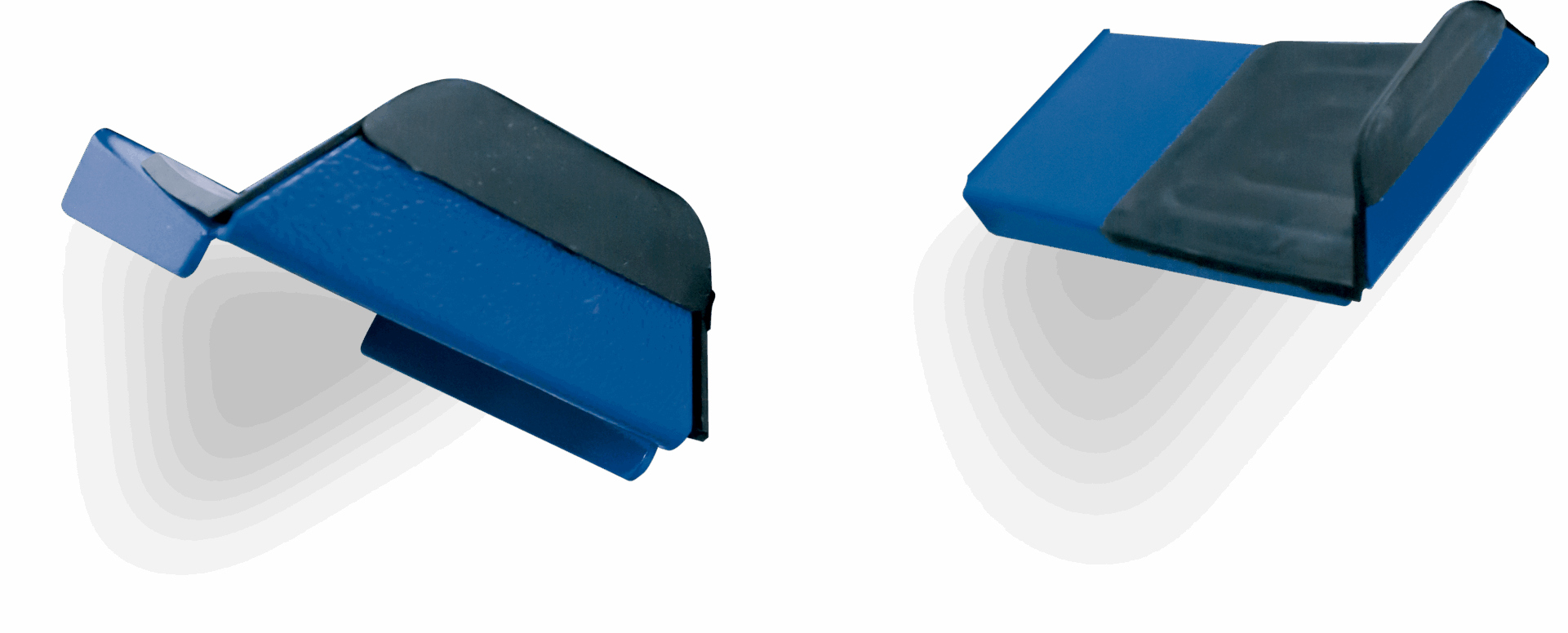

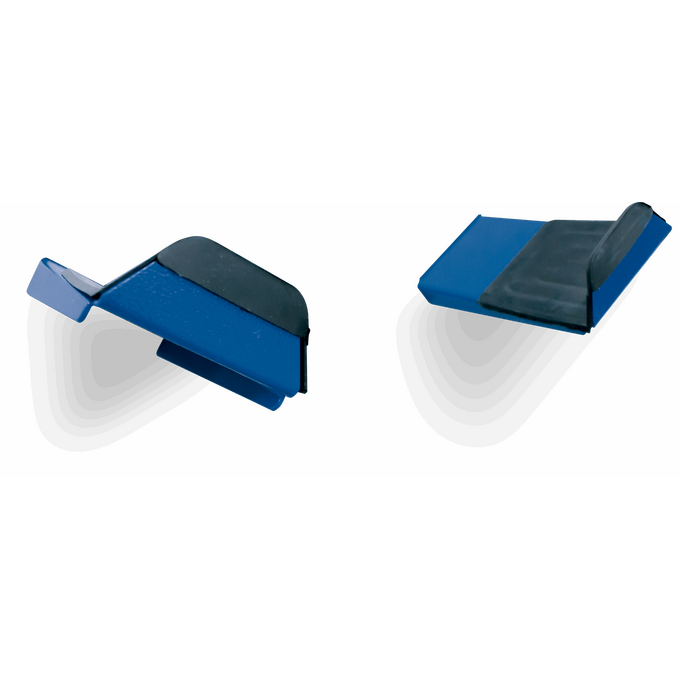

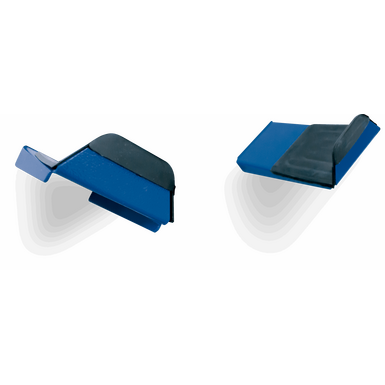

  • 3-point clamps supports with handy hooks fitted with impact-resistance rubber
  • Console – Weighs less than 14 kg

Media

Similar Products

Accessories

Delivery

Tech Data

Features3D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAV3D2.0WALL.3L | Large version3D wheel aligner RAV3D2.0WALL.3S | Light version3D wheel aligner RAV3D2.0WALL.3S | Light version3D wheel aligner RAV3D2.0WALL.4S | Light version3D wheel aligner RAV3D2.0WALL.4S | Light version3D wheel aligner RAVTD3200HPR.33D wheel aligner RAVTD3200HPR.33D wheel aligner RAVTD3200HP.33D wheel aligner RAVTD3200HP.33D wheel aligner RAVTD3200SP.33D wheel aligner RAVTD3200SP.33D wheel aligner RAVTD3200L.33D wheel aligner RAVTD3200L.3
ASA livestreamoptionaloptionaloptionalnot possiblenot possiblenot possiblenot possible
TeqLinkoptionaloptionaloptionaloptionaloptionaloptionaloptional
asanetworkoptionaloptionaloptionalnot possiblenot possiblenot possiblenot possible
Individual toe front/rear axle+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Total toe+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Toe-out on turns+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°+/- 20°
Camber front/rear axle+/- 10°+/- 10°+/- 10°+/- 10°+/- 10°+/- 10°+/- 10°
Caster+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°
SAI+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°+/- 18°
Set-back+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Set-back front axle+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Geometric centre line+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°+/- 5°
Thrust angle+/- 10°+/- 10°+/- 10°+/- 5°+/- 5°+/- 5°+/- 5°
Steering angle max.+/- 50°+/- 50°+/- 50°+/- 50°+/- 50°+/- 50°+/- 50°
Min. tyre size8″8″8″8″8″8″8″
Max. tyre size24″24″24″24″24″24″24″
Max. wheel diameter910mm910mm910mm910mm910mm910mm910mm
Max. wheel base4500mm4500mm4500mm4500mm4500mm4500mm4500mm
Hardwarestandardstandardstandard
Hardware versionTabletTabletTablet
Display designdigitaldigitaldigitaldigitaldigitaldigitaldigital
DisplayLCDLCDLCDTFTTFTTFTTFT
Display size10″10″10″27″27″22″22″
Network compatibleYesYesYesYesYesYesYes
Data transmission typecordlesscordlesscordlesscordlesscordlesscordlesscordless
Measuring system3D3D3D3D3D3D3D
