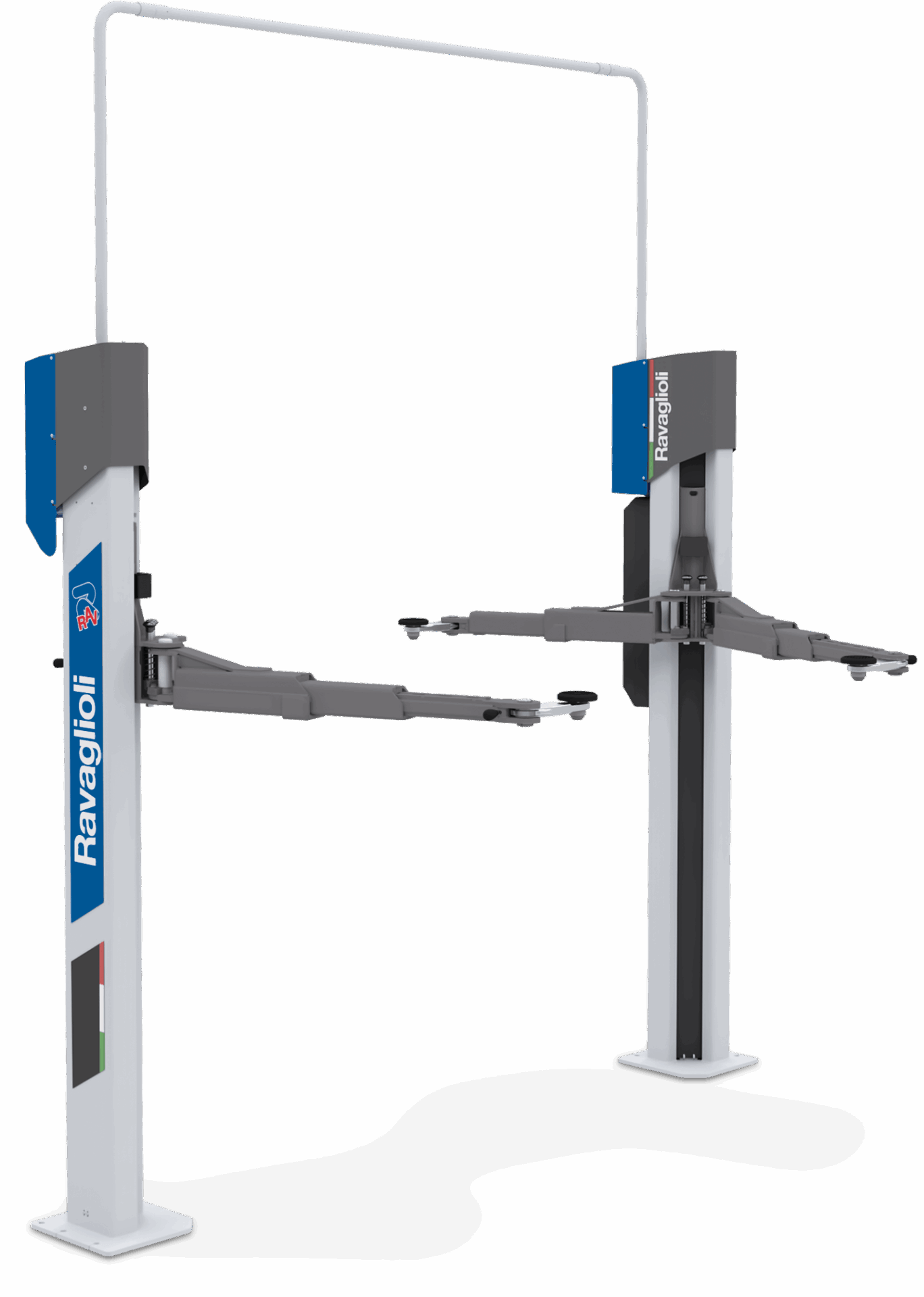

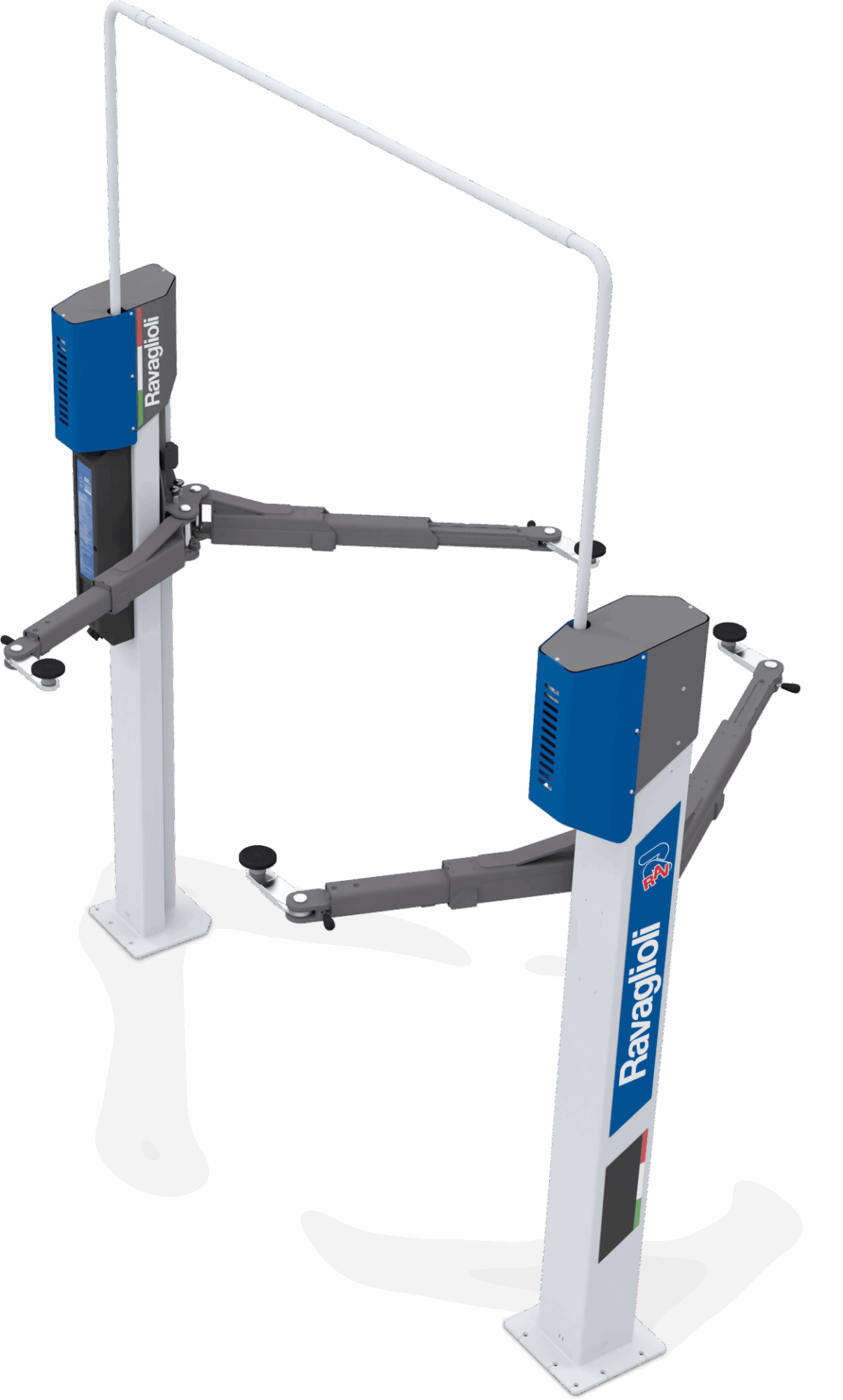

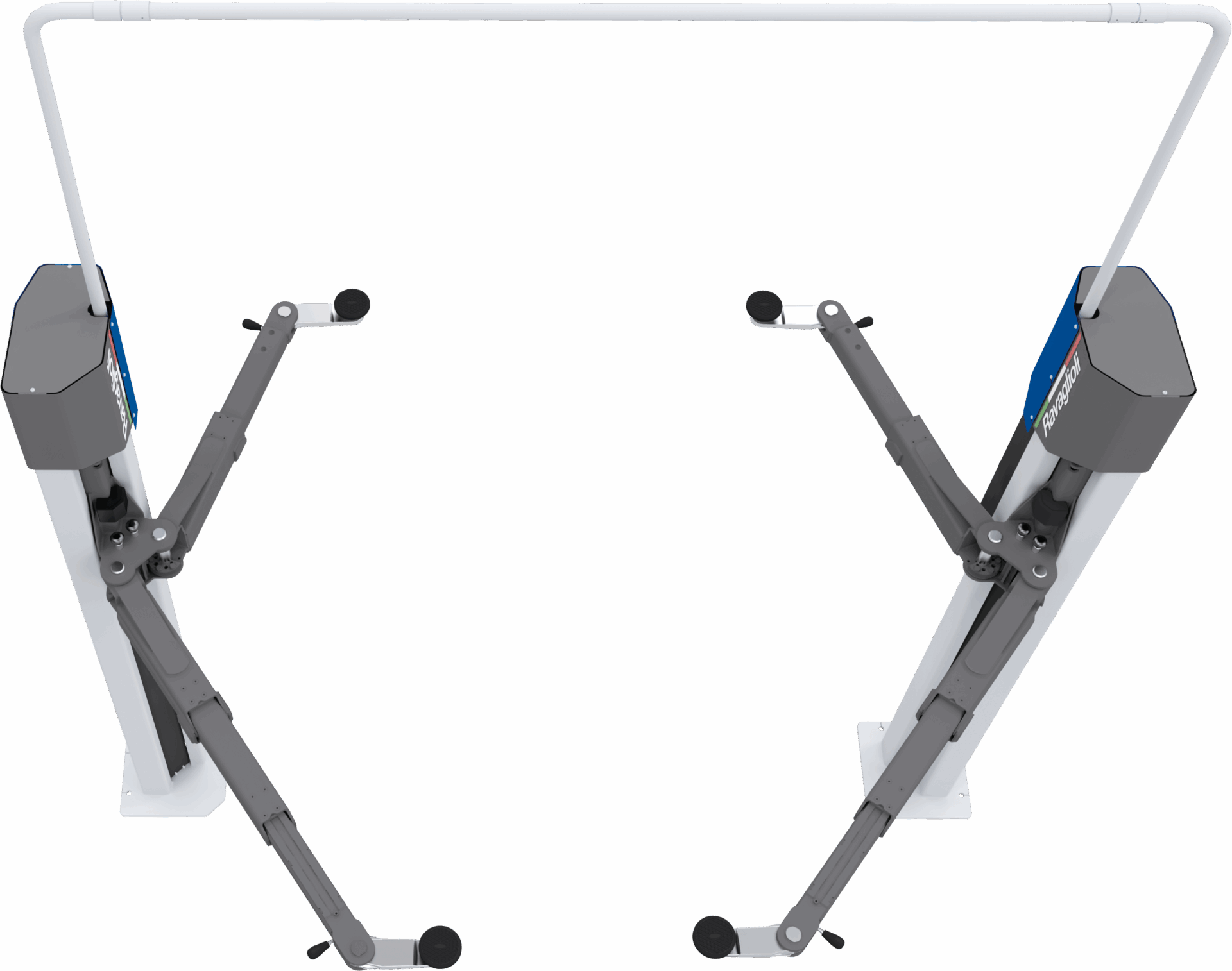

2-post lift KPX35EEV

3.5 t, electromechanical, asymmetrical, double control panel, rotated columns at 45°, EV arms, TEq-Link, energy kit

MPN: RAV.KPX35.198891
GTIN (EAN): 5063084198891
Category:
Tags: ,

Share on:

Description

The Universal Lift for Future EVolution

  • Up-to-date design: modern outline that brings modernity and usability to the workshop
  • Innovative DNA: long-standing high-quality components and tested for 20000 cycles
  • Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

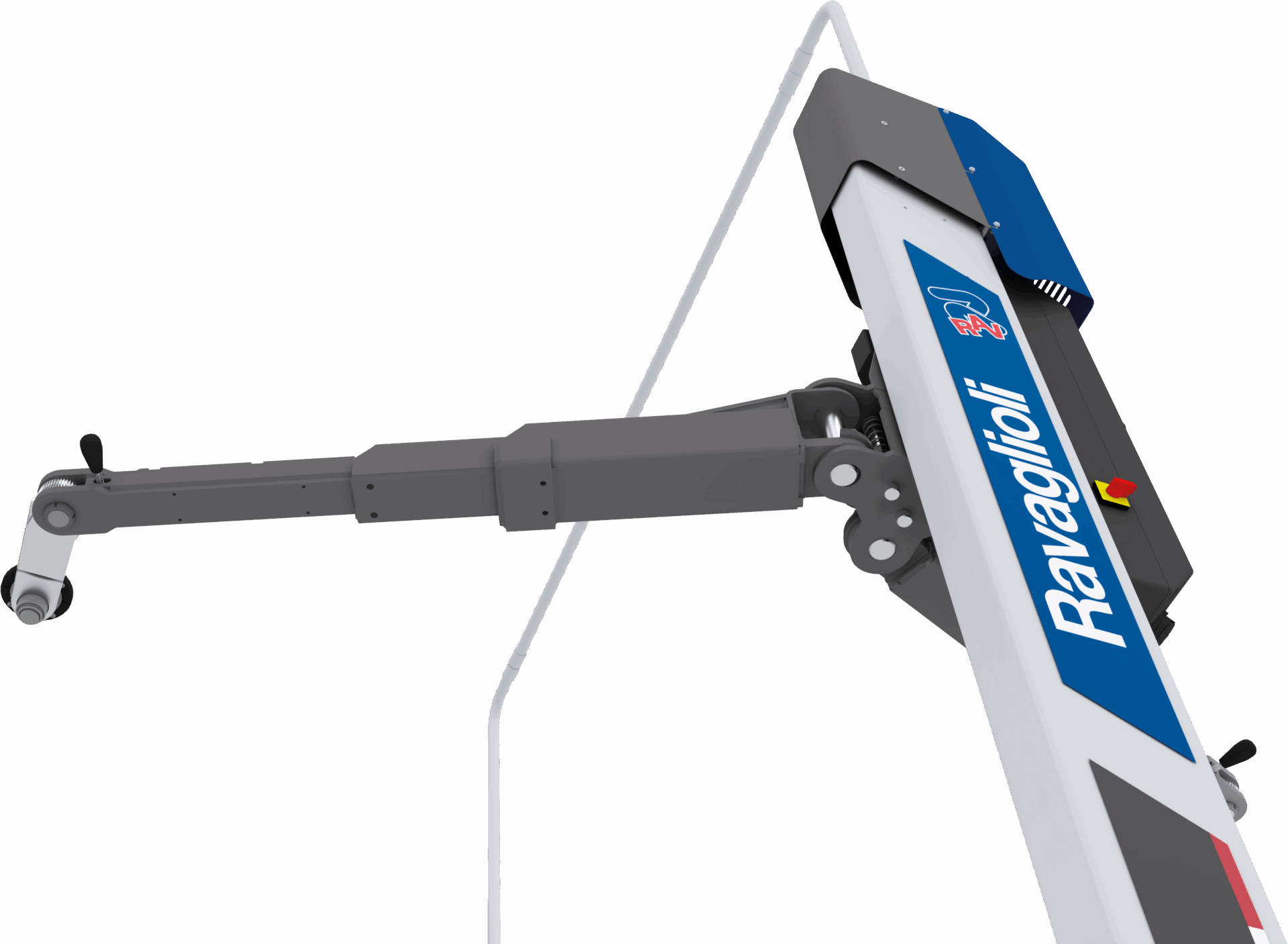

  • The innovative low-profile arms with rotating terminal offer high flexibility of use, making the lift suitable for lifting all types of vehicles.
  • Wide lifting range – From the classic city cars to sports cars and long wheelbase vans.
  • Smart and flexible installation: Up to 20% improvement in installation time. The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width-adjustable positions.
  • Combined with a KT Series lifting table that, due to structural reasons, can be assembled and disassembled only from the bottom of the vehicle.

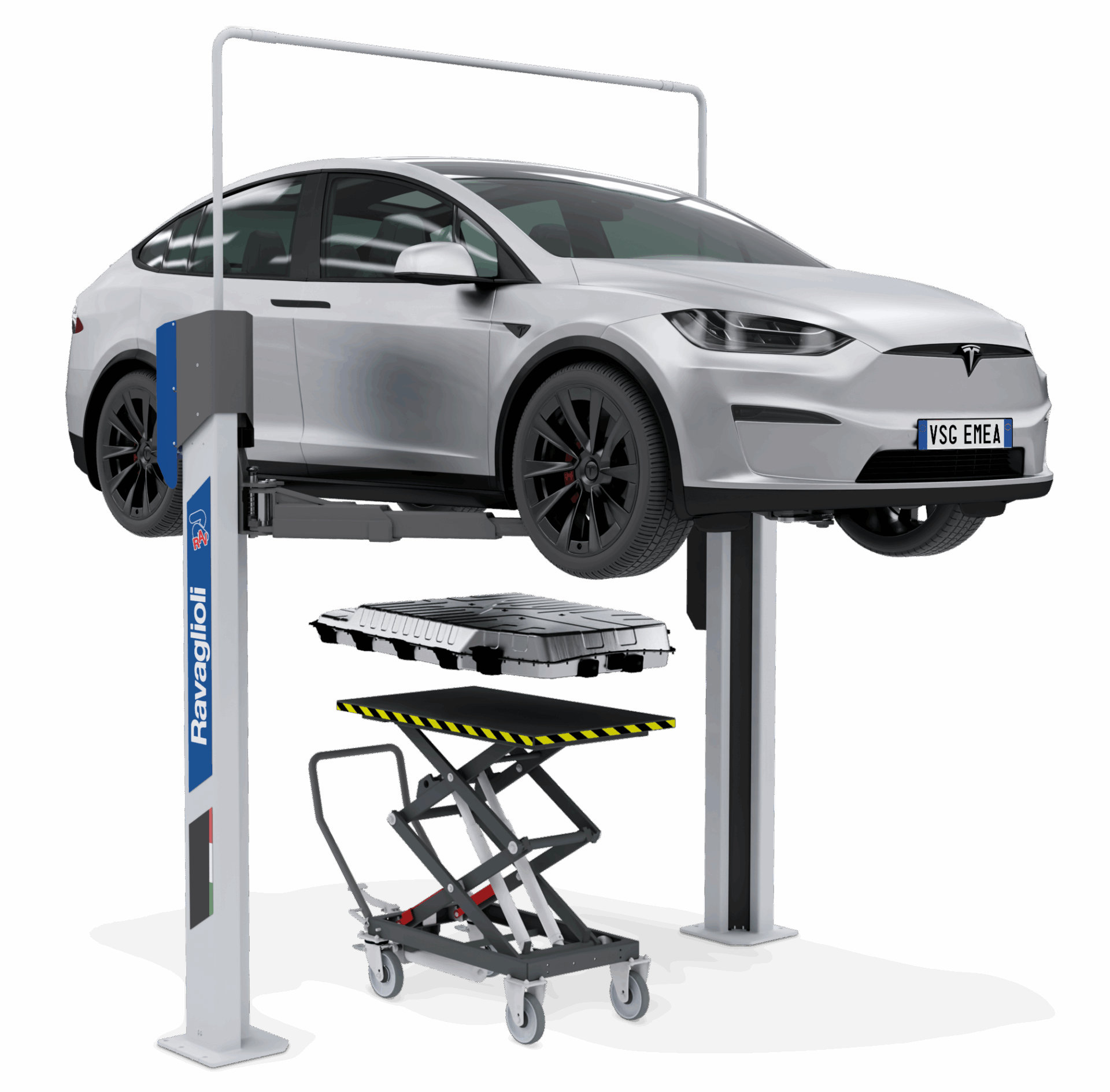

  • Perfect for electric vehicles: The movement flexibility of the arms provides direct access to the battery pack for its removal operations.

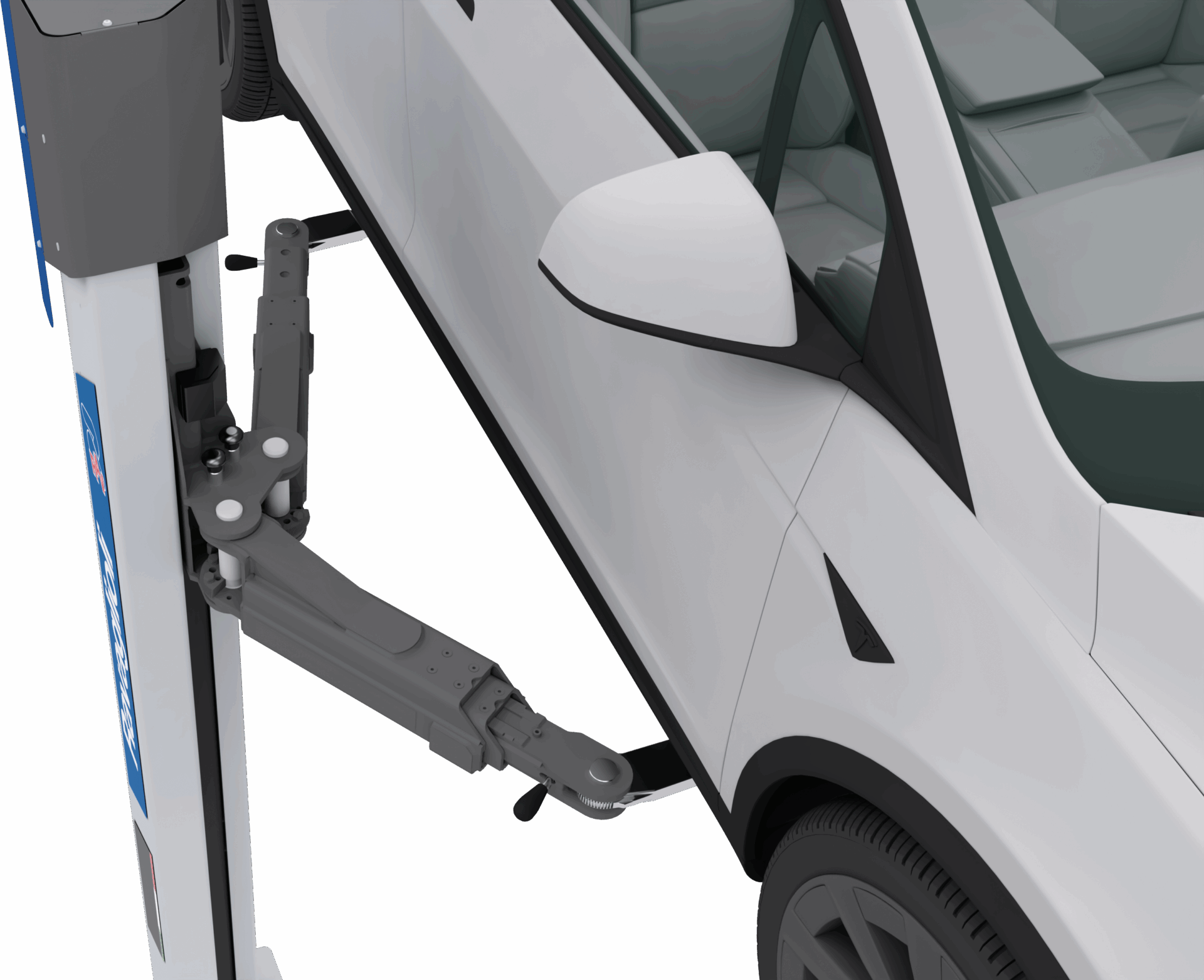

  • Ideal for sports cars with low profile: The rotating terminal makes it possible to easily reach the pick-up points, keeping the arm body safely away from the vehicle chassis; in this way, contacts between vehicle and lifting arms are avoided.

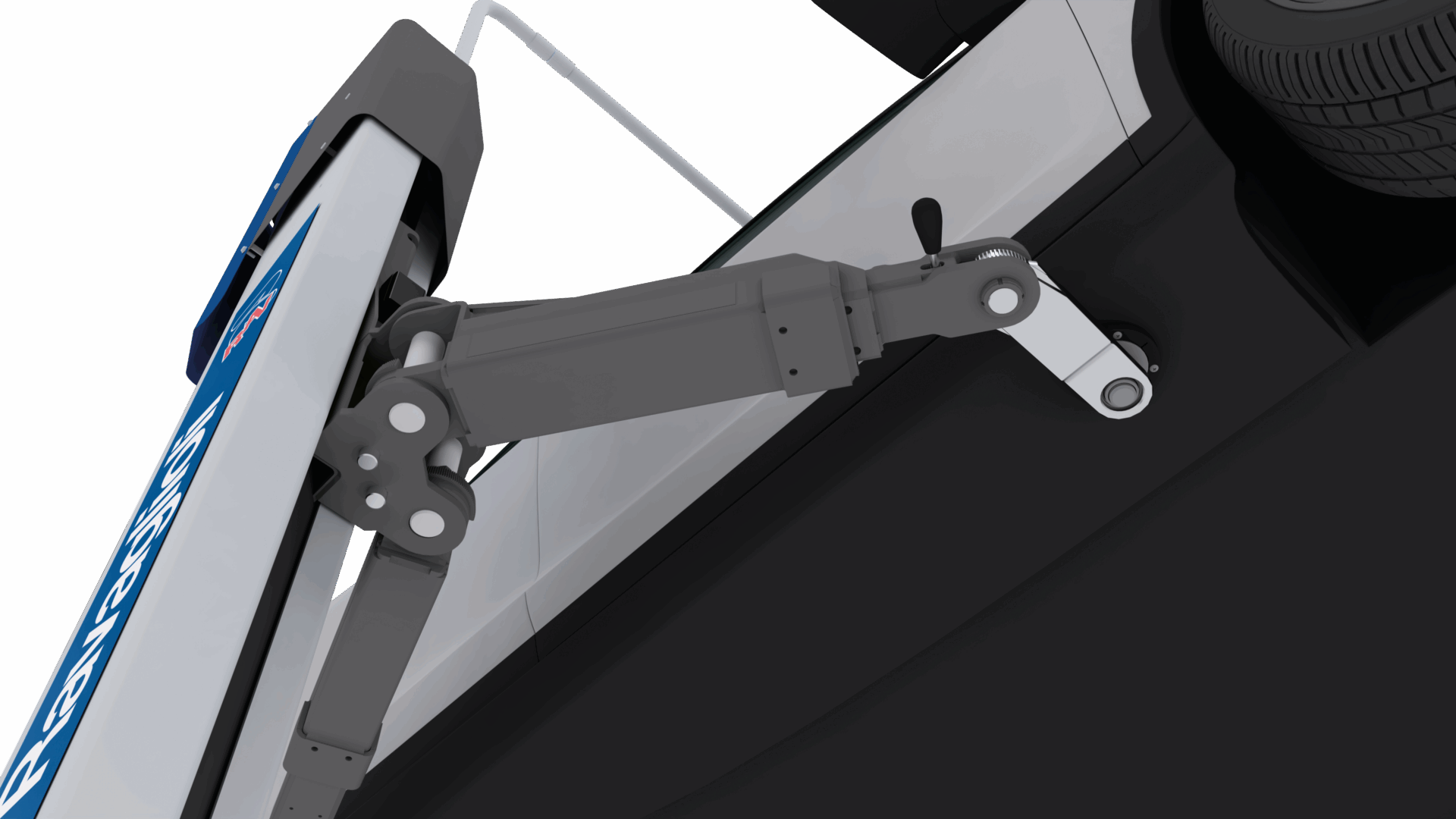

  • The space requirement of the arm is reduced, permitting to work underbody, obstacle-free, even on vehicle parts such as wheels, brakes and suspension.

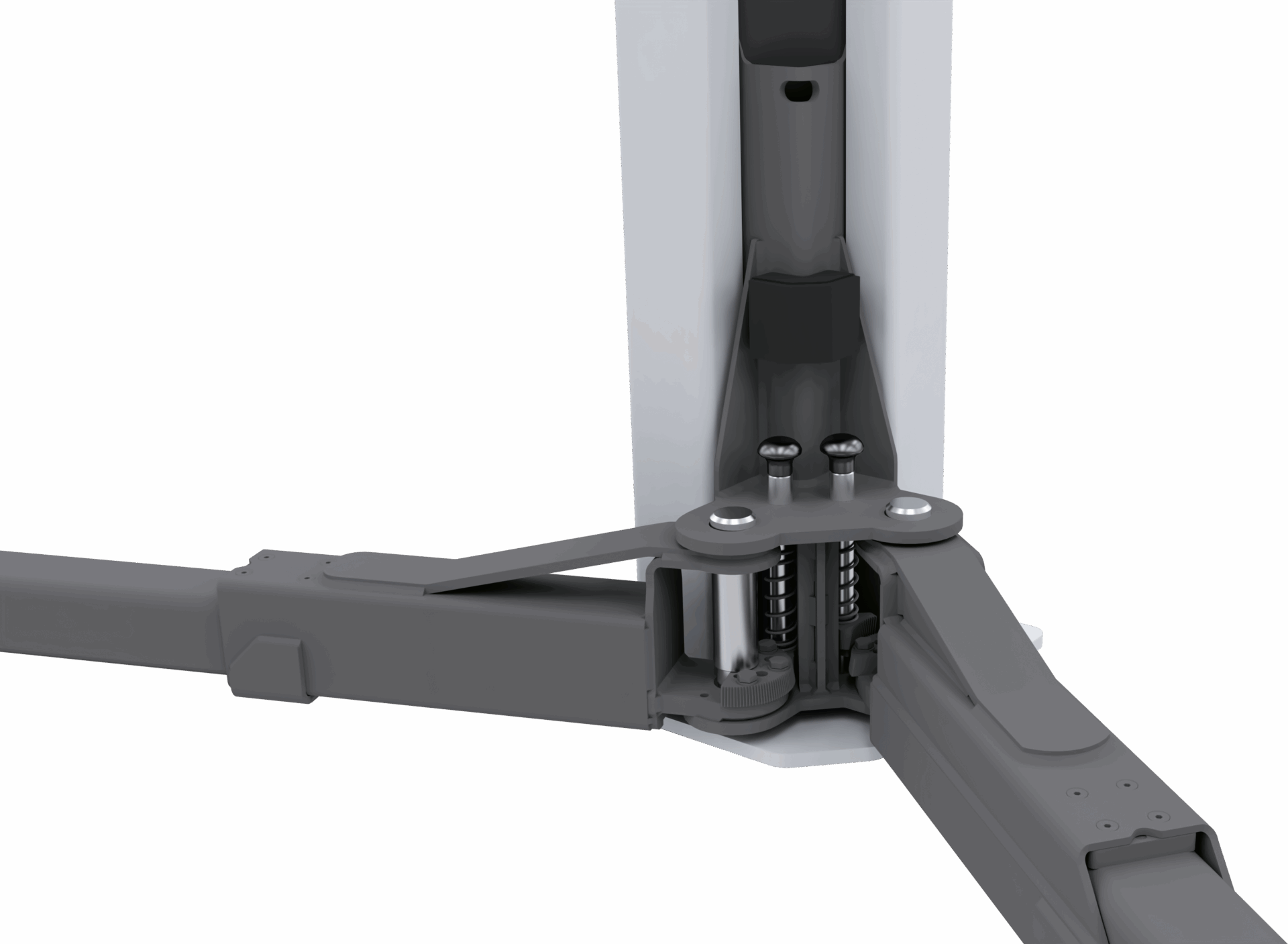

  • The automatic arm locking system guarantees maximum stability and operator safety.

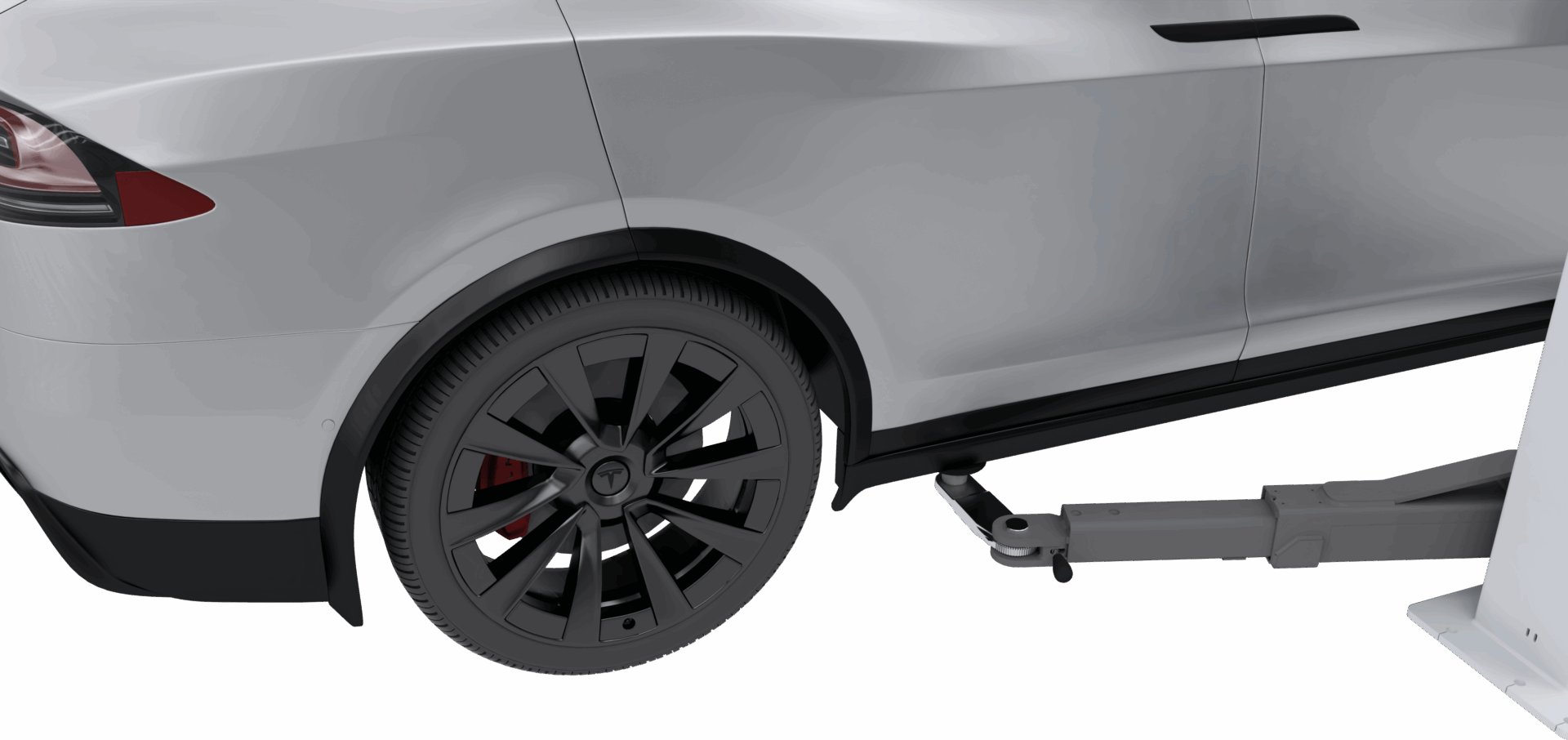

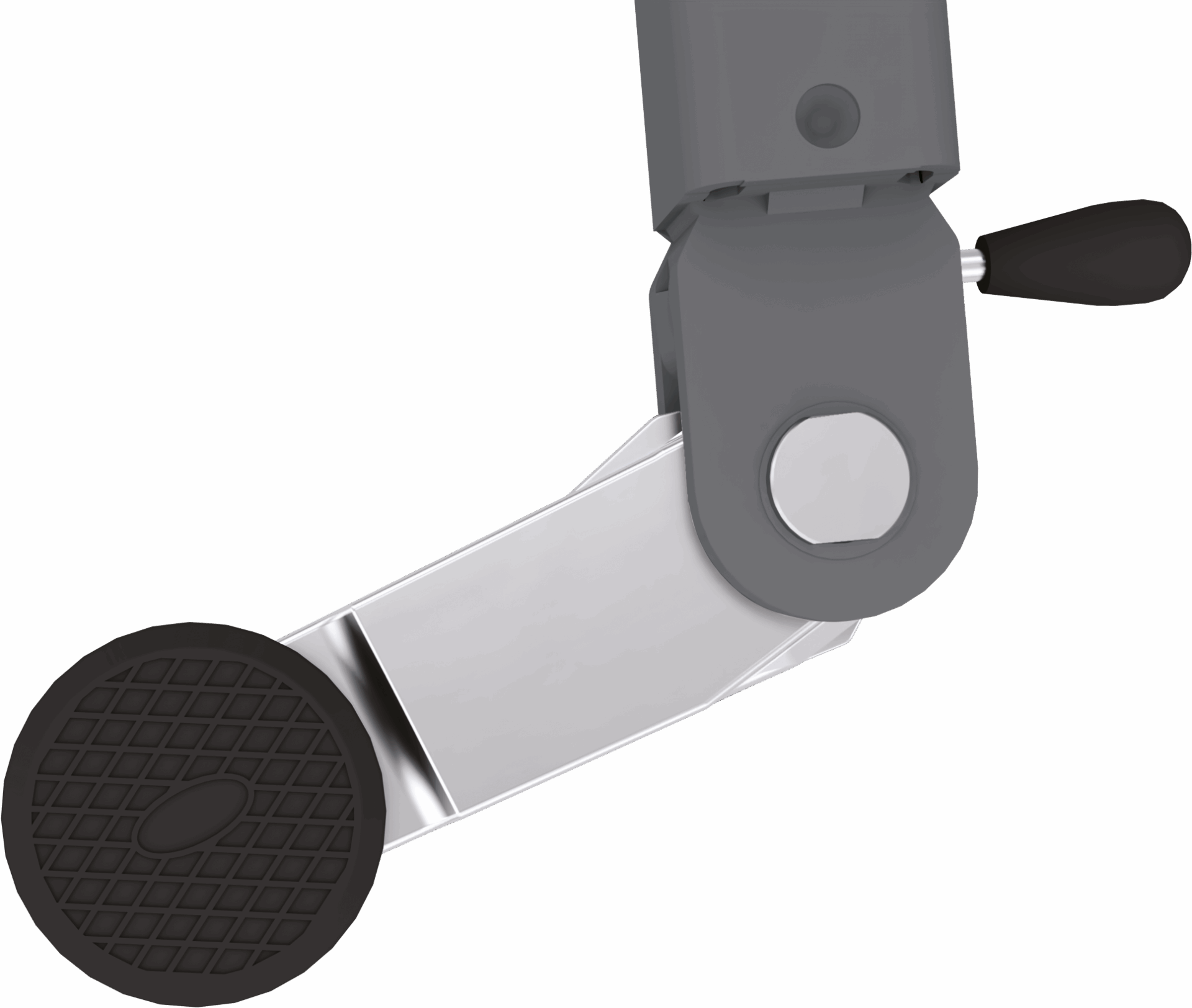

  • The rotating terminal is easy to adjust based on the type of vehicle.

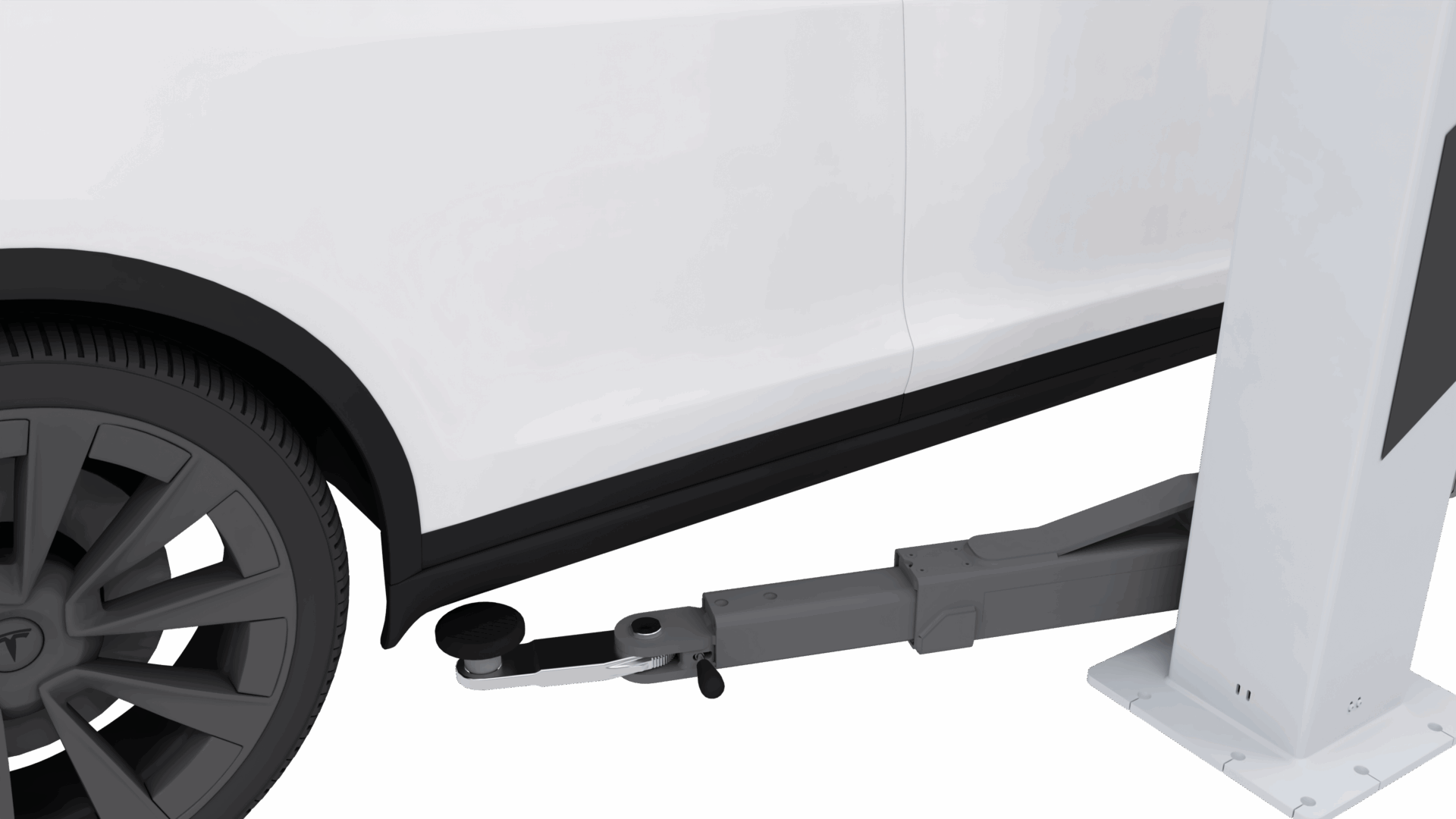

    • Use in standard mode
    • Use in tilted up to 90° mode
  • The perfect solution for whoever wants to set up a universal working bay.
  • High-strength and long-lasting materials.
  • Compact design that allows space to be optimised.
  • Innovative geometry of the symmetric arms with rotating terminal (patent pending).
  • The movement of the carriage is ensured by a rolled steel screw and a bronze nut with automatic lubrication.

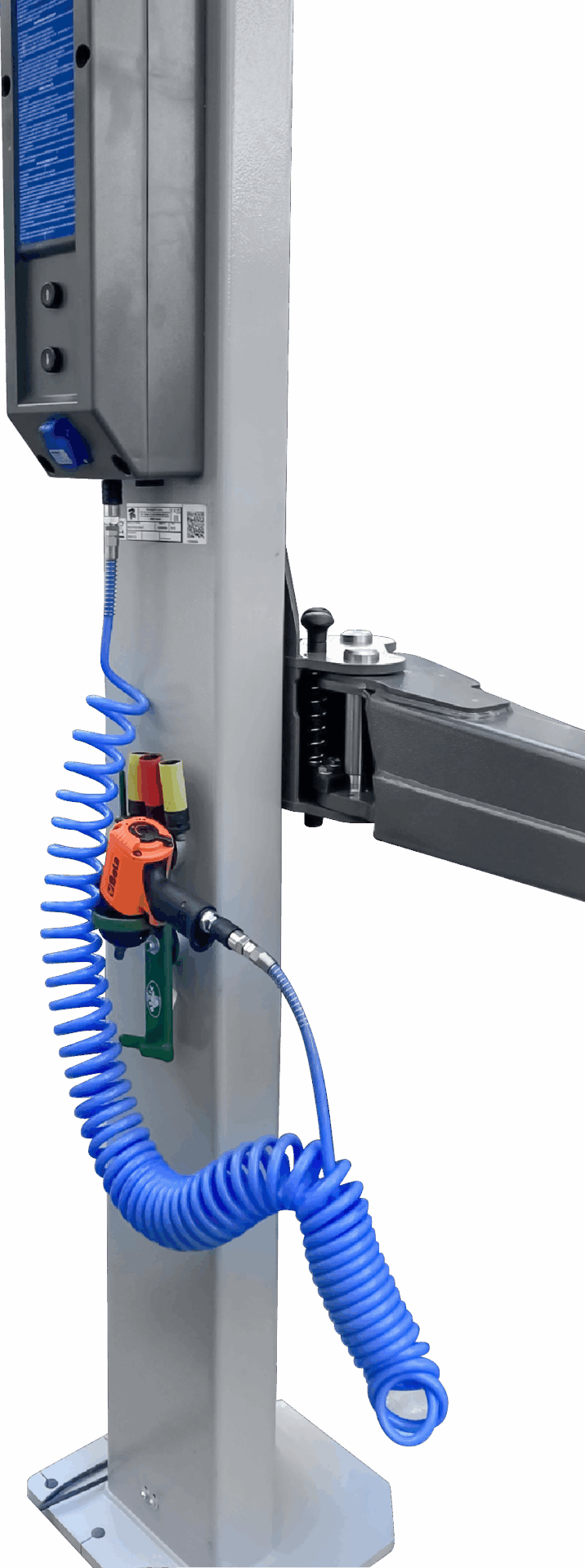

  • EEV version, equipped with double control panel and Energy kit.

Media

Similar Products

    Accessories

    Tech Data

    Features2-post lift KPX35EEV2-post lift KPX35EEV
    Number of columns2
    Rated load capacity3500kg
    Mode of driveelectromechanical
    Controlelectric
    Type of installationsurface mounted
    TeqLinkstandard
    Max. lifting height2030mm
    Lifting time42s
    Min. plate height95mm
    Max. plate heigh155mm
    Clear span between2600 – 2700mm
    Clear span between (out)3123 – 3223mm
    Drive-through width2372 – 2472mm
    Required ceiling height4150mm
    Surface coatingPowder coated
    Arm layoutasymmetrical
    Telescopic front arms3-fold
    Telescopic rear arms4-fold
    Min. front arm length686mm
    Max. front arm length1474mm
    Min. rear arm length668mm
    Max. rear arm length1143mm
    Driving power2 x 2,6kW
    Power supply400 V | 50 Hz
    Phases3
    Width3250 – 3350mm
    Height4052mm
    Max. height4052mm
