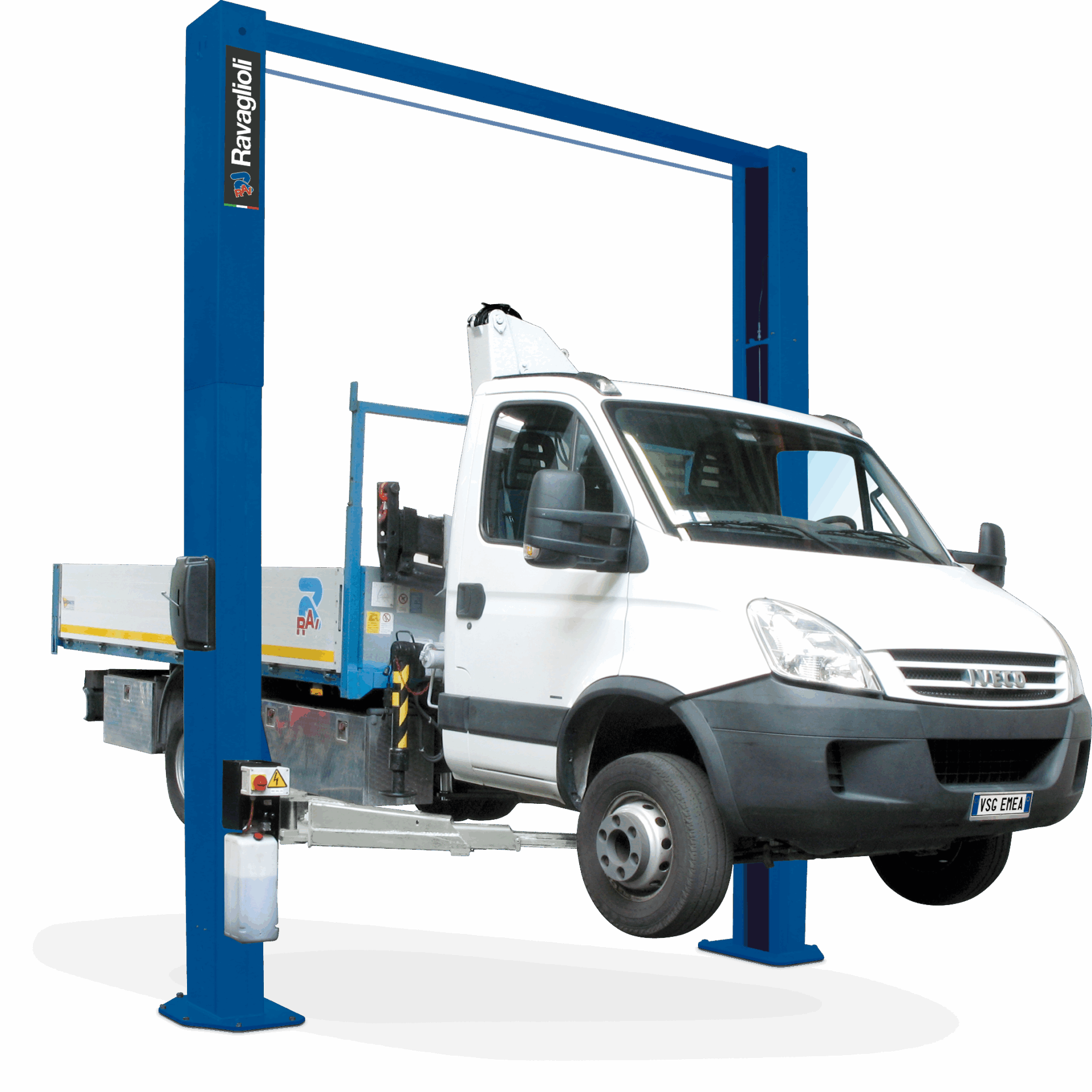

Model ideal to lift long wheel-base vans. Model equipped with two long 3-stage arms and two long 4-stage arms, to allow easy lifting of large cars.
5.5 t, electrohydraulic, asymmetrical, supporting arms 4 x 3-piece
1 set / 2 pieces
For all lifts with 3-phase power supply
Ramps for extra low clearance vehicles
| Features |  2-post lift KPH370.70LIKTA | 2-post lift KPH370.55LIKTA |
|---|---|---|
| Number of columns | 2 | 2 |
| Mode of drive | electrohydraulic | electrohydraulic |
| Control | electric | electric |
| Type of installation | floor mounted | floor mounted |
| Rated load capacity | 7000kg | 5500kg |
| Max. lifting height | 2066mm | 2046mm |
| Lifting time | 70s | 35s |
| Min. plate height | 130mm | 125mm |
| Max. plate heigh | 184mm | 176mm |
| Clear span between | 3128mm | 3000mm |
| Column height | 5016mm | 4850 – 4950mm |
| Drive-through width | 2727mm | 2680mm |
| Required ceiling height | 5120mm | 5050mm |
| Surface coating | Powder coated | Powder coated |
| Arm layout | asymmetrical | asymmetrical |
| Telescopic front arms | 4-fold | 4-fold |
| Telescopic rear arms | 3-fold | 3-fold |
| Min. front arm length | 721mm | 733mm |
| Max. front arm length | 1802mm | 1800mm |
| Min. rear arm length | 845mm | 840mm |
| Max. rear arm length | 1802mm | 1800mm |
| Driving power | 3,5kW | 3,5kW |
| Power supply | 220 V | 60 Hz | 220 V | 60 Hz |
| Width | 3888mm | 3865mm |
| Height | 5017mm | 4950mm |
| Weight | 750kg | 750kg |
