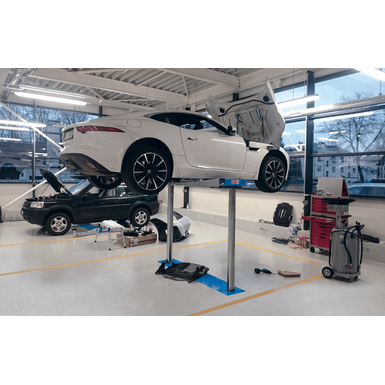

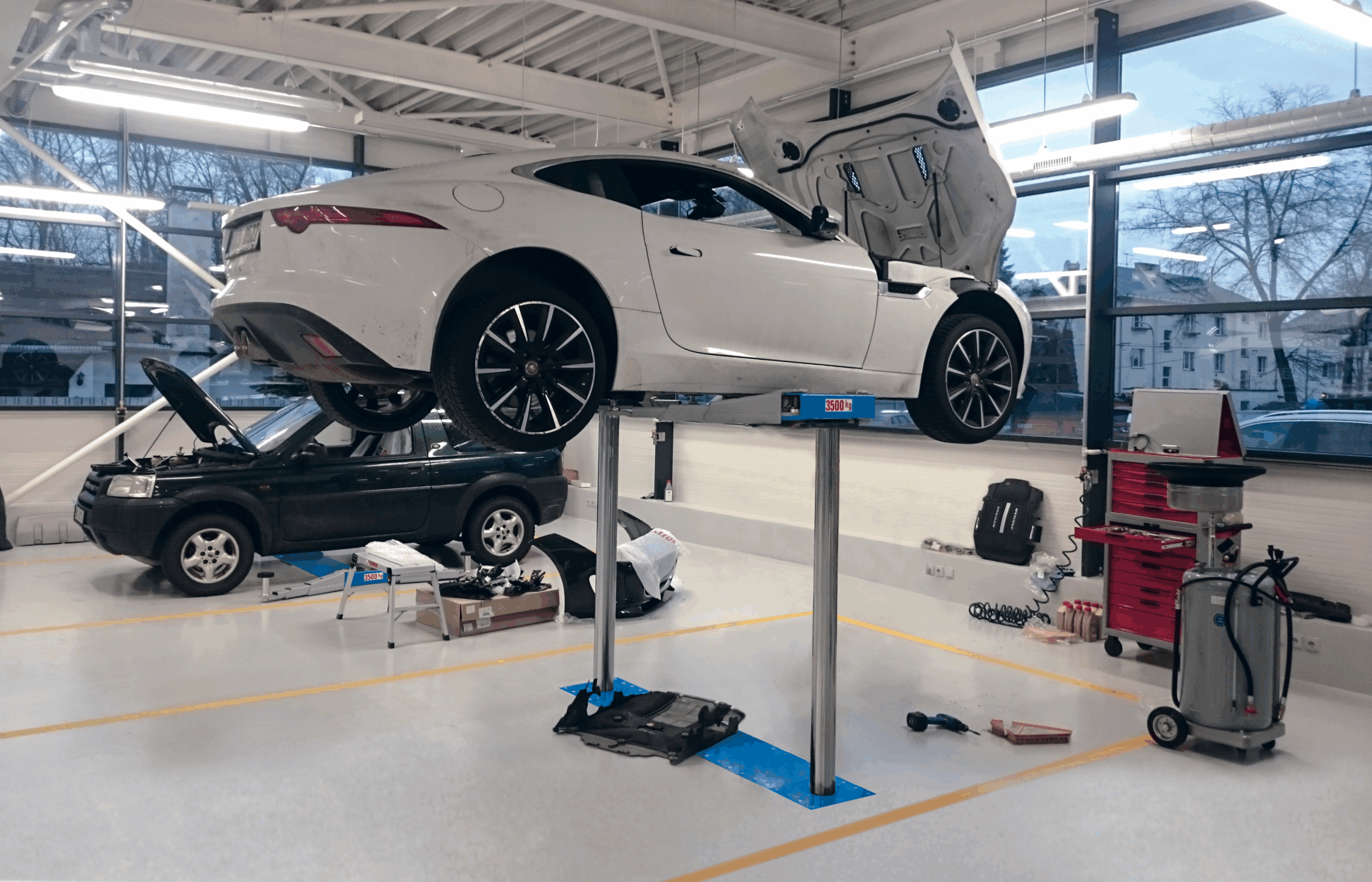

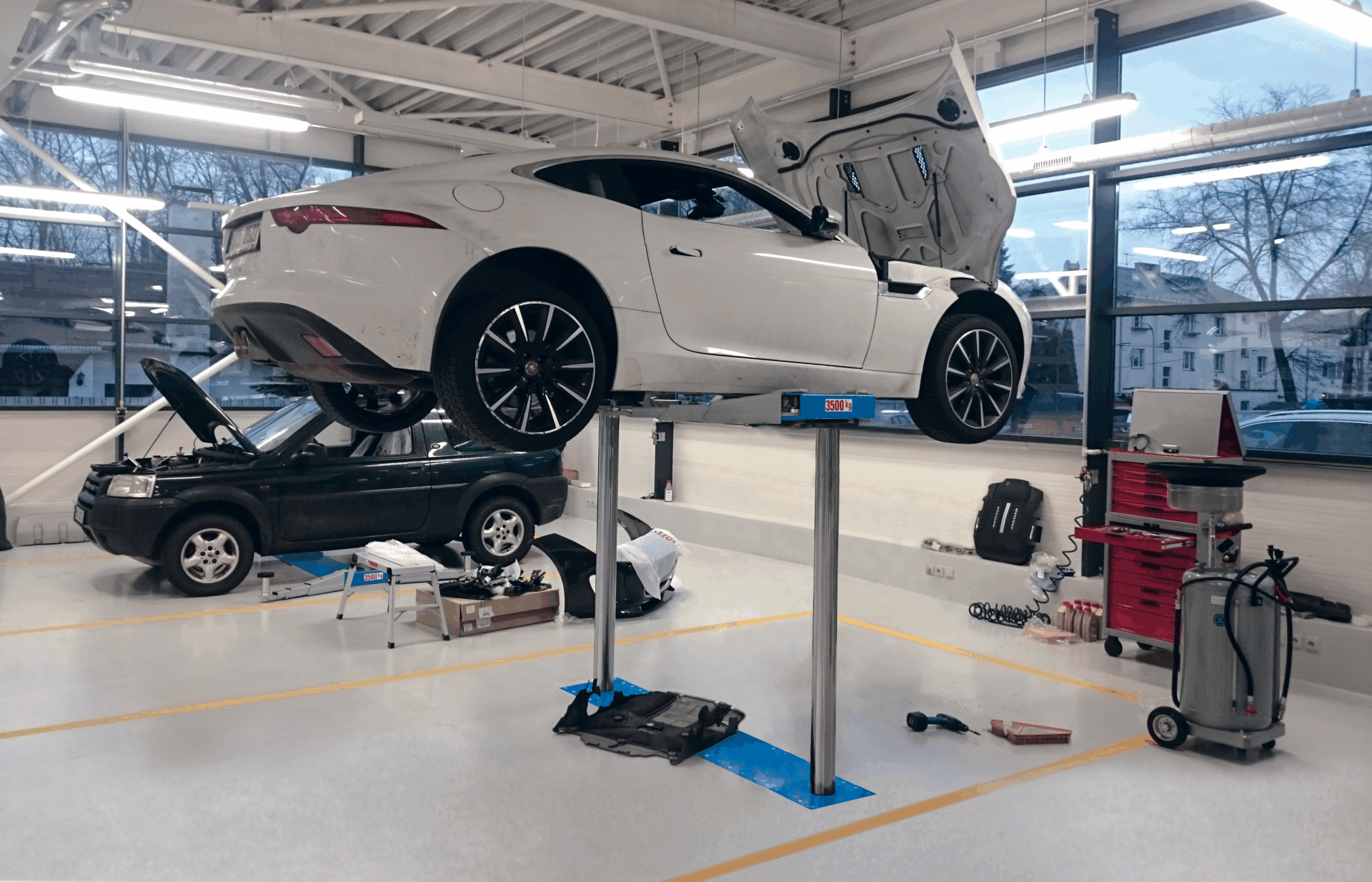

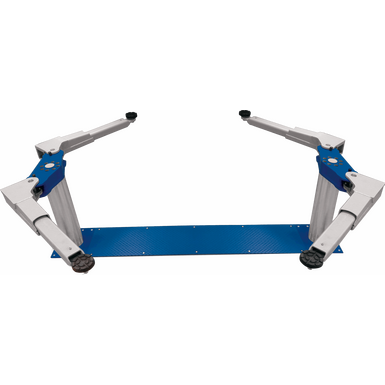

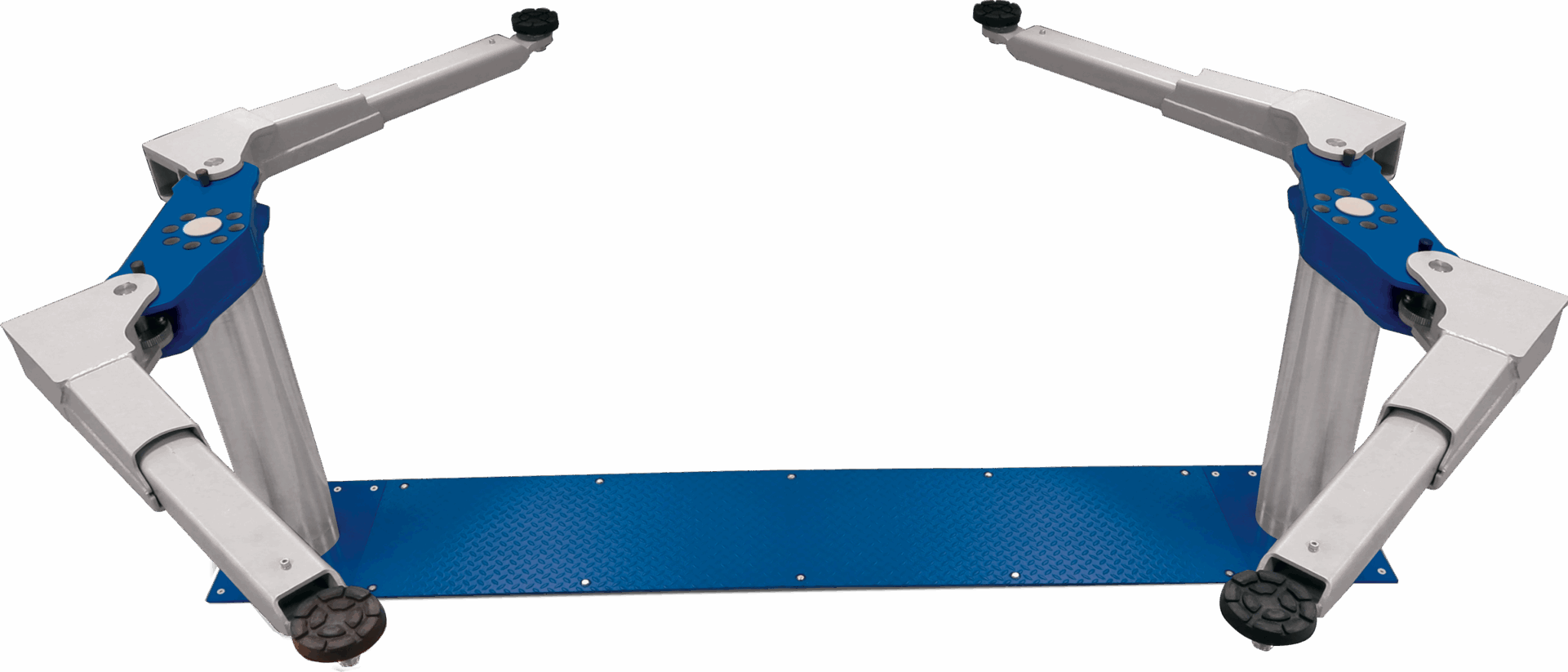

2-Cylinder Inground Lift RAV1110LR

3.5 t, with very flat swivel arms and height-adjustable turntable plug-in system, lower swivel height 80 mm

MPN: RAV1110LR
GTIN (EAN): 4057612815399
Category:
Tags:

Share on:

Description

  • Perfect synchronization between cylinders regardless of load distribution.
  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
  • Self-controlled lowering speed.
  • All mechanical, hydraulic and electrical components manufactured in compliance with the respective European Safety Standard.
  • Maintenance free cylinders: Each column features a maintenance-free lifting cylinder
  • Double joint: Cross bar with double joint to eliminate vibrations
  • Safe – Mechanical lock: Mechanical safety latch with automatic engagement, ensuring maximum safety when lift is in standing position.
  • Hard chrome columns: Hard chrome columns grant long life
  • Maintenance free guides: Columns guides in oil bath, maintenance free
  • Version with 2160 mm clearance between the columns
  • Extra low profile arms, parallel to the floor
  • Double thread pads with a min. height of 80 mm only

Media

Similar Products

Tech Data

Features2-Cylinder Inground Lift RAV1110LR2-Cylinder Inground Lift RAV1110LR2-Cylinder Inground Lift RAV1110NK2-Cylinder Inground Lift RAV1110NK2-Cylinder Inground Lift RAV11252-Cylinder Inground Lift RAV11252-Cylinder Inground Lift RAV1155LIKTA2-Cylinder Inground Lift RAV1155LIKTA
Number of rams2222
Inground lift designSwivel armSwivel armFlat beamSwivel arm
Type of installationsurface mountedsurface mountedsurface mountedsurface mounted
Rated load capacity3500kg3500kg3500kg5500kg
Max. lifting height2019mm2063mm1990mm2019mm
Plunger diameter180mm120mm120mm210mm
Column distance2160mm1340mm1340mm2160mm
Wheel alignmentnot possiblenot possiblenot possiblenot possible
Arm layoutsymmetricalasymmetricalsymmetrical
Telescopic front arms2-fold3-fold2-fold
Telescopic rear arms2-fold3-fold3-fold
Lifting arm length min.500mm500mm
Lifting arm length max.1070mm1070mm
Bottom clearance80mm95mm120mm
Width2720mm3066mm1620mm3310mm
Installation depth2496mm2496mm
