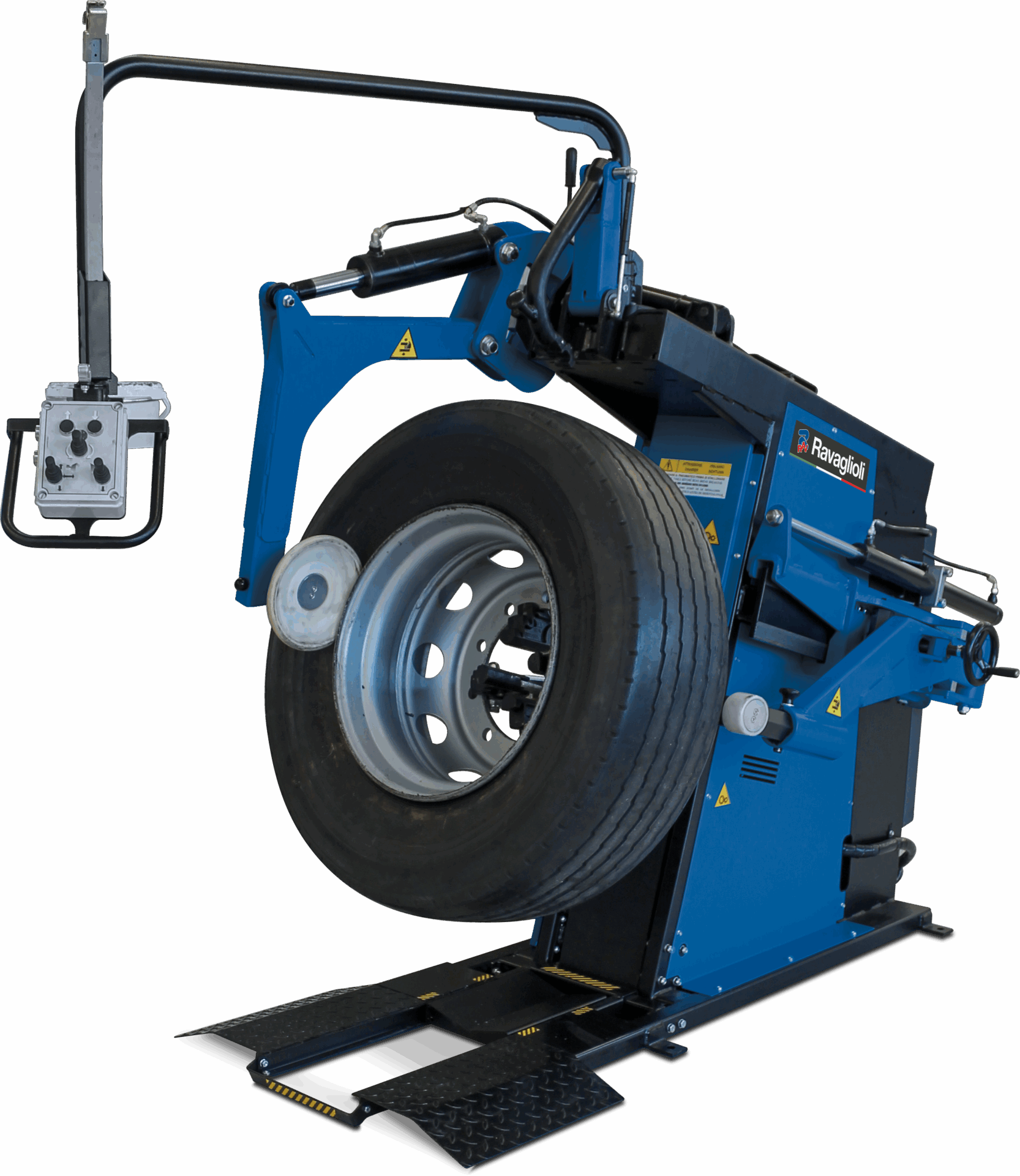

Tyre changer GTB16EVO

Mounting head and mounting lever, for commercial vehicle tubeless tyres, synchronized double bead breaking, hydraulic operating unit, max. speed 8 rpm, truck, clamping capacity 11 – 27″, max. rim width 21″ (max. wheel width 540 mm)

MPN: RAV.GTB16.206305
GTIN (EAN): 5063084206305
Category:
Tags: ,

Share on:

Description

The GTB16EVO is a one-of-a-kind. It is equipped with four rollers with a unique form, positioned on the two sides of the wheel in diametrically opposite positions. With the system, the dismounting of the tyre with bead breakers is very simple and natural: while the anterior bead breakers keep the bead in the drop centre, the posterior ones continue their course until the dismounting is complete.

  • 30 seconds you need to dismount and mount a common truck tyre
  • The chucking unit, designed to clamp all kind of wheels, and can move not only clockwise and counterclockwise, but also up and down
  • Thanks to the “STAND-BY” function, we totally eliminate the noise when the machine is not working
  • The bead breakers are made of plastic material to prevent damage to the rim
  • Hydraulic chucking table – Suitable also for agricultural tyres (+G108A24)
  • All movements are hydraulically controlled from a convenient, ergonomically positioned console
  • The machine is equipped with a patented lever to ease the mounting/demounting of the tyre
  • The bead breakers are supported by two arms separately commanded – Each arm has two rollers, one conical which pushes on the bead and one cylindrical which punches the tyre side wall
  • The operating dimensions of the rim clamping unit and of the head-tool carriage allow the tyre changer to operate on a whole range of wheels, including super-single

Media

Similar Products

Accessories

Tech Data

FeaturesTyre changer GTB16EVOTyre changer GTB16EVOTyre changer GRS926.MOVITyre changer GRS926.MOVITyre changer G96NTyre changer G96NTyre changer GRS926Tyre changer GRS926
Mounting head designwith tire leverautomaticautomaticautomatic
Mounting arm designmoveablemoveableswivelingmoveable
Mounting column designrigidrigidrigidrigid
TeqLinknot possiblenot possiblenot possiblenot possible
asanetworknot possiblenot possiblenot possiblenot possible
Clamping device designcentralcentralcentralcentral
Min. clamping capacity11″11″11″11″
Max. clamping capacity27″27″27″27″
Max. rim width21″37″36,4″37″
Tire type truckStandardStandardall typesStandard
Wheel width max.540mm950mm925mm950mm
Max. wheel diameter1320mm1300mm1640mm1300mm
Wheel weight max.1200kg1200kg1500kg1200kg
Automatic bead-breaking movementYesYesYesYes
Bead breaker force12,5kN16kN18kN16kN
Number of mounting speeds1111
Rotation speed8rpm8rpm8rpm8rpm
Max. torque2600Nm2200Nm3000Nm1700Nm
Chuck motor rating1,5kW1,5kW0,75kW1,1kW
Driving power2kW2,2kW2,2kW2kW
Power supply400 V | 50 Hz400 V | 50 Hz230/400 V | 50 Hz400 V | 50 Hz
Phases3333
Fuse protection10A slow-blow16A slow-blow16A slow-blow
Max. air supply130bar130
Width2810mm890mm1620mm1095mm
Depth1405mm2235mm1860mm1954mm
Height2130mm1715mm1360mm1691mm
Weight650kg470kg454kg378kg
