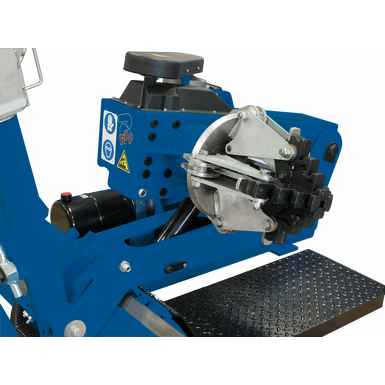

The operating dimensions of the clamping unit and of the head-tool carriage allow working on the whole range of wheels, including super-single.
Universal, leverless, cable console unit, max. speed 10 rpm, truck, clamping capacity 11 – 34″ (56″ with extension set), max.…
Universal, leverless, hydraulic operating unit, max. speed 10 rpm, truck, clamping capacity 11 – 34″ (56″ with extension set), max.…
Mounting head and mounting lever, for commercial vehicle tubeless tyres, synchronized double bead breaking, hydraulic operating unit, max. speed 8…
Mobile or stationary tyre changer, suitable for installation in closed vans, hydraulic operating unit, max. speed 8 rpm, truck, clamping…
Protection for alloy rims
For wheel assembly machines
| Features |  Tyre changer G96N | Tyre changer G9156.13EI | Tyre changer G9156.11N | Tyre changer GTB16EVO | Tyre changer GRS926 |
|---|---|---|---|---|---|
| Mounting head design | automatic | without tire lever | without tire lever | with tire lever | automatic |
| Mounting arm design | swiveling | moveable | moveable | moveable | moveable |
| Mounting column design | rigid | rigid | rigid | rigid | rigid |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | central | central | central | central | central |
| Min. clamping capacity | 11″ | 11″ | 11″ | 11″ | 11″ |
| Max. clamping capacity | 27″ | 43″ | 43″ | 27″ | 27″ |
| Max. rim width | 36,4″ | 51″ | 43″ | 21″ | 37″ |
| Tire type truck | all types | all types | all types | Standard | Standard |
| Wheel width max. | 925mm | 1300mm | 1100mm | 540mm | 950mm |
| Max. wheel diameter | 1640mm | 2300mm | 2300mm | 1320mm | 1300mm |
| Wheel weight max. | 1500kg | 1700kg | 1700kg | 1200kg | 1200kg |
| Automatic bead-breaking movement | Yes | Yes | Yes | Yes | Yes |
| Bead breaker force | 18kN | 26kN | 26kN | 12,5kN | 16kN |
| Number of mounting speeds | 1 | 3 | 3 | 1 | 1 |
| Rotation speed | 8rpm | 1 / 5 / 10rpm | 1 / 5 / 10rpm | 8rpm | 8rpm |
| Max. torque | 3000Nm | 4000Nm | 4000Nm | 2600Nm | 1700Nm |
| Chuck motor rating | 0,75kW | — | — | 1,5kW | 1,1kW |
| Driving power | 2,2kW | 1,1kW | 1,1kW | 2kW | 2kW |
| Power supply | 230/400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz | 400 V | 50 Hz |
| Phases | 3 | 3 | 3 | 3 | 3 |
| Fuse protection | 16A slow-blow | 9,8A slow-blow | 9,8A slow-blow | 10A slow-blow | — |
| Width | 1620mm | 1845mm | 2080mm | 2810mm | 1095mm |
| Depth | 1860mm | 2745mm | 2650mm | 1405mm | 1954mm |
| Height | 1360mm | 1035mm | 1350mm | 2130mm | 1691mm |
| Weight | 454kg | 820kg | 740kg | 650kg | 378kg |
