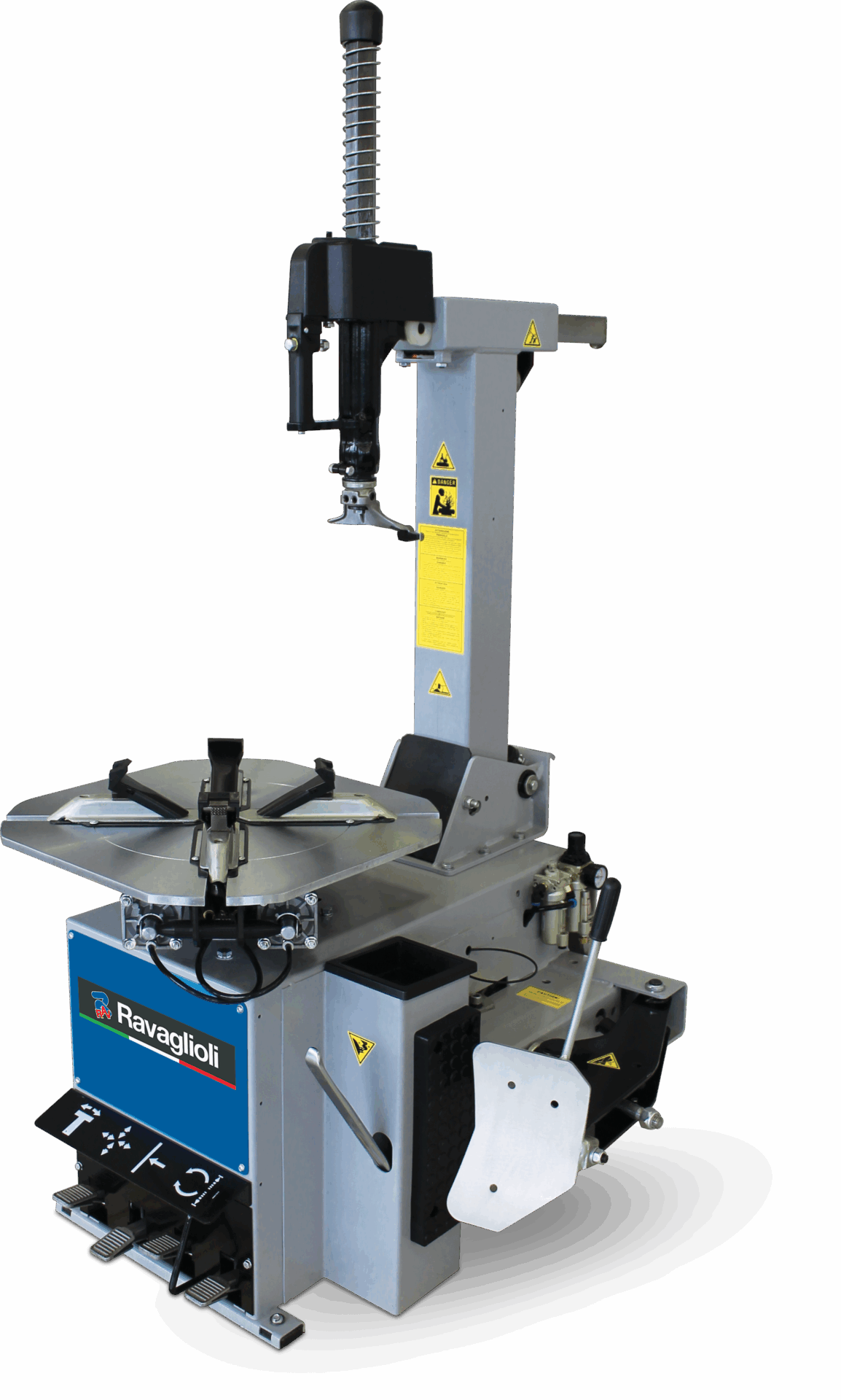

Description
- Tilting vertical arm
- Operating arm with pneumatic locking
- Air operated bead breaker
- Oversized body
- Extractable pedal unit
- Equipped with:
- Tyre inflator
- Clamps protection package
- Tool protection
- Bead lever
- Plastic brush
Similar Products
-
Tyre changers
Tyre changer G5440V.22G
MPN: RAV.G5440.206145Mounting head and mounting lever, semiautomatic, incl. tire inflator, 2 speeds (max. 14 rpm), passenger car, rim diameter 10 -…
-
Tyre changers
Automatic tyre changer G7441.22
MPN: RAV.G7441.2009692 speeds (max. 13 rpm), passenger car, clamping capacity 10 – 24,5″, max. rim width 14,1″ (max. wheel width 381…
-
Tyre changers
Automatic tyre changer G7441.20
MPN: RAV.G7441.201140Max. speed 17,3 rpm, passenger car, clamping capacity 10 – 24,5″, max. rim width 14,1″ (max. wheel width 381 mm),…
-
Tyre changers
Tyre changer G5440.22M
MPN: RAV.G5440.206169Mounting head and mounting lever, semiautomatic, incl. tire inflator, max. speed 7/14 rpm, passenger car, rim diameter 10 – 24″,…
Accessories
-
Accessories tyre changers
Bead lever Standard | for passenger cars
MPN: G1000A52 -
Accessories tyre changers
Reduction adapter for motorcycle clamping jaws | 1 set / 4 pieces
MPN: G800A111For reducing clamping capacity to 8″ wheel diameter | 800A99, G800A107 necessary
-
Accessories tyre changers
Plastic protection
MPN: G800A6Alloy wheels protections for clamping jaws 24 – 26 – 28″, repositionable | 1 set / 4 pieces
-
Accessories tyre changers
Motorcycle clamping jaws
MPN: G800A107Fast-fit, extend the clamping range by +5″ from outside | for chucking table 24 – 26″ | 1 set /…
-
Accessories tyre changers
Brush Plastic
MPN: G800A38 -
Accessories tyre changers
Plastic protection for mounting head
MPN: G108A91 piece
Tech Data
| Features | Tyre changer G5440.22 | Tyre changer G5440V.22G | Automatic tyre changer G7441.22 | Automatic tyre changer G7441.20 | Tyre changer G5440.22M |
|---|---|---|---|---|---|
| Mounting head design | semi-automatic | semi-automatic | automatic | automatic | semi-automatic |
| Mounting arm design | moveable | moveable | moveable | moveable | moveable |
| Mounting column design | tiltable | tiltable | tiltable | tiltable | tiltable |
| Colour | 5005RAL | 7016RAL | — | — | 5005RAL |
| TeqLink | not possible | not possible | not possible | not possible | not possible |
| asanetwork | not possible | not possible | not possible | not possible | not possible |
| Clamping device design | Clamping plate | Clamping plate | Clamping plate | Clamping plate | Clamping plate |
| Min. clamping capacity | 10″ | 10″ | 10″ | 10″ | 10″ |
| Max. clamping capacity | 24″ | 24″ | 24,5″ | 24,5″ | 24″ |
| Max. rim width | 13″ | 13″ | 14,1″ | 14,1″ | 13″ |
| Rim diameter min. | 10″ | 10″ | — | — | 10″ |
| Rim diameter max. | 24″ | 24″ | — | — | 24″ |
| Tire type passenger car | Run-Flat | Run-Flat | Run-Flat | Run-Flat | Run-Flat |
| Wheel width max. | 330mm | 330mm | 381mm | 381mm | 330mm |
| Max. wheel diameter | 1000mm | 1000mm | 1050mm | 1050mm | 1000mm |
| Automatic bead-breaking movement | No | No | No | No | No |
| Bead breaker force | 12kN | 12kN | 10,7kN | 10,7kN | 12kN |
| Number of mounting speeds | 1 | 2 | 2 | 1 | 1 |
| Rotation speed | 7 / 14rpm | 7 / 14rpm | 6,5 / 13rpm | 7,3rpm | 7 / 14rpm |
| Max. torque | 1200Nm | 1200Nm | 1200Nm | 1200Nm | 1200Nm |
| Driving power | 0,55kW | 0,8 / 1,1kW | 0,8 / 1,1kW | 0,75kW | 0,75kW |
| Power supply | 380 V | 50 Hz | 380 V | 50 Hz | 230/400 V | 50 – 60 Hz | 400 V | 50 Hz | 230 V | 50 Hz |
| Phases | 3 | 3 | 3 | 3 | 1 |
| Air flow | 8bar | 8bar | 8bar | 8bar | 8bar |
| Max. air supply | 10bar | 10bar | 10bar | 10bar | 10bar |
| Width | 1110mm | 1110mm | 1304mm | 1280mm | 1110mm |
| Depth | 1650mm | 1650mm | 1449mm | 1421mm | 1650mm |
| Height | 1850mm | 1850mm | 1950mm | 1950mm | 1850mm |
| Weight | 233kg | 233kg | 214kg | 202kg | 233kg |
