Description
KE pit lifts captivate with their outstandingly conceived safety design combined with ergonomic operating comfort – without compromises.

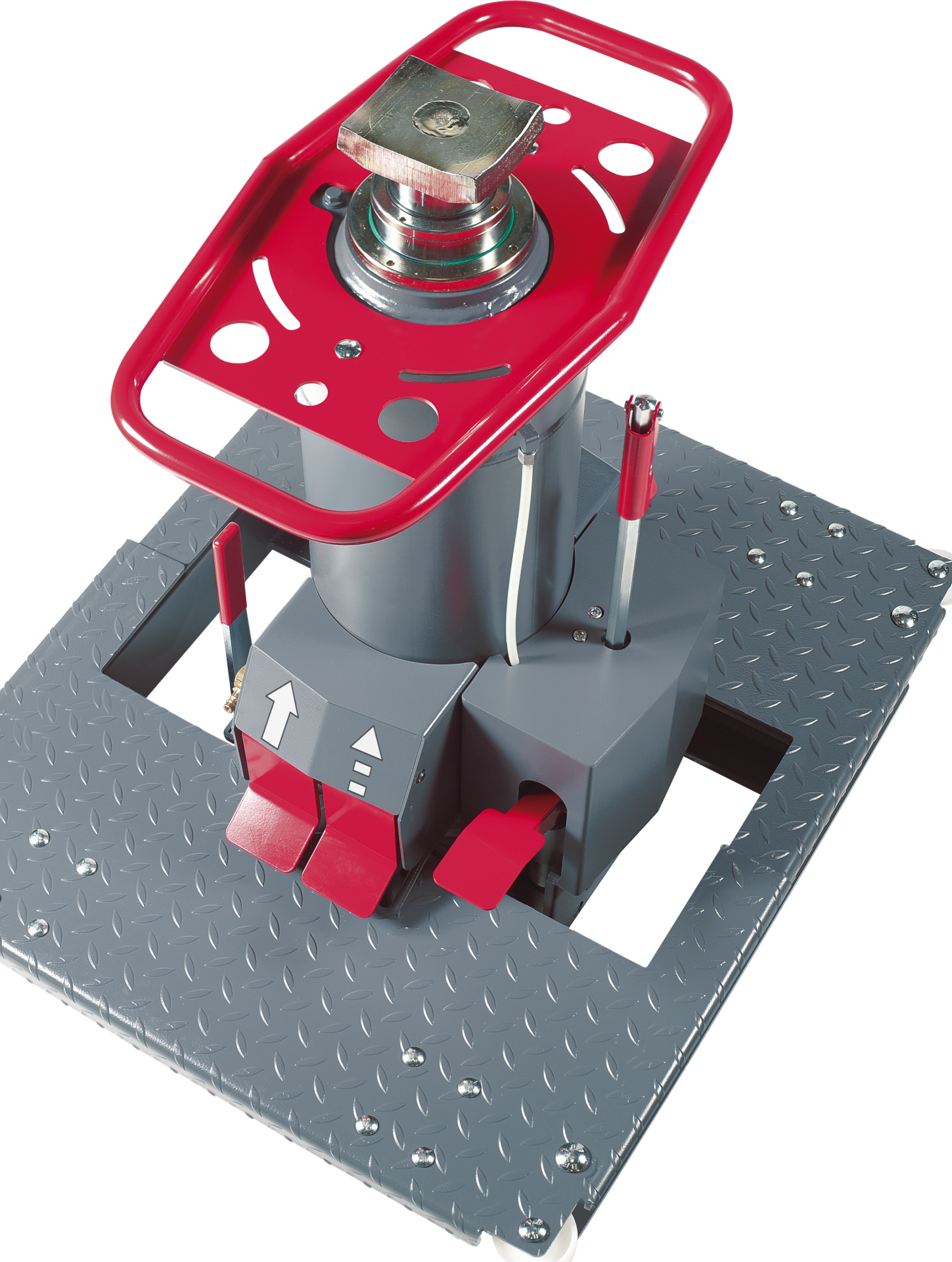

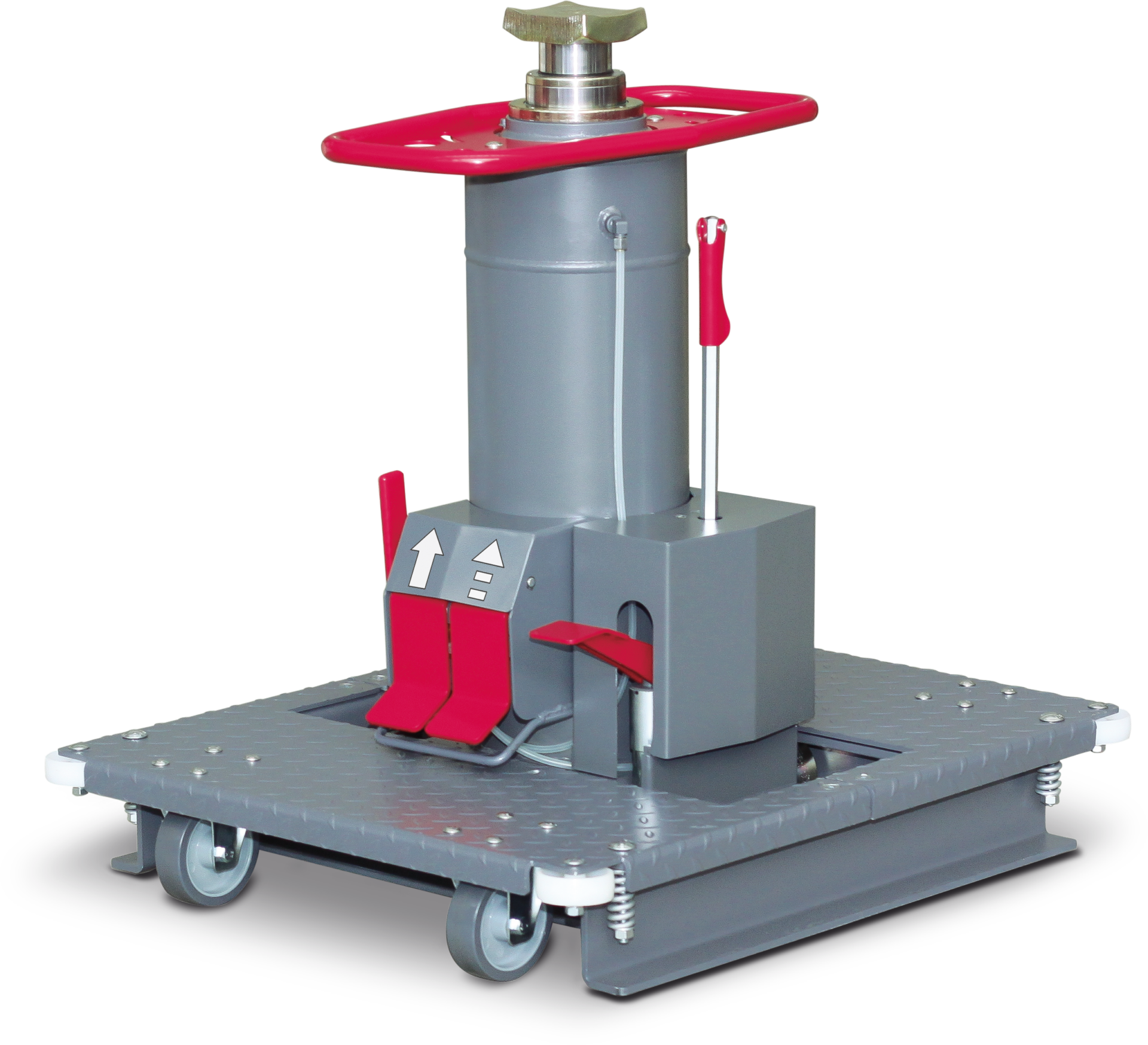

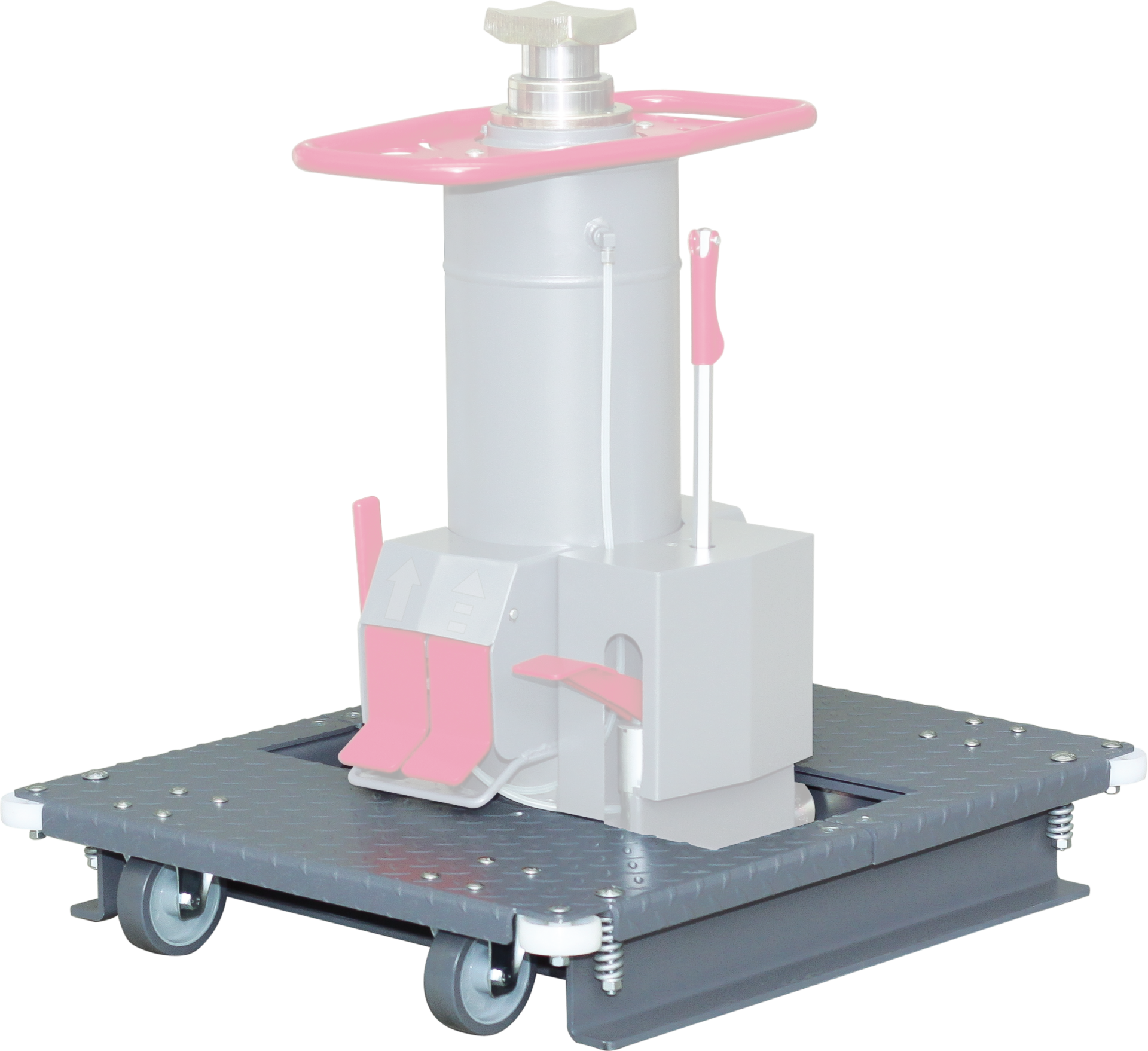

KE200M – With integrated cross suspension for optimum precision work
- Patented operation on both sides (optional)
- 30% faster lifting speed (optional)
- Optimal Ergonomics
- Patented operation on both sides (optional) – The time required to accommodate a vehicle is reduced to a minimum, it is no longer necessary to leave the pit.
- Double acting air motor (optional) – enables a 30% higher lifting speed.
- Totally covered air motor makes cleaning easier and reduces the risk of injury (optional).
- Integrated tool tray brings the tool to the mechanic, not the other way round.
- Needle bearing-mounted chassis pulleys allow the lift to be moved about effortlessly in the pit. All M and X chassis lower automatically when charged with a load exceeding 0.8 t.
- Ergo Chromatics – All operating controls are marked in color with the color red and thus effectively prevent incorrect operation.
- Ergonomic chassis – The newly designed chassis bring the mechanic closer to the lift, and therefore closer to the vehicle.
- 2-layer surface finish – Opulent coating process for perfect protection against corrosion.
- Slim Design – With the benefit of full lateral adjustment, the ground level construction method permits maximum freedom of movement.
- Hydraulic-pneumatic automatic return allows the piston to return quickly with or without load.
- Extra-long cylinder heads – Guarantee optimum absorption of lateral forces.
- Fully hydraulic lifting unit – The piston rods are sprinkled with oil with each lifting/lowering movement – no rust on the cylinder wall and piston rod!
- Infinitely variable creep lifting speed – important for delicate lifting and for the deployment of power units.
- Hydraulic-pneumatic quick lift ensures a quick start-up of the piston rods up to the lifting point.
- Operation via foot pedals – the hands remain free to carry out work on the vehicle.
