4-post lift RAV4406LSIQ

4.0 t, electrohydraulic, symmetrical, track length 5100 mm, with wheel-free jack and wheel alignment, above ground

MPN: RAV.4406L.194749
GTIN (EAN): 5063084194749
Category:
Tags: ,
Request Information

Share on:

Description

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
  • High-resistant, galvanised and pre-stretched metal cables
  • Large-diameter pulleys with self-lubricating and maintenance-free bushes
  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
  • Immediate-triggering safety stud devices in case a cable slackens or fails
  • Automatic anti-toe trap alarm during final stages of lift descent
  • Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
  • Low-voltage (24 V) electrical system with control circuit
  • Extra-long platforms for total wheel alignment with front turntables locations and rear slip plates
  • Electro-hydraulic wheel-free jack featuring adjustable platforms and up/down movements hydraulically synchronised
  • Wheel-alignment lifts complete with wheel-free jack are the perfect solution for the vehicle total wheel alignment check

Media

Similar Products

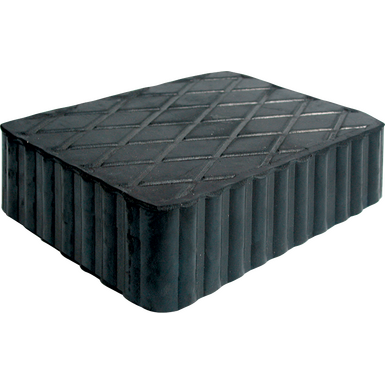

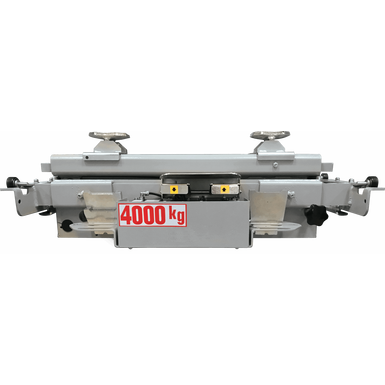

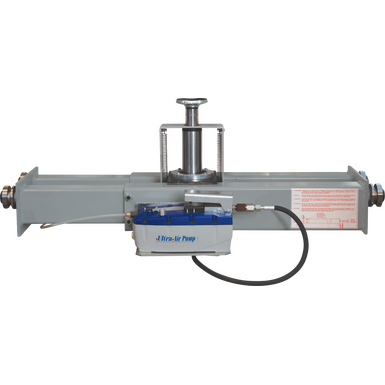

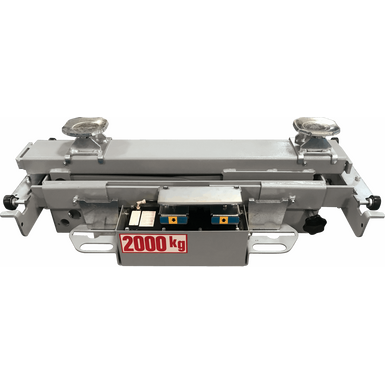

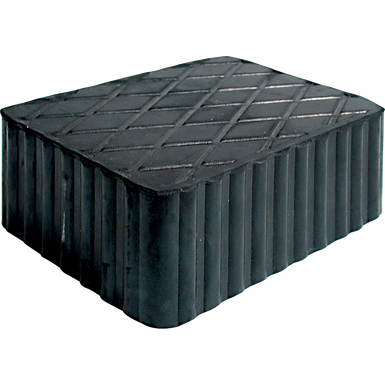

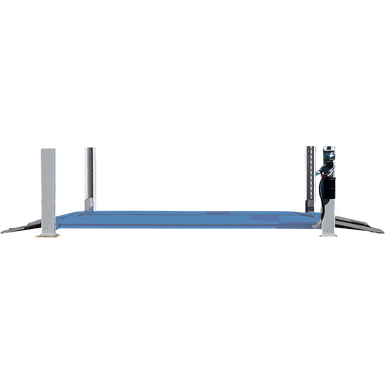

Accessories

Tech Data

Features4-post lift RAV4406LSIQ4-post lift RAV4406LSIQ4-post lift RAV4502LSIQ4-post lift RAV4502LSIQ4-post lift RAV4402SI4-post lift RAV4402SI4-post lift RAV4406LSI4-post lift RAV4406LSI4-post lift RAV4502LSI4-post lift RAV4502LSI
Number of columns44444
Mode of driveElectrohydraulicElectrohydraulicElectrohydraulicElectrohydraulicElectrohydraulic
ControlElectricElectricElectricElectricElectric
Type of installationFloor mountedFloor mountedFloor mountedFloor mountedFloor mounted
Capacity4000kg5000kg4000kg4000kg5000kg
Max. lifting height1965mm1965mm1915mm1965mm1965mm
Высота подъема230мм————
Чистый промежуток между3000мм————
Чистый промежуток между (выход)3355мм————
Высота стойки2300мм————
Ширина сквозного проезда2670мм————
Wheel alignmentStandardStandardStandardStandardStandard
Length of platforms5100mm5700mm4460mm5100mm5700mm
Ширина платформ650мм————
Пространство подъездных путей900мм————
Wheel free liftStandardStandardStandardStandardStandard
Мощность привода2,6кВт————
