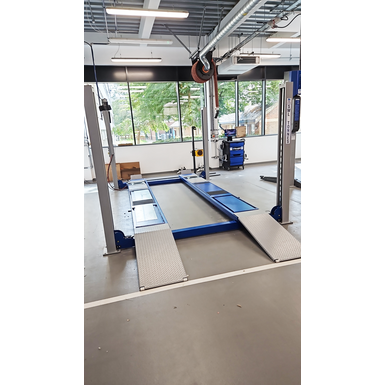

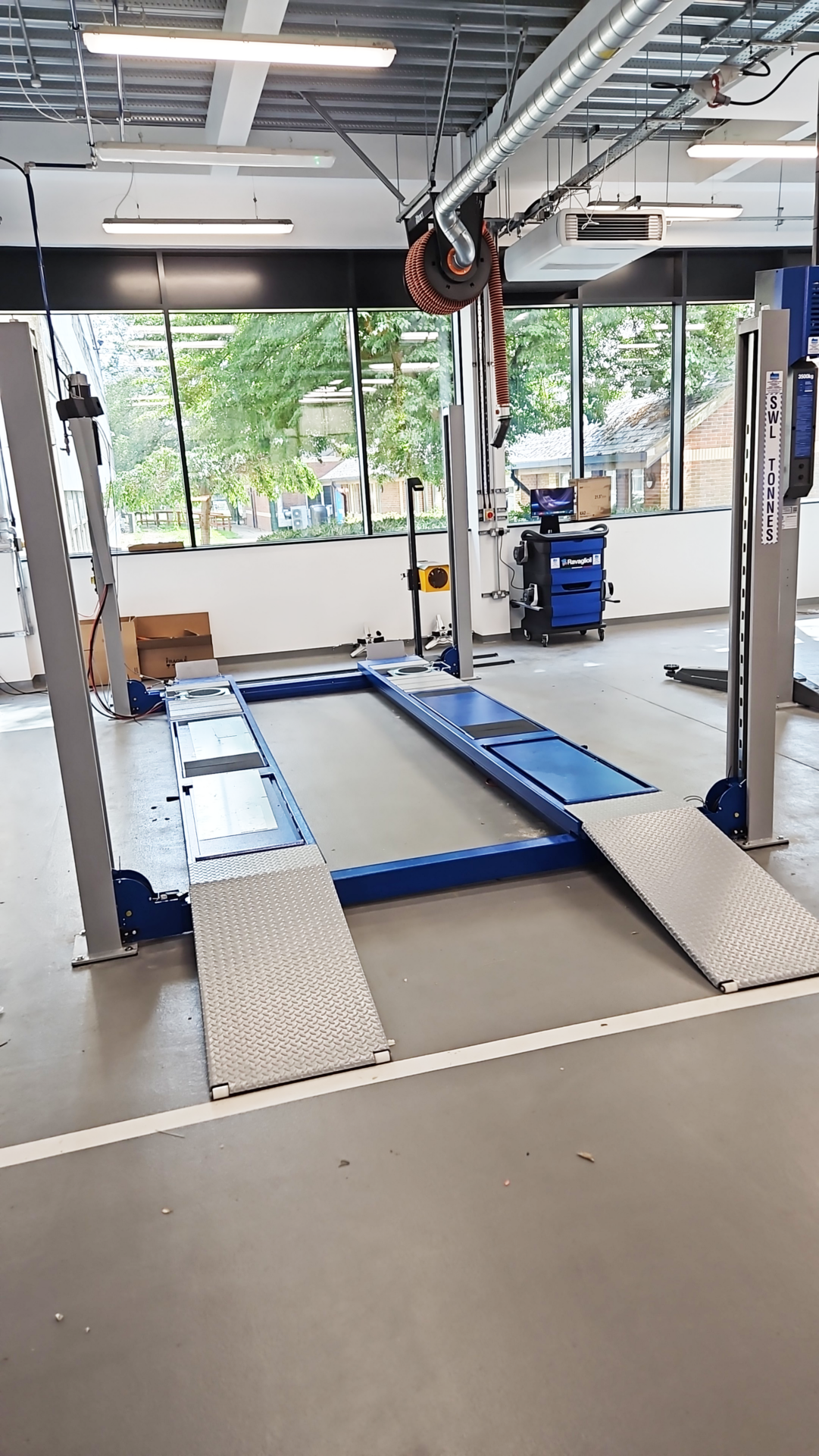

4-post lift RAV4402SI

4.0 t, electrohydraulic, symmetrical, track length 4460 mm, with wheel-free jack and wheel alignment, above ground

MPN: RAV.4402S.194794
GTIN (EAN): 5063084194794
Category:
Tags: , ,
Request Information

Share on:

Description

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
  • High-resistant, galvanised and pre-stretched metal cables
  • Large-diameter pulleys with self-lubricating and maintenance-free bushes
  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
  • Immediate-triggering safety stud devices in case a cable slackens or fails
  • Automatic anti-toe trap alarm during final stages of lift descent
  • Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
  • Low-voltage (24 V) electrical system with control circuit
  • Platforms for total wheel alignment with front turning plates locations and rear slip plates
  • Low-friction rear slip plates – They can be manually locked in the central position; Transverse and angular movements in both directions
  • Electro-hydraulic wheel free lift featuring adjustable platforms and up/down movements hydraulically synchronised
  • Wheel-alignment lifts complete with wheel free lift are the perfect solution for the vehicle total wheel alignment check

Media

Similar Products

Accessories

Tech Data

Features4-post lift RAV4402SI4-post lift RAV4402SI4-post lift RAV4406LSI4-post lift RAV4406LSI4-post lift RAV4502LSIQ4-post lift RAV4502LSIQ4-post lift RAV4406LSIQ4-post lift RAV4406LSIQ4-post lift RAV4502LSI4-post lift RAV4502LSI
Number of columns44444
Mode of driveElectrohydraulicElectrohydraulicElectrohydraulicElectrohydraulicElectrohydraulic
ControlElectricElectricElectricElectricElectric
Type of installationFloor mountedFloor mountedFloor mountedFloor mountedFloor mounted
Capacity4000kg4000kg5000kg4000kg5000kg
Max. lifting height1915mm1965mm1965mm1965mm1965mm
Высота подъема230мм————
Чистый промежуток между2800мм————
Чистый промежуток между (выход)3155мм————
Высота стойки2614мм————
Ширина сквозного проезда2470мм————
Wheel alignmentStandardStandardStandardStandardStandard
Length of platforms4460mm5100mm5700mm5100mm5700mm
Ширина платформ550мм————
Пространство подъездных путей860 – 1210мм————
Wheel free liftStandardStandardStandardStandardStandard
Мощность привода2,6кВт————
Электрическое соединение230/400 В | 50 Гц————
Фазы3————
