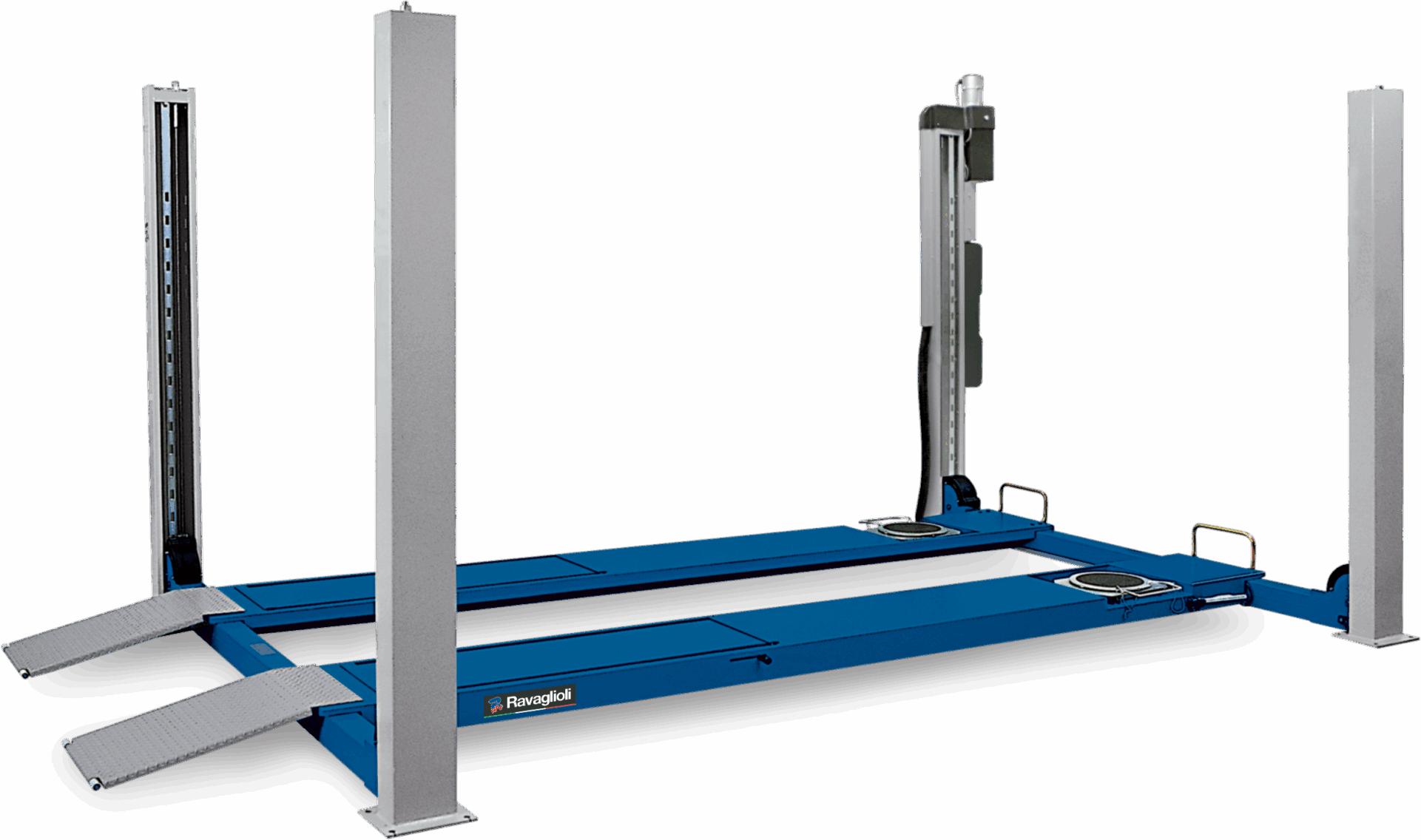

4-post lift RAV4402

Description

The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
High-resistant, galvanised and pre-stretched metal cables
Large-diameter pulleys with self-lubricating and maintenance-free bushes
Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
Immediate-triggering safety stud devices in case a cable slackens or fails
Automatic anti-toe trap alarm during final stages of lift descent
Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
Low-voltage (24 V) electrical system with control circuit

Platforms for total wheel alignment with front turning plates locations and rear slip plates
Low-friction rear slip plates – They can be manually locked in the central position; Transverse and angular movements in both directions

Media

Accessories

Jacking beams

Jacking beam J20NX
MPN: VSG.J20NX.901941

2.0 t, hydraulic, operated by means of hand-pump
Jacking beams

Jacking beam J20PNX
MPN: VSG.J20PN.901767

2.0 t, air-hydraulic
Jacking beams

Jacking beam J20PNXL
MPN: VSG.J20PN.901682

2.0 t, air-hydraulic
Jacking beams

Jacking beam J20PNR
MPN: VSG.J20PN.901583

2.0 t, air-hydraulic
Jacking beams

Jacking beam J20PNRL
MPN: VSG.J20PN.901422

2.0 t, air-hydraulic
Jacking beams

Jacking beam J30PKL
MPN: VSG.J30PK.902368

3.0 t, air-hydraulic
Jacking beams

Jacking beam J30X
MPN: VSG.J30XX.901514

3.0 t, hydraulic, operated by means of hand-pump
Jacking beams

Jacking beam J30PX
MPN: VSG.J30PX.901781

3.0 t, air-hydraulic
Jacking beams

Jacking beam J30PXL
MPN: VSG.J30PX.901804

3.0 t, air-hydraulic
Jacking beams

Jacking beam J30PR
MPN: VSG.J30PR.901392

3.0 t, air-hydraulic
Jacking beams

Jacking beam J30PRL
MPN: VSG.J30PR.901828

3.0 t, air-hydraulic
Jacking beams

Jacking beam J40PRL
MPN: VSG.J40PR.901965

4.0 t, air-hydraulic
Jacking beams

Jacking beam J40PXL
MPN: VSG.J40PX.902191

4.0 t, air-hydraulic
Jacking beams

Jacking beam J40PKL
MPN: VSG.J40PK.901880

4.0 t, air-hydraulic
Jacking beams

Jacking beam J40PY
MPN: VSG.J40PY.902214

4.0 t, air-hydraulic
Jacking beams

Jacking beam J50PHT
MPN: VSG.J50PH.902238

5.0 t, air-hydraulic, effective stroke 392 mm
Jacking beams

Jacking beam J50PHA
MPN: VSG.J50PH.902177

5.0 t, air-hydraulic
Accessories 4-post lifts

Run up ramps long, 1100 mm
MPN: S4351A2

For 4-post lifts RAV4401, RAV4402, RAV4401SI | 1 pair
Accessories 4-post lifts

Run off ramps for RAV4401, RAV4402, RAV4401SI | 1 pair
MPN: S4351A1
Accessories 4-post lifts

Power unit cover for RAV4350, RAV4401, RAV4800, RAV4402, RAV4401SI, RAV4402SI, RAV4651L, RAV4652L
MPN: S4300A3
Accessories 4-post lifts

Post covers for 4-post lift
MPN: S401A8
Accessories scissor lifts

Rubber pads 20 mm
MPN: S505A7

Suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and RAV.650N5.193919 | 1…
Accessories scissor lifts

Rubber pads 40 mm
MPN: S505A6

Suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and RAV.650N5.193919 | 1…
Accessories scissor lifts

Rubber pads 60 mm
MPN: S505A9

Suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N6.193964, RAV.660N2.193360, RAV.650N6.193025, RAV.640N5.193049 and RAV.640N4.192998 | 1 set / 4 pieces
Accessories scissor lifts

Rubber pads 120 mm
MPN: S505A5

Suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and RAV.650N5.193919 | 1…
Accessories scissor lifts

Rubber pads 200 mm
MPN: S505A1

Suitable for RAV.640N1.193391, RAV.650N1.193742, RAV.650N2.193858, RAV.650N2.193520, RAV.650N2.193667, RAV.650N6.193964, RAV.650N5.193902, RAV.660N2.193360, RAV.650N5.193018, RAV.650N6.193025, RAV.640N5.193049, RAV.640N4.192998, RAV.640N3.192981, RAV.650N2.193384 and RAV.650N5.193919 | 1…
Accessories 4-post lifts

LED lighting kit
MPN: VAR4400A10

Tech Data

Features	4-post lift RAV4402	4-post lift RAV4402	4-post lift RAV4406L	4-post lift RAV4502L	4-post lift RAV4652L
Number of columns	4	4	4	4	4
Mode of drive	electrohydraulic	electrohydraulic	electrohydraulic	electrohydraulic	electrohydraulic
Control	electric	electric	electric	electric	electric
Type of installation	floor mounted	floor mounted	floor mounted	floor mounted	floor mounted
Rated load capacity	4000kg	4000kg	4000kg	5000kg	6500kg
Max. lifting height	1915mm	1915mm	1965mm	1965mm	2000mm
Drive-on-height	160mm	160mm	210mm	210mm	—
Clear span between	2800mm	2800mm	3000mm	3000mm	—
Clear span between (out)	3155mm	3155mm	3355mm	3355mm	—
Column height	2614mm	2614mm	2300mm	2300mm	—
Drive-through width	2470mm	2470mm	2670mm	2645mm	—
Length of platforms	4460mm	4460mm	5100mm	5700mm	5700mm
Width of platforms	530mm	530mm	650mm	650mm	—
Space of platforms	860 – 1210mm	860 – 1210mm	900mm	776 – 940mm	—
Driving power	2,6kW	2,6kW	2,6kW	2,6kW	—
Power supply	230/400 V \| 60 Hz	—	—	—	—
