Electro-hydraulic 2-post lifts
Expand your horizons
Maximum Safety & Stability
Built for long-term reliability
Super-fast installation
High flexibility for all vehicle
Horizon Series: a complete range of 2-post lifts engineered
to adapt to any workshop, any vehicle, any challenge.
Performance you can measure

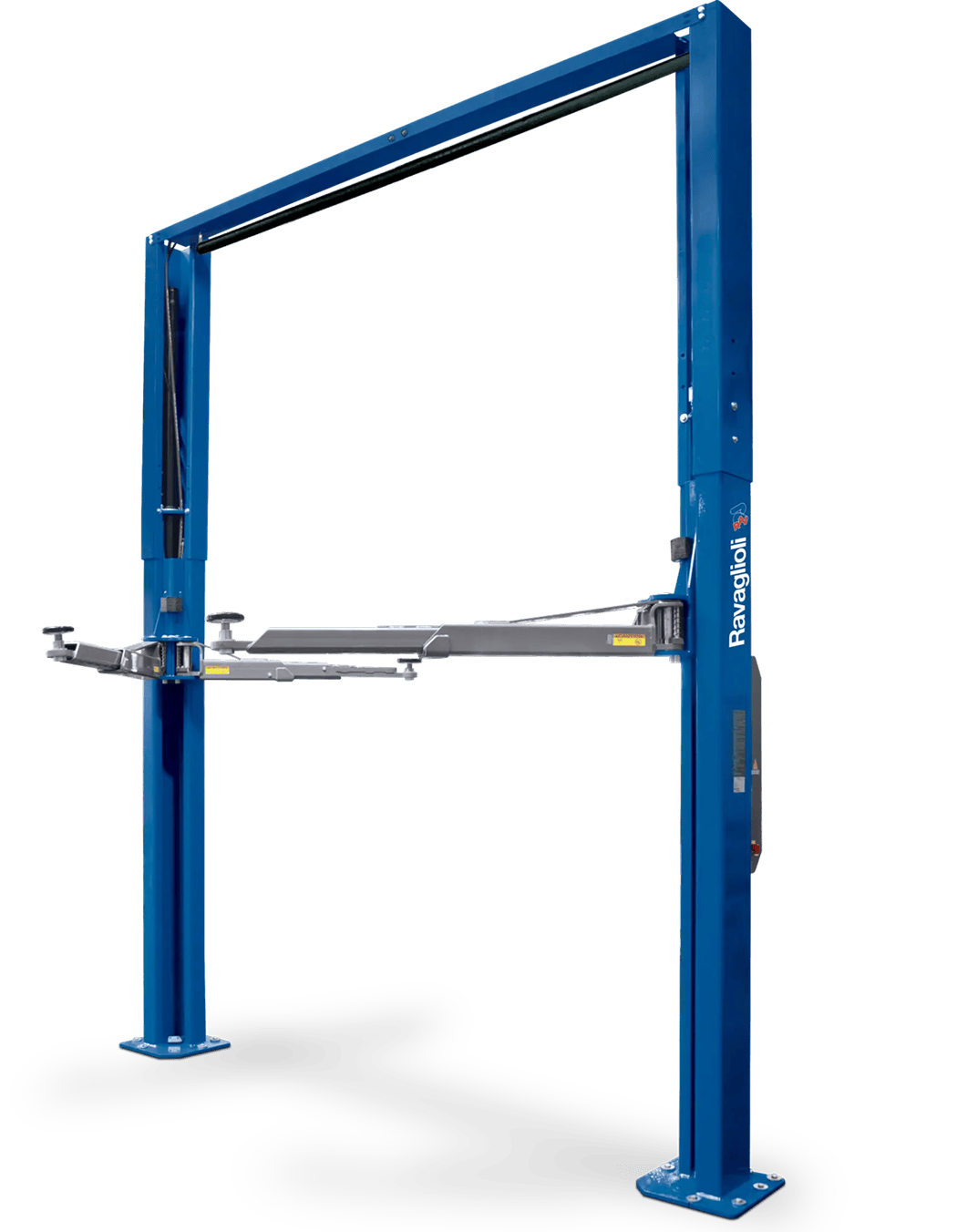

Horizon Series
The Horizon Series redefines the standard for 2-post electro-hydraulic lifts. Rope-free synchronisation, always-on mechanical safety, and a modular architecture that adapts to every workshop. These lifts are built for those who can’t afford compromises.
Key features
Engineering for the workshop
Mechanical safety always on
The presence of the mechanical harpoon guarantees extreme safety when parking.

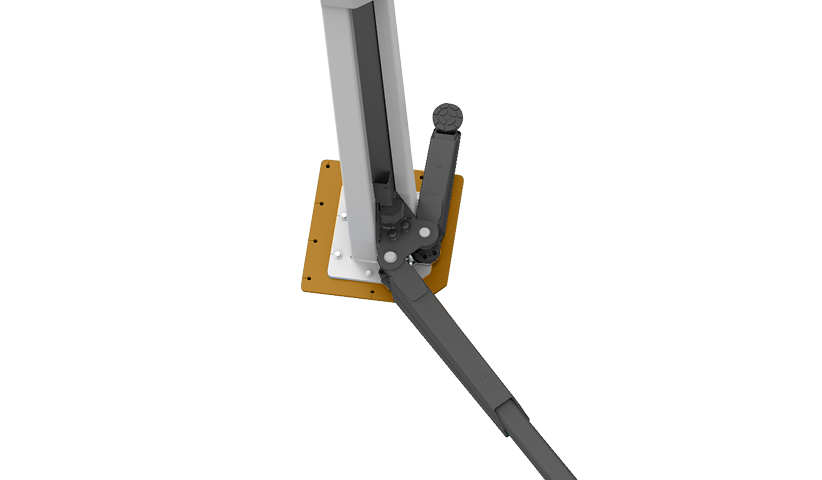

Arm safety locking
Arm safety locking with automatic engagement and automatic release when the arm reaches the floor.
Fast installation
From two to three installation heights 3940, 4055, and 4170 mm fit the majority of existing workshop layouts without site modifications. The lift is ready to operate from day one.
Built for long-term reliability
The low-maintenance cylinder design, combined with a rope-free architecture, significantly reduces service interventions and minimizes machine downtime throughout the working day.
Standard limit switch
Standard limit switch automatically detects the maximum lifting position and cuts movement, preventing the vehicle from leaving the operational area.
High flexibility for all vehicle
Arm geometry covers the full range of vehicles. The asymmetric column layout maximises drive-through clearance and allows direct access to underfloor lifting points, including electric vehicles.
product range
Lifts for every needs
Each KPH model is optimised for a precise capacity segment, with dedicated variants for different vehicle types.

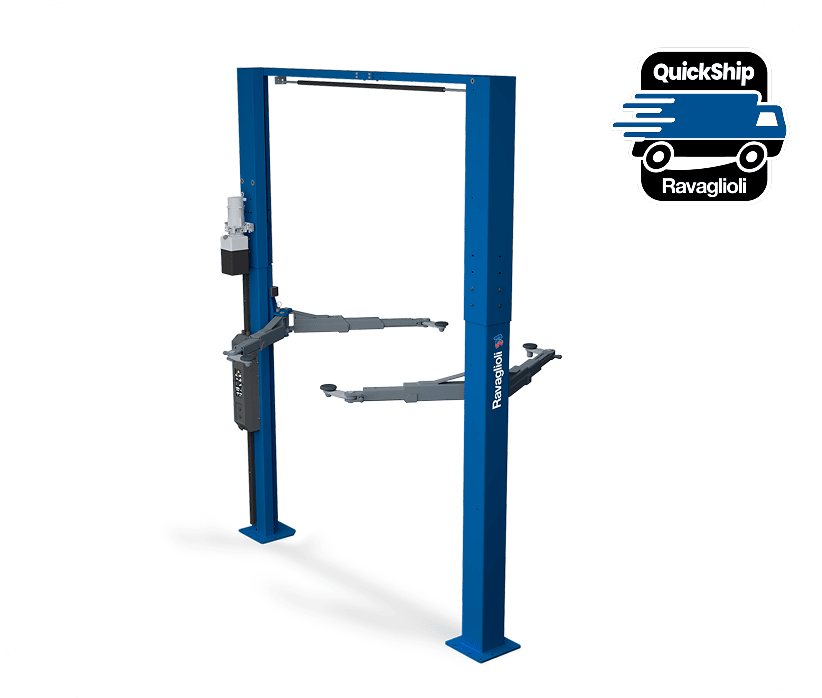

3500 kg
KPH35
The best selling in the range. Available in 4 versions standard, medium, sports and premium EV for multi-brand workshops and fast-turnaround service.
Available Models

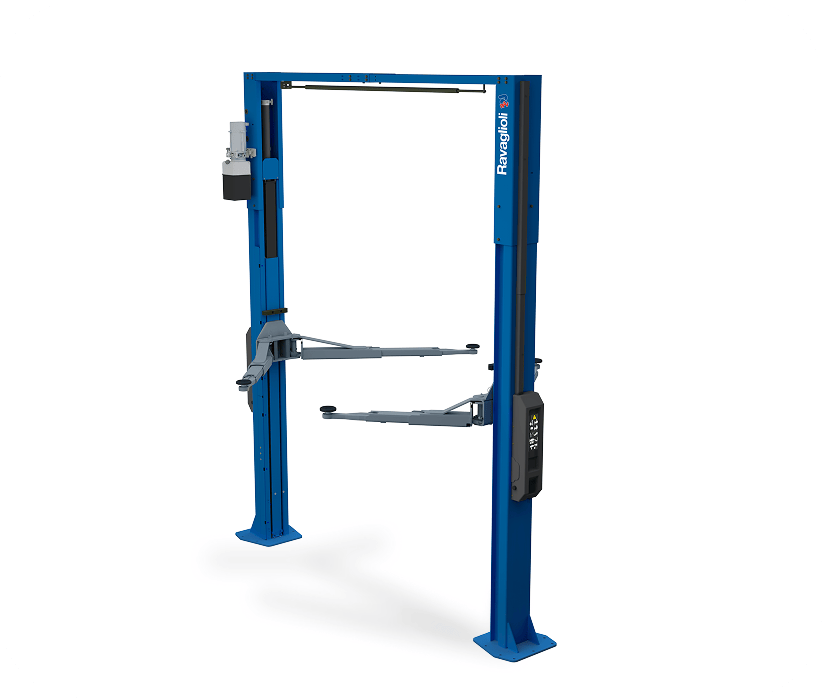

4000 kg
KPH40AV
Equipped with the innovative AV “All Vehicles” arms, which extend 20% further than conventional arms to reach the lifting points of the widest vehicle range.
Available Models

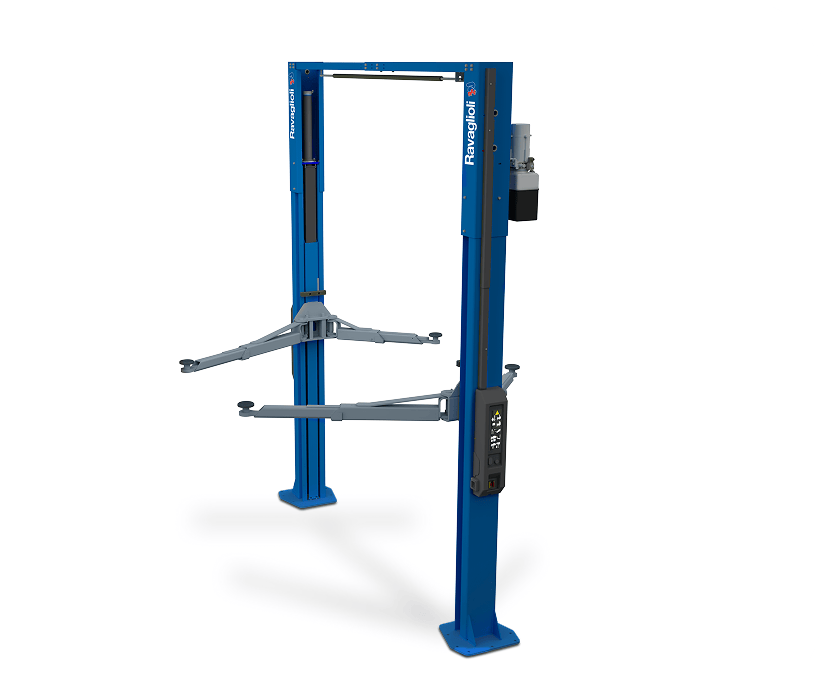

4500 kg
KPH45
The top capacity in the KPH range.
Available as KPH45S, SLIKM (with energy kit and long arms) and SP.
Available Models
Models
The right model
for every vehicle
Standard
most popular

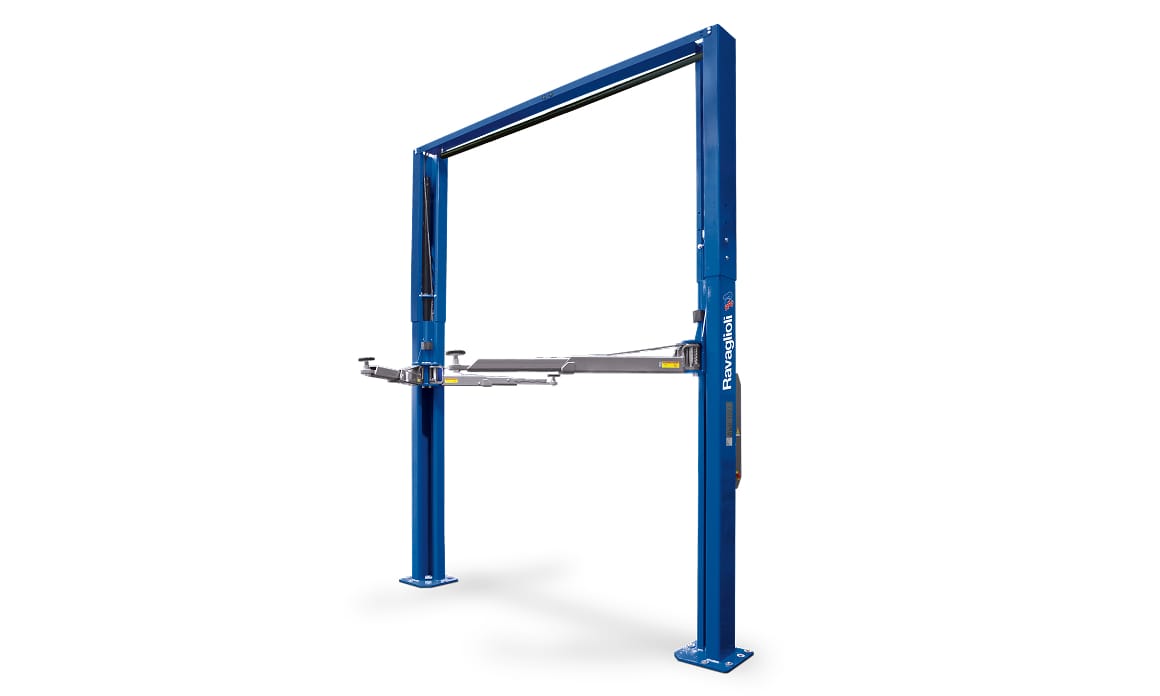

KPH35
Asymmetric standard arms for universal coverage. The entry point of the KPH35 family handles the majority of passenger cars, MPVs and small vans with no compromises on structural rigidity or cycle speed.
Supported
Main Tech Data:
Min. front arm length: 550 mm
Max. front arm length: 1105 mm
Min. rear arm length: 876 mm
Max. rear arm length: 1473 mm
Capacity: 3500 kg
* Energy Kit available in the M model

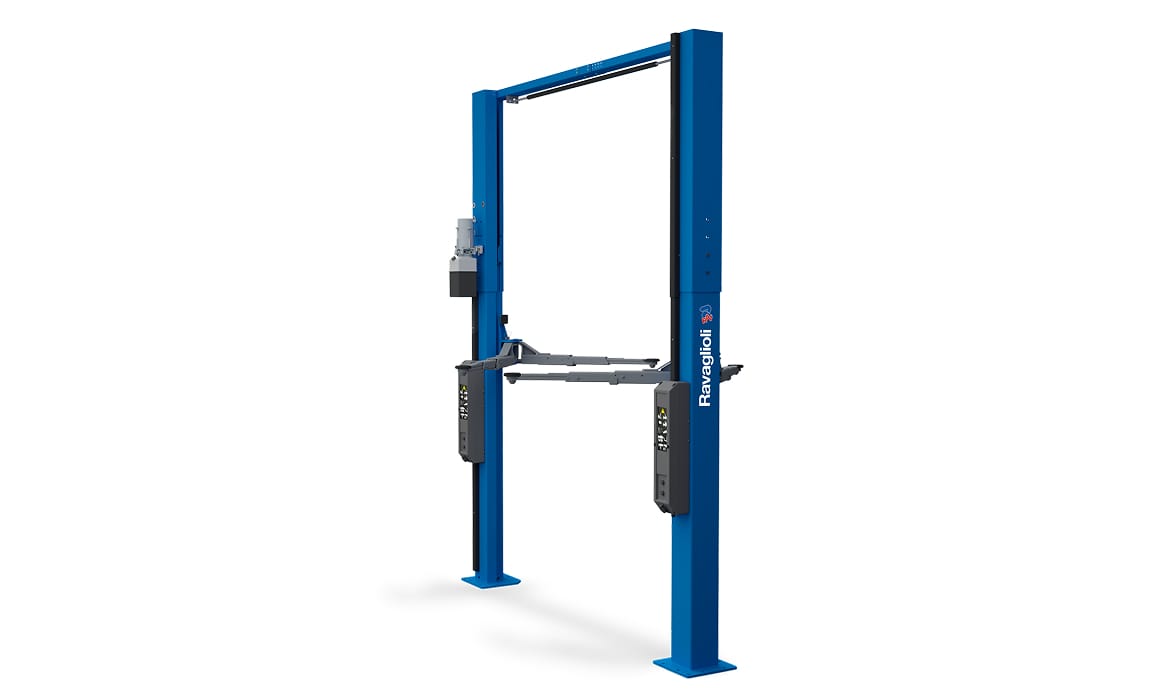

Medium Sports car

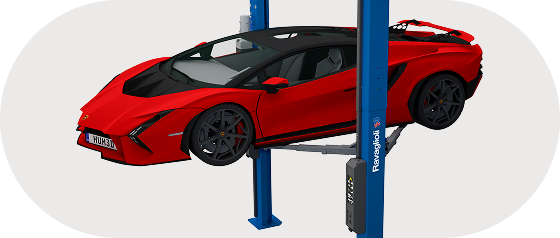

KPH35RM
Super-low arms run parallel to the floor, reaching under sports cars and low-slung vehicles that conventional arms can’t access.
Supported
Recommended
Main Tech Data:
Min. front arm length: 585 mm
Max. front arm length: 1195 mm
Min. rear arm length: 585 mm
Max. rear arm length: 1195 mm
Capacity: 3500 kg
Energy Kit Standard
Main Arm Characteristic
Super low arms parallel to the floor

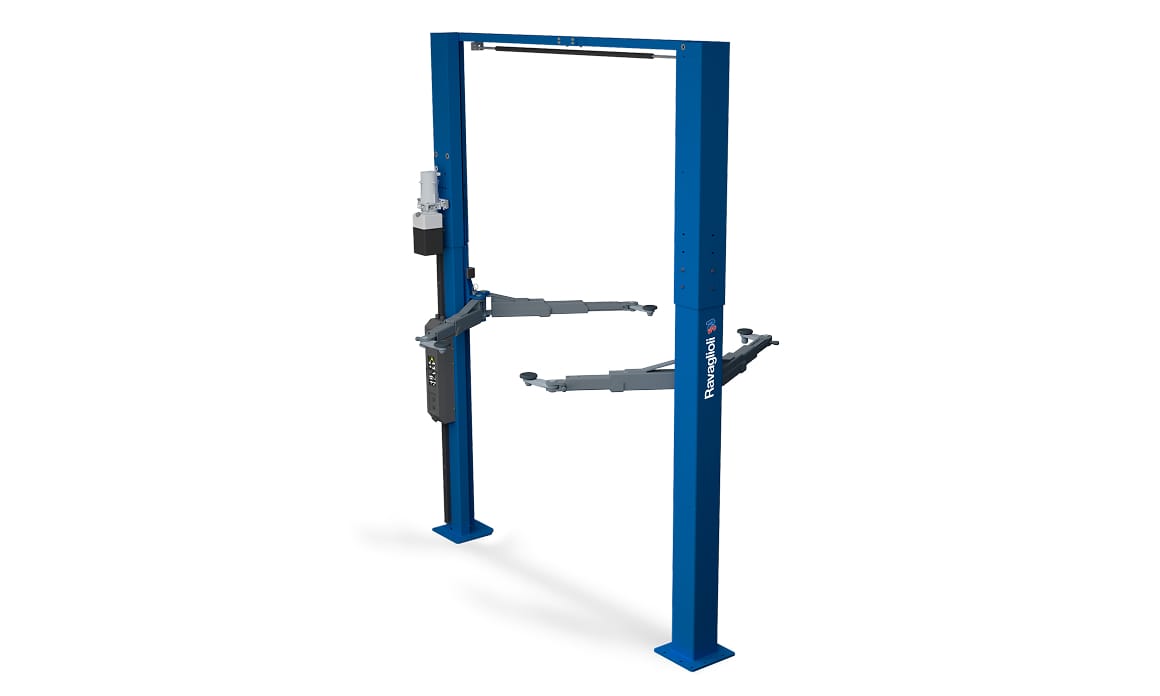

Premium Electric Vehicle
KPH35EVP

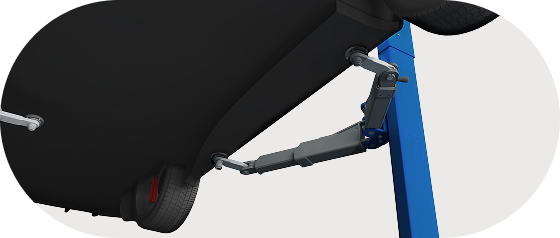

Low-profile arms fitted with a swivel joint that pivots to give direct access to the battery pack during removal without repositioning the vehicle. Purpose-built for the service requirements of modern EVs, including underfloor battery packs.
Supported
Recommended
Main Tech Data:
Min. front arm length: 668 mm
Max. front arm length: 1143 mm
Min. rear arm length: 686 mm
Max. rear arm length: 1474 mm
Capacity: 3500 kg
Energy Kit Standard
Main Arm Characteristic
Low-profile arms with a swivel joint that allows direct access to the battery pack when removing it.
All Vehicles
most Versatile

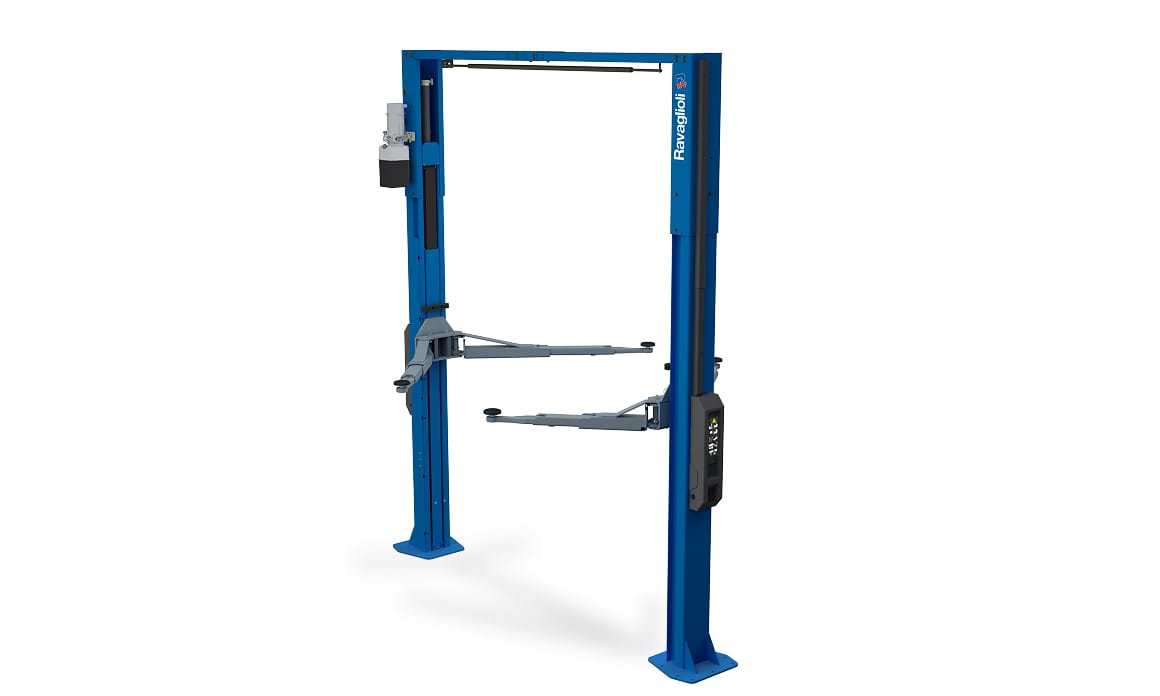

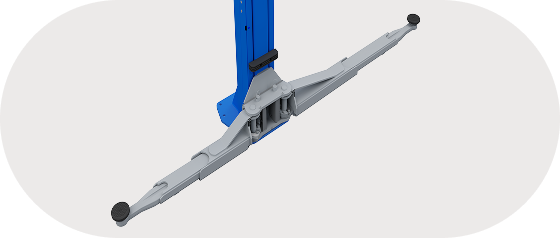

KPH40SAVM
The AV (“All Vehicles”) arms extend 20% further than conventional arms, closing the 4-tonne gap between standard workshop lifts and specialist equipment. From compact city cars to light vans, one lift covers the full spectrum.
Supported
Main Tech Data:
Min. front arm length: 470 mm
Max. front arm length: 1039 mm
Min. rear arm length: 725 mm
Max. rear arm length: 1480 mm
Capacity: 4000 kg
Energy Kit Standard
Main Arm Characteristic
AV (“All Vehicles”) arms that extend 20% further than traditional arms, enabling access to the lifting points of a wide range of vehicles.

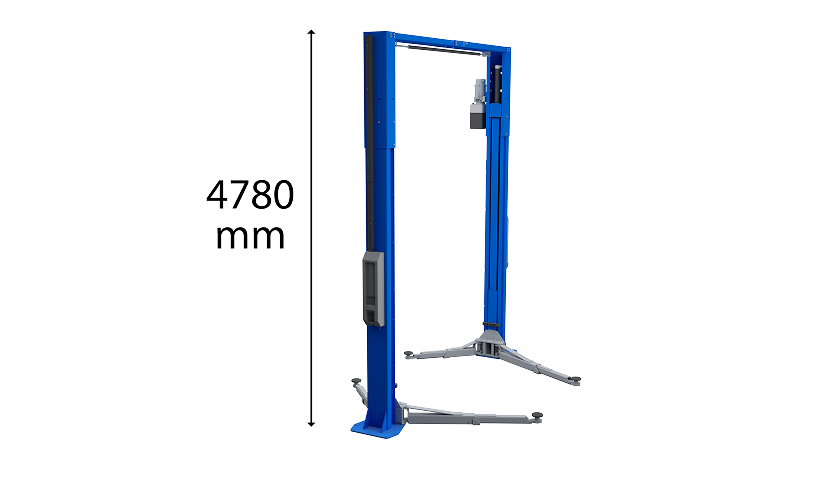

KPH45S
The top capacity in the KPH range. Extended 700–1,500 mm arms on both axles cover the wider stance of light commercial vehicles. The integrated energy kit adds EV-ready capability to a workshop’s heaviest bay.
Supported
Recommended
Main Tech Data:
Min. front arm length: 550 mm
Max. front arm length: 1106 mm
Min. rear arm length: 876 mm
Max. rear arm length: 1472 mm
Capacity: 4500 kg
* Energy Kit available in the P model

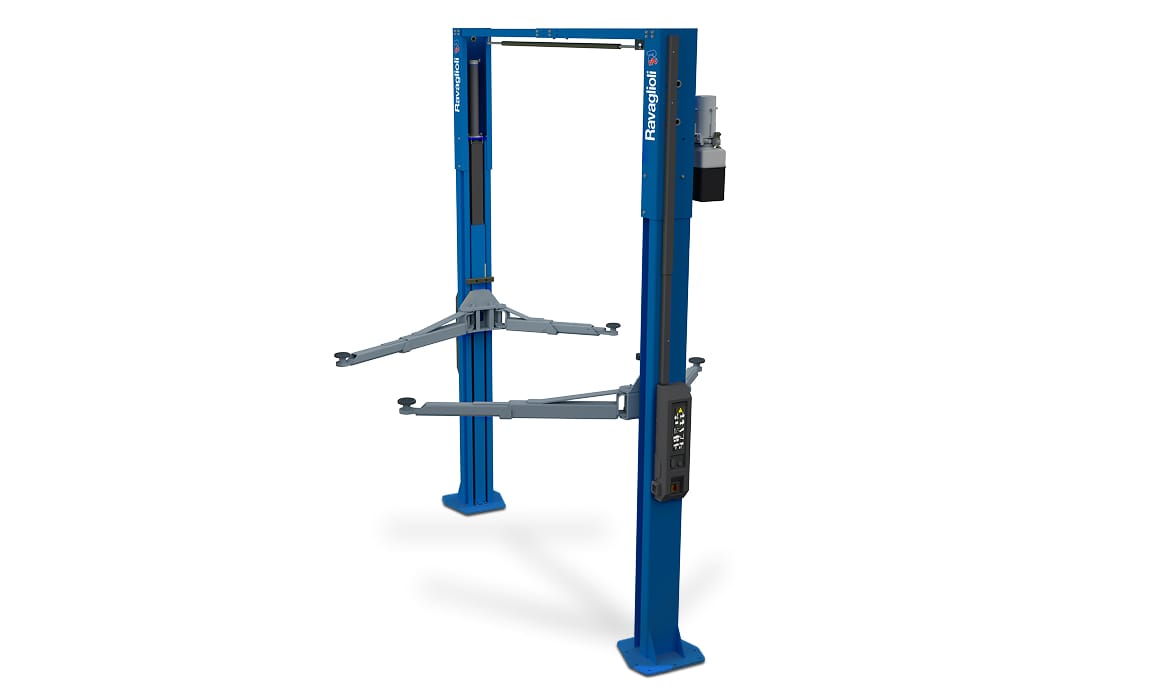

KPH45SLIKM
The top capacity in the KPH range. Extended 700–1,500 mm arms on both axles cover the wider stance of light commercial vehicles. The integrated energy kit adds EV-ready capability to a workshop’s heaviest bay.
Supported
Recommended
Main Tech Data:
Min. front arm length: 700 mm
Max. front arm length: 1500 mm
Min. rear arm length: 700 mm
Max. rear arm length: 1500 mm
Capacity: 4500 kg
Energy Kit Standard
product range
“We designed the Horizon Series to remove every friction point from workshop life: quick to install, safe under load and built to run without interrupting work day.”
Angela Cinelli
Lifting Product Manager

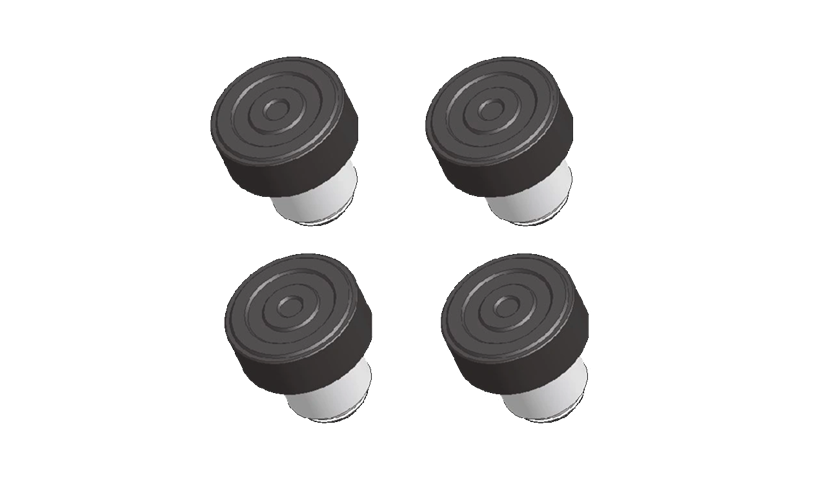

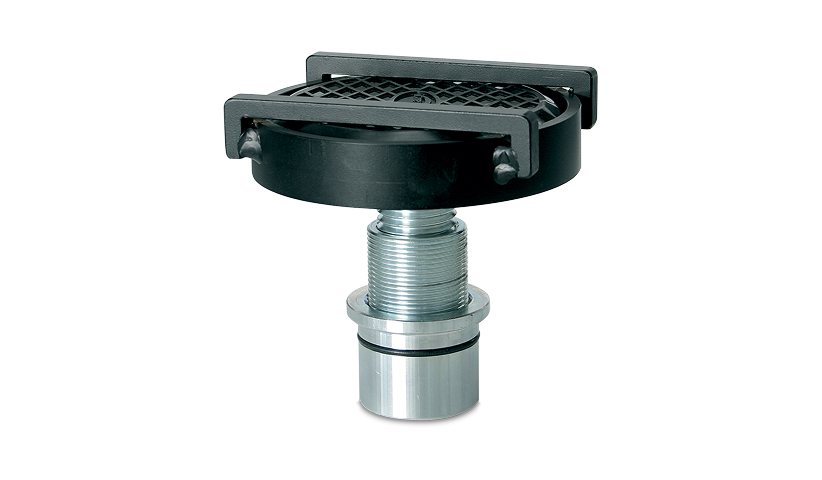

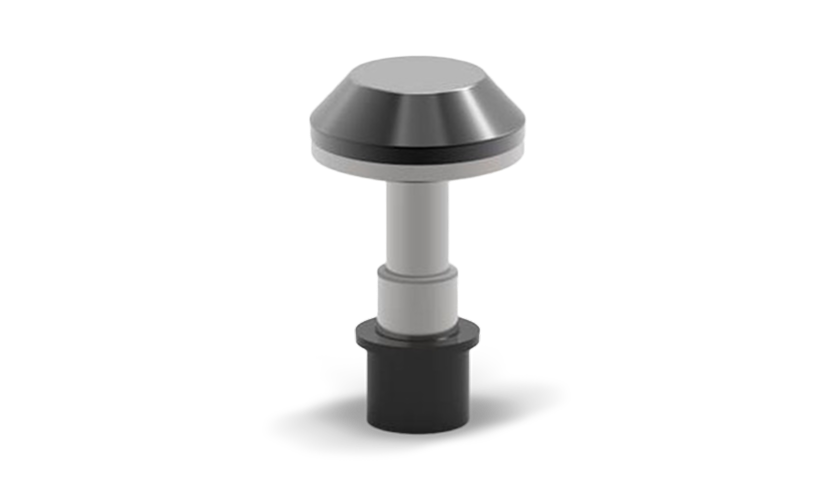

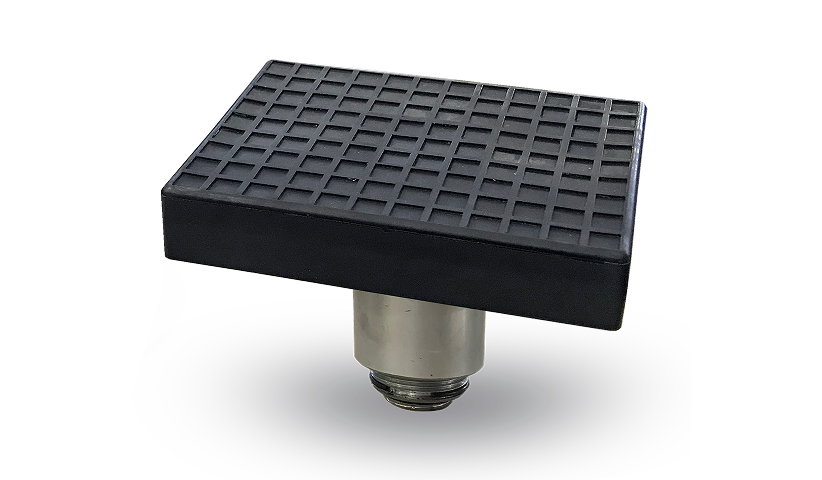

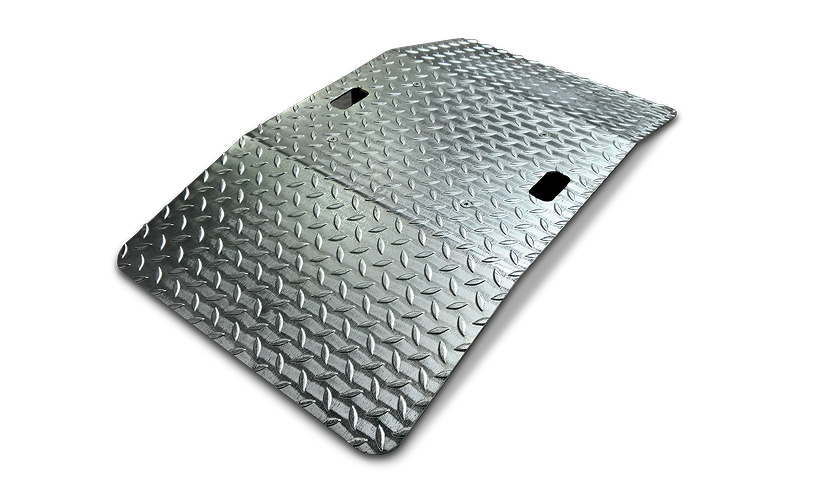

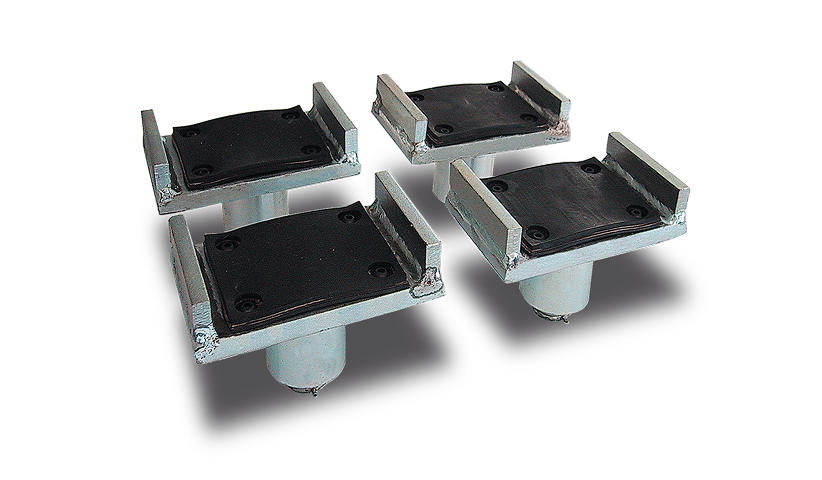

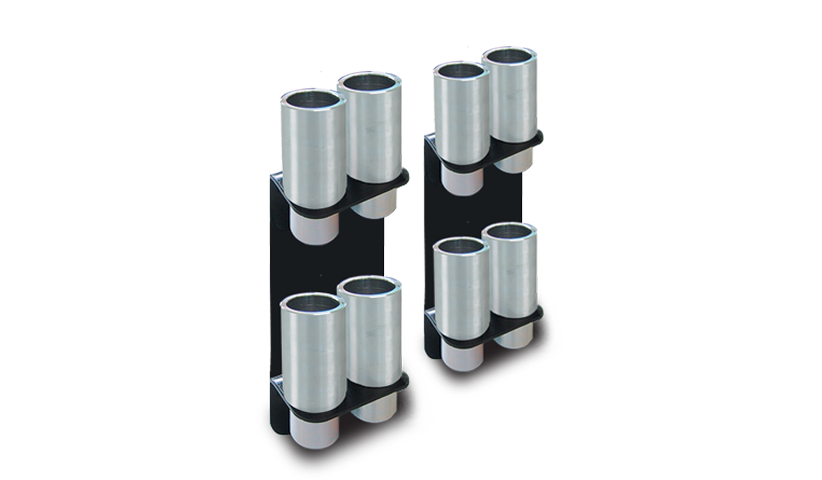

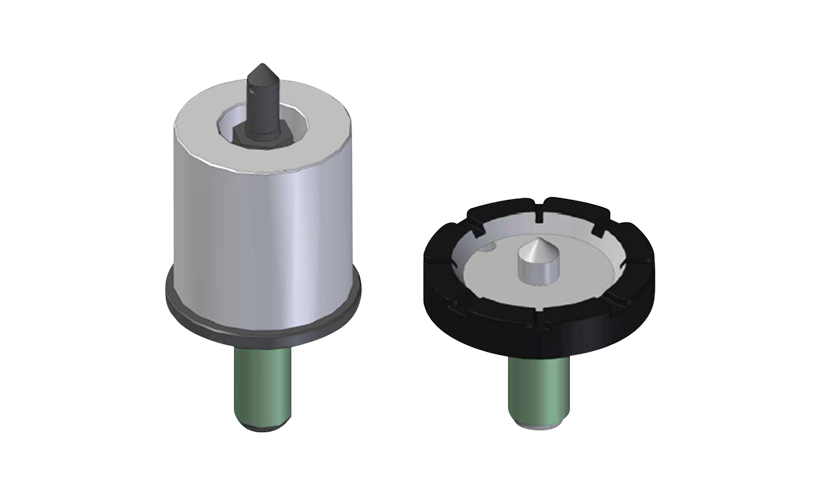

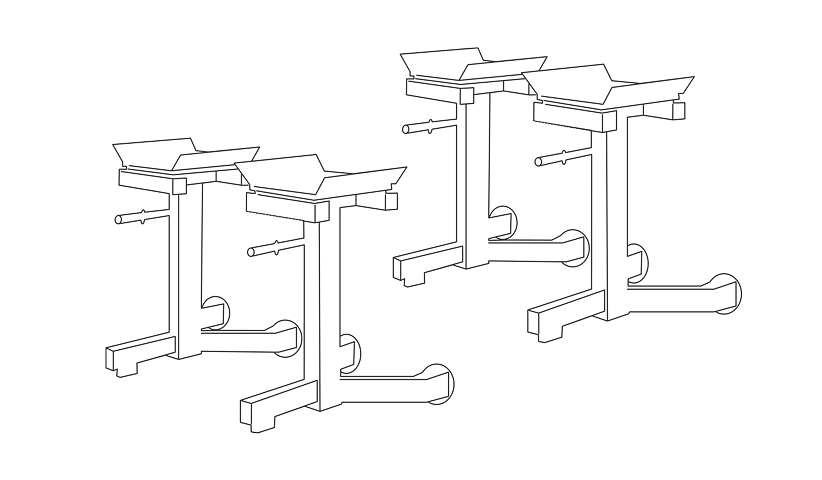

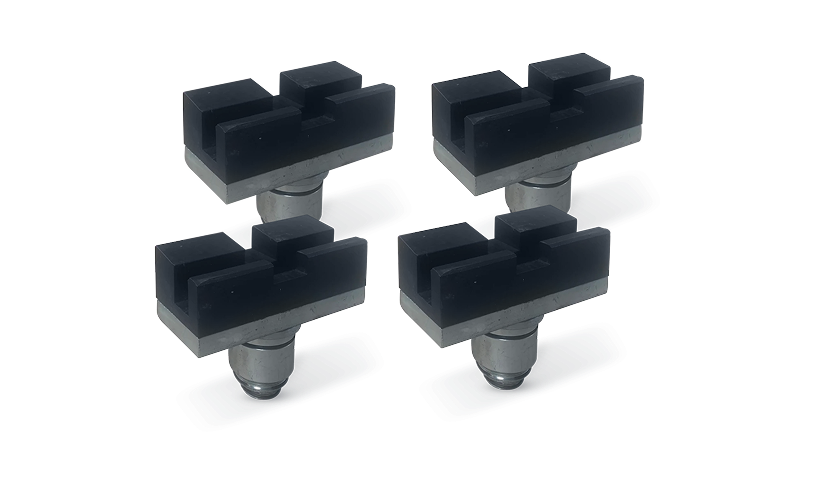

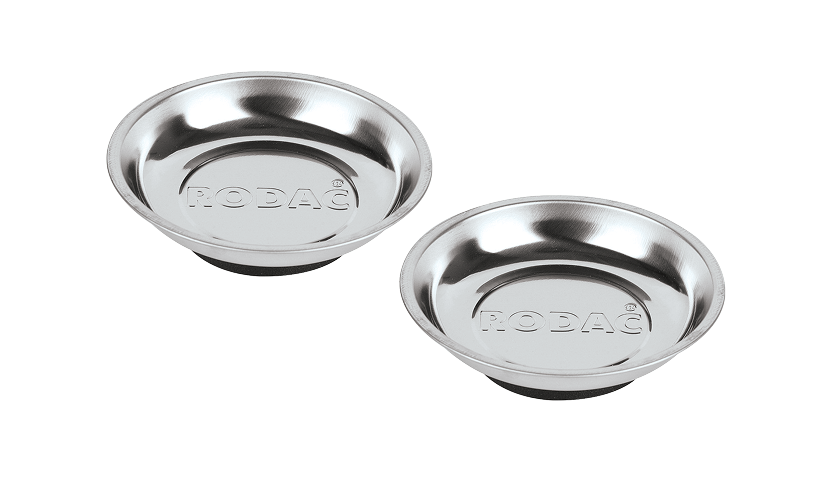

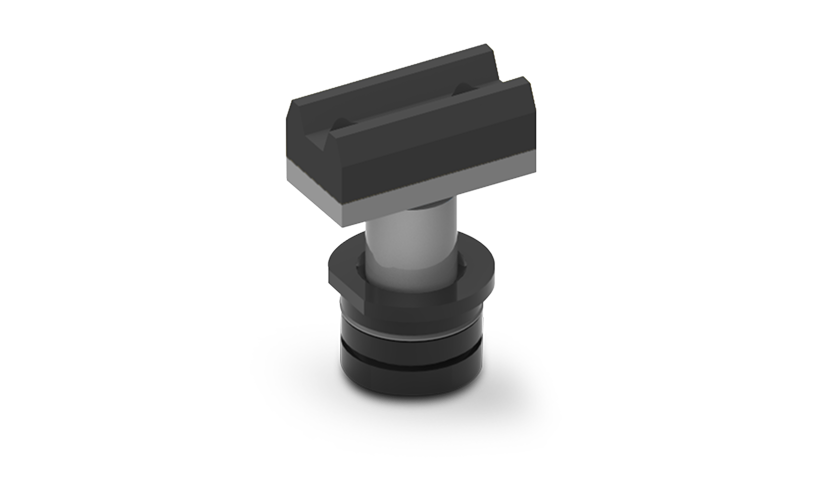

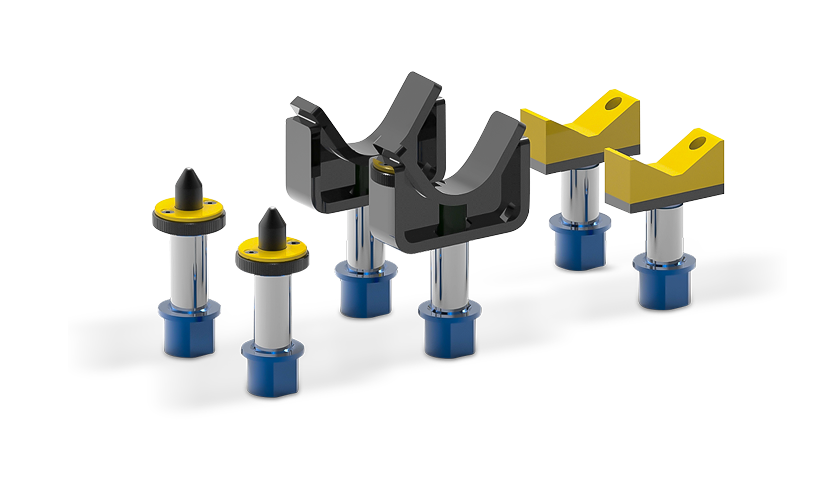

Accessories
Every vehicle has its accessories
The Ravaglioli accessories range covers the lifting requirements of the most widely serviced vehicles,
from EVs to light commercial vans.
Let’s bring Horizon Series
to your workshop
Contact us
Our sales team is here to help you find the right configuration for your workshop with personalised advice on model selection, installation, and accessories.
