Version with patented TOP inflation device
- 3 Working modes
- Standard
- Automatic (like G1200)
- PC managed
- Automatic mode
- Place the upper roller on the rim edge.
- Rotate the wheel and place the valve in start position.
- Press start button and the tyre changer is ready to work in automatic mode (G1200 program).
- Once the first wheel is done, the start position will be reached fast and automatically to repeat the job again and again.
- Patented lever-free tool
- Pneumatically operated beadbreaker discs:
- Built in scratch-proof material for complete rim protection.
- The rim edge sensor allows the roller to move forward automatically, enabling it to work on the bead without damaging the tyre’s sidewall.

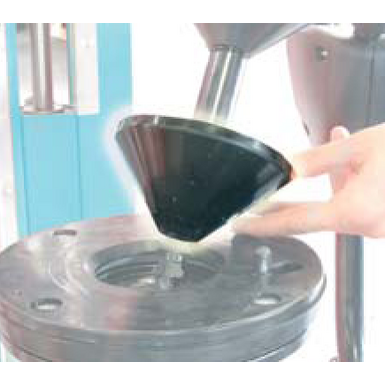

- The central rim locking system, suitable also for reverse rims, consists of a central pin with cone. The effort is minimal thanks to the special plate on which the wheel lays. The plate is floating, therefore offering a self-locking mechanism.
- 3 adjustable working heights
- Data bank: It is possible to memorize up to 100000 different wheels by:
- client name
- plate number
- any notes
- Data transfer: It is possible to transfer data among tyre changers — This is particularly useful when working with many tyre changers:
- at the same location (large tyre shop, vehicle or tyre manufacturing plant)
- at different locations (tyre shop chain, car dealer group)
- Customized data and a quick training allow easy demounting of difficult tyres even by inexperienced workers.
- PC managed operation
- Fill in the tyre data.
- The software automatically selects the best program among SOFT / STANDARD / RF/UHP — The user can decide to switch to another program (but the software does not allow programs which are not appropriate to that type of tyre).
- Place upper and lower rollers at the rim edge and the valve at start position.
- Press start button and the tyre changer will carry out the programmed job with minimum assistance.
- At any time a job can be stopped and then continued with no need to start again the entire cycle.
- Targeted job: The pre-set and dedicated cycle reduces working times
- When turned on, the tyre changer asks to choose the requested function:
- demounting/mounting tyres (standard operation)
- repeated demounting (as removing tyres from rims at car wreckers)
- repeated mounting (as in car manufacturing plants)
- User-friendly console:
- Simplifies the operator’s learning process
- With buttons for operating the rollers and tools
- Super fast:
- Once a wheel is clamped on the plate, demounting and mounting (complete cycle) varies from 55” to 75” including run-flat and UHP.
- Since 35” is the total time required to lift, lock, unlock and unload the wheel, the total time required for a complete cycle is as low as 90 — 110 sec from floor to floor position.
- Invemotor: Speed set by the operator, exactly as required — Inverter with governor to protect the tyre.
